Technical specifications for IC697CHS790

  • Manufacturer:
    General Electric
  • Product Category:
    General Automation
  • Spare Part Number:
    IC697CHS790
  • Estimated shipping dimensions:
    48.2x28.4x18.5cm
  • Weight:
    5.34 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • PLC platform:
    Series 90-70
  • Rack format:
    9-slot
  • Mounting style:
    Rear mount
  • Rack role:
    Main or expansion rack
  • Backplane:
    Series 90-70 PLC backplane
  • Power interface:
    Rack power-supply position
  • Module placement:
    Controller and I/O slots

Information

Overview Manuals Common Applications Product Precautions

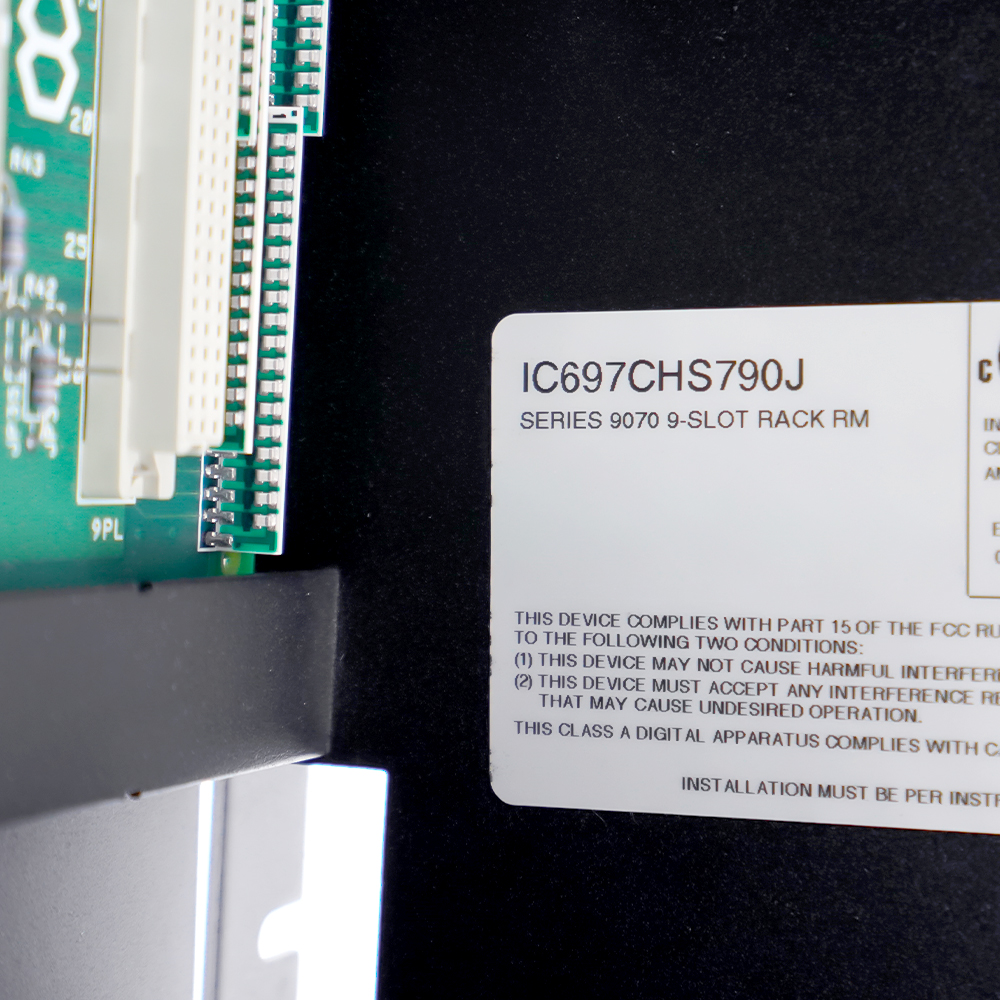

GE IC697CHS790 is a Series 90-70 nine-slot rear-mount rack. It provides the backplane and module positions used to assemble a Series 90-70 PLC station.
  • Provides the backplane positions for Series 90-70 controller and I/O modules
  • Maintains the electrical interconnection between the rack supply and installed modules
  • Supports engineered main-rack or expansion-rack layouts
  • Defines a repeatable rear-mount cabinet interface for legacy PLC systems

IC697CHS790 installs with Series 90-70 power supply, Series 90-70 CPU or communication module, Series 90-70 I/O modules, Cabinet rear-mount hardware in an engineered Series 90-70 PLC racks configuration.

The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this series 90-70 9-slot rear-mount rack.

Important Notice: Confirm the complete IC697CHS790 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

Apter Power IC697CHS790 Manuals and Guides
Apter Power IC697CHS790 Series 90-70 Chassis ReferenceApter Power IC697CHS790 Slot-Planning & Verification Guide
The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Series 90-70 main control racksProvides the backplane positions for Series 90-70 controller and I/O modules
Remote or expansion rack assembliesMaintains the electrical interconnection between the rack supply and installed modules
Legacy process-control cabinet serviceSupports engineered main-rack or expansion-rack layouts
PLC rack migration surveysDefines a repeatable rear-mount cabinet interface for legacy PLC systems
Read the applicable GE installation instructions before work. Verify IC697CHS790 and the installed Series 90-70 PLC racks configuration.
1Verify the IC697CHS790 rack marking and nine-slot layout before disassembly.
2Place the PLC station in the approved maintenance state and isolate rack power.
3Check rear-mount hardware and cabinet clearances before fastening the rack.
4Record the CPU, power supply, I/O and communication module slot assignments.
5Protect the backplane connector from contamination and mechanical shock.
6Use ESD controls while handling the rack and module edge connectors.
7Confirm expansion cables and rack identifiers before reconnecting the station.
8Power up in a controlled sequence and validate rack recognition and I/O diagnostics.

Technical notes

Install IC697CHS790 against the approved cabinet drawing, identify every slot before module insertion and verify the rack address and expansion interconnect during commissioning.

FAQ View All FAQ

  • What does the nine-slot format of IC697CHS790 define?
    It defines the available Series 90-70 backplane positions for the rack assembly; the approved project determines which positions receive power, CPU, communication and I/O modules.
  • Where is IC697CHS790 mounted?
    The catalog designation identifies a rear-mount Series 90-70 rack; confirm the cabinet rails and fasteners against the installation drawing.
  • Can IC697CHS790 be used as an expansion rack?
    The rack can be assigned as a main or expansion rack only when the Series 90-70 project and inter-rack wiring support that arrangement.
  • What should be documented before removing IC697CHS790?
    Record rack identity, slot map, module order, power-supply position and any expansion-cable connections before loosening the rack.
  • How should IC697CHS790 connectors be protected?
    Isolate power, use ESD controls and keep the backplane and module connectors clean, dry and free from impact during handling.
  • How is an IC697CHS790 replacement commissioned?
    Restore the recorded slot map, power the station in a controlled sequence, confirm rack recognition and test each configured I/O path.
  • What cabinet check is required for IC697CHS790?
    Verify the rear-mount hardware, rack depth, cable bend space and access for the installed Series 90-70 modules before installation.
  • What evidence should be retained after IC697CHS790 service?
    Retain the final rack slot map, module identities, expansion connections, power-up diagnostics and the controlled I/O test result.
