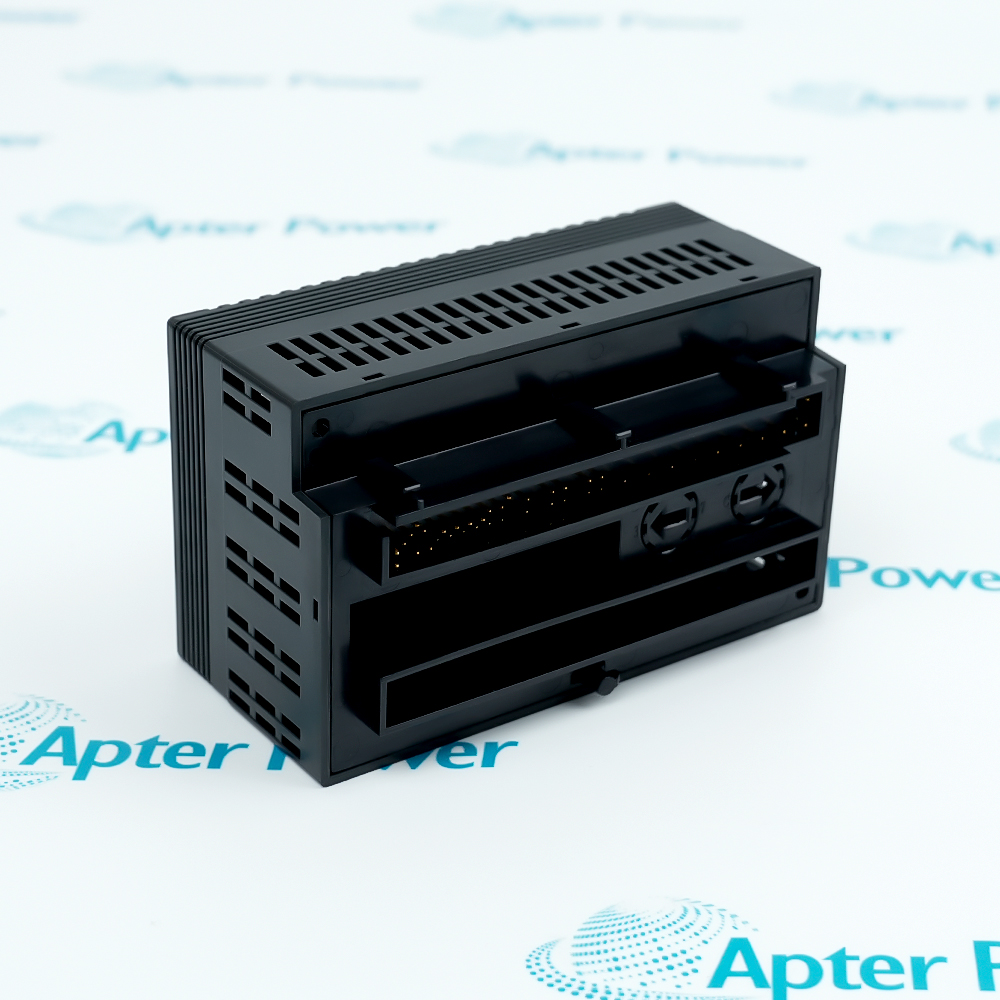

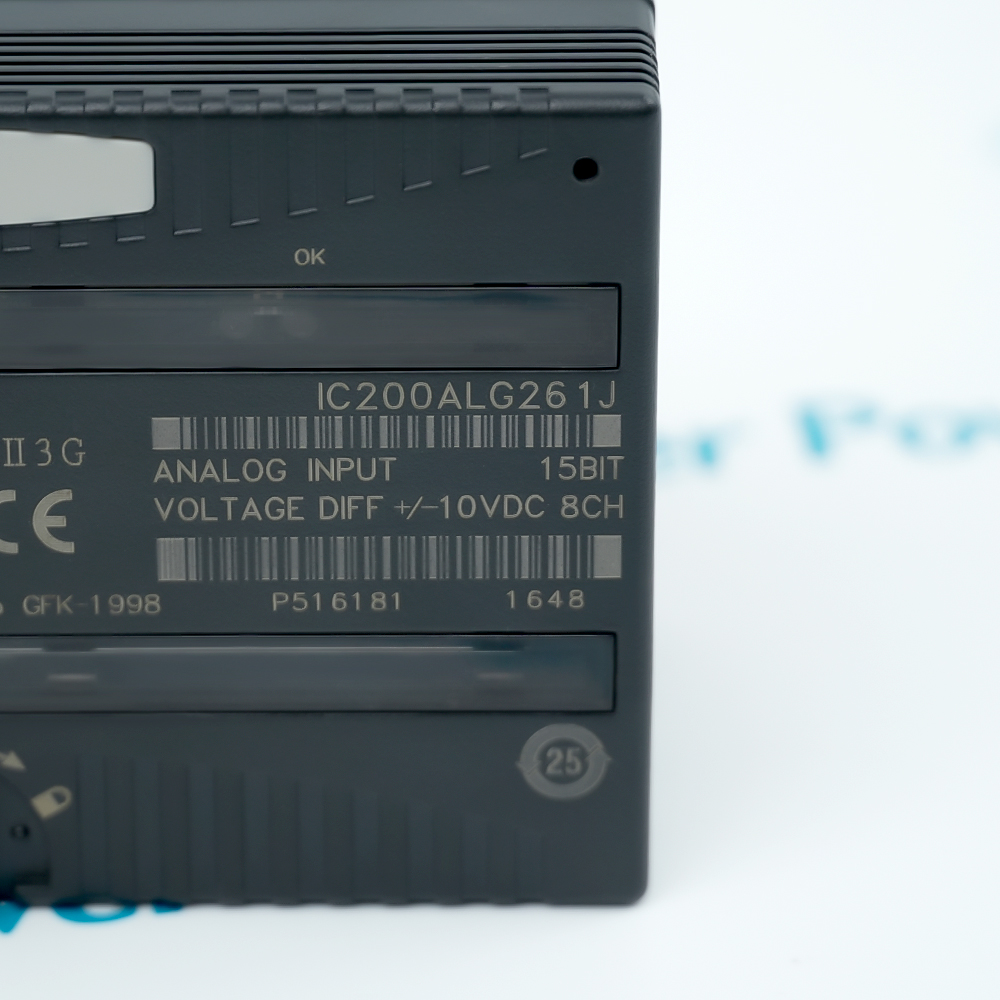

The IC200ALG261 This is a high-precision 8-channel analog input module designed specifically for GE VersaMax systems, primarily used for acquiring bipolar voltage signals of ±pm10V. With its 15-bit high resolution and 1500V AC electrical isolation protection, it can capture minute signal changes in complex electromagnetic environments.
Extremely high sampling accuracy
Exceptional anti-interference capabilities
Industrial-grade security protection
The IC200ALG261 is more than just a data acquisition module; it's a guarantee of "accuracy" and "safety" in industrial environments. For users who need to acquire high-precision feedback signals in environments with strong interference, this module, with its mature circuit design and extensive industry validation, has become an ideal choice for industrial spare parts and new project selection.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC200ALG261 Analog Input Module IC200ALG261 provides an interface to eight analog differential voltage inputs. Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Marine & Offshore
Monitor the load sensors of cranes or winches to prevent overloading at sea.
Power & Energy
In energy storage power stations, precise monitoring of the float charge voltage of individual cells is crucial to prevent thermal runaway.
Precision Manufacturing
In paper, textile, or film production lines, tension sensors are used to ensure that materials neither break nor loosen during the winding process.
Test Bench & Research
Collect the voltage output from torque sensors, flow meters, or high-speed displacement sensors.
Environmental & Process Control
The monitoring precision pressure transmitter uses differential input to filter electromagnetic noise in high temperature and high pressure environments.
Semiconductor & Electronics
Inside the vacuum chamber, the voltage signal of a high-precision pressure gauge or mass flow controller (MFC) is monitored to ensure the accurate proportioning of process gases.
The high resolution of 15 bits means the module is highly sensitive. Always use shielded twisted-pair cable and ground the shielding layer at one end on the control cabinet's grounding busbar. Follow differential connection methods; never short-circuit the negative terminal (B terminal) directly to common ground (GND) at the module end. The advantage of differential inputs is the cancellation of common-mode noise; incorrect connection will disable this function. For unused channels, it is recommended to short-circuit their A and B terminals with a short wire to prevent data fluctuations or false alarms caused by induced floating voltage due to high input impedance.
In marine engineering applications, how much voltage fluctuation or impact can the IC200ALG261 withstand?In marine engineering applications, how much voltage fluctuation or impact can the IC200ALG261 withstand?
This module can withstand a continuous voltage input of up to ±30V without damaging the hardware.
What is the range of digital values that IC200ALG261 can read?
This module converts a voltage of ±pm 10V into a 16-bit signed integer (two's complement format), with a valid range typically corresponding to -32000 to +32000.
When connecting sensor signals, why must IC200ALG261 use a
This is mainly due to the high-precision positioning of the IC200ALG261.
If the field sensor is a 4-20mA current signal, can I directly connect it to IC200ALG261?
It cannot be directly connected, but it can be achieved through a simple hardware solution.
What could be the reason if the
An "OK" light turning off usually means that the module has failed the self-test or has not received the normal operating voltage.
