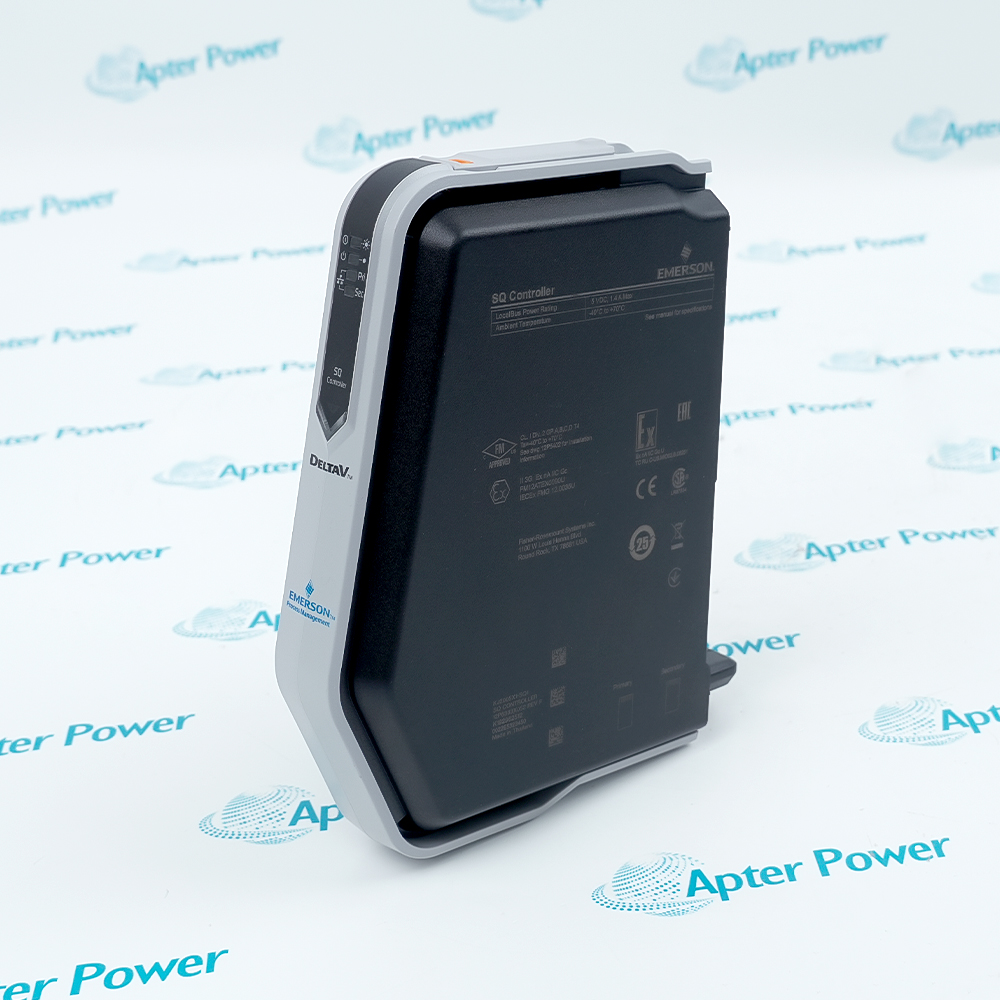

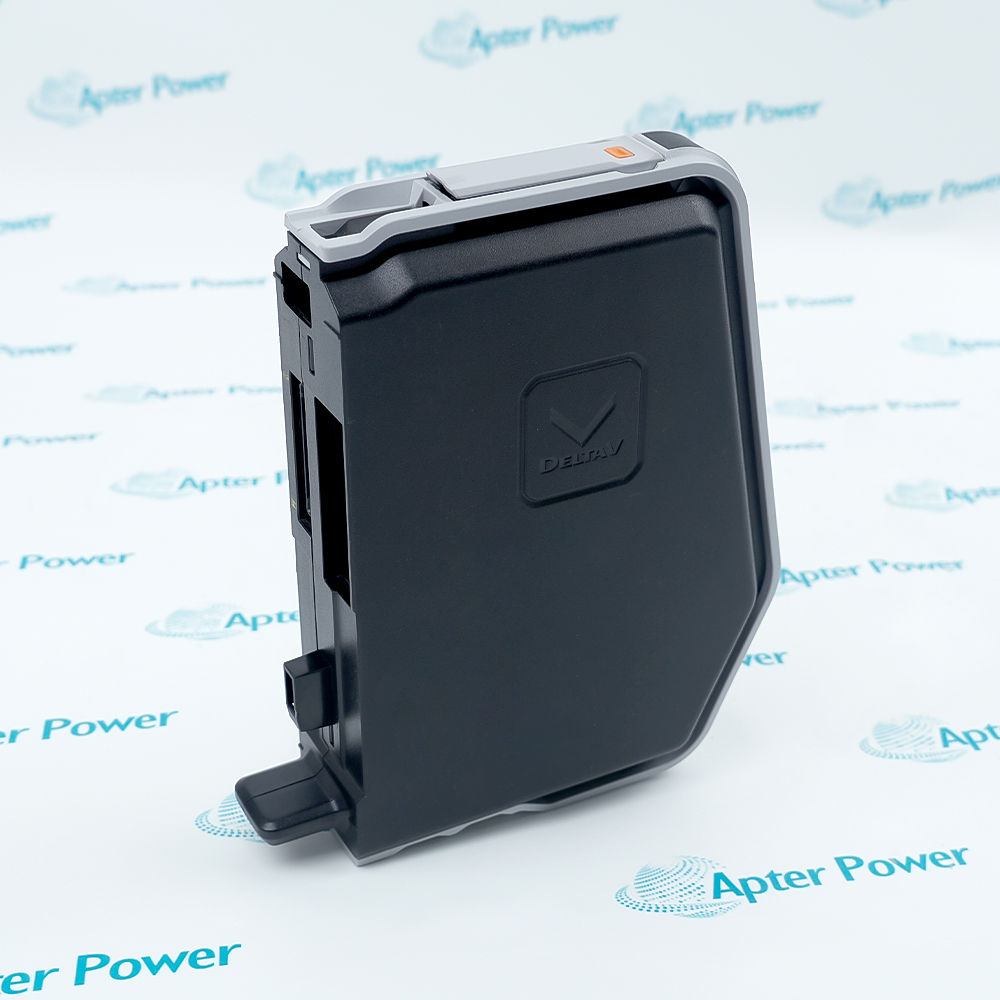

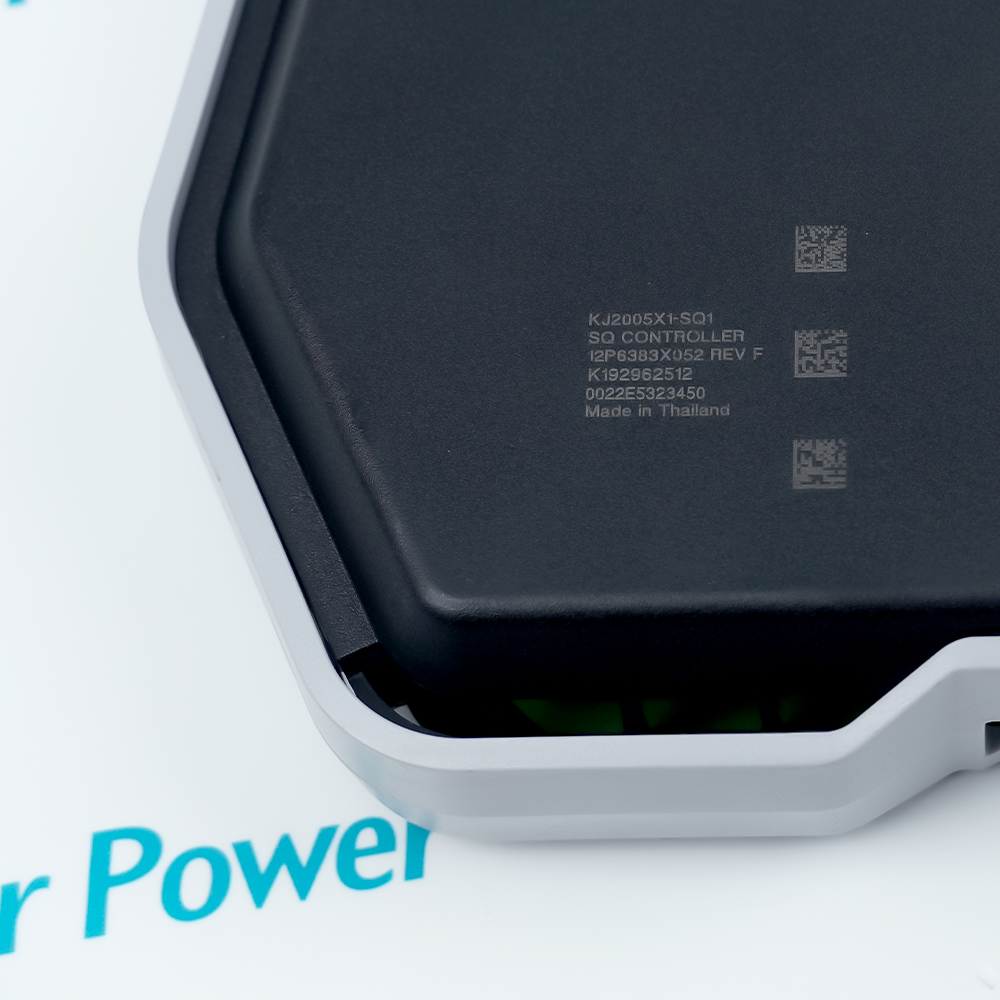

      KJ2005X1-SQ1 12P6383X052

      DeltaV SQ Controller
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      Emerson KJ2005X1-SQ1 12P6383X052 is a DeltaV SQ controller assembly. It executes scheduled control strategies and coordinates the installed DeltaV I/O and control-network paths.

      Ask our team:

      Get a quick price for： KJ2005X1-SQ1 12P6383X052
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for KJ2005X1-SQ1 12P6383X052

      Technical specifications for KJ2005X1-SQ1 12P6383X052

      • Manufacturer:
        Emerson
      • Product Category:
        DCS System
      • Spare Part Number:
        12P6383X052
      • Estimated shipping dimensions:
        4x16.6x19.8cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller type:
        SQ
      • DeltaV model:
        SE3008
      • User memory:
        48 MB
      • DST limit:
        750
      • SCADA tags:
        3200
      • Network ports:
        Primary and secondary RJ45
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      KJ2005X1-SQ1 12P6383X052 executes DeltaV strategies and coordinates the installed process I/O and control network.
      • Executes scheduled DeltaV control strategies
      • Coordinates traditional, CHARM and WirelessHART I/O
      • Provides primary and secondary control-network paths
      • Supports simplex or one-to-one redundant operation

      The SQ controller uses the documented S-series carrier, dedicated power and DeltaV project. Commissioning confirms hardware identity, primary and secondary networks, I/O topology, software compatibility and redundancy state.

      Important Notice: Confirm Emerson KJ2005X1-SQ1 12P6383X052, SQ model SE3008, carrier, dedicated supply, both RJ45 paths, DeltaV software, project, I/O topology, redundancy license, grounding and diagnostics before commissioning.

      Apter Power Emerson KJ2005X1-SQ1 12P6383X052 Manuals and Guides

      The first document presents model-specific technical and system data. The second provides a distinct installation, connection, commissioning and acceptance workflow.

      Process-unit regulatory control
      Executes scheduled loops and calculations for a DeltaV process area.
      Sequence and interlock execution
      Coordinates equipment logic with the documented I/O topology.
      CHARM I/O integration
      Processes electronic-marshalling signals through the approved controller project.
      Redundant controller service
      Supports controlled primary-to-standby verification where licensed.
      Read the applicable Emerson installation instructions before work. Verify KJ2005X1-SQ1 12P6383X052, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm Emerson KJ2005X1-SQ1 12P6383X052 and SQ model SE3008.
      2
      Place the controlled process and final elements in the approved maintenance state.
      3
      Isolate the dedicated controller supply and apply ESD controls.
      4
      Record the carrier position, primary and secondary RJ45 paths and all assigned I/O nodes.
      5
      Confirm the S-series carrier, dedicated supply and approved DeltaV software version.
      6
      Restore the validated project, controller assignment and I/O topology.
      7
      Review controller, network, I/O and redundancy diagnostics after startup.
      8
      Complete controlled strategy, I/O and redundancy tests before process release.

      Alternative Names

      Alternative Names

      12P6383X052; SQ Controller SE3008

      Technical notes

      Technical notes

      Mount KJ2005X1-SQ1 12P6383X052 on the documented S-series power/controller carrier with its dedicated supply and record both control-network paths before removal. Restore the approved project, software and I/O topology, then verify diagnostics and controlled redundancy transfer where configured.

      FAQS

      • How should carrier and power be verified for Emerson KJ2005X1-SQ1 12P6383X052?
        Confirm Emerson KJ2005X1-SQ1 12P6383X052, SQ model SE3008, carrier, dedicated supply, both RJ45 paths, DeltaV software, project, I/O topology, redundancy license, grounding and diagnostics before commissioning.
      • Which record controls RJ45 networks on Emerson KJ2005X1-SQ1 12P6383X052?
        Mount KJ2005X1-SQ1 12P6383X052 on the documented S-series power/controller carrier with its dedicated supply and record both control-network paths before removal. Restore the approved project, software and I/O topology, then verify diagnostics and controlled redundancy transfer where configured.
      • What must be preserved for controller memory when servicing Emerson KJ2005X1-SQ1 12P6383X052?
        Record the carrier position, primary and secondary RJ45 paths and all assigned I/O nodes.
      • How is I/O topology isolated before work on Emerson KJ2005X1-SQ1 12P6383X052?
        Place the controlled process and final elements in the approved maintenance state. Isolate the dedicated controller supply and apply ESD controls.
      • What official check applies to software version for Emerson KJ2005X1-SQ1 12P6383X052?
        Confirm the S-series carrier, dedicated supply and approved DeltaV software version.
      • How is redundancy pairing restored after fitting Emerson KJ2005X1-SQ1 12P6383X052?
        Restore the validated project, controller assignment and I/O topology.
      • Which diagnostic confirms diagnostic restart for Emerson KJ2005X1-SQ1 12P6383X052?
        Review controller, network, I/O and redundancy diagnostics after startup.
      • What proves project evidence is accepted for Emerson KJ2005X1-SQ1 12P6383X052?
        Complete controlled strategy, I/O and redundancy tests before process release.
