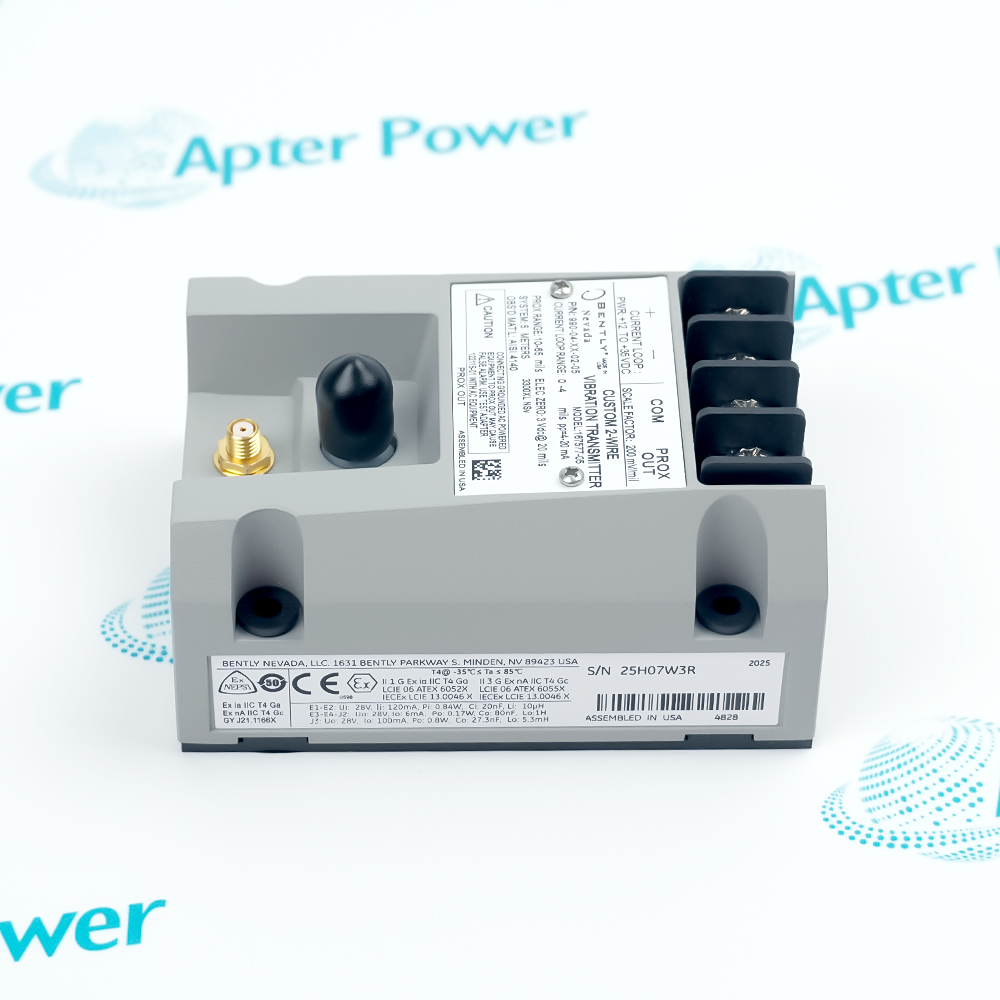

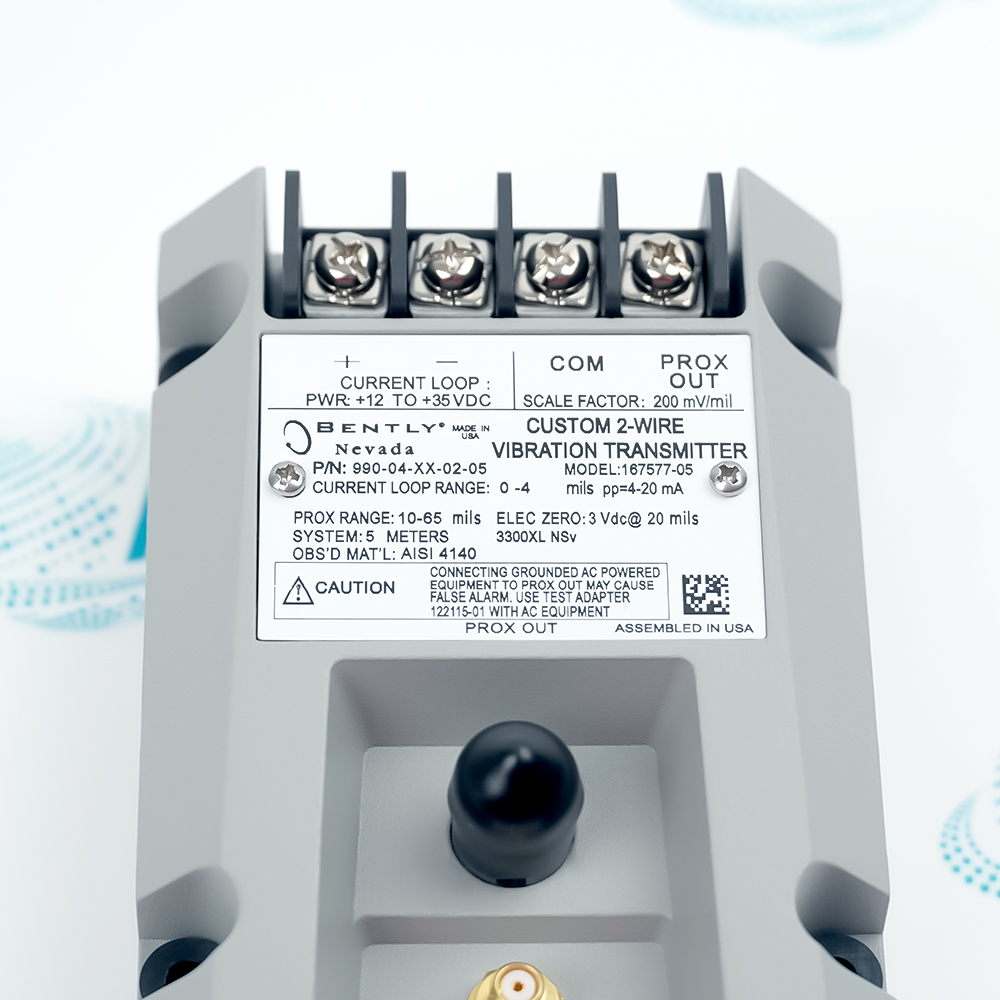

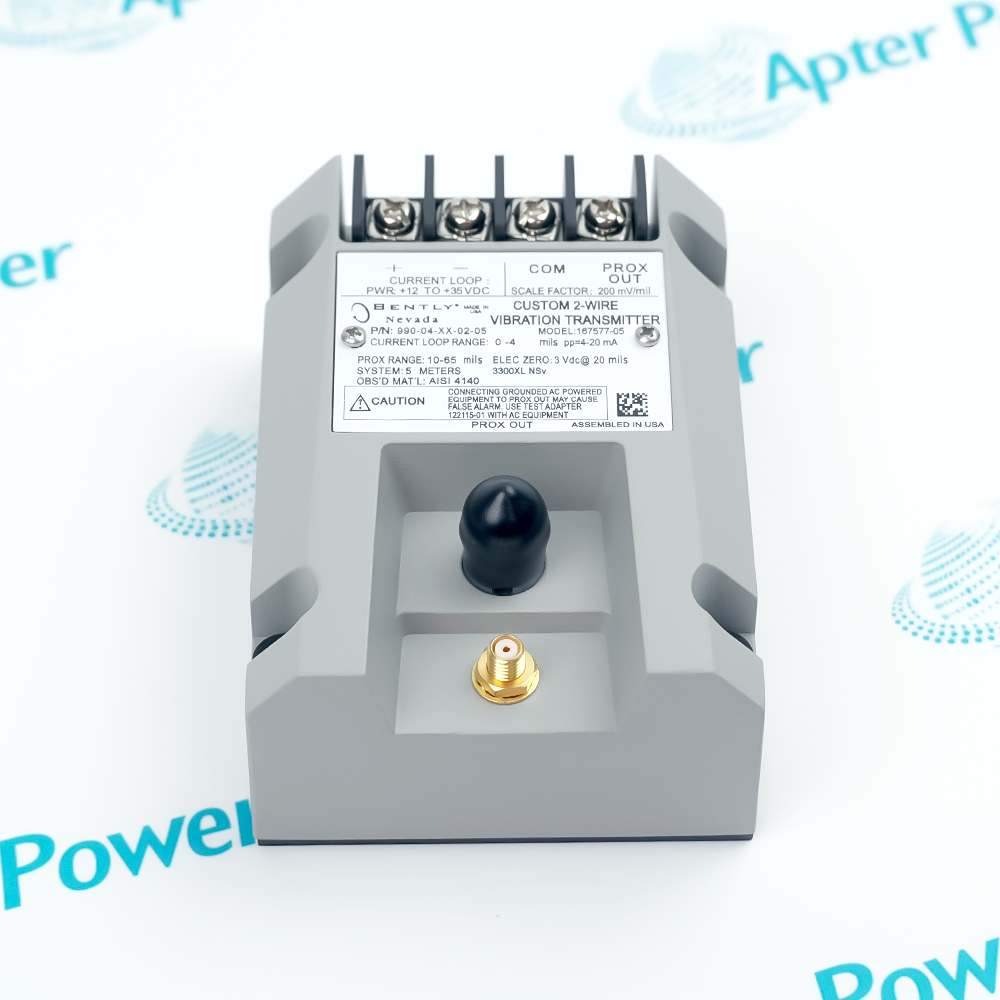

      990-04-XX-02-05 MOD:167577-05

      990 Vibration Transmitter
      In Stock

      Product Describe：

      990 Vibration Transmitter
      04 0-4 mils pp (0-100 μm pp)
      02 Bulkhead screws
      05 CSA Division 2
      ATEX Zone 0
      ATEX Zone 2 and
      includes ABS
      maritime approval

      Ask our team:

      Get a quick price for： 990-04-XX-02-05 MOD:167577-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for 990-04-XX-02-05 MOD:167577-05

      Technical specifications for 990-04-XX-02-05 MOD:167577-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        990-04-XX-02-05 MOD:167577-05
      • Estimated shipping dimensions:
        10x7.3x5.5cm
      • Weight:
        0.5 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Current limiting:
        23 mA typical.
      • Zero and span:
        Non-interacting external adjustments
      • Frequency response:
        5 Hz to 6,000 Hz +0, 3 dB.
      • Maximum loop resistance:
        1,000 Ω including cable at 35 Vdc
      • Operating temperature:
        -35°C to +85°C
      • Power Supply:
        28 V
      Ask for Quote

      Information

      Information

      Overview Manuals Core features of the product Need More Info
      • Integrated Proximitor Sensor Requires no External Unit
      • Non-Isolated PROX OUT and COM Terminals Plus a Coaxial Connector
      • Non-Interacting Zero and Span Potentiometers
      The Bently Nevada 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.

      The transmitter is a two-wire, loop-powered device thataccepts input from our 3300 NSv proximity probe and itsmatching extension cable (available in 5 m and 7 m systemlength options).

      The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and providesthis value as a proportional 4 to 20 mA industry-standardsignal as the input to the control system where machineryprotection alarming and logic occurs.1

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Bently Nevada 990-04-XX-02-05 MOD:167577-05 990 Vibration Transmitter Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Integrated transmission: Without the need for an external preamplifier, the probe signal can be directly processed into a 4-20 mA output. Dynamic output: Provides non isolated "PROX OUT" and "COM" terminals and coaxial connectors for viewing raw vibration waveforms and gap voltages through devices such as oscilloscopes. Strong protection: Adopting sealed packaging, suitable for high humidity environments with up to 100% condensation. Compatibility: Typically used in conjunction with 3300 NSv proximity probes and matching extension cables.
      We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

      With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

      FAQS

      • What is a 990-04-XX-02-05 MOD:167577-05 vibration transmitter?
        Vibration transmitters are the most common solution for vibration measurement of critical machinery. CEMB transmitters can provide vibration measure in any selected direction, range and unit, either acceleration or velocity, g, mm/s or inch/s, and can be ordered with any mounting thread
      • What is the purpose of a 990-04-XX-02-05 MOD:167577-05 transmitter?
        The primary function of a transmitter is to convert a physical parameter (e.g., pressure, level, temperature, or flow) into a standardized electrical signal that can be read, processed, and monitored by a control system.
      • What are the basic specifications of the 990-04-XX-02-05 MOD:167577-05 Vibration Transmitter?
        The transmitter typically operates with a 24 VDC power supply, provides a 4–20 mA output signal proportional to vibration levels, and is designed for reliable operation in industrial temperature environments.
      • Which sensors are compatible with the 990-04-XX-02-05 Vibration Transmitter?
        The transmitter is commonly compatible with industrial vibration sensors such as proximity probes and acceleration sensors used for rotating machinery monitoring.
      • Is the 990-04-XX-02-05 Vibration Transmitter suitable for harsh industrial environments?
        Yes, the transmitter is designed for industrial applications and offers stable performance in environments with vibration, temperature variations, and electrical noise.
      • What are the installation guidelines for the 990-04-XX-02-05 Vibration Transmitter?
        The device should be installed close to the vibration sensor, properly grounded, and connected to a stable power supply to ensure accurate signal transmission.
