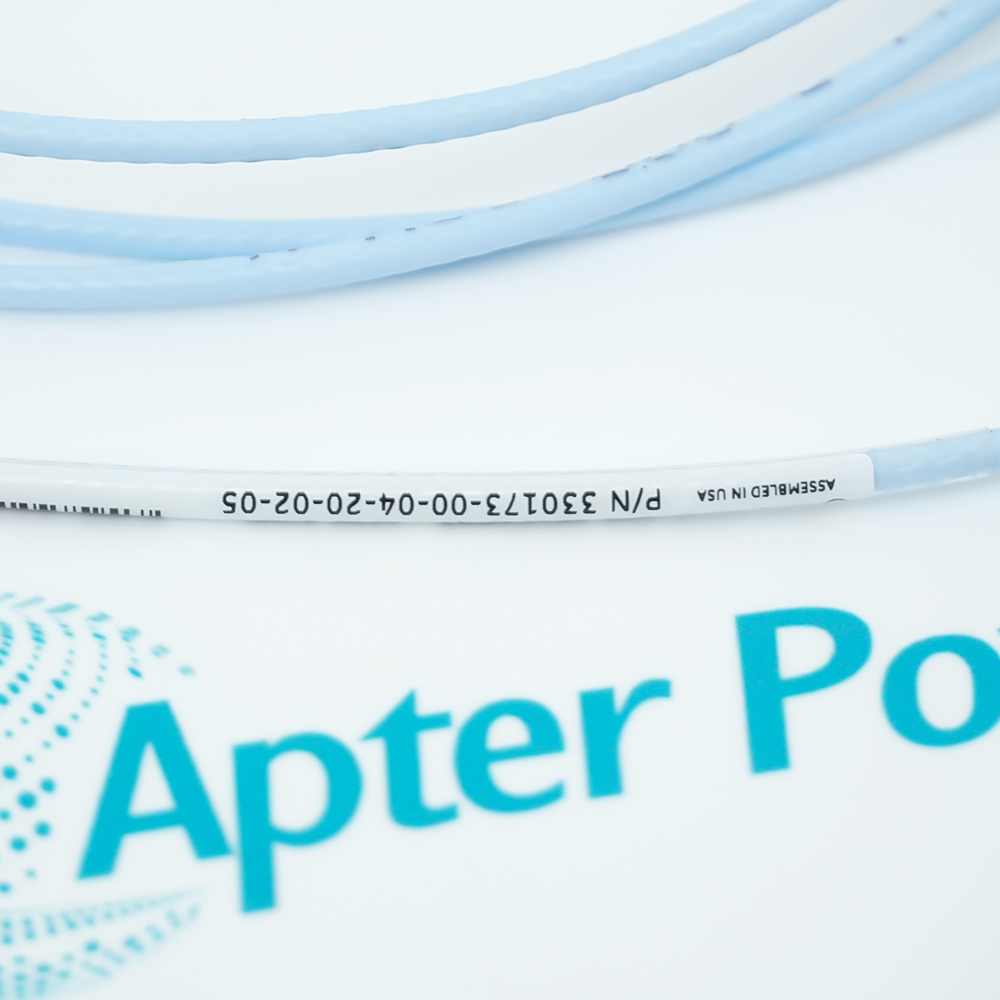

The 330173-00-04-20-02-05 When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data. Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications.
Enhanced environmental sealing and signal stability
Excellent "non-stop" maintenance and online calibration capabilities
Global Safety Compliance
The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
In natural gas booster stations, the probes are typically installed within heavy-duty explosion-proof enclosures. Their -05 certification ensures inherent safety in flammable and explosive gas environments.
Air Separation
-02 Option (with connector protector) prevents interference from high-speed airflow and slight oil mist at the signal connection, ensuring the purity of high-frequency signal transmission.
Chemical & Pharmaceuticals
The 2.0-meter lead length (-20) allows the signal connector to be extended into junction boxes away from corrosive fumes, improving the overall lifespan of the system.
Pulp & Paper
In the high-temperature and high-humidity environment of the papermaking industry, joints are highly susceptible to moisture, leading to false alarms. The integrated joint protector (-02) in this model is crucial for ensuring continuous production, preventing unplanned downtime for cleaning due to signal drift.
This product is a 5mm eddy current probe with a narrow linear range. The recommended installation gap is 0.50–0.65mm, corresponding to a gap voltage of approximately -10V. Exceeding this range will result in severe distortion. The installation method and accuracy are reverse mounting. The probe tip must not protrude from the mounting surface and should be perpendicular to the surface of the measured axis. Avoid surrounding it with unnecessary metal structures to prevent mutual inductance interference. Wiring and anti-interference cable should be armored and protected, kept away from power lines and frequency converters. The shielding layer should be grounded at a single point. The preamplifier should be installed with insulation to avoid ground loop interference.
In model 330173-00-04-20-02-05, what special requirements does the 'reverse installation' design have for the mounting holes?
This model is mainly used with the 31000 or 32000 series probe holders.
What does the option '-04' in the model 330173-00-04-20-02-05 refer to, and what impact does it have on mechanical stability?
"-04" indicates that the unthreaded length of the probe housing is 0.4 inches (approximately 10 mm).
What role does the "-02" option in 330173-00-04-20-02-05 play in a humid environment?
"-02" indicates that the probe has a built-in miniature coaxial connector and comes pre-installed with a connector protector.
If flammable gases are present in the environment, can 330173-00-04-20-02-05 be used directly?
This probe is an intrinsically safe device, and when used with a compliant safety barrier, it can operate safely even in explosive hazardous areas.
How to perform zero-point adjustment based on the linear range of 330173-00-04-20-02-05?
Rotate the reverse mounting bracket to adjust the gap voltage to between -10.0 ± 0.5 VDC. At this point, the probe is in the midpoint of the linear region, enabling simultaneous measurement of maximum fluctuations in both axial and radial positive and negative directions.
