Technical specifications for 330101-00-20-10-02-CN
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-00-20-10-02-CN
-
Estimated shipping dimensions:5.3cm x 3.2cm x 10cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Input Voltage:220 V
-
Operating Frequency:50 kHz
-
Unthreaded Length:0.0 in
-
Overall Case Length:2.0 in
-
Total Length:1.0 metre (3.3 feet)
Information
Overview
Manuals
Need More Info

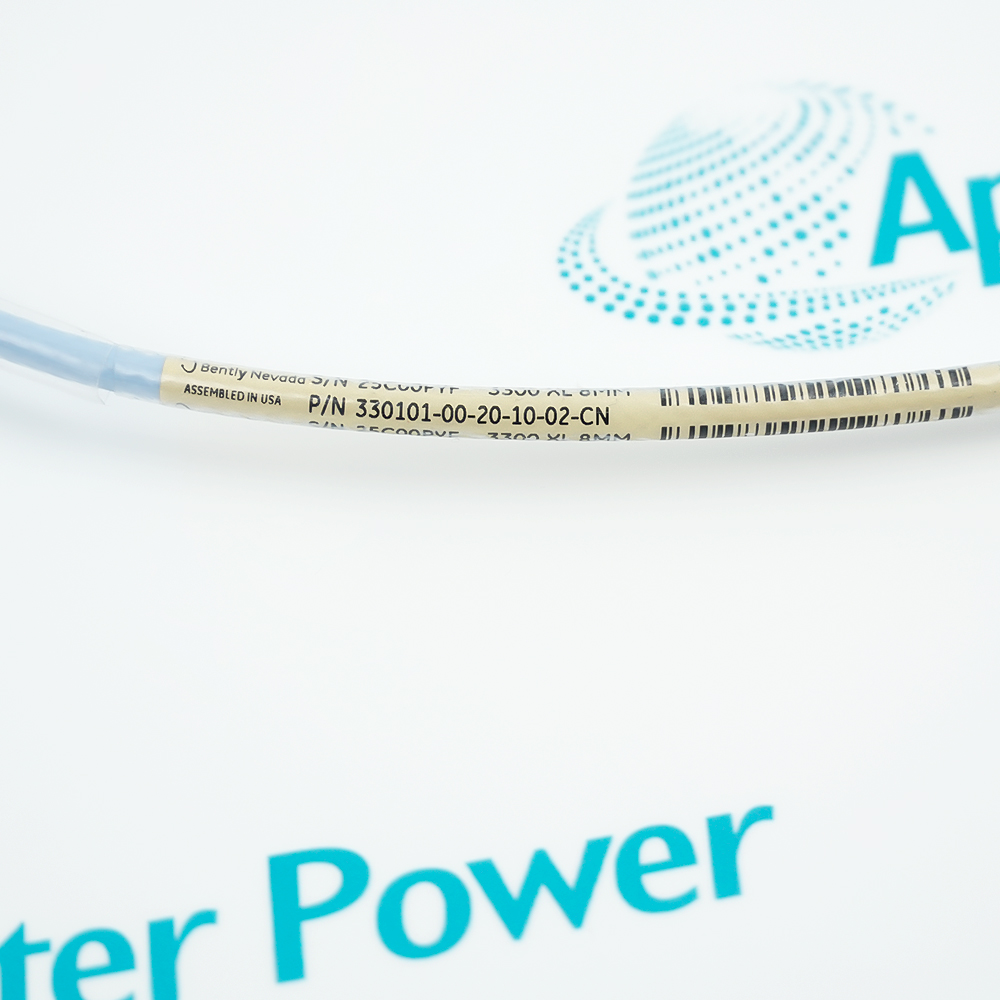

- 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probes
- A high-performance proximity probe designed for Bently Nevada 3300 XL monitoring systems
- It delivers accurate non-contact vibration and position measurement with an 8 mm tip for stable and reliable operation.
The BENTLY NEVADA 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe provides precise non-contact measurement of shaft vibration and position. It outputs a voltage proportional to the distance between the probe tip and the conductive surface, enabling reliable monitoring of both static and dynamic conditions in rotating machinery.
The 3300 XL 8 mm system offers high accuracy, stable linear performance, and strong temperature stability. It is designed for demanding industrial environments, ensuring consistent measurement and dependable operation for critical equipment protection and condition monitoring.
System components, including probes, extension cables, and sensors, are fully interchangeable, eliminating the need for individual calibration. The probe is also backward compatible with other 3300 series 5 mm and 8 mm components, allowing flexible installation for new systems and retrofit applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
BENTLY NEVADA 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What is 330101-00-20-10-02-CN?330101-00-20-10-02-CN is 3300 XL 8 mm Proximity Probes.
-
What is the Bently Nevada 3300 System?The Bently Nevada 3300 System is a modular machinery protection and condition monitoring system from Bently Nevada. It is designed for continuous monitoring of critical parameters such as vibration, displacement, and speed in rotating machinery (e.g., turbines, compressors, pumps, motors) for preventative maintenance and fault protection.
-
Which systems is the 330101-00-20-10-02-CN compatible with?It is fully compatible with Bently Nevada 3300 XL proximitor systems and 3500 machinery monitoring systems.
-
Can the 330101-00-20-10-02-CN measure both static and dynamic values?Yes, it measures both radial vibration and shaft position (gap).
-
What is the 330101-00-20-10-02-CN measuring range of this probe?The 3300 XL 8mm probe has a linear range of 2.0 mm (80 mils).
-
What is the 330101-00-20-10-02-CN normal gap voltage?The typical operating gap voltage for this probe is approximately -9Vto -11VDC when properly installed.
