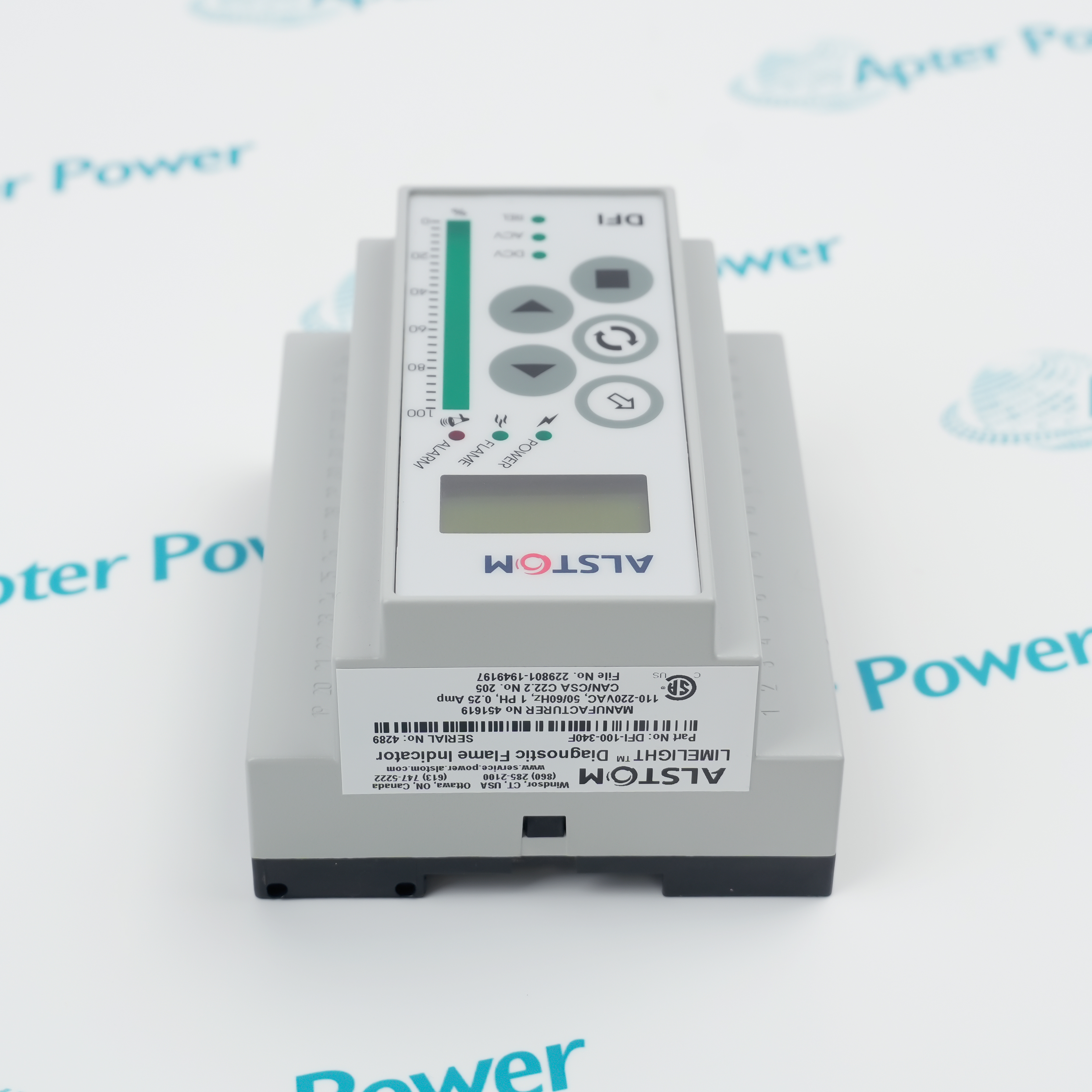

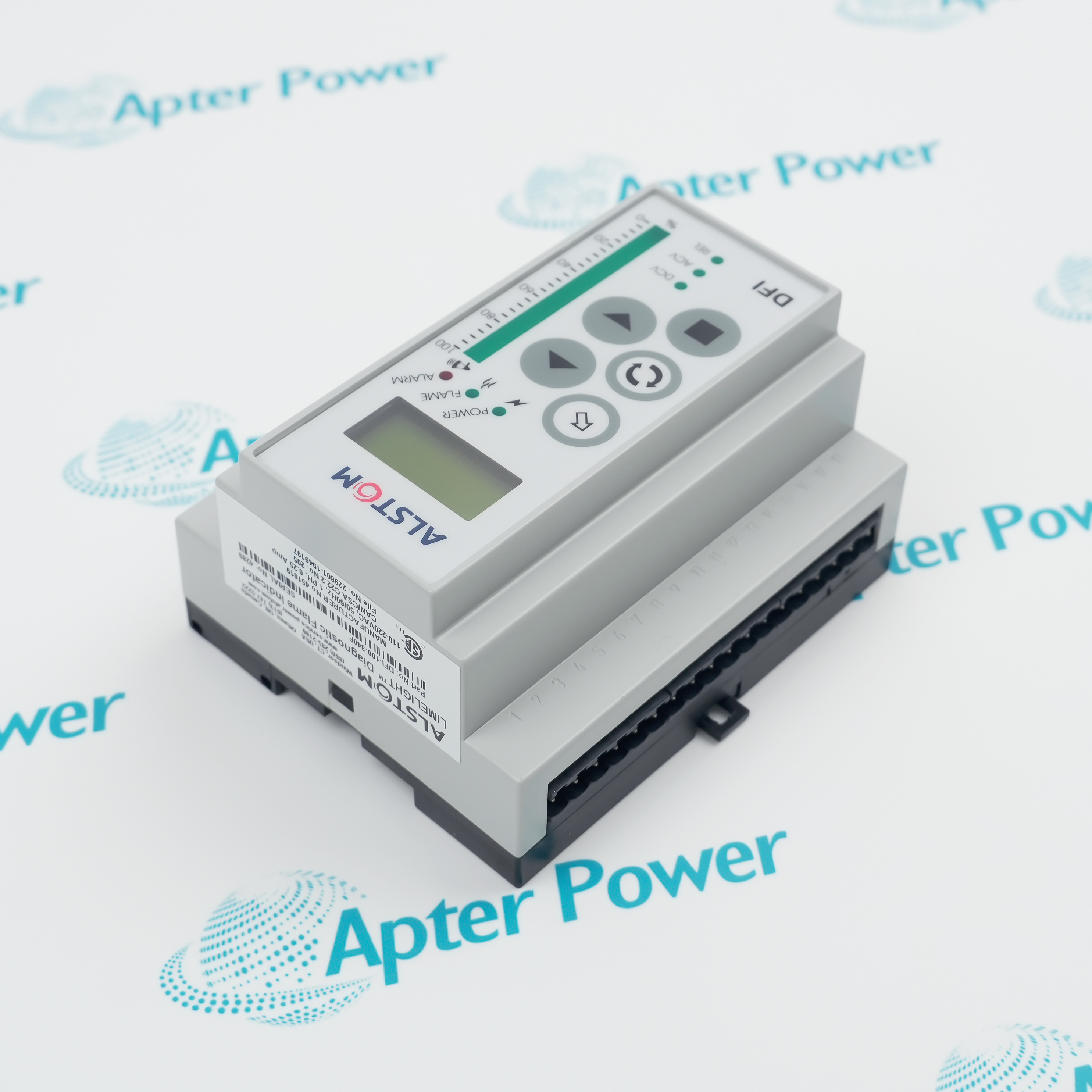

Alstom DFI-100-340F
Alstom DFI-100-340F
Alstom DFI-100-340F
Alstom DFI-100-340F
Alstom DFI-100-340F
Alstom DFI-100-340F
Product image is representative; revision or series may vary. Contact us to request a specific version.

DFI-100-340F

Limelight Diagnostic Flame Indicator
In Stock

Product Describe:

Alstom DFI-100-340F is a Limelight diagnostic flame indicator module for burner-management service. It reports flame or no-flame status and local diagnostic information to support commissioning and fault investigation.

Ask our team:

Get a quick price for: DFI-100-340F
Quantity*
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications for DFI-100-340F

Technical specifications for DFI-100-340F

  • Manufacturer:
    Alstom
  • Product Category:
    Gas turbine control
  • Spare Part Number:
    DFI-100-340F
  • Estimated shipping dimensions:
    4.2x18.6x31cm
  • Weight:
    1.74 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Nominal supply:
    24 V DC
  • Supply range:
    18 to 32 V DC
  • Internal logic rail:
    5 V DC
  • Typical power:
    8 W
  • Typical current:
    0.35 A at 24 V DC
  • Operating temperature:
    -20 to +65 deg C
  • Communication:
    Integrated CANbus
  • Local indication:
    Alpha-numeric status panel
  • Field connection:
    Pluggable terminal strip

Information

Information

Overview Manuals Common Applications Product Precautions
DFI-100-340F provides local flame-state indication and diagnostic reporting within the documented Limelight burner-management arrangement.
  • Reports flame and no-flame operating states
  • Provides local alpha-numeric diagnostic indication
  • Communicates through the integrated CANbus interface
  • Uses a removable terminal strip for documented field connections

The module is connected to the existing flame-sensing circuit, 24 V DC supply, CANbus and burner-management logic through its pluggable terminal strip. Commissioning retains wiring identity and proves both flame recognition and safe no-flame response.

Important Notice: Confirm DFI-100-340F, the assigned Limelight burner-management channel, hardware execution, pluggable terminal strip, 24 V DC polarity, flame-sensor wiring, shields, grounding, CANbus configuration, displayed diagnostic state and controlled flame-failure test before commissioning.

Apter Power DFI-100-340F Manuals and Guides

The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

Burner flame supervision
Provides the documented flame-state indication used by the burner-management sequence.
Boiler light-off verification
Supports controlled confirmation of flame recognition during ignition testing.
Flame-circuit diagnostics
Uses the local status display and communication record to investigate abnormal response.
Module replacement validation
Reproduces the recorded terminal, supply and CANbus arrangement before a proof test.
Read the applicable Alstom installation instructions before work. Verify DFI-100-340F, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
1
Confirm DFI-100-340F on the module marking and the assigned burner-management channel.
2
Place the fuel train and burner in the approved safe maintenance state.
3
Isolate the 24 V DC supply and apply ESD controls before handling the module.
4
Record every pluggable-terminal position, polarity, shield and field-circuit identifier.
5
Record the CANbus connection and alpha-numeric diagnostic status before removal.
6
Restore the approved burner-management configuration and documented supply range.
7
Verify stable power, communication and flame-state diagnostics before enabling fuel.
8
Complete controlled flame-present and flame-absent proof tests and verify safe shutdown action.

Alternative Names

Alternative Names

Limelight DFI; Diagnostic Flame Indicator

Technical notes

Technical notes

Record the DFI-100-340F terminal strip, CANbus connection, power polarity, flame-sensor interface and displayed diagnostic code before removal. Restore the approved 24 V DC supply and burner-management configuration, then verify flame/no-flame response, fault reporting and safe burner shutdown under the controlled commissioning procedure.

FAQS

  • What function does DFI-100-340F perform in burner management?
    It provides flame/no-flame indication and diagnostic information for the documented Limelight burner-management channel.
  • Which supply should be verified for DFI-100-340F?
    Confirm a nominal 24 V DC supply within the documented 18 to 32 V DC range and preserve polarity and grounding.
  • How are field connections handled on DFI-100-340F?
    Record every position on the pluggable terminal strip before removal and restore the same field-circuit and shield assignments.
  • What communication interface is documented for DFI-100-340F?
    The authorized exact-model source identifies an integrated CANbus interface; record the connection and configuration before replacement.
  • What should be captured from the display of DFI-100-340F before service?
    Record the alpha-numeric operating state and any diagnostic or fault code before isolating the module.
  • How should DFI-100-340F be commissioned after replacement?
    Verify supply, terminal mapping, CANbus communication and stable diagnostics before the burner is permitted to enter a controlled light-off test.
  • Which safety test is required for DFI-100-340F?
    Prove both flame-present recognition and flame-absent response, including the documented safe fuel-shutdown action.
  • What maintenance record should be retained for DFI-100-340F?
    Retain the module identity, wiring map, supply measurement, CANbus state, diagnostic display record and final burner proof-test results.
