      80190-300-01-R

      External I/O Board, 120-240 V AC
      In Stock
      Ships by Thursday, October 8
      Fast Shipping Available

      Product Describe：

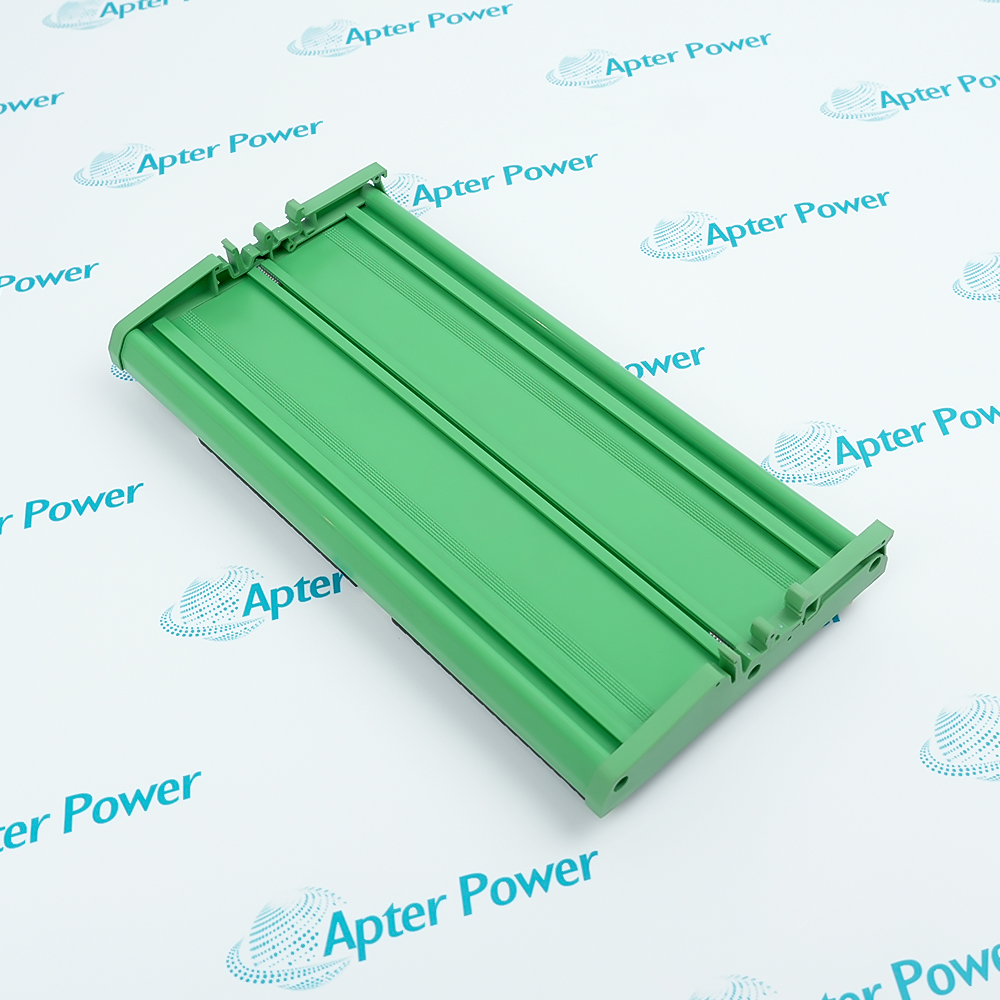

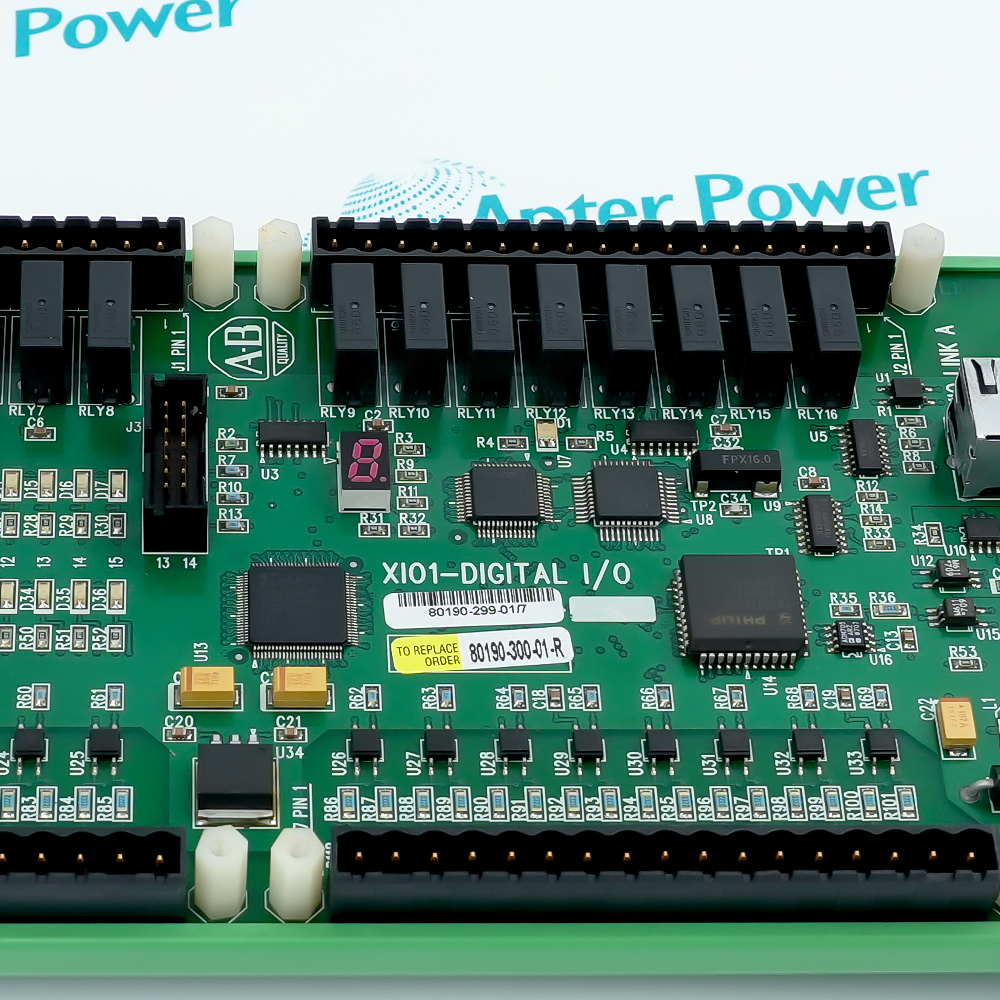

      Allen-Bradley 80190-300-01-R is the documented external i/o board, 120-240 v ac spare part for PowerFlex 7000 medium-voltage drives. It supports the exact installed system function identified in the manufacturer spare-parts record.

      Ask our team:

      Get a quick price for： 80190-300-01-R
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 80190-300-01-R

      Technical specifications for 80190-300-01-R

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        General Automation
      • Spare Part Number:
        80190-300-01-R
      • Estimated shipping dimensions:
        27.8 x 21.4 x 2.8cm
      • Weight:
        0.46 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Board designation:
        XIO
      • Board type:
        External Input / Output Board
      • Documented execution:
        120-240 V AC
      • Drive family:
        PowerFlex 7000
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Allen-Bradley 80190-300-01-R is the documented external i/o board, 120-240 v ac spare part for PowerFlex 7000 medium-voltage drives.
      • Carries the official XIO board designation
      • Uses the documented 120-240 V AC execution
      • Supports the PowerFlex 7000 control architecture
      • Preserves exact board identity during controlled replacement

      Record the existing board slot, connectors, cable labels, jumpers and drive configuration before removal. Install only in the matching PowerFlex 7000 execution and verify board recognition, communications and drive diagnostics before power-stage testing.

      Important Notice: Confirm Allen-Bradley 80190-300-01-R, the complete PowerFlex 7000 or MV SMC Flex host identity, installed hardware execution, board or semiconductor position, connectors, wiring, grounding, cooling path, firmware or configuration where applicable, companion components and controlled commissioning results before service.
