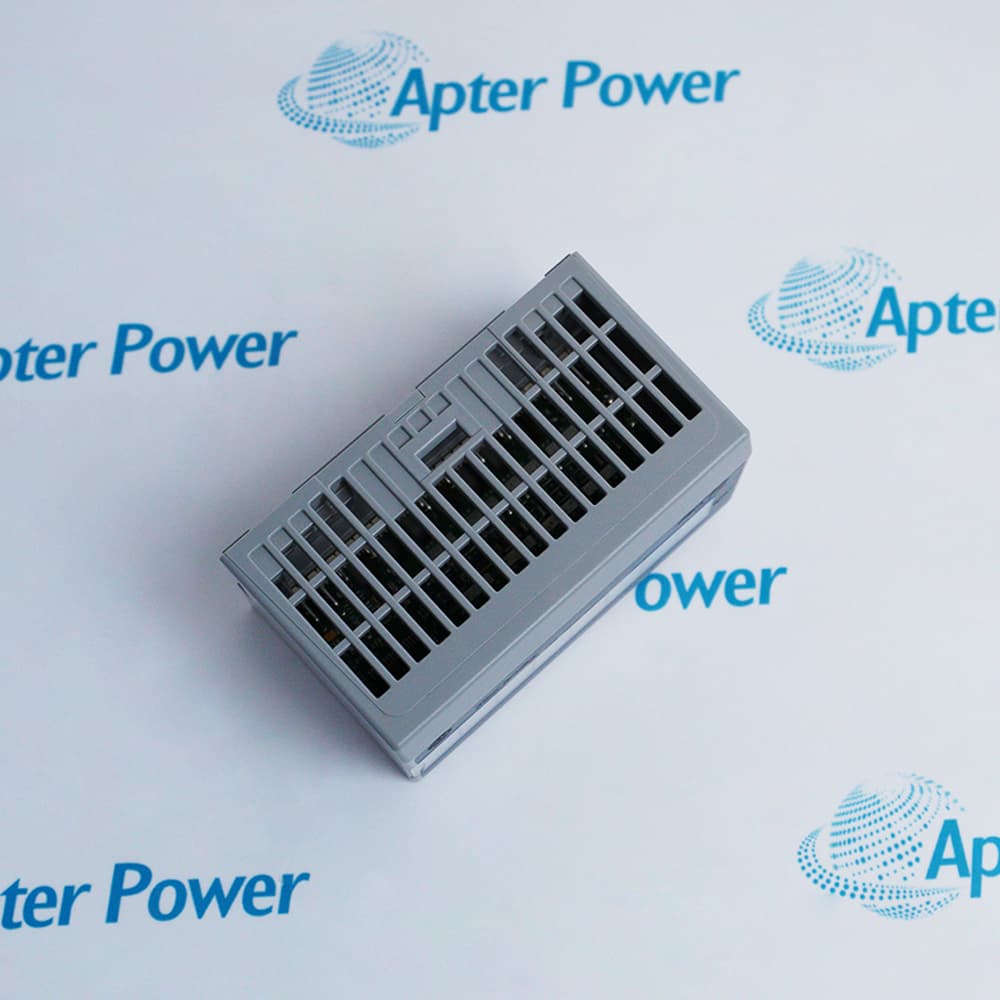

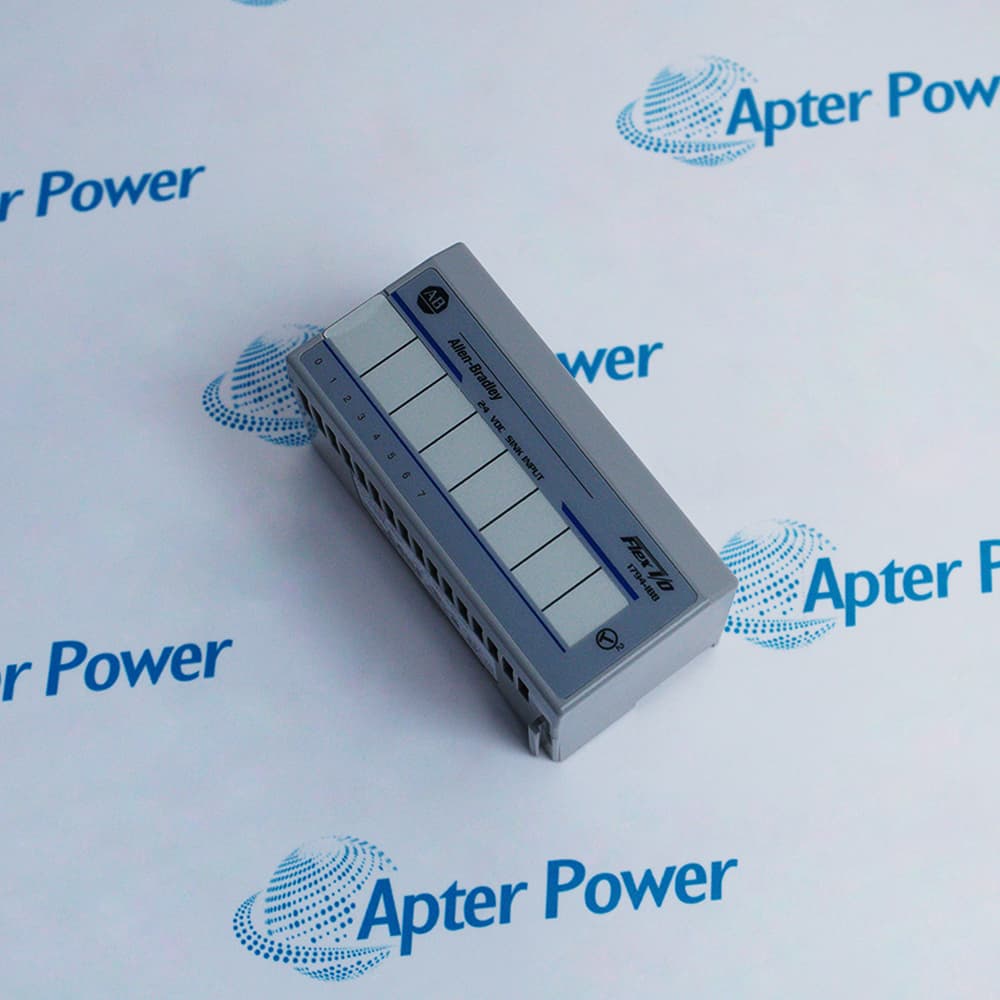

The 1794-IB8 is an 8-channel digital DC input module designed for use within the FLEX™ I/O system. This model features a compact, modular design that plugs into a terminal base, providing a cost-effective way to interface with 24V DC field sensors. It is fully compatible with various FLEX I/O terminal bases,to suit different wiring requirements.
RIUP Capability
Modular Terminal Base Interface
High-speed Input Filtering
Engineered for industrial reliability, the 1794-IB8 operates over a voltage range of 10V to 31.2V DC and features an input filter time of typically 0.25 ms to ensure precise signal capture. The module supports Removal and Insertion Under Power (RIUP), allowing for maintenance and replacement without disrupting the rest of the control system. Each input is a current-sinking type, providing consistent performance in high-speed digital monitoring applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1794-IB8 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas
Applied in integrated control and safety systems to monitor upstream production and downstream refining operations. It provides robust performance in harsh environments for emergency shutdown and fire and gas protection.
Automotive Manufacturing
Utilized in powertrain assembly and body-in-white production lines to drive operational excellence and reduce time-to-market. It enables flexible manufacturing through integrated motion control and smart sensing technologies.
Food and Beverage
Deployed in batch processing and high-speed packaging applications to ensure product quality and regulatory compliance. It optimizes production throughput while maintaining strict hygiene and safety standards across the facility.
Water Treatment
Integrated into municipal water and wastewater management systems to provide sustainable and energy-efficient control. It supports remote monitoring and diagnostics for distributed pumping stations and filtration plants.
Mining and Metals
Applied in heavy-duty material handling and mineral processing to maximize equipment uptime in rugged industrial settings. It manages complex interlocking logic and high-power motor control for crushing and smelting operations.
Life Sciences
Utilized in pharmaceutical and biotech production to ensure validated processes and high-precision environmental control. It provides scalable solutions for laboratory automation and large-scale commercial manufacturing compliance.
To install the 1794-IB8, rotate the module onto the terminal base until the locking arms snap into place. Before applying power, ensure the module is securely seated and the keyswitch on the terminal base is set to the correct position for a digital DC input module. This setup allows for distributed I/O across various networks when combined with a FLEX I/O adapter. Use the status indicators on the front of the module to verify that each of the 8 inputs is correctly sensing the state of its connected field device.
What is the primary function of the Allen-Bradley 1794-IB8 module in a FLEX I/O system?
The 1794-IB8 is an 8-channel digital DC input module that senses ON/OFF signals from field devices. It interfaces with a terminal base and a communication adapter to provide distributed I/O over various networks.
What are the input voltage and current specifications for the 1794-IB8?
The 1794-IB8 operates with a nominal input voltage of 24V DC and an input voltage range of 10V to 31.2V DC. The typical input current is 8 mA at 24V DC, providing consistent signal detection for industrial sensors.
How is the Allen-Bradley 1794-IB8 installed and secured onto the terminal base?
To install the 1794-IB8, you must align the module with the terminal base unit and press firmly to seat the module. The module is secured when the side locking tabs snap into place on the base.
Does the 1794-IB8 support removal and insertion under power (RIUP)?
Yes, the 1794-IB8 is designed for removal and insertion under power (RIUP), allowing you to replace the module without disturbing the rest of the system's operation. However, the external power must be disconnected from the module’s inputs.
What are the input filter time specifications for the 1794-IB8 module?
The 1794-IB8 features an input filter time (Off-to-On and On-to-Off) that is typically 0.25 ms. This fast response time ensures that rapid state changes in field devices are accurately captured by the controller.
