      ABB FS450R12KE3-AGDR-71C-S
      ABB FS450R12KE3-AGDR-71C-S
      ABB FS450R12KE3-AGDR-71C-S
      ABB FS450R12KE3-AGDR-71C-S
      ABB FS450R12KE3-AGDR-71C-S
      ABB FS450R12KE3-AGDR-71C-S

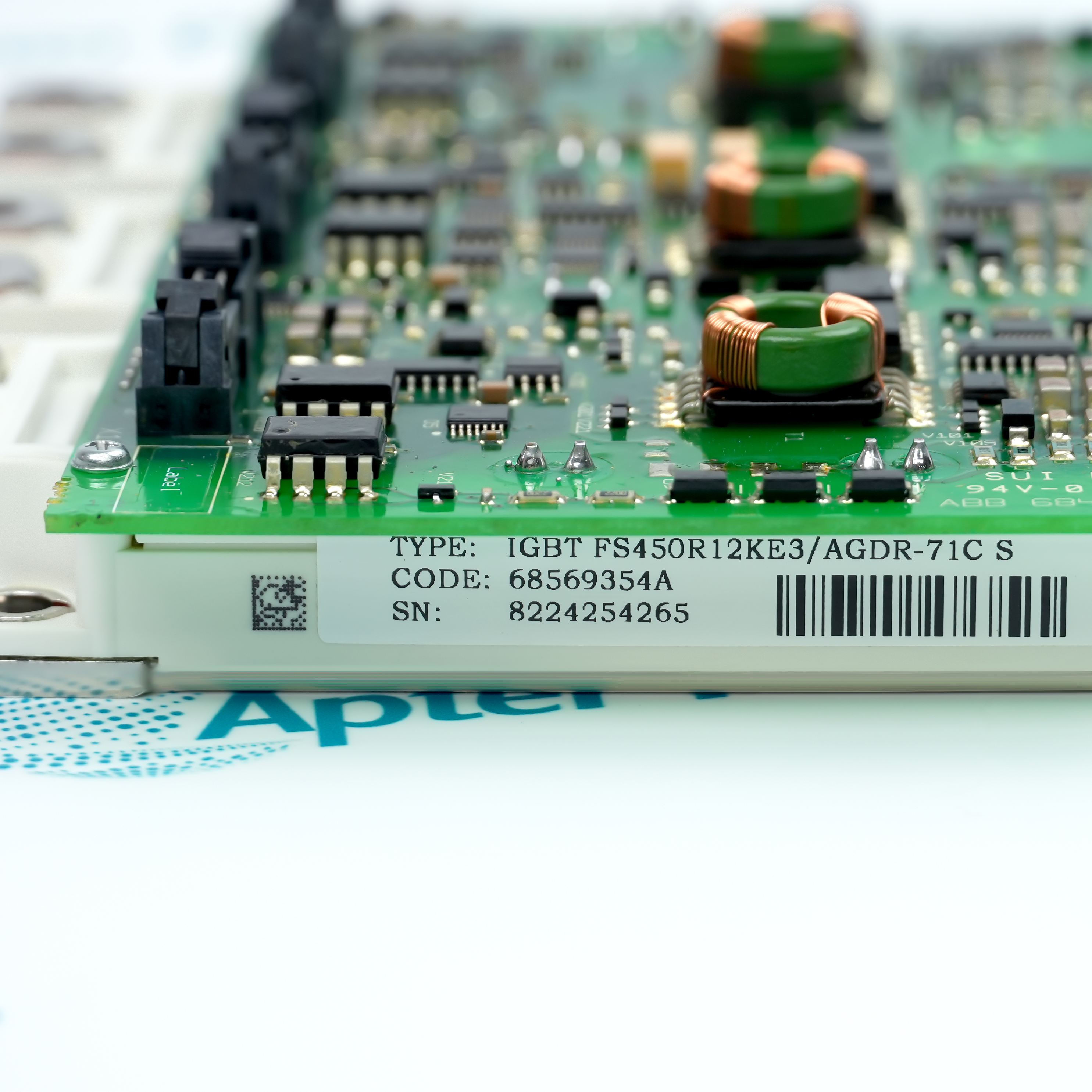

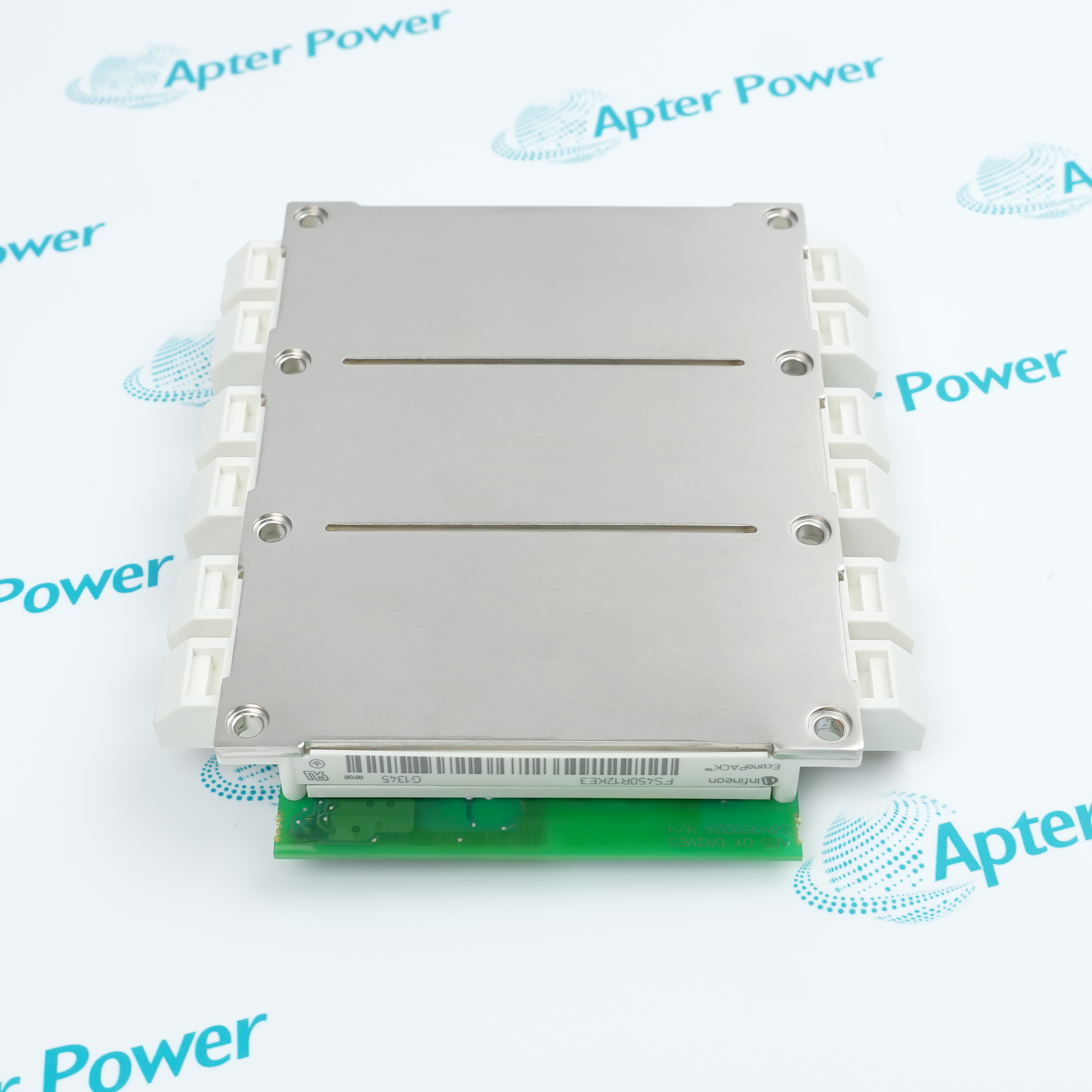

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      FS450R12KE3-AGDR-71C-S

      IGBT Module Kit with TIM Foil
      In Stock
      Ships by Wednesday, September 23
      Fast Shipping Available

      Product Describe：

      ABB FS450R12KE3-AGDR-71C-S is an IGBT module spare-part kit identified by ABB product ID 68569354. ABB's service notice assigns this kit to the ACS800 ECONOPACK+ IGBT module transition to thermal-interface-material foil.

      Ask our team:

      Get a quick price for： FS450R12KE3-AGDR-71C-S
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for FS450R12KE3-AGDR-71C-S

      Technical specifications for FS450R12KE3-AGDR-71C-S

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        68569354
      • Estimated shipping dimensions:
        15x18.7x3cm
      • Weight:
        1.02 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • ABB product ID:
        68569354
      • Official type designation:
        FS450R12KE3/AGDR-71C S
      • Spare-part description:
        IGBT module kit
      • Service update:
        TIM foil installation
      • Thermal grease:
        Removed from updated kit
      • Change implementation:
        Running change from Q2 2024
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      FS450R12KE3-AGDR-71C-S is the ABB 68569354 IGBT module kit covered by the ACS800 service transition from thermal grease to TIM foil.
      • Identified by ABB product ID 68569354
      • Supplied as an ACS800 IGBT module service kit
      • Uses the updated TIM-foil thermal interface
      • Supports documented power-stage service and verification

      The service kit belongs to an ACS800 ECONOPACK+ power-stage repair. Installation work must follow ABB's TIM-foil preparation and mounting sequence, preserve the exact power-stage wiring and confirm drive diagnostics under a controlled commissioning plan.

      Important Notice: Confirm FS450R12KE3-AGDR-71C-S, ABB product ID 68569354, the exact ACS800 power-unit frame and hardware revision, TIM-foil kit, module and gate connections, busbars, insulation, cooling path, drive firmware, parameter backup and controlled no-load diagnostics before commissioning.

      Apter Power FS450R12KE3-AGDR-71C-S Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      ACS800 inverter power-stage repair
      Replaces the documented module kit in a matching ACS800 ECONOPACK+ power section.
      Scheduled converter overhaul
      Supports a controlled module and thermal-interface renewal during planned service.
      Post-fault hardware restoration
      Provides the exact kit identity for repair after the drive power stage has been isolated and assessed.
      Lifecycle service update
      Applies ABB's running change from grease-based kits to TIM-foil installation practice.
      Read the applicable ABB installation instructions before work. Verify FS450R12KE3-AGDR-71C-S, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm both 68569354 and the full FS450R12KE3/AGDR-71C S designation.
      2
      Lock out the ACS800 input and prove the DC link fully discharged.
      3
      Record all busbar, gate and sensor connections before dismantling the power stage.
      4
      Use ESD controls and protect every module terminal and insulating surface.
      5
      Follow the ABB TIM-foil surface preparation and placement sequence exactly.
      6
      Tighten only in the documented pattern and to the drive-specific torque values.
      7
      Recheck clearances, insulation barriers, cooling surfaces and connection polarity.
      8
      Run controlled drive diagnostics before applying a motor load or returning to service.

      Technical notes

      Technical notes

      Before installing FS450R12KE3-AGDR-71C-S, confirm ABB product ID 68569354, the ACS800 drive configuration and the approved TIM-foil service instruction. Keep the power stage discharged and verify the module seating, foil placement, connections and post-repair diagnostics before enabling the drive.

      FAQS

      • What is the exact system role of FS450R12KE3-AGDR-71C-S?
        It is ABB spare-part kit 68569354 for an FS450R12KE3/AGDR-71C S IGBT module installation using TIM foil.
      • Which host, rack or carrier is required for FS450R12KE3-AGDR-71C-S?
        Use only in the exact ACS800 power-stage configuration identified by the current ABB parts and service documentation.
      • What wiring or connector checks apply to FS450R12KE3-AGDR-71C-S?
        Preserve the busbar, gate, sensor and insulation arrangement and follow the drive-frame-specific tightening sequence.
      • How is FS450R12KE3-AGDR-71C-S configured for service?
        No software setting belongs to the kit itself; retain the ACS800 parameter backup and verify power-stage diagnostics after the mechanical work.
      • Which diagnostics should be reviewed for FS450R12KE3-AGDR-71C-S?
        Review drive fault history, gate and temperature feedback, DC-link checks and the controlled startup results.
      • What must be preserved when replacing FS450R12KE3-AGDR-71C-S?
        Preserve the full type designation, product ID, frame, hardware version, connection map, parameter backup and removed-part record.
      • How should FS450R12KE3-AGDR-71C-S be commissioned after installation?
        Complete insulation, connection, cooling and diagnostic checks before a controlled no-load test and gradual load return.
      • What model-specific limitation must be checked for FS450R12KE3-AGDR-71C-S?
        Do not reuse the former thermal-grease practice when the updated ABB kit and notice specify TIM foil.
