      DSAB-01C 64630199Q

      Assessory Board
      In Stock

      Product Describe：

      Assessory Board
      2-layer board measuring
      376x169.5mm, often requiring
      Revision Q or later for
      Optimal compatibility

      Ask our team:

      Get a quick price for： DSAB-01C 64630199Q
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for DSAB-01C 64630199Q

      Technical specifications for DSAB-01C 64630199Q

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        DSAB-01C 64630199Q
      • Estimated shipping dimensions:
        37.5x16.8x5.5cm
      • Weight:
        0.34 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Switzerland
      • Input Voltage:
        24V DC nominal
      • Input Current:
        1.8A maximum
      • Output Voltage:
        24V DC regulated
      • Output Current:
        1.5A continuous
      • Power Rating:
        36W continuous
      • Ripple & Noise:
        <50mV peak-to-peak
      • Efficiency:
        ≥80% typical
      • Voltage Regulation:
        ±2% typical
      • Operating Temperature:
        0°C to 60°C
      Ask for Quote

      Information

      Information

      Overview Manuals Core positioning and functions

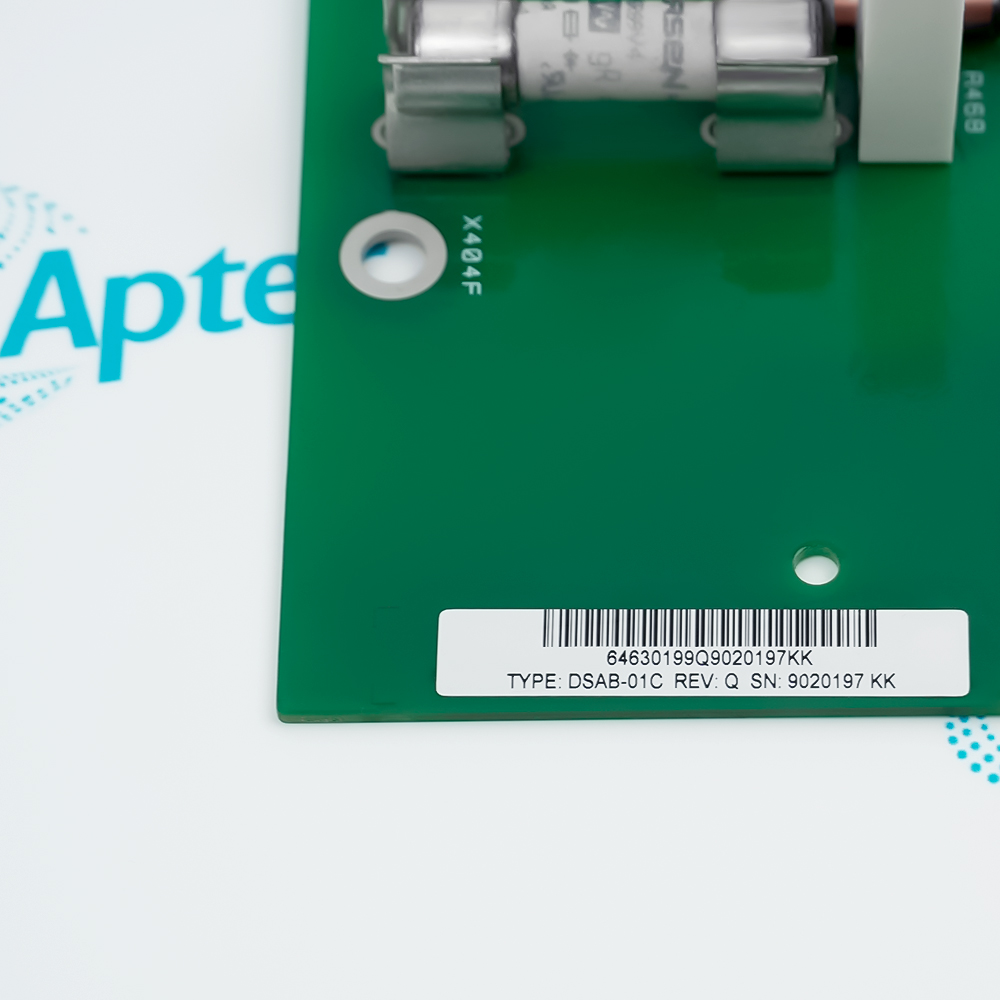

      The ABB DSAB-01C (Part Number 64630199Q) is a diode module and switch fuse control board for ABB ACS800 drives, used to manage power and protection circuits. It is a 2-layer board measuring 376x169.5mm, often requiring Revision Q or later for optimal compatibility.
        • A high-performance accessory board designed for ABB automation and control systems
        • Electrical interfaces between up to two Ethernet input-output networks
        • It provides reliable auxiliary functions including signal routing, diagnostics, and I/O expansion for enhanced system performance.
      This accessory board delivers reliable regulated 24V DC power to auxiliary circuits and provides robust protections, including overload, short-circuit, and thermal safeguards. Its construction ensures stable performance in industrial environments, allowing continuous operation under vibration, shock, and temperature variations.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB DSAB-01C 64630199Q Assessory Board Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Trigger control: responsible for receiving instructions from the main control unit and generating precise pulse signals to trigger the thyristor (SCR) or diode module in the rectifier bridge. Signal feedback: Real time monitoring of the status of the rectifier unit, including voltage, current, and temperature feedback, and transmitting it back to the main control board (such as RMIO board). System protection: It integrates basic hardware protection logic such as overcurrent, overvoltage, and phase loss.

      FAQS

      • What is the function of the ABB DSAB-01C 64630199Q Accessory Board?
        It provides auxiliary support for ABB control systems, including signal routing, diagnostics, and I/O expansion.
      • What is the input voltage of the DSAB-01C board?
        The board operates at 24V DC nominal (range 20–28V DC).
      • What is the DSAB-01C 64630199Q?
        A diode module/switch fuse control board, often referred to as an accessory board, for ACS800 series drives.
      • What does
        64630199 is the base part number, and 'Q' indicates the revision level (Q or later is recommended).
      • How do I upgrade an DSAB-01C 64630199Q older board?
        If upgrading from a Revision D, a specific upgrade kit is needed (code: 64630199kit).
      • What are the DSAB-01C 64630199Q specifications?
        The board weighs 0.8kg and features a 2-layer design. Where is it used? Primarily in industrial automation and inverter drive applications requiring precise control.
