Product Describe:
Input Module universal
24 V DC Rated Voltage
16 Universal Input Channels
For Binary and Analog Transmitters
4 Dedicated Channels (Configurable)
DX Channel Type

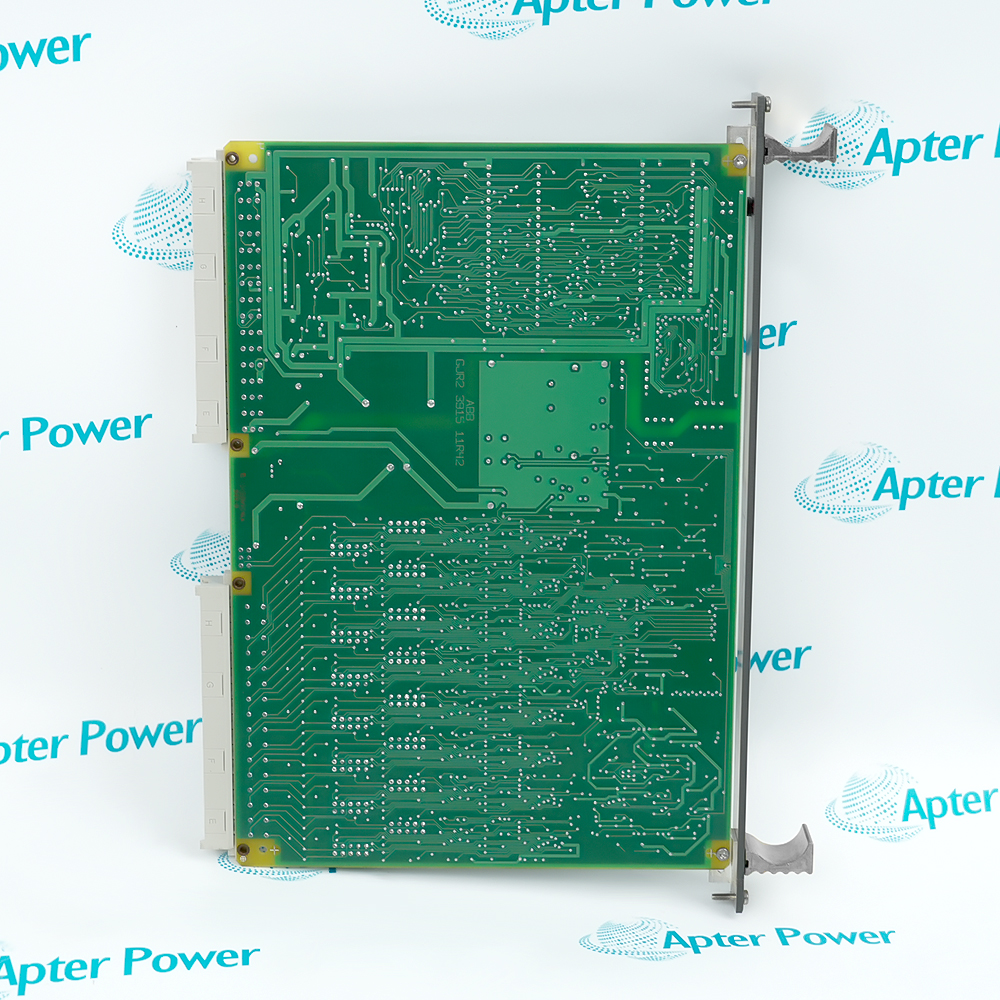

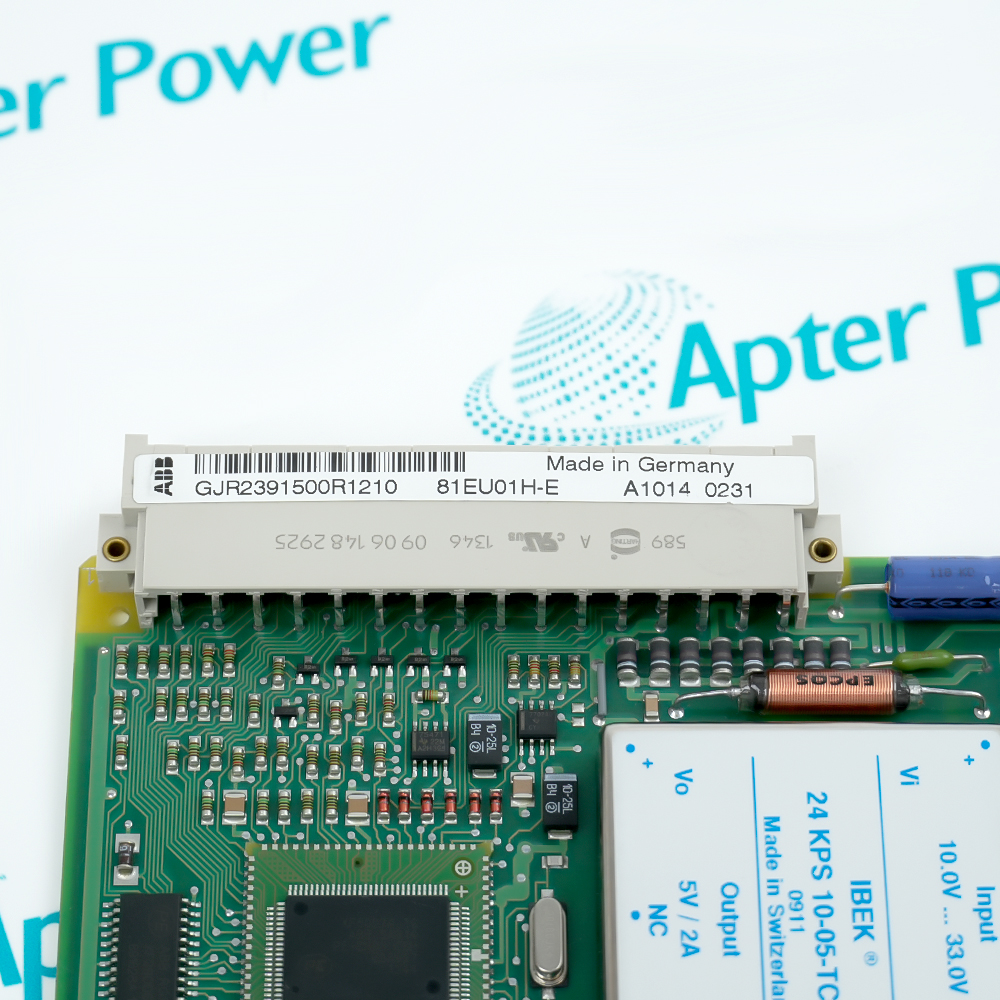

The GJR2391500R1210 81EU01H-E is a universal input module used in the Procontrol P14 system. It comes with 16 input channels and can connect both digital and analog signals. This makes it a flexible and reliable choice for industrial automation applications.
16 Inputs in One Module
Works with Multiple Signal Types
Reliable for Industrial Use
The ABB GJR2391500R1210 81EU01H-E delivers stable and accurate signal input performance.It supports multiple signal types such as current, voltage, and temperature, making it suitable for different applications.With built-in memory and durable design, it ensures reliable operation even in harsh industrial environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB GJR2391500R1210 81EU01H-E Input Module universal Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Process Control
Used to monitor and control various industrial processes with both analog and digital signals.
Factory Automation
Connects sensors and transmitters to improve efficiency and automation on production lines.
Energy Management
Helps track and manage energy usage in industrial plants and facilities.
Temperature Monitoring
Supports RTD and thermocouple inputs for accurate temperature measurement.
Equipment Diagnostics
Collects data from machinery to detect faults or performance issues early.
Safety Systems
Integrates with safety sensors and signals to enhance industrial safety.
The ABB GJR2391500R1210 81EU01H-E supports a wide variety of signal types, including voltage, current, resistance, and temperature signals. It has 16 configurable input channels, and each channel can be independently set to suit different types of sensors and transmitters.
You can connect both digital switches (binary signals) and analog devices, including thermocouples and RTDs, to one module.
This flexibility makes installation easier, reduces the number of required modules, and simplifies your control system design. It is ideal for factories, process plants, and automation systems where multiple signal types need to be integrated into a single monitoring unit.
The ABB GJR2391500R1210 81EU01H-E is built for stable and accurate signal acquisition, even in demanding industrial environments. It includes built-in functions such as signal filtering, correction, and limit monitoring to ensure that all readings are precise and reliable.
The module stores all settings in EEPROM memory, so your configurations are preserved even during power outages.
Its robust industrial design protects against electrical noise, temperature fluctuations, and mechanical stress, ensuring long-term operation with minimal maintenance. This makes it a trustworthy solution for applications like pump monitoring, motor control, temperature measurement, and valve automation, where reliability is critical.
The ABB GJR2391500R1210 81EU01H-E is a universal input module designed to acquire signals from binary and analog transmitters. It is widely used in ABB Procontrol P14 systems for industrial process monitoring. The module supports flexible configuration for different signal types in automation systems.
What input signals does ABB GJR2391500R1210 81EU01H-E support?
The module supports a wide range of input signals including voltage, current, resistance, and temperature signals. It can handle 4–20 mA, 0–20 mA, and voltage inputs, as well as RTD and thermocouple signals via transmitters. It also supports binary inputs such as contacts and NAMUR sensors.
What is the supply voltage of ABB GJR2391500R1210 81EU01H-E?
The ABB GJR2391500R1210 81EU01H-E operates with a standard 24 V DC power supply. This is typical for ABB I/O modules and ensures stable and reliable operation. Proper power supply connection is essential for accurate signal acquisition.
How many channels does ABB GJR2391500R1210 81EU01H-E have?
The module provides 16 universal input channels. Each channel can be configured independently for different input types. This allows flexible use in mixed-signal industrial applications.
Can ABB GJR2391500R1210 81EU01H-E store configuration data?
Yes, the module uses EEPROM to store configuration parameters. This ensures that all settings are retained even in case of power failure. Users can modify parameters at any time without affecting stored data.
