Excitation board brand
External DC Voltage
Measurement Interface Board
Conformal Coated
(Indicated by suffix C)
for harsh environments
Designed for ABB DC drive
frame sizes D1 to D4

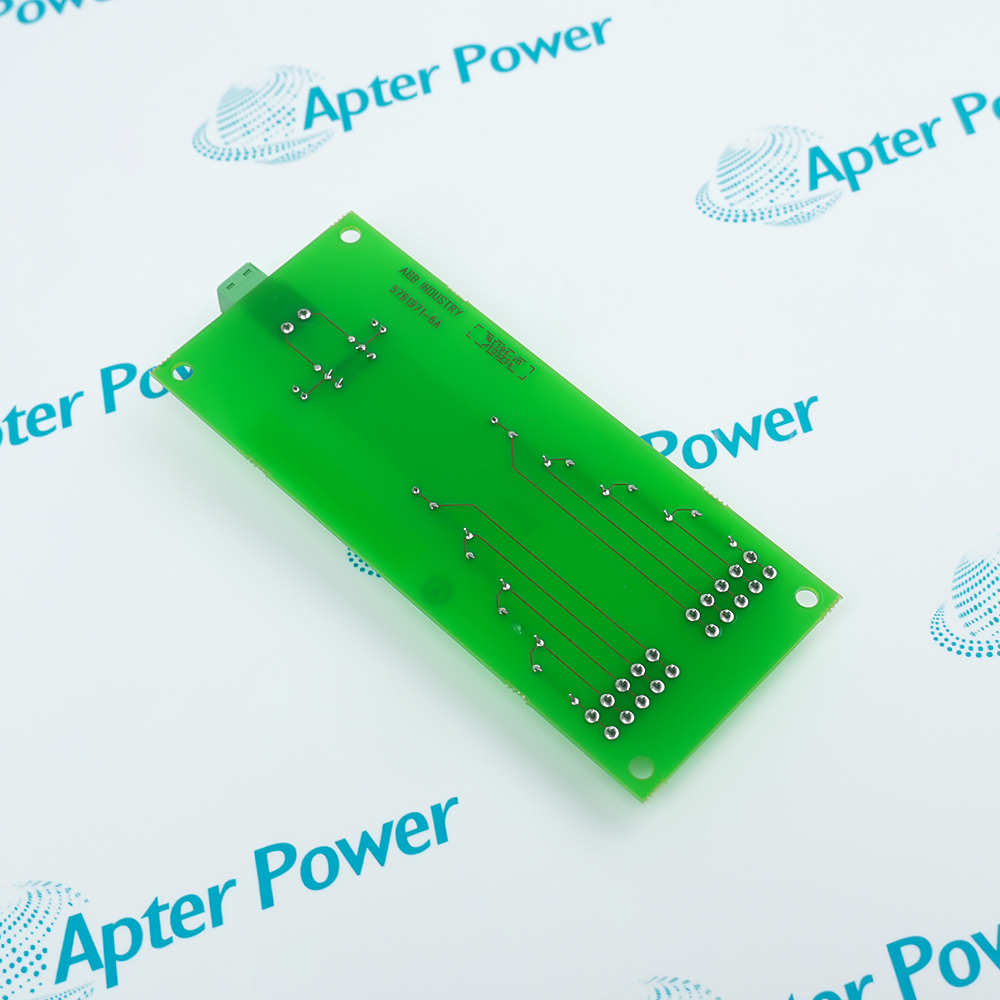

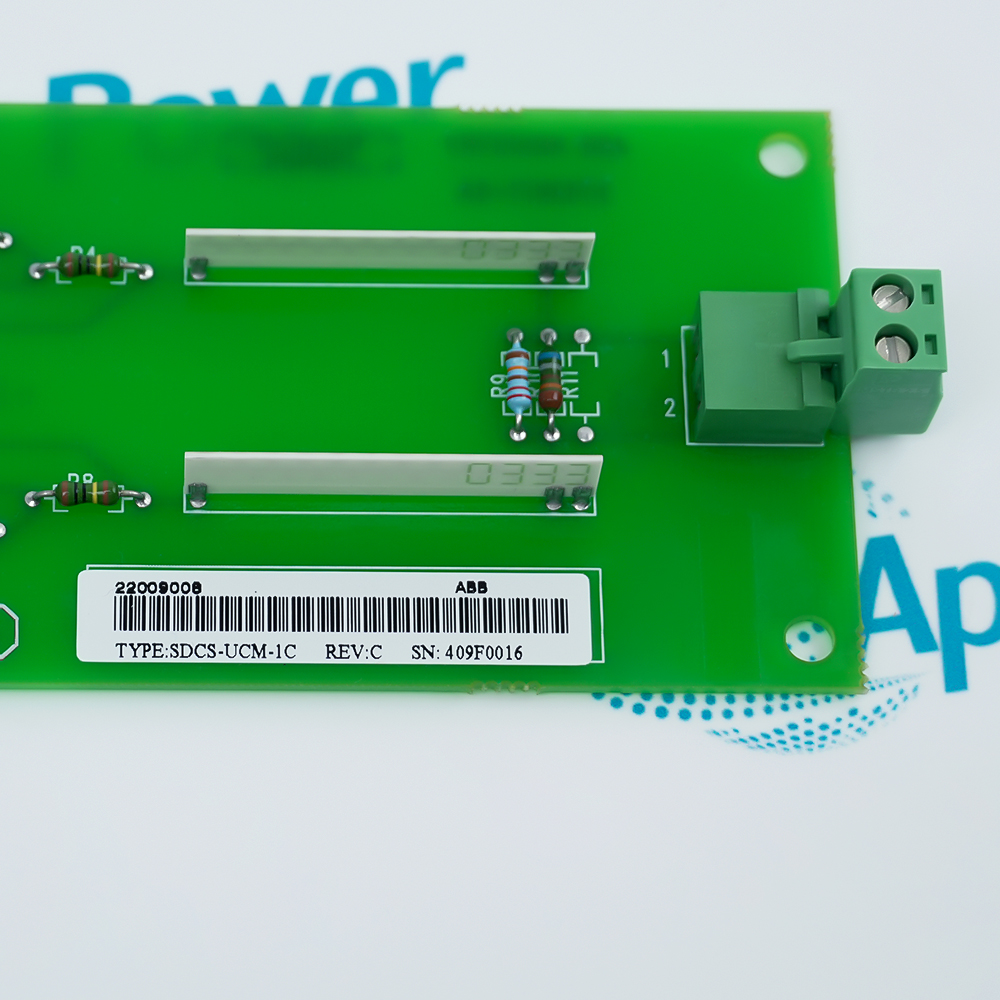

The SDCS-UCM-1C 3ADT220090R0008 is a core control and measurement circuit board from ABB, primarily used in its DC drive systems. In converter systems, it plays a crucial role in signal sampling and power loop control.
Vacuum-grade varnish conformal coating
Perfect match for 12-pulse serial dual-bridge topology
Direct measurement of motor terminal voltage bypassing the converter
This module brings essential performance capabilities to heavy industrial power automation environments. It enables the direct capture of actual motor terminal voltage, bypassing the physical location of the main converter unit. This capability maintains absolute feedback accuracy when long-distance cabling stretches between the control room and the driven machinery. The hardware offers perfect compatibility with complex 12-pulse serial dual-bridge motor configurations. It also blocks high-voltage spikes, thyristor switching harmonics, and sudden line surges from traveling into the low-voltage control processors.A standout physical property of the 3ADT220090R0008 is its factory-applied premium varnish conformal coating. This protective barrier fully seals the electronic circuitry, microscopic components, and trace pathways from surrounding contaminants.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB SDCS-UCM-1C 3ADT220090R0008 Excitation board brand Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Steel & Ferrous Metallurgy
Bypasses long-distance cables to precisely monitor DC motor armature terminal voltages in high-power DC drive systems of hot or cold main rolling mills.
Pulp & Paper Industry
Provides high-immunity, conformal-coated insulation for isolated sampling of high-voltage signals within multi-sectional drive lines of large high-speed paper machines.
Rubber Mixing & Tire Manufacturing
Isolates high-frequency secondary harmonic spike noises introduced by heavy-current grid commutation inside the drive loops of heavy-duty rubber internal mixers or tire extruders.
Natural Gas Gathering & Pipeline Boosting
Guarantees explosion-proof level precision collection of external high-voltage loop voltages for large DC auxiliary drive motors within natural gas transmission units.
Rail Transit
Used for isolated high-voltage data acquisition during DC rail locomotive traction motor evaluations and heavy DC generator set fatigue bench testing.
When using the SDCS-UCM-1C 3ADT220090R0008, the core priorities are avoiding live operation, preventing high-voltage back-feeding, and correctly configuring high-voltage fuses. Since the board directly connects to dangerous industrial high-voltage currents, the main power must be completely isolated, and a multimeter must be used to verify zero residual charge before handling, as this hardware absolutely does not support hot-swapping. Wiring must strictly separate high-voltage inputs from low-voltage outputs to prevent voltage surges from backing into and destroying the host control processor. Additionally, the high-voltage side must perfectly match standard protective fuses per the official manual, so using copper wires as substitutes is strictly prohibited to prevent short-circuit overcurrents and serious fire hazards.
What exactly is the product SDCS-UCM-1C 3ADT220090R0008?
It is an industrial-grade drive system high voltage and current measurement interface board manufactured by ABB.
What does its part number 3ADT220090R0008 represent?
This is the global standard unique material code used in the official ABB catalog to uniquely define the SDCS-UCM-1C coated protection board.
How do you use a board product like SDCS-UCM-1C 3ADT220090R0008?
It must be fixed onto a standard mounting base inside the drive cabinet, with its high-voltage terminals connected to the grid or DC motor, and its low-voltage output linked to the drive main control board via ribbon cables.
What is the core purpose of this extension board in the system?
It is primarily used for real-time precise voltage measurement of high-power DC motor operations, while providing high-level electrical high-voltage isolation protection for the control system mainboard.
Why is it necessary to install an extra SDCS-UCM-1C 3ADT220090R0008 module in a DC drive system?
It must be added when conventional internal drive voltage measurement channels cannot cover field ultra-high voltage limits, or when independent external differential voltage detection is required in complex topologies like 12-pulse serial dual-bridge operations.
