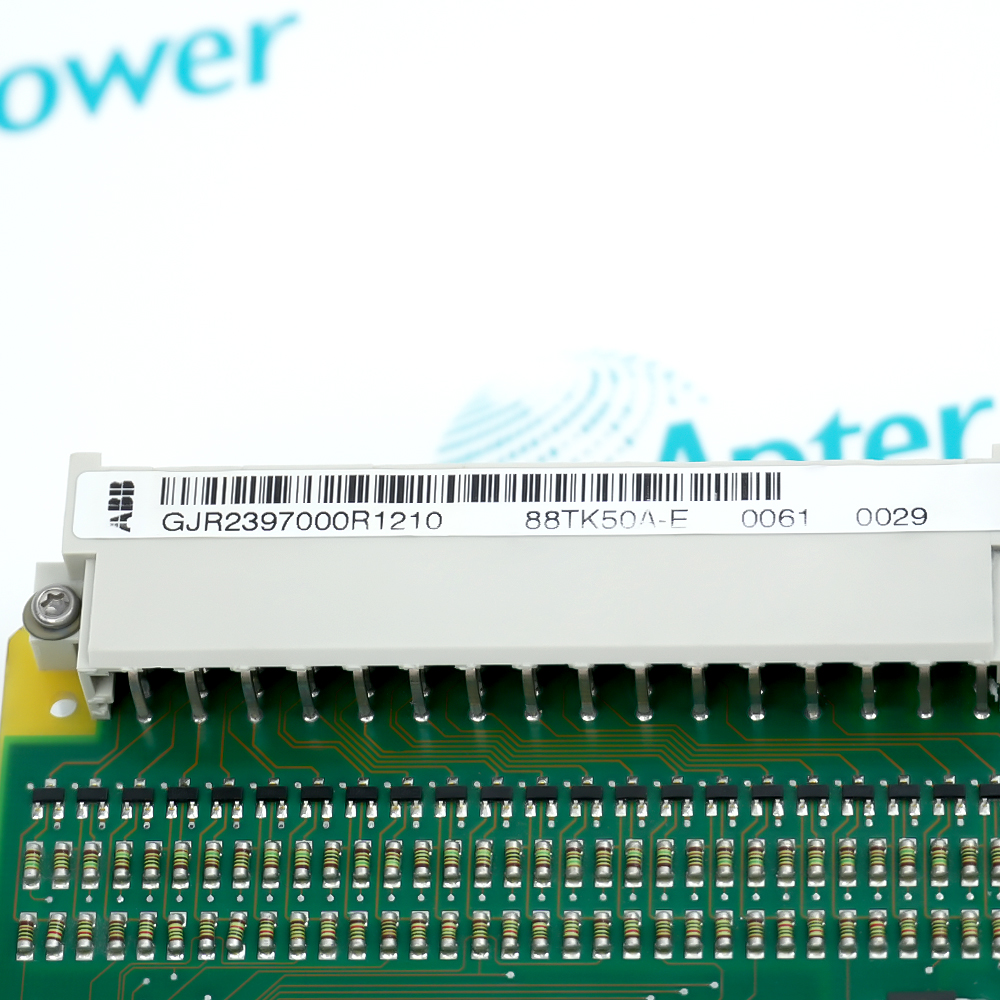

The GJR2397000R1210 88TK50A-E is a dedicated coupling module designed for the ABB Procontic T200 programmable logic controller system. It is specifically engineered to interface the central subrack with expansion subracks, providing the primary communication link for extending the T200 hardware architecture beyond a single chassis.
System Expansion Capability
Synchronous Bus Communication
Integrated Status Diagnostics
This module facilitates high-speed parallel bus synchronization across multiple subracks, ensuring real-time data integrity for distributed I/O configurations. It features front-panel diagnostic LEDs for "RUN" and "ERROR" status monitoring and provides necessary electrical isolation between the controller backplane and expansion hardware to prevent localized electrical faults from disrupting the entire system.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB GJR2397000R1210 88TK50A-E Coupling Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Coordinates high-speed I/O for robotic welding and assembly lines. It extends the parallel bus to manage hundreds of discrete synchronization points across multiple subracks.
Power Distribution
Manages complex interlocking in medium-voltage switchgear. It facilitates system expansion across separate cabinets while maintaining data integrity for protective relaying logic.
Chemical Processing
Supports distributed control for reactor sequences and batch processing. It provides the necessary I/O density to monitor temperature and flow across extensive processing skids.
Metals Processing
Facilitates robust communication in hot rolling mills. The high-speed coupling ensures minimal signal latency between the processor and distributed motor drive coordination.
Water Treatment
Integrates remote I/O stations in municipal filtration facilities. It allows the control system to scale across large areas for monitoring pumping stations and dosing units.
Material Handling
Optimizes automated storage and retrieval systems (AS/RS). It enables system branching to manage numerous sensors and actuators along long-distance sorters and palletizing zones.
All interconnection cables between the 88TK50A-E and its corresponding partner module in the expansion rack must be securely fastened and shielded to maintain signal quality and prevent electromagnetic interference from affecting the I/O scan cycle. During operation, the front-panel "RUN" LED must remain illuminated to indicate active bus synchronization, while any "ERROR" LED activation necessitates an immediate check of the bus cable continuity and subrack power levels.
The module requires a stable +5V DC supply from the backplane, and the total current load of the subrack must be calculated to ensure it does not exceed the capacity of the power supply module when multiple coupling units are utilized.
What is the primary function of the ABB GJR2397000R1210 88TK50A-E module in a Procontic T200 system?
The 88TK50A-E is a coupling module used to link the central subrack with expansion subracks, facilitating high-speed parallel bus communication across the hardware architecture.
Does the ABB GJR2397000R1210 88TK50A-E require an external power supply to operate?
No, the module draws its required +5V DC operating power directly from the T200 subrack backplane and does not feature external power terminals.
What is the difference between GJR2397000R1210 and the
The "A" suffix denotes a hardware revision; both versions are functionally identical, fully interchangeable, and utilize the same 88TK50A-E technical specifications.
How do the front panel LEDs on the ABB GJR2397000R1210 88TK50A-E assist in system diagnostics?
The integrated LEDs provide real-time status for RUN, ERROR, and BUS conditions, allowing operators to quickly identify communication faults or module hardware failures.
Are there specific slot requirements for the ABB GJR2397000R1210 88TK50A-E in the T200 subrack?
Yes, the module must be installed in the dedicated coupling slots of the Procontic T200 rack to ensure proper alignment with the parallel bus logic.
