The ACS355-03E-05A6-4 is a high-performance, compact mechanical frequency converter manufactured by ABB Group. This device is primarily used in industrial automation to control and regulate the speed of three-phase AC asynchronous motors, featuring high stability and a wide range of functions.
Dual Motor Control
Built-in Braking Chopper
Side-by-Side R1 Frame
The ABB ACS355 is a highly flexible and compact AC drive system designed for wall-mounting or cabinet installation, engineered to deliver precise control for both asynchronous AC induction motors and permanent magnet synchronous motors (PMSM) without requiring encoder feedback. Positioned as ABB's premier Machinery Drive, this system is optimized for system integrators and original equipment manufacturers (OEMs) who demand rapid installation, straightforward commissioning, and high-performance motor control.Within this comprehensive drive platform, the ACS355-03E-05A6-4 model represents a specific three-phase, 400V class power module housed in the ultra-compact R1 frame size. Delivering a rated output current of 5.6 A, it is perfectly engineered to drive 2.2 kW (3 Horsepower) motors under strenuous heavy-duty operational cycles.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB ACS355-03E-05A6-4 Machinery Drive Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Textile Machinery
Drives yarn spinning spindles and winding reels, utilizing sensorless vector control to maintain constant material tension and prevent thread breakage.
Pharmaceutical
Controls fluid powder mixers, tablet pressing machines, and coating pans to ensure uniform chemical blending and dose consistency.
Water & Pumping
Controls small clean water booster pumps and chemical dosing pumps, supporting PID loop control to maintain stable pipeline pressure.
Electronic Assembly
Controls PCB pick-and-place conveyor tracks and wave soldering machine speeds, utilizing the SIL3 STO feature for rapid emergency stops.
Chemical & Petrochemical
Drives chemical laboratory agitators, small liquid blenders, and chemical exhaust fume hood ventilation fans safely.
Pulp & Paper
Runs pulp mixing impellers and auxiliary chemical additive pumps, delivering precise torque to adapt to changing liquid densities.
When using the ACS355-03E-05A6-4 VFD, always follow these critical guidelines. Wait at least 5 minutes after power-off for internal capacitors to discharge, and use ESD protection before wiring. Maintain at least 75mm of free clearance above and below the drive for ventilation, keeping ambient temperatures below 50°C. Lastly, always use symmetrical shielded motor cables with reliable grounding, and install this IP20 unit strictly inside a clean, dry control cabinet.

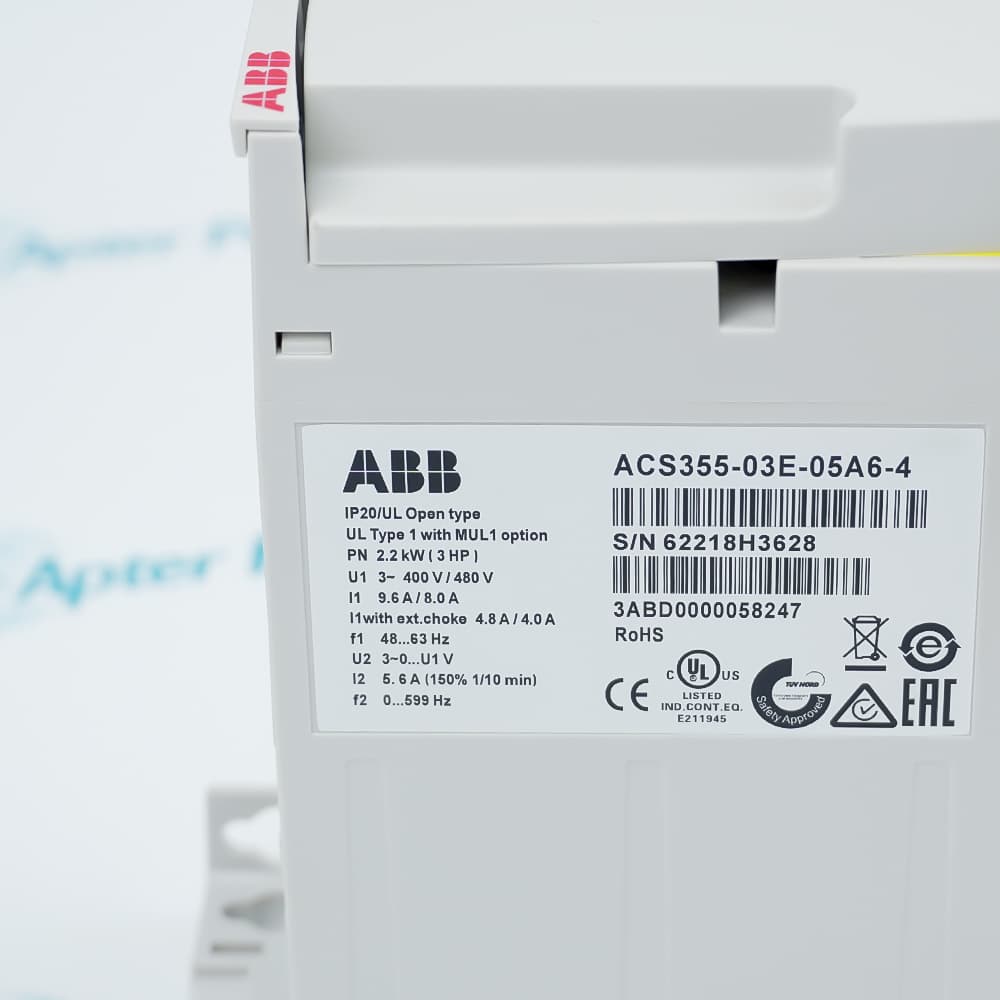

It is an ABB ACS355 series 3-phase AC variable frequency drive (VFD) with a rated output current of 5.6A and power of 2.2 kW (3 HP).
How to use the ACS355-03E-05A6-4?
Mount it on a DIN rail or wall inside a cabinet, connect the 3-phase 400V power input and motor cables, and configure parameters via the control panel or FlashDrop tool.
What types of motors can the ACS355-03E-05A6-4 control?
It controls both traditional asynchronous AC induction motors and high-efficiency permanent magnet synchronous motors (PMSM).
Does the ACS355-03E-05A6-4 support sensorless vector control?
Yes, it supports both advanced scalar (U/f) control and high-performance sensorless vector control.
What is the overload capacity of the ACS355-03E-05A6-4?
It offers a heavy-duty overload capacity of 150% for 1 minute every 10 minutes, with a maximum starting current of 9.8A for 2 seconds.
