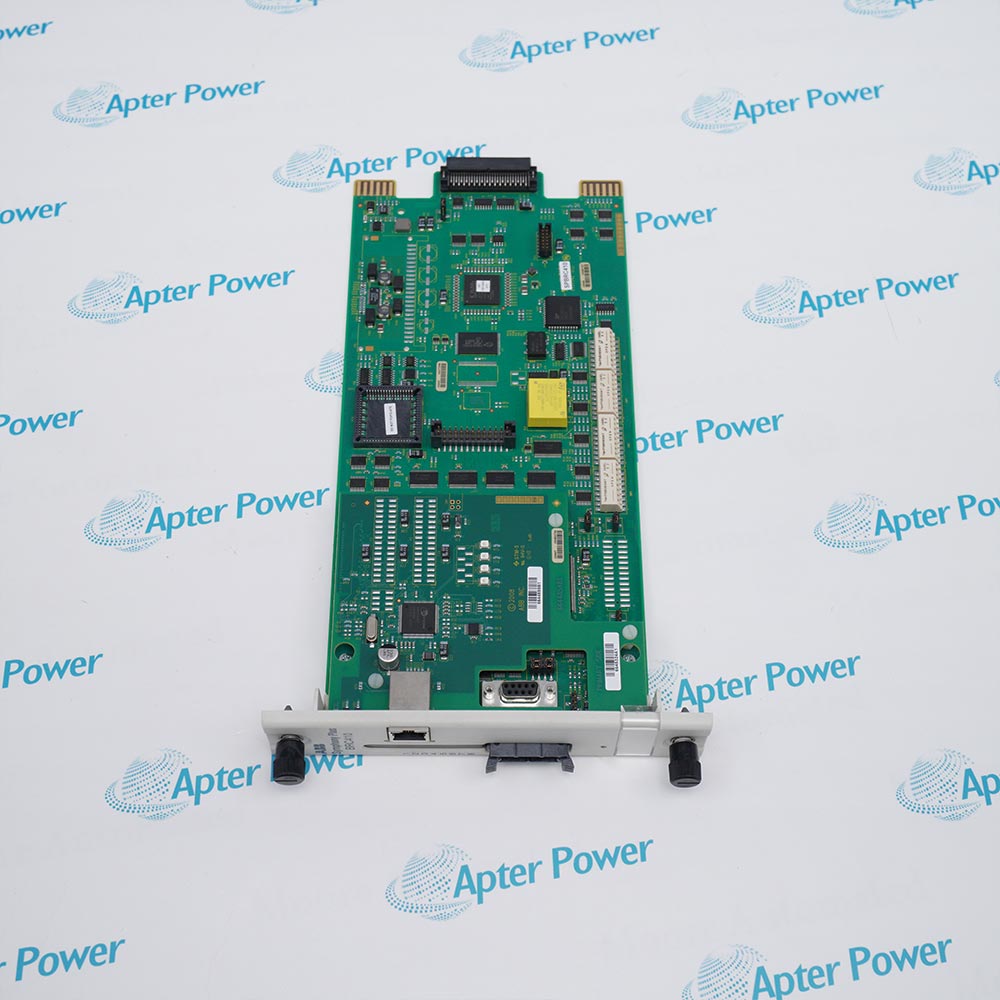

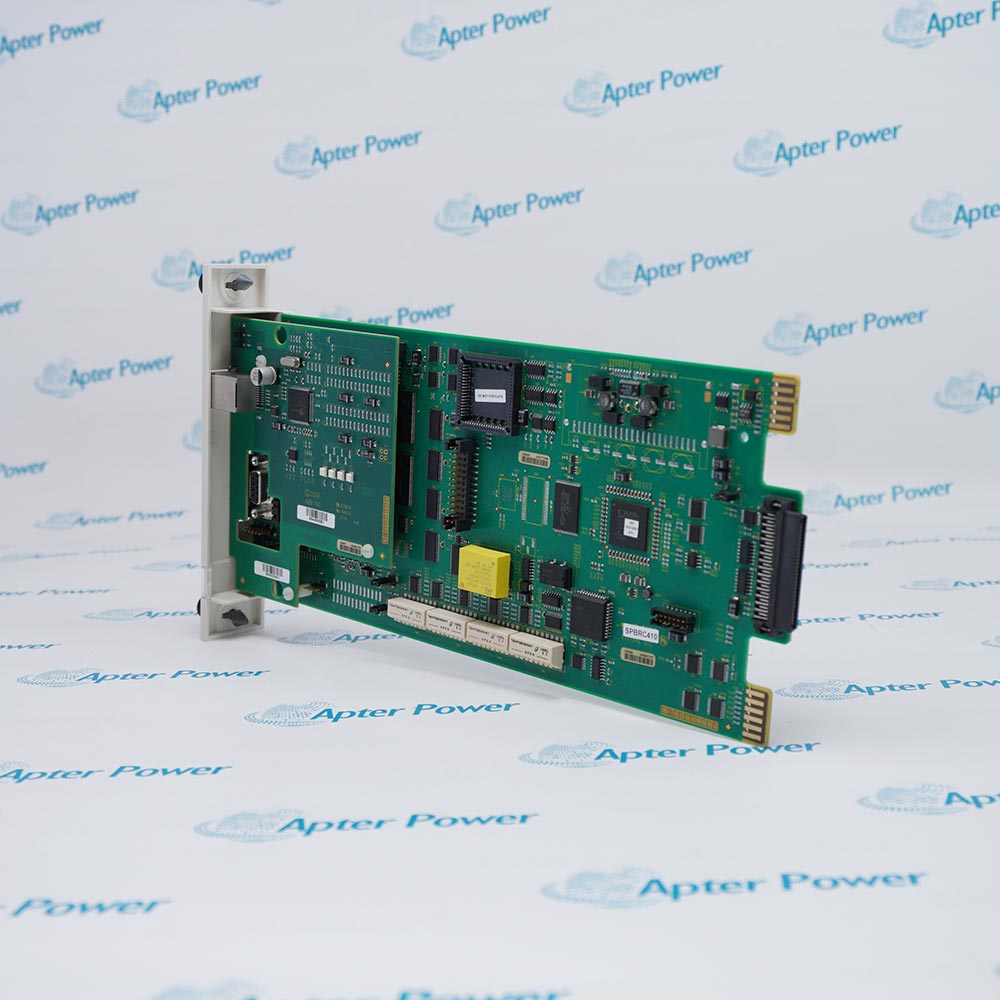

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for SPBRC410 / BRC410 / P-HC-BRC-41000000
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for SPBRC410 / BRC410 / P-HC-BRC-41000000
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:SPBRC410
-
Estimated shipping dimensions:3.6x32.5x17.7cm
-
Weight:0.41 kg
-
Tariff Code:8537101190
-
Counliy of origin:Sweden
-
Processor:Freescale ColdFire MCF5407, 160 MHz, 32 bit
-
Memory:8 MB DRAM; 2 MB NVRAM
-
Control capacity:Up to 30,000 function blocks
-
Controller power:2 A at 5 VDC; 10 W
-
Serial interfaces:Two RS-232, or one RS-232 plus one RS-485
-
Ethernet:10/100 Ethernet, RJ45; CAT5 distance context up to 100 m
-
Modbus TCP:Up to 4 servers, 24 clients, licensed capacities of 500/1500/3000/4000 points
-
PDP800 capacity:Up to 4 redundant PDP800 pairs
-
Ambient temperature:0 to 70 degrees C
-
Origin / HS / dimensions / weight:HOLD - no exact ABB evidence found
Information
Overview
Manuals
Common Applications
Product Precautions
ABB P-HC-BRC-41000000 is the official order-style designation for the Ethernet-enabled BRC410 Harmony Rack bridge controller, also cataloged by ABB as SPBRC410. It is a process controller, not an Ethernet switch, standalone protocol converter, or I/O module.
- Processor: Freescale ColdFire MCF5407, 160 MHz, 32 bit
- Memory: 8 MB DRAM; 2 MB NVRAM
- Control capacity: Up to 30,000 function blocks
- Controller power: 2 A at 5 VDC; 10 W
The controller executes continuous, sequential, batch, advanced, user-defined, and C-based control strategies with capacity for up to 30,000 function blocks. It receives process and peer data, evaluates the configured control strategy, and issues commands to compatible ABB I/O architectures. ABB documents a 160 MHz 32-bit Freescale ColdFire MCF5407 processor, 8 MB DRAM, 2 MB NVRAM, two RS-232 ports or one RS-232 plus one RS-485, 10/100 Ethernet, mini-USB service, and licensed Modbus TCP server/client data exchange. It is used with Harmony Rack, SD Series, S800, PDP800, PBA800/HN800, INFI-Net or PN800, Composer, and project-specific redundancy hardware in power, pulp and paper, water, chemical, and other continuous-process systems. Exact firmware, license, topology, PBA, and failover design must be verified per project.
Important Notice: Update ApterPower product ID 855774 at /ABB/spbrc410; do not create a second P-HC-BRC-41000000 page.
Apter Power SPBRC410 / BRC410 / P-HC-BRC-41000000 Manuals and Guides
- SPBRC410 / BRC410 / P-HC-BRC-41000000 Product Parameters PDF
- Apter Power SPBRC410 / BRC410 / P-HC-BRC-41000000 Product Information Manual
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited ABB official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current ABB documents, and host-system requirements before installation or replacement.
Large process-unit control
Executes high-capacity continuous, sequential, batch, and advanced strategies.
Modbus TCP integration
Exchanges licensed controller data with configured Modbus TCP servers and clients.
Multi-family ABB I/O coordination
Coordinates Harmony Rack, SD Series, S800, and documented PDP800 paths.
HPG800 evolution
Supports engineered controller/gateway consolidation where ABB's project documents permit it.
Read and follow the exact ABB documentation and host-equipment instructions before work. Verify the complete physical nameplate and system configuration.
1
Back up the complete controller database, firmware, tuning, UDF/C code, license record, and redundancy settings.
2
Verify P-HC-BRC-41000000 on the physical nameplate and preserve the existing ApterPower ID and canonical.
3
Confirm the installed PBA, rack slot, power, Ethernet topology, serial wiring, addressing, and licenses.
4
Do not exceed ABB's documented Modbus TCP server, client, or licensed point limits.
5
Use an approved outage, failover, download, rollback, and commissioning plan.
6
Test I/O, peer data, Modbus data, alarms, time synchronization, diagnostics, and redundancy transfer before release.
7
Do not publish origin, HS code, weight, dimensions, or a present lifecycle phase from reseller data.
Alternative Names
P-HC-BRC-41000000
PHCBRC41000000
BRC410
SPBRC410
Technical notes
Update ApterPower product ID 855774 at /ABB/spbrc410; do not create a second P-HC-BRC-41000000 page.
Retain SPBRC410, BRC410, and P-HC-BRC-41000000 as searchable exact aliases on one canonical record.
Confirm the physical P-HC-BRC-41000000 nameplate, firmware, Ethernet license, PBA, and redundant-controller pairing before field replacement.
Do not merge BRC300, BRC400, HPG800, or SPC810ev into this record.
Lifecycle evidence boundary: HOLD - ABB's 2017 lifecycle material listed SPBRC410 in the active HR BRC family and a 2024 ABB repair promotion included YSPBRC410, but no exact current 2026 formal lifecycle phase was found
FAQ View All FAQ
-
What is P-HC-BRC-41000000?It is ABB's exact order-style designation for the BRC410 Bridge Controller with Ethernet.
-
Is it the same product as BRC410?Yes. ABB's exact user-instruction title maps P-HC-BRC-41000000 to BRC410.
-
Is SPBRC410 another independent product?No. ABB uses SPBRC410 as the catalog designation and BRC410 in the product narrative.
-
Should ApterPower create a new page?No. Update existing product ID 855774 at /ABB/spbrc410.
-
How many function blocks are supported?ABB documents up to 30,000.
-
Which Ethernet interface is documented?10/100 Ethernet on RJ45.
-
Which serial interfaces are documented?Two RS-232 ports, or one RS-232 plus one RS-485.
-
Does it support Modbus TCP?Yes, subject to exact firmware and licensing.
-
How many Modbus TCP servers and clients are documented?Up to four servers and 24 clients.
-
Which I/O families can it coordinate?ABB documents Harmony Rack plus SD Series and S800 integration.
-
Is HPG800 an alias?No. It is a separate predecessor/evolution application.
-
Are current lifecycle, origin, HS code, weight, and dimensions proven?No. They remain HOLD without exact current ABB evidence.
