PROFIBUS REDUNDANCY LINK MODULE
150 MA 24 VDC
CONVERTS NON-REDUNDANT
PROFIBUS LINE TO TWO
REDUNDANT LINES OR VICE VERSA
AMPLIFIES SIGNAL FORM / AMPLITUDE
MONITORS ERROR STATUS
Technical specifications for RLM01 3BDZ000398R1
Manufacturer:
ABB
Product Category:
DCS System
Spare Part Number:
3BDZ000398R1
Estimated shipping dimensions:
5.5x9.5x13.2cm
Weight:
0.32 kg
Tariff Code:
8537101190
Country of origin:
SWEDEN
Place of shipment:
Xiamen, Fujian, China
Redundant Channels:
2
Operating Voltage:
24VDC
Power Consumption:
Max 150mA
Connection:
8-pin terminal strip
Communication Protocol:
Profibus DP
Operating Temperature:
0°C to +50°C
Power Consumption:
3.6W
By purchasing this item, you agree to the Terms & Conditions
Apter Power is NOT an authorized distributor of ABB
Factory New
These are new and current items that are procured from the manufacturer.
New No Package
These parts are new. They have not been used, but their original packaging is no longer available.
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact.
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Why Choose Apter Power?
1.Full one year warranty on all components
2.Professional after selling team
3.Same-day dispatch payment come
4.All units are fully tested well with certificate
5.Speak With an Expert Sales Representative
6.More than 20 years experience in automation
7.Stable employees more than 10+ years working experience
Delivery and payment
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Apterpower 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
We provide 1 year warranty on every product we sell.
Service means taking a customer problem and making it your own challenge. Years of experience and listening skills enable us to think and act quickly and accordingly. You have a problem? – We have the solution!
Apter Power is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
The Sales Team at Apter Power is constantly scanning the web to ensure we are offering the lowest prices possible.
However, if you think we can do better, feel free to make an offer on any of our products.
We pride ourselves on saving you money! Here is how to make an offer.
Only spare parts that you are seriously considering purchasing. Once your bid is accepted, a sales order will be generated and an invoice will be created.
If you have any questions about our quotes, please feel free to contact us. We will be happy to help you further.
If you receive a lower price than us, please do not hesitate to contact us. We allow you to quickly obtain the same part at a very low cost. Our extensive knowledge of industrial automation parts means that we can provide you with the best value and innovation. We ensure your satisfaction at all times.

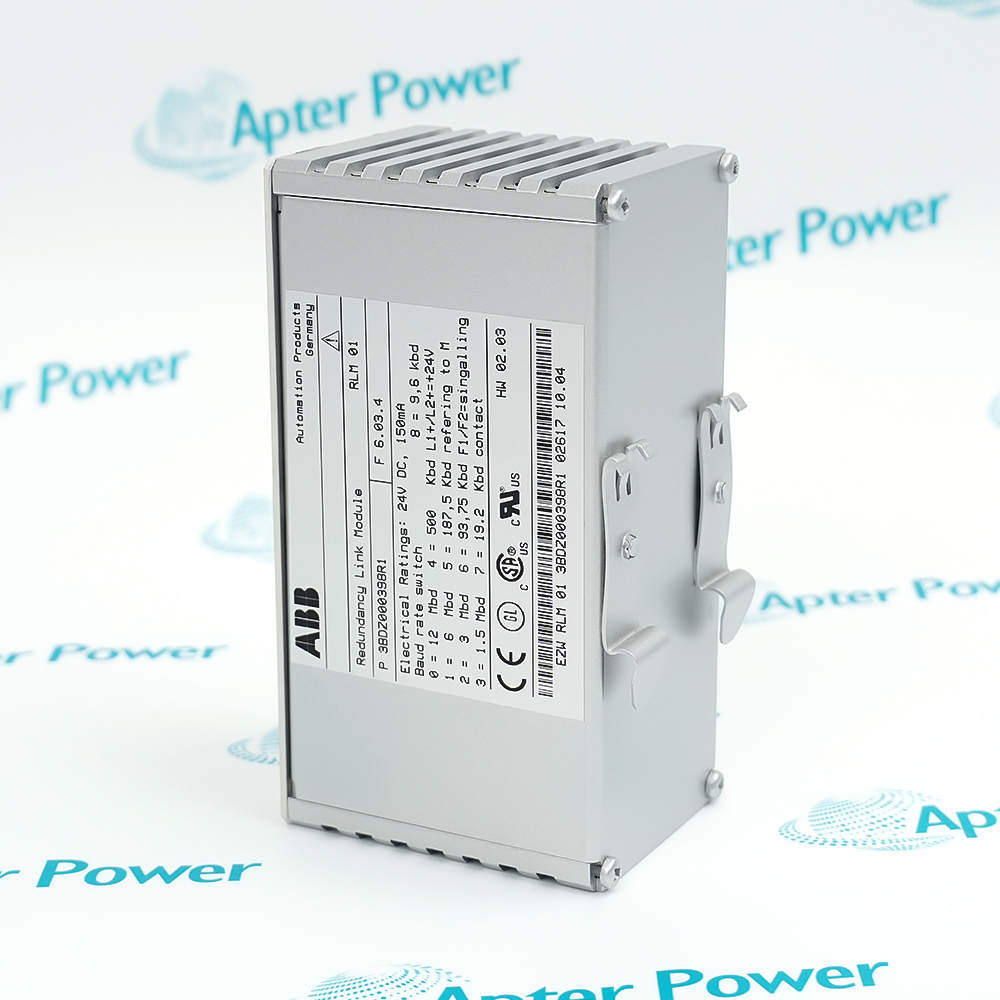

The RLM01 3BDZ000398R1 is a redundant link module for PROFIBUS-DP fieldbus, designed to improve the reliability and flexibility of bus communication in industrial automation systems. It is typically used in conjunction with ABB's Freelance distributed control systems.
Ring or dual-line redundant structure
Provides 3 PROFIBUS interfaces
Supports 35mm DIN rail mounting

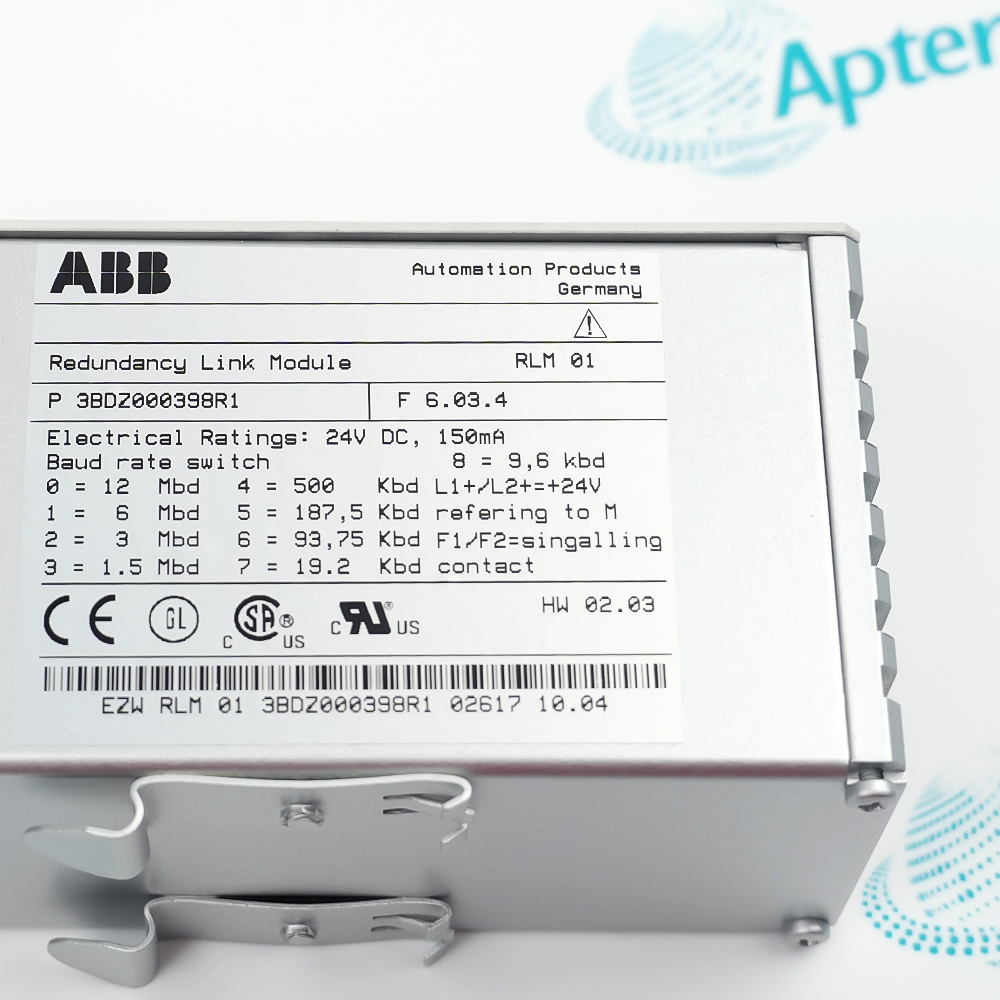

The three RS 485 interfaces of the module support all transmission rates specified in DIN 19245 for the PROFIBUS from 9.6 kBit/s to 12 MBit/s. The module has repeater functionality, i.e., it regenerates the signal shape and the amplitude of received data. RLM01 monitors all three lines A, B and M for activity and error states. Detected errors are signalled by lit diodes on the front panel. The potential-free alarm contact activated in parallel to this can be polled for diagnostic purposes by the process control system PCS or by a programmable logic control PLC. The first data coming in over line A or line B with a correct telegram start are routed to terminal M. With simultaneity, either line A or line B is selected at random. Testing and selection is always based on the first character. In the case of a telegram start with error on A, the control logic switches to the redundant line B. The same procedure applies vice-versa for line B. Data coming in over line M with a correct telegram start are routed in parallel to the two terminals A and B. The test for data is always based on the first character. In the case of a telegram start with error, the control logic does not output any data to A and B.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB RLM01 3BDZ000398R1 Redundancy Link Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Safeguards the PROFIBUS DP network between the main Distributed Control System (DCS) and decentralized boiler/turbine auxiliaries.
Oil & Gas
Provides line-redundant network topologies for critical process areas to guarantee continuous safe operations.
Chemical & Petrochemical
Connects single-interface PROFIBUS slaves to redundant fieldbus backbones under aggressive chemical processing environments.
Marine & Maritime
Fulfills DNV/GL marine standards to provide redundant network routing for ship propulsion and steering controls.
Steel Metallurgy
Prevents signal loss caused by high electromagnetic interference (EMI) around heavy foundry machinery.
Pulp & Paper
Integrates distributed non-redundant smart sensors into a fully redundant DCS architecture.
When deploying the RLM01 3BDZ000398R1 module, engineers must ensure that appropriate standard PROFIBUS bus terminators are activated at the physical ends of all three lines to prevent signal reflections and telemetry distortion. It is highly recommended to leverage the module’s dual-input terminal design by wiring redundant 24 VDC power sources to achieve seamless power supply failover. Furthermore, for maritime or offshore applications, a mandatory external 24 VDC power pack filter must be inline to maintain strict compliance with Germanischer Lloyd regulations against voltage spikes. Lastly, technicians should continuously monitor the potential-free alarm contact and front-panel LEDs for line errors to catch localized network degradation before a catastrophic dual-channel failure occurs.
How to install and deploy the RLM01 3BDZ000398R1 in a control cabinet?
It features a standard compact design and is easily mounted on a 35mm DIN rail. It should be positioned inline next to a PROFIBUS Master, or directly in front of vulnerable fieldbus segments or single-interface slaves.
Does the RLM01 3BDZ000398R1 require a specific slave address?
No, the module is completely transparent to the PROFIBUS network configuration. It does not occupy any slave addresses, making it plug-and-play without modifying existing software logic.
What transmission speeds are supported by the RLM01 3BDZ000398R1?
It supports the full spectrum of standard PROFIBUS DP/FMS transmission rates, ranging from 9.6 kbps up to 12 Mbps, with automatic baud rate detection.
How many communication ports does the RLM01 3BDZ000398R1 provide?
It features three RS-485 ports using standard 9-pin Sub-D connectors: one non-redundant Main port (M) to interface with the master/device, and two redundant line ports (A and B).
