Technical specifications for DI828 3BSE069054R1
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:DI828 3BSE069054R1
-
Estimated shipping dimensions:4.3x11x11.8cm
-
Weight:0.15 kg
-
Tariff Code:8537101190
-
Counliy of origin:Sweden
-
Channel Type:DI
-
Number of Input Channels:16
-
AC Voltage Range:77 to 130 V AC
-
DC Voltage Range:75 to 130 V DC
-
Certifications:CE marked, with marine approvals including ABS, BV, DNV-GL, and LR
Information
Overview
Manuals
Common Applications
Product Precautions

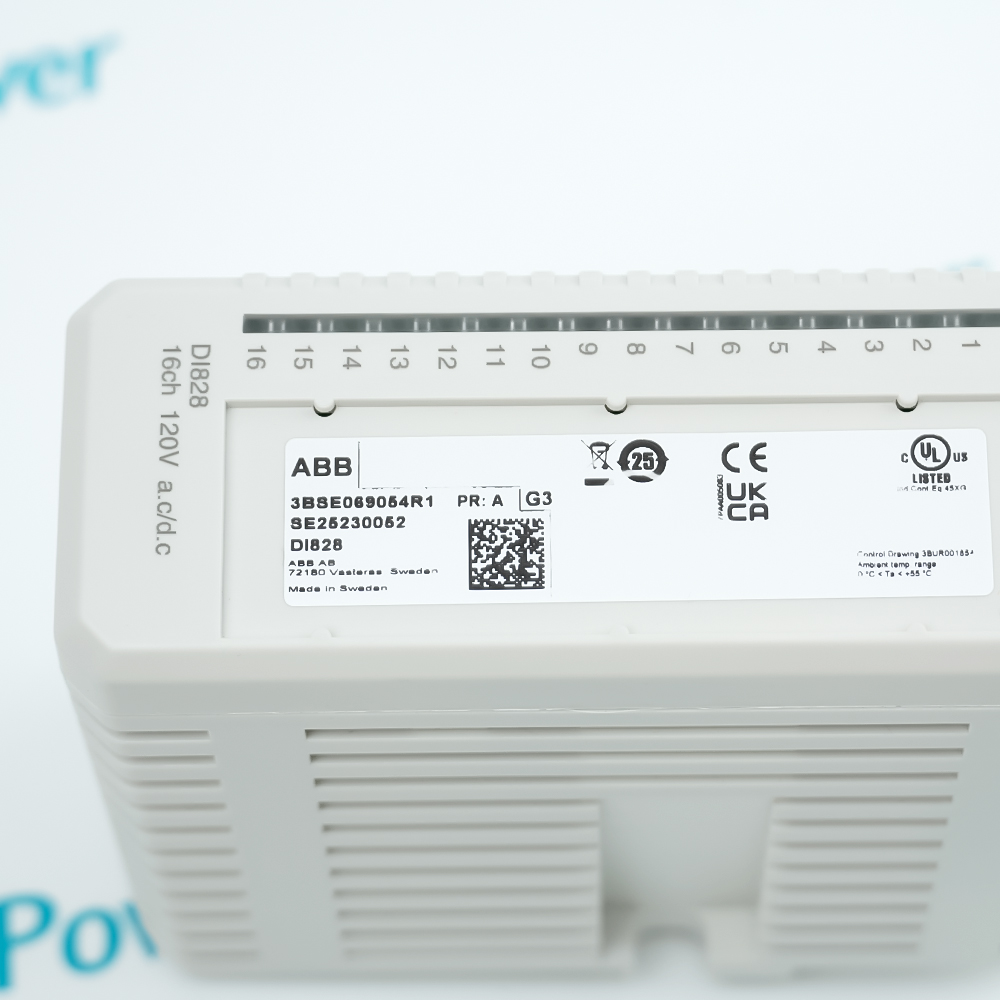

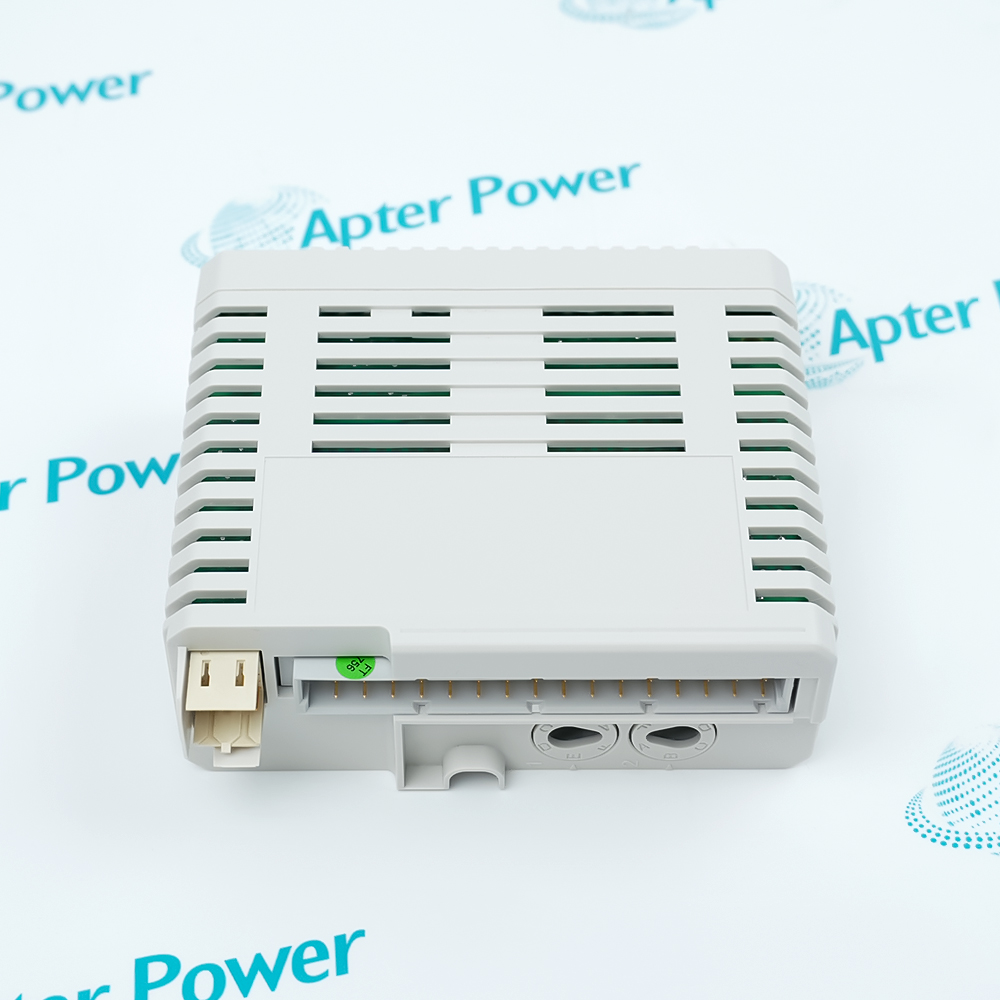

The DI828 3BSE069054R1 is an 16 channel 120 V a.c/d.c. digital input module for the S800 I/O. The module has 16 digital inputs. The AC input voltage range is 77 - 130 V and the input current is 8.5 mA at 120V AC. The DC input voltage range is 75 - 130 V and the input current is 2.4 mA at 120V DC. The inputs are individually isolated.
- 16 channels for 120 V AC/DC inputs
- Individually isolated channels
- Input status indicators
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB DI828 3BSE069054R1 Digital Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metallurgy and Steel Industry
Monitors limit switch and pressure switch signals of blast furnace charging, hot rolling mill main drives, and hydraulic pump stations, resisting heavy field electromagnetic interference.
Oil, Gas, and Petrochemical
Receives 120V position feedback signals from long-distance pipeline electric valve actuators and Emergency Shutdown valves, ensuring key safety interlock status collection.
Chemical and Fine Chemical Industry
Collects binary statuses of large mixers, reactor motorized valves, and explosion-proof field distribution panels, preventing loop interference via individual channel isolation.
Mining and Mineral Processing
Applied in underground hoist, conveyor belt control cabinets, and ventilation monitoring, utilizing the high noise tolerance of 120V signals to resist voltage drops and interference from long cables.
Paper and Printing Industry
Monitors contactor and relay action statuses of drying cylinder controls and multi-motor synchronous drive cabinets in large high-speed paper machines to prevent paper-break faults.
Semiconductor and Electronics Facility Utilities
Used for high-voltage signal collection in chiller plants, large Air Handling Units, and pure water treatment systems, maintaining peripheral environment stability for sensitive chip production lines.
When using the DI828 3BSE069054R1 you must strictly ensure that the AC or DC voltage of the field 120V signal lines stays within the nominal operating range to prevent overvoltage burnout or undervoltage recognition failure.
Meanwhile you need to correctly configure the voltage supervision function on Channels 1 and 16 during wiring and maintenance to prevent false alarms caused by loop disconnection or power loss, and handle the module gently during live hot-swapping to avoid damaging the backplane ModuleBus pins.
Meanwhile you need to correctly configure the voltage supervision function on Channels 1 and 16 during wiring and maintenance to prevent false alarms caused by loop disconnection or power loss, and handle the module gently during live hot-swapping to avoid damaging the backplane ModuleBus pins.
Alternative Names
3BSE069054R1
DI828
DI828 3BSE069054RI
DI828 3BSE069O54R1
DI828 3BSEO69054R1
D1828 3BSE069054R1
Technical notes
The module supports voltage supervision via Channels 1 and 16, transferring channel error signals to the control system via ModuleBus upon loss of field voltage.
FAQ View All FAQ
-
What is DI828 3BSE069054R1?It is a 16-channel 120V AC/DC digital input module for the ABB S800 I/O system.
-
Which series does DI828 3BSE069054R1 belong to?It belongs to the ABB S800 I/O hardware series.
-
How to use DI828 3BSE069054R1?Plug it onto a Module Termination Unit (MTU) and connect 120V field wires.
-
What is the AC voltage range of DI828 3BSE069054R1?Its AC input operating range is 77 to 130 V.
-
