      DSDX452L 5716075-U

      Remote In/Out Basic Unit
      In Stock

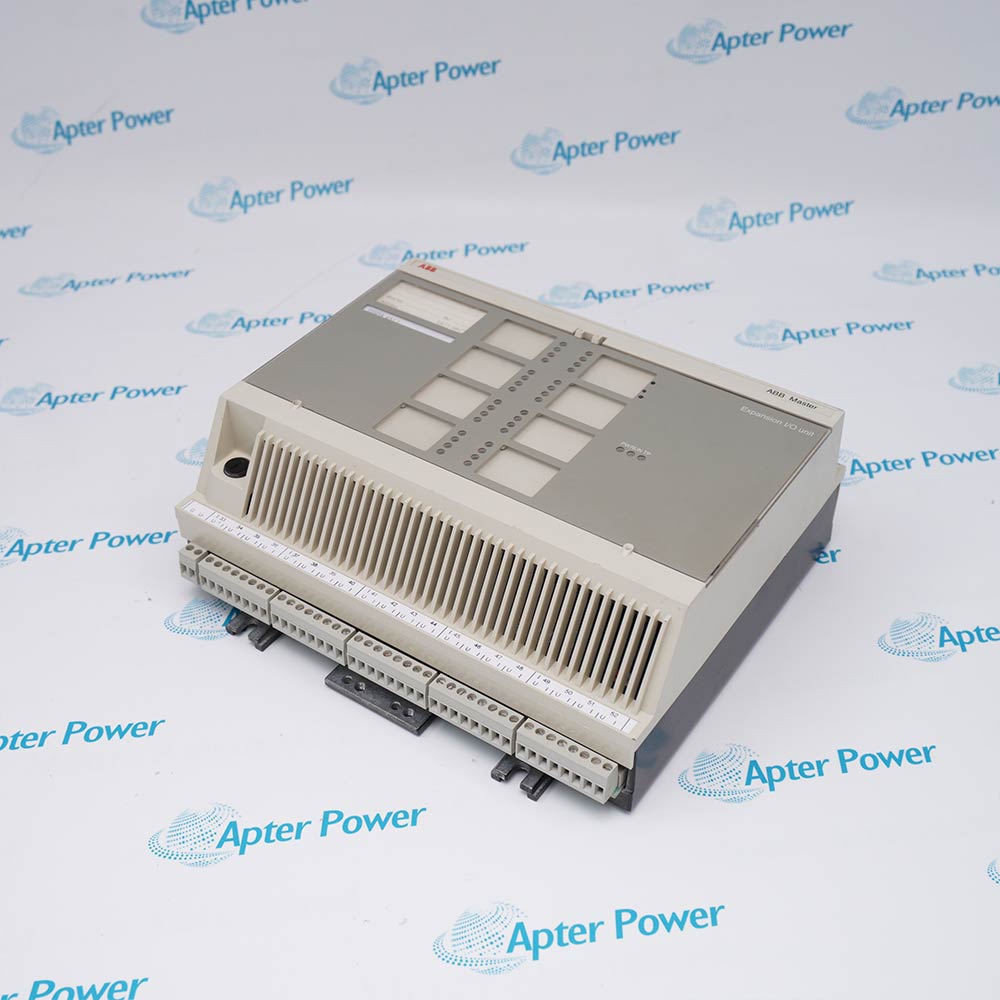

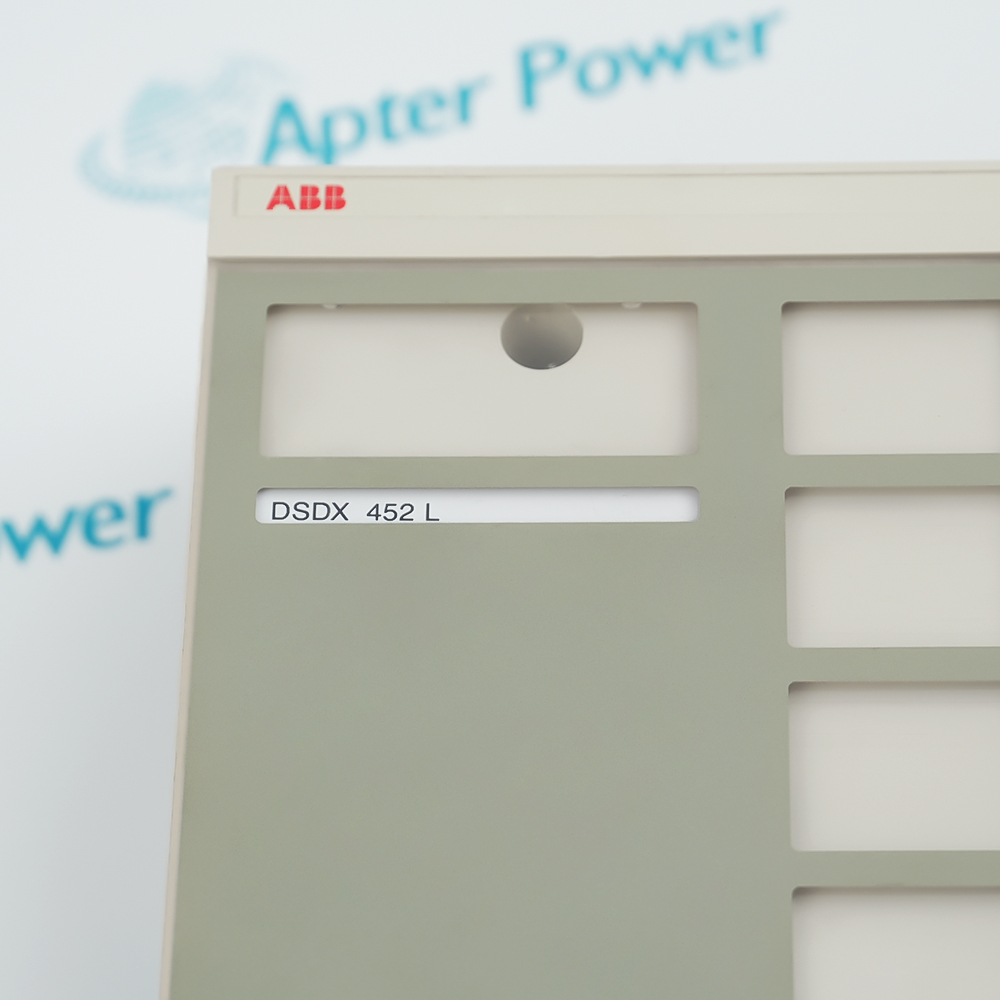

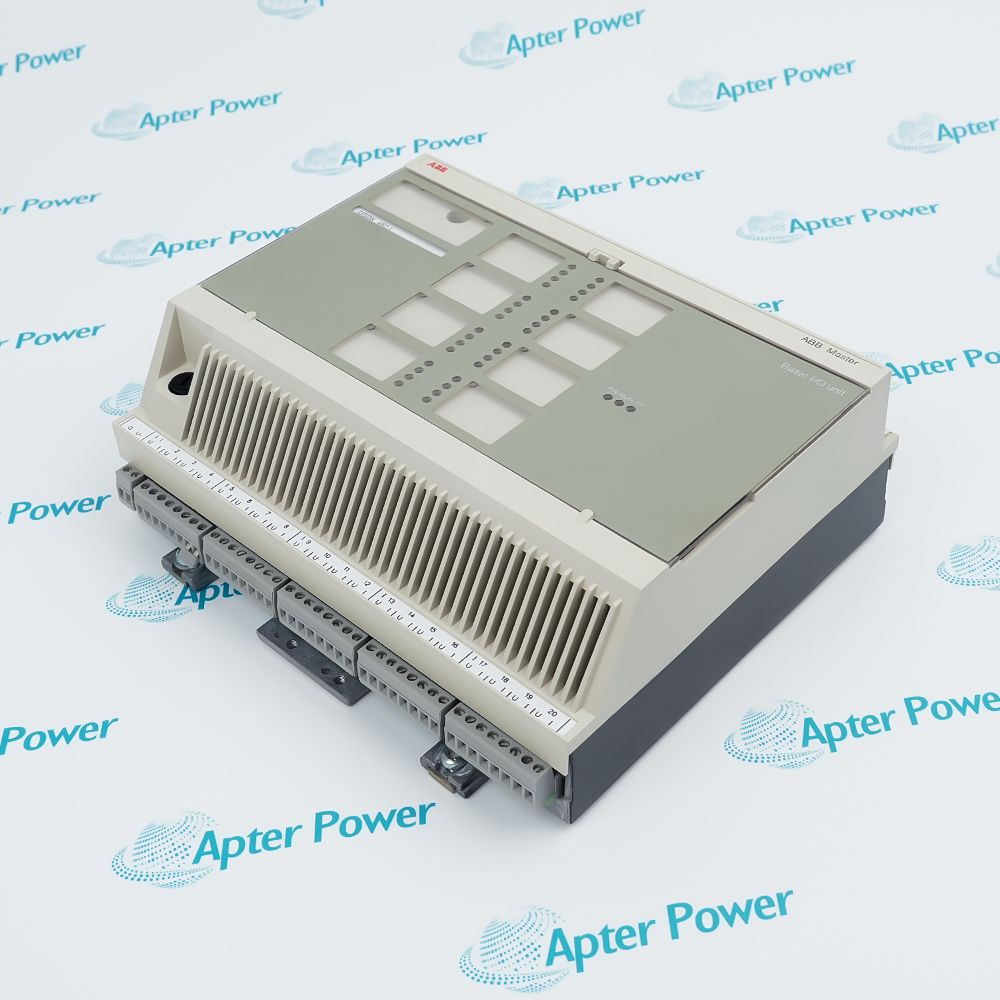

      ABB DSDX452L 5716075-U
      ABB DSDX452L 5716075-U
      ABB DSDX452L 5716075-U
      ABB DSDX452L 5716075-U
      ABB DSDX452L 5716075-U
      ABB DSDX452L 5716075-U
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Remote In/Out Basic Unit
      0.1A to 3A per channel
      Supports MasterFieldbus
      SDB communication

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for DSDX452L 5716075-U
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 0

        Why Choose Apter Power?

        1.Full one year warranty on all components
        2.Professional after selling team
        3.Same-day dispatch payment come
        4.All units are fully tested well with certificate
        5.Speak With an Expert Sales Representative
        6.More than 20 years experience in automation
        7.Stable employees more than 10+ years working experience
      • 1

        Common Applications

        • Electricity and Energy
        • Petroleum
        • Natural gas
        • Chemical industry
        • Papermaking
        • Metallurgy
      • 2

        Delivery and payment

        Delivery
        Logistic partners UPS, FedEx and DHL
        International delivery available
        Same day dispatch from warehouse inventory
        Warranty
        All parts new original are covered by Apterpower 12 month warranty

        Returns
        No hassle returns policy

        Dedicated customer support team

        Payment options
        We accept Bank transfers and the following methods of payment:

      Technical specifications for DSDX452L 5716075-U

      • Manufacturer:
        ABB
      • Product Category:
        DCS Systems
      • Spare Part Number:
        5716075-U
      • Estimated shipping dimensions:
        22.9x10.2x25.4cm
      • Weight:
        2.85 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input channel (DI):
        20 channels.
      • Signal voltage:
        24V DC.
      • Output channel (DO):
        12 channels.
      • Monitoring function:
        It has power loss monitoring, startup self-test, and communication monitoring functions.
      • Input Voltage Range:
        18–30 V DC
      • Power Consumption:
        8 W (typical)
      • Operating Temperature:
        0 to 60 °C
      • Storage Temperature:
        -20 to 70 °C
      • Humidity:
        5–95% RH, non-condensing
      Ask for Quote

      Information

      Overview Manuals Typical application scenarios
      The DSDX452L (code 5716075-U) is a S400 I/O remote input/output basic unit in the ABB Advant OCS system. It is mainly used for industrial automation, with 20 24V digital inputs (DI) and 12<100mA low current digital outputs (DO), suitable for control applications that require low signal levels.
        • Remote In/Out Basic Unit
        • 0.1A to 3A per channel
      This module integrates 20 digital inputs (DI) and 12 digital outputs (DO). Its design focuses on low signal level applications, with 24V DC logic input and optimized output for low current loads (less than 100mA). This high-density I/O configuration makes it an ideal choice for monitoring limit switches, pressure sensors, and driving micro relays or status indicator lights.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB DSDX452L 5716075-U Remote In/Out Basic Unit Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Signal acquisition and monitoring: Use 20 digital inputs to monitor the status of on-site equipment such as pressure switches and limit switches. Equipment switch control: Drive relays, indicator lights, or low-power solenoid valves (less than 100mA) through 12 digital outputs. Old system maintenance and upgrade: Currently, this module is mostly used for spare parts replacement of existing Advant Master systems, or as a transitional component in the system's evolution towards System 800xA.

      FAQ View All FAQ

      • What is the function of the DSDX 452 L?
        It serves as a Remote In/Out Basic Unit in industrial environments to interface digital signals with a control system.
      • What are the specifications of the digital I/O?
        It contains 20 digital inputs (24V) and 12 digital outputs specifically rated for low signal levels (typically ＜100mA)
      • What is the part number and manufacturer?
        The manufacturer is ABB, and the primary identification number is 5716075-U, also referred to as DSDX 452 L or 3DEL400142R0142.
      • Is this module still produced?
        For this legacy S400 module, request a new, unused unit and verify the complete board reference before ordering. Availability must be checked for the individual enquiry.
      • What are the basic specifications of the ABB DSDX452L 5716075-U Remote In/Out Basic Unit?
        The unit operates at 24 V DC, supports remote digital input and output communication, and is designed for distributed industrial control systems.
      • What type of signals does the ABB DSDX452L support?
        It supports digital input and digital output signals for remote monitoring and control of field devices.
      • Is the ABB DSDX452L suitable for industrial environments?
        Yes, it is designed for reliable operation in industrial environments with an operating temperature range of 0 to 60 °C.
