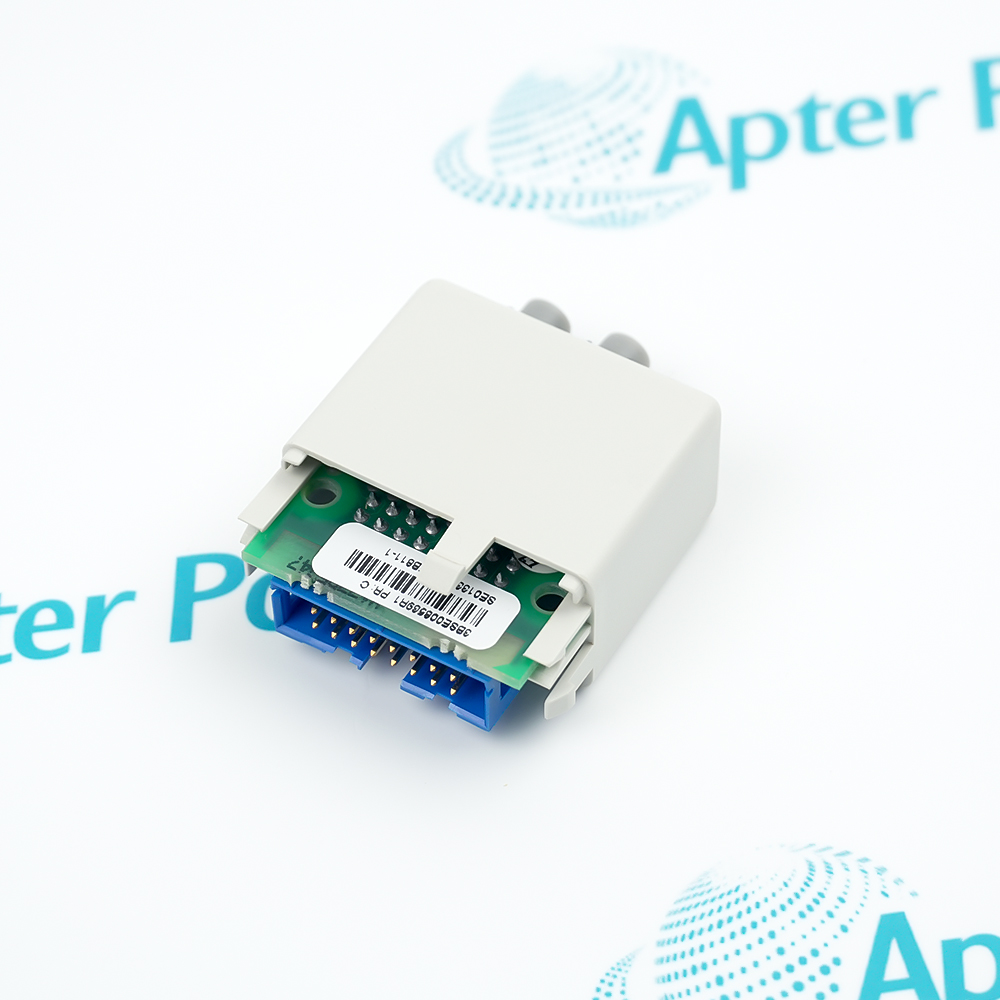

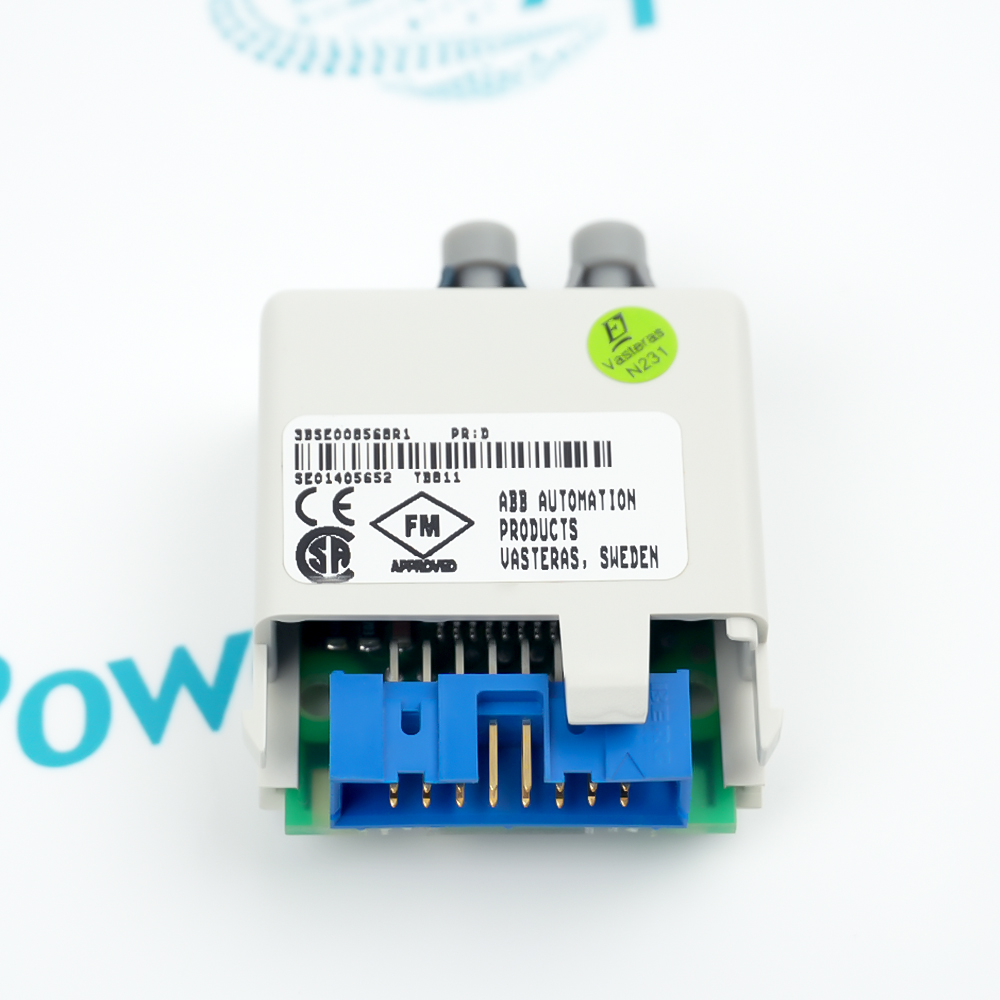

      TB811 3BSE008568R1

      Optical ModuleBus Port
      In Stock

      Product Describe：

      MODULEBUS ADAPTOR
      MODULEBUS OPTICAL PORT
      USED TOGETHER WITH CI810 / CI820
      USED WITH ABB DRIVES EQUIPMENT
      G2 COMPLIANT

      Ask our team:

      Get a quick price for： TB811 3BSE008568R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for TB811 3BSE008568R1

      Technical specifications for TB811 3BSE008568R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        3BSE008568R1
      • Estimated shipping dimensions:
        18.5x4.2x4cm
      • Weight:
        0.16 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Optical Budget:
        12 dB
      • Isolation:
        2.5 kV AC
      • Supply Voltage:
        24 V DC (18 – 30 V)
      • Current Draw:
        ≤ 85 mA @ 24 V
      • Operating Temp:
        –40 °C to +70 °C
      • Storage Temp:
        –40 °C to +85 °C
      • Humidity:
        5 – 95 % RH, non-condensing
      Ask for Quote

      Information

      Information

      Overview Manuals Main functions
      The TB811 (order number: 3BSE008568R1) is a Modulus fiber optic interface module used for S800 I/O systems. It is mainly used to provide high-speed fiber optic communication between controllers (such as CI810, CI820) and I/O stations.
        • Modulebus Optical Port
        • Used together with CI810, CI820Used with ABB Drives equipment
        • Communication_Module
      This module supports high-speed optical communication, helping reduce electromagnetic interference and improve signal stability. It ensures accurate data exchange and dependable system performance in demanding industrial environments.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      ABB TB811 3BSE008568R1 Optical ModuleBus Port Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Long distance extension: Extend the Modulus to remote I/O stations via fiber optic cables, with the maximum distance depending on the selected fiber type (typically ranging from 15m to 1000m). Anti interference: Using fiber optic transmission to provide electrical isolation, effectively eliminating electromagnetic interference (EMI) in industrial environments. Hot swappable: supports replacement without interrupting the system power supply

      FAQS

      • What is the function of TB811 3BSE008568R1?
        It converts the electrical ModuleBus to an optical signal, allowing for longer distances and noise immunity between S800 I/O clusters.
      • What does G2 Compliant mean?
        The TB811 meets G2 (ISA-S71.04) requirements, meaning it is designed for use in harsh, corrosive environments.
      • Which communication interfaces work with TB811 3BSE008568R1?
        It is typically used with CI810, CI820, and CI830 modules.
      • What are the TB811 3BSE008568R1 key technical specs?
        It supports a 5 Mbit/s data rate and uses fiber optic cables for ModuleBus extension.
      • Is it suitable for high-temperature areas?
        Yes, it is designed for rugged industrial conditions.
      • What is the TB811 product ID?
        The ABB part number is 3BSE008568R1
