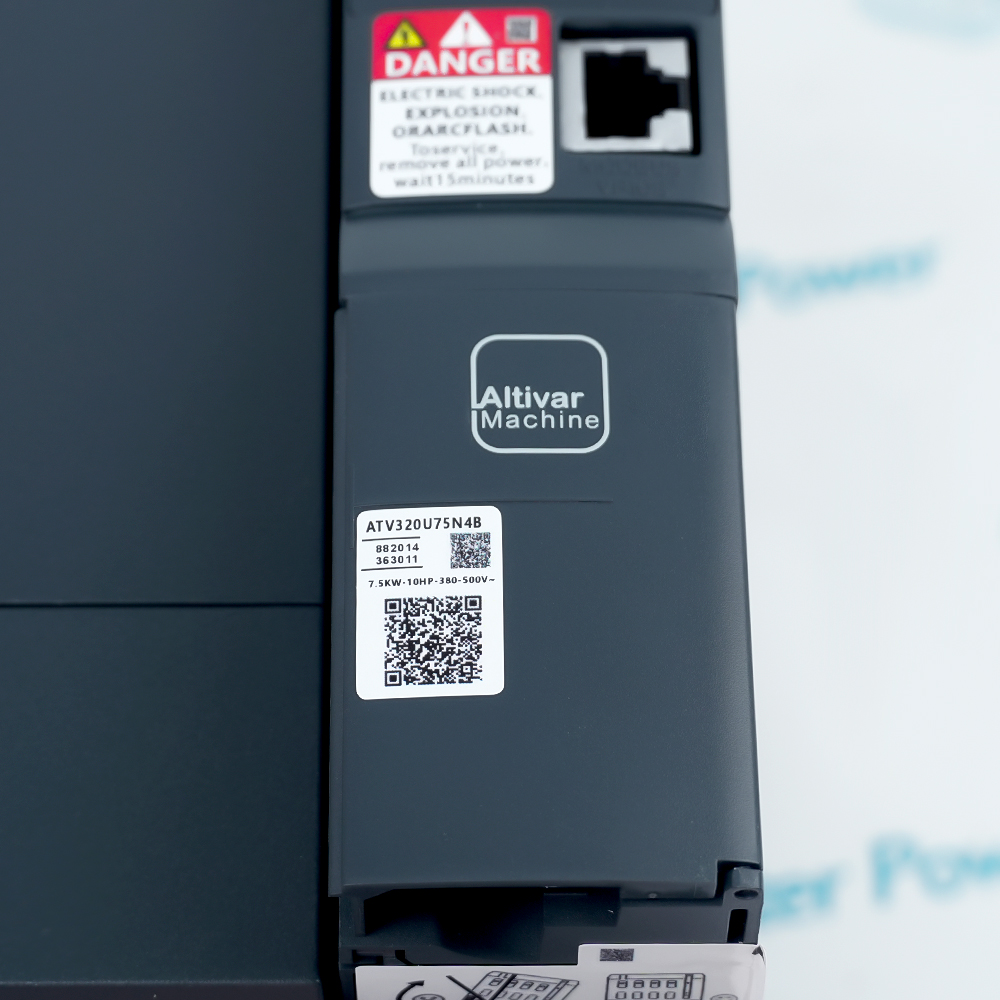

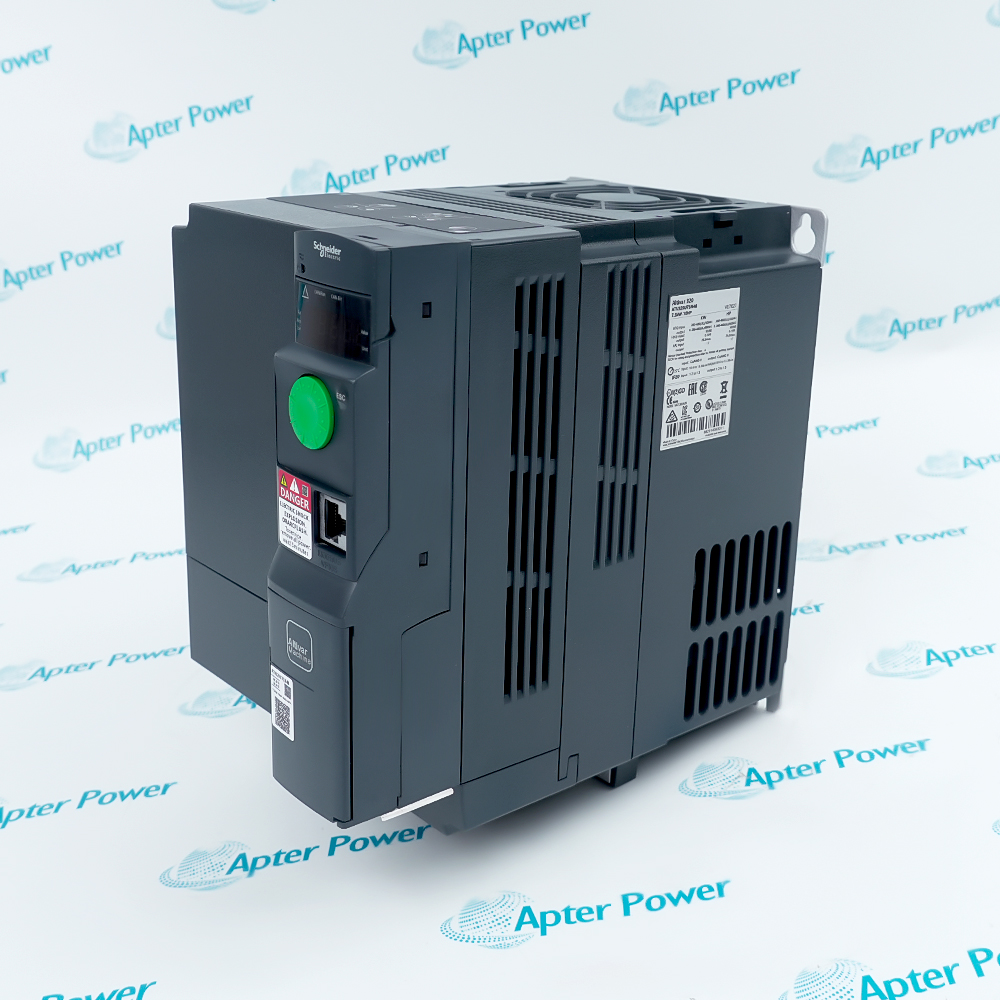

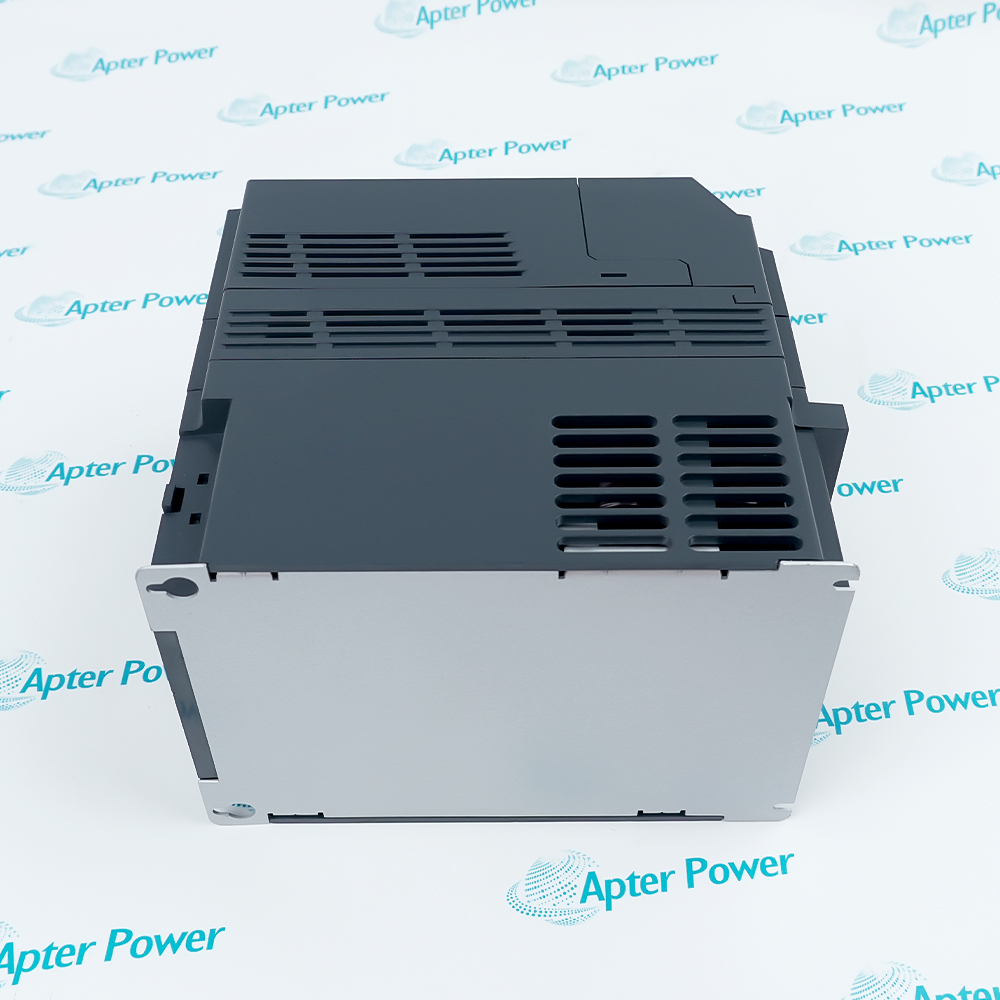

ATV320U75N4B

Technical specifications for ATV320U75N4B

• Manufacturer:
  Schneider Electric
• Product Category:
  General Automation
• Spare Part Number:
  ATV320U75N4B
• Estimated shipping dimensions:
  19.2x16.5x14cm
• Weight:
  2.2 kg
• Tariff Code:
  8537101190
• Counliy of origin:
  France
• Product range:
  Altivar Machine ATV320
• Product type:
  Variable speed drive
• Product application:
  Complex machines
• Variant:
  Standard version
• Mounting mode:
  Wall mount
• Rated supply voltage:
  380...500 VAC (-15...+10%)
• Supply phases:
  3 phases
• Network frequency:
  50...60 Hz, +/-5%
• Motor power:
  7.5 kW, heavy duty
• Rated output current:
  17.0 A
• Line current:
  26.5 A/380 V; 18.7 A/500 V
• Max input current:
  26.5 A
• Apparent power:
  16.2 kVA at 500 V
• Prospective line Isc:
  22 kA
• Max output voltage:
  500 V
• Max output frequency:
  0...599 Hz
• Switching frequency:
  2...16 kHz adjustable
• Nominal switch freq.:
  4 kHz
• Discrete inputs:
  7
• DI1...DI6:
  24 V DC, 30 V maximum
• DI5 pulse input:
  0...30 kHz, 24 V DC
• Discrete input logic:
  Positive/source; negative/sink
• Discrete outputs:
  3
• DQ outputs:
  0...1 kHz, 30 V DC, 100 mA
• Analogue inputs:
  3
• AI1:
  0...10 V DC; 30 kOhm; 10-bit
• AI2:
  +/-10 V DC; 30 kOhm; 10-bit
• AI3:
  0...20 mA configurable; 250 Ohm; 10-bit
• Analogue outputs:
  1
• AQ1 current mode:
  0...20 mA; 800 Ohm; 10-bit
• AQ1 voltage mode:
  0...10 V DC; 470 Ohm; 10-bit
• Integrated protocols:
  Modbus serial; CANopen
• EMC filter:
  Integrated Class C2
• Ingress protection:
  IP20
• Safe functions:
  STO; SS1; SLS
• Transient overtorque:
  170...200% Tn
• Brake chopper:
  Integrated
• Operating position:
  Vertical, +/-10 degrees
• Operating temp.:
  -10...50 degC; no derating
• Extended operation:
  50...60 degC; derating
• Storage temp.:
  -25...70 degC
• Transport temp.:
  -25...70 degC
• Cooling airflow:
  60 m3/h
• Pollution degree:
  2
• Overvoltage category:
  III
