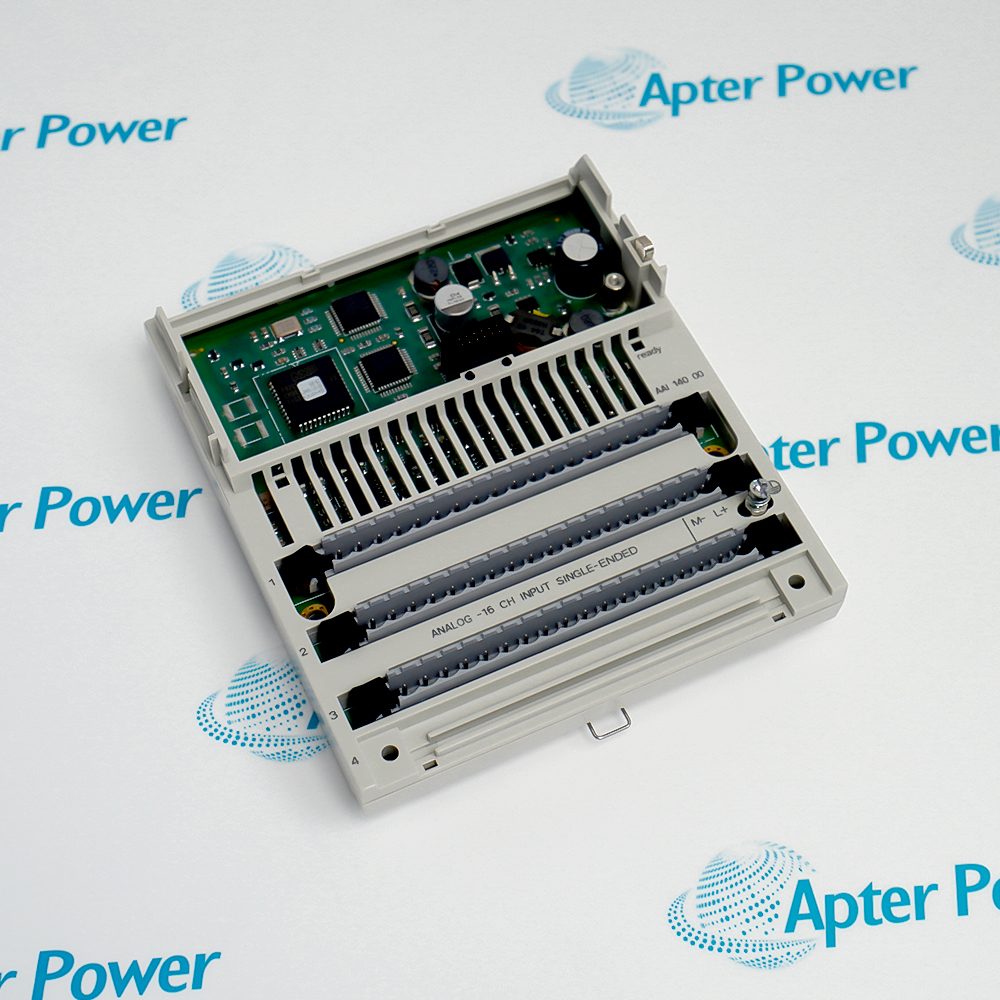

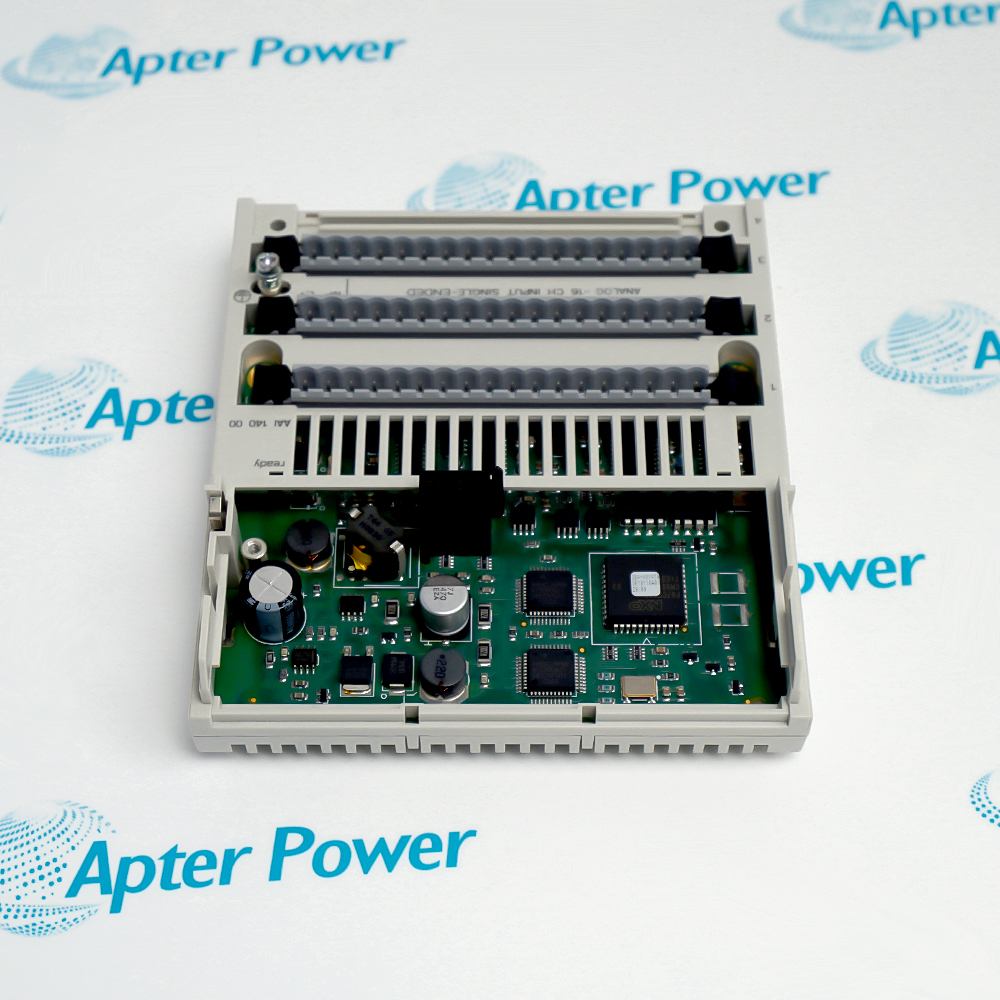

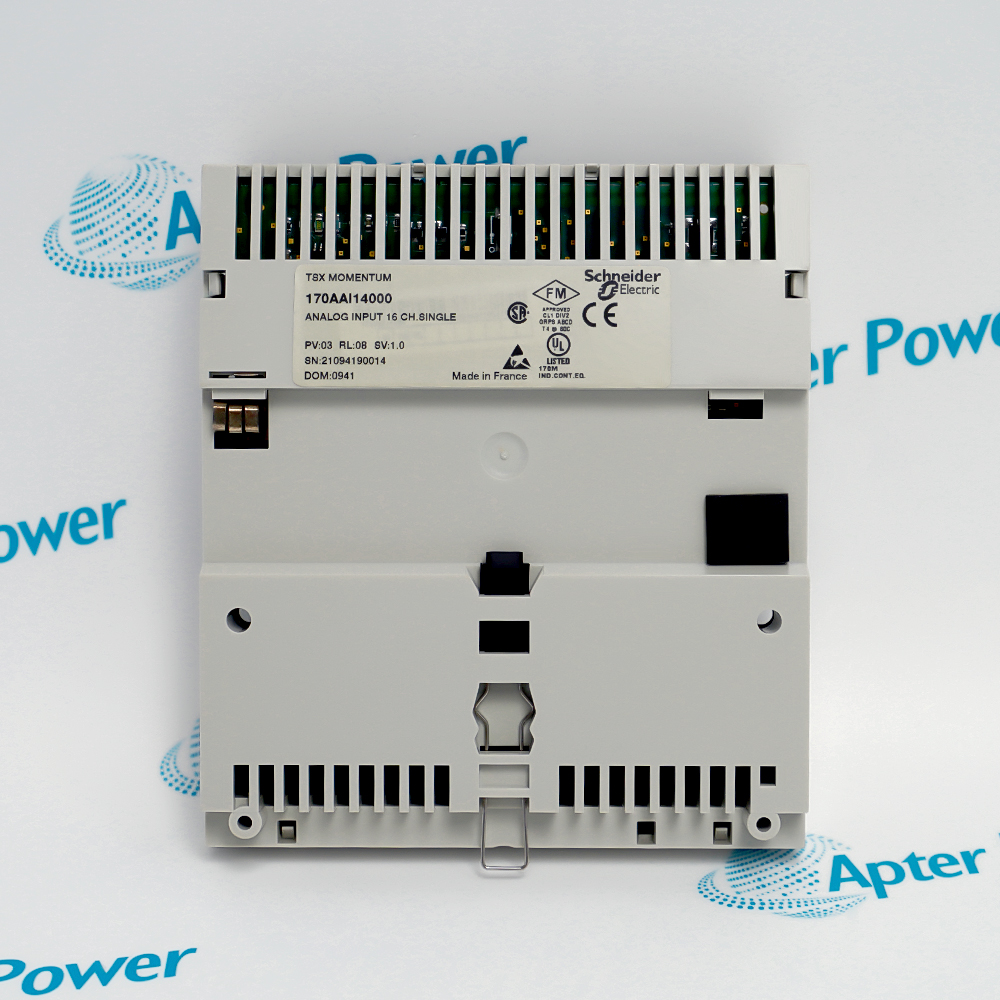

      Schneider Electric 170AAI14000
      Schneider Electric 170AAI14000
      Schneider Electric 170AAI14000
      Schneider Electric 170AAI14000
      Schneider Electric 170AAI14000
      Schneider Electric 170AAI14000
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      170AAI14000

      Analog Input
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Schneider Electric 170AAI14000 is a Modicon Momentum distributed analog input module with 16 single-ended current/voltage channels. The official product record lists a 25 ms update time, internal reverse-polarity protection and two removable terminal blocks.

      Ask our team:

      Get a quick price for： 170AAI14000
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 170AAI14000

      Technical specifications for 170AAI14000

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        170AAI14000
      • Estimated shipping dimensions:
        14.3x12.3x4cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • I/O family:
        Modicon Momentum
      • Module type:
        Distributed analog input
      • Input channels:
        16 single-ended current/voltage inputs
      • Update time:
        25 ms
      • Reverse-polarity protection:
        Internal
      • Internal protection:
        2 A slow-blow protection
      • Field terminals:
        2 removable terminal blocks
      • Compliance:
        CE approved
      • Lifecycle notice:
        End of commercialization scheduled for 1 December 2027
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Schneider Electric 170AAI14000 is a Modicon Momentum distributed analog input module with 16 single-ended current/voltage channels. The official product record lists a 25 ms update time, internal reverse-polarity protection and two removable terminal blocks.
      • Acquires 16 single-ended analog current or voltage inputs
      • Updates the input image in 25 ms
      • Includes internal reverse-polarity protection
      • Uses two removable terminal blocks for field connections

      Apply Schneider Electric 170AAI14000 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full 170AAI14000 marking, installed revision, compatible hardware and approved commissioning record before release.

      Schneider Electric 170AAI14000 Manuals & Downloads
      Schneider Electric 170AAI14000 Technical Reference (PDF)Schneider Electric 170AAI14000 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Distributed analog I/O
      Collects sixteen field signals in a Modicon Momentum station.
      Process instrumentation
      Interfaces current and voltage transmitters with the configured controller.
      Remote panel retrofit
      Restores an identical Momentum channel map and terminal arrangement.
      Lifecycle maintenance
      Supports an installed 170AAI14000 system under the published Schneider lifecycle plan.
      Read the applicable Schneider Electric instructions before work. Verify Schneider Electric 170AAI14000 and the installed system configuration before commissioning.
      1
      Verify the complete 170AAI14000 marking and installed Momentum base.
      2
      Remove field and station power before module or terminal-block handling.
      3
      Record all 16 channel signal types, ranges and scaling values.
      4
      Label both removable terminal blocks before disconnection.
      5
      Preserve commons, shields and grounding exactly.
      6
      Check field polarity even though internal reverse-polarity protection is provided.
      7
      Review the Schneider lifecycle notice and approved replacement plan.
      8
      Test every enabled channel and the 25 ms update behavior before release.

      Technical notes

      Technical notes

      Use only the complete Schneider Electric 170AAI14000 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is Schneider Electric 170AAI14000?
        It is a Modicon Momentum distributed analog input module with 16 single-ended current/voltage channels.
      • What update time is specified for Schneider Electric 170AAI14000?
        The official product page lists a 25 ms update time.
      • Which protections are built into Schneider Electric 170AAI14000?
        Schneider lists internal reverse-polarity protection and internal 2 A slow-blow protection.
      • How is field wiring connected to Schneider Electric 170AAI14000?
        The module uses two removable terminal blocks.
      • What lifecycle notice applies to Schneider Electric 170AAI14000?
        Schneider schedules end of commercialization for 1 December 2027; the installed-system plan should be reviewed.
      • What must be preserved before replacing Schneider Electric 170AAI14000?
        Preserve all 16 channel types, ranges, scaling, alarms, terminal assignments and base configuration.
      • What confirms successful commissioning of Schneider Electric 170AAI14000?
        Correct readings on every enabled channel, normal diagnostics and verified update behavior confirm release.
