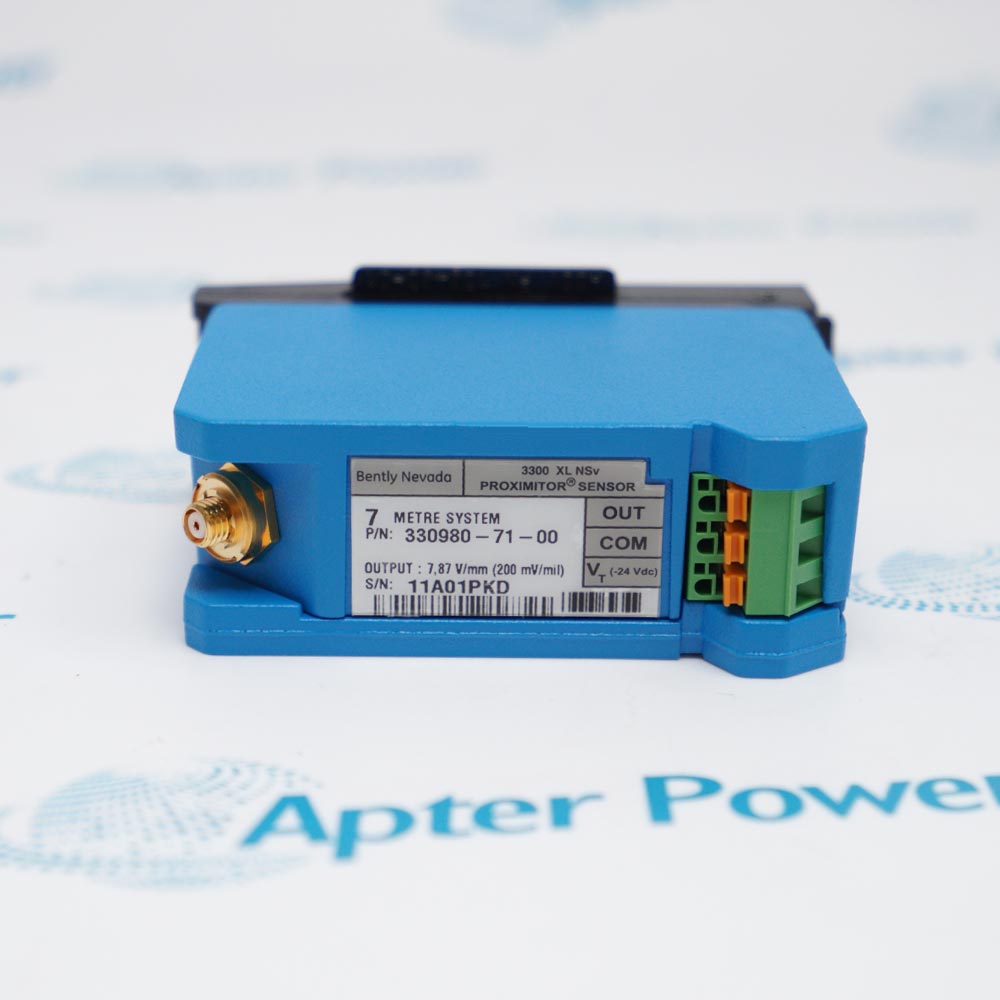

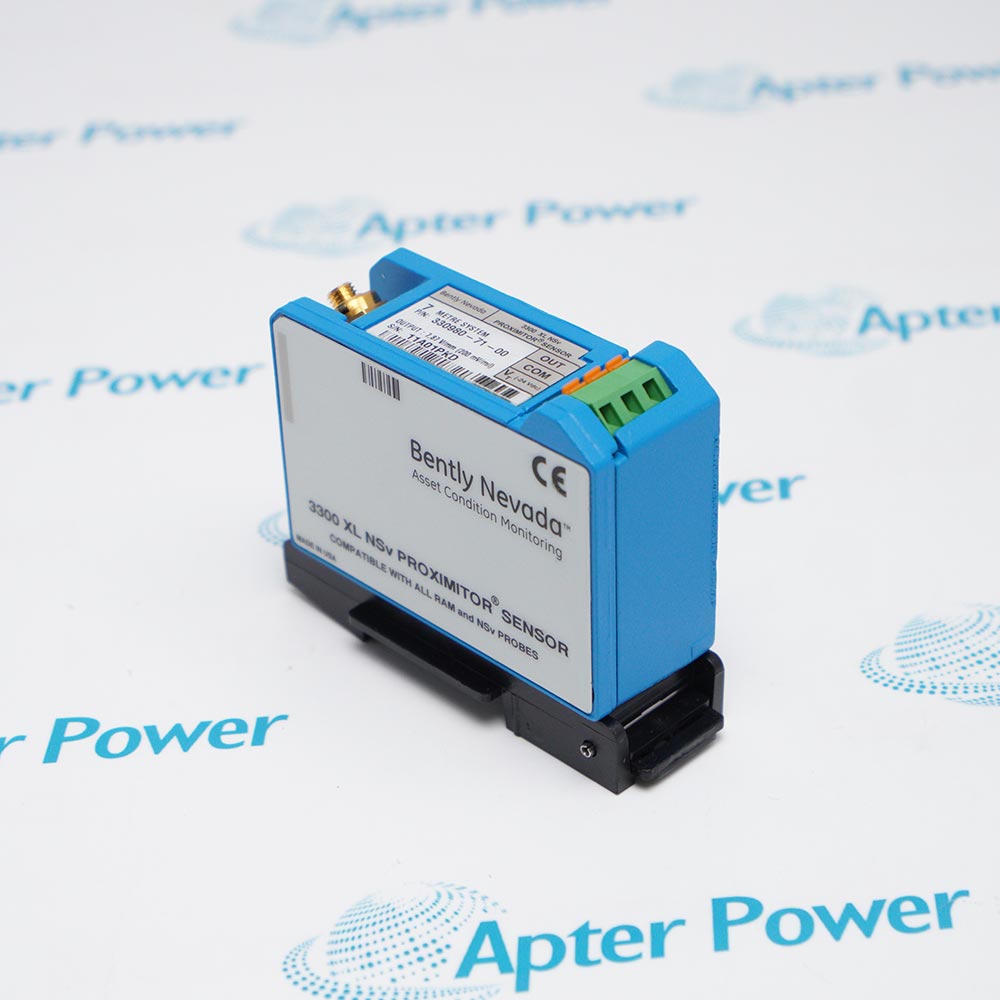

      330980-71-00

      NSv Proximitor Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330980-71-00 is a DIN-mounted 3300 XL NSv Proximitor Sensor for a matched NSv proximity transducer system. It conditions the probe and extension-cable signal for non-contact shaft vibration, position, Keyphasor and speed monitoring in compact machinery installations.

      Ask our team:

      Get a quick price for： 330980-71-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330980-71-00

      Technical specifications for 330980-71-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330980-71-00
      • Estimated shipping dimensions:
        8.2x3.5x7cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Component:
        3300 XL NSv Proximitor Sensor
      • Mounting:
        DIN-rail
      • Approval Option:
        Not required
      • Sensor Input:
        One 3300 RAM or 3300 NSv probe and extension cable
      • Power without Barriers:
        -17.5 to -26 V DC; 12 mA maximum
      • Power with Barriers:
        -23 to -26 V DC
      • Output Resistance:
        50 ohms
      • Matched-System Scale Factor:
        7.87 V/mm nominal under stated conditions
      • Matched-System Frequency Response:
        0 to 10 kHz, +0/-3 dB typical
      • Factory Calibration Target:
        AISI 4140 steel
      • Terminal Strip:
        SpringLoc
      • Interference Protection:
        Enhanced RFI/EMI immunity
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330980-71-00 is a DIN-mounted 3300 XL NSv Proximitor Sensor. It conditions a matched NSv probe-and-extension-cable signal for non-contact shaft vibration, position, phase and speed monitoring.
      • DIN-rail mounting for the NSv sensor
      • SpringLoc terminal strips for field wiring
      • Gold-plated ClickLoc mating interface
      • Improved RFI/EMI immunity

      The 3300 XL NSv system addresses tight machine-installation clearances in compressor and fluid-film-bearing monitoring applications. The published system performance depends on a correctly matched probe, cable and Proximitor Sensor.

      Important Notice: Retain the complete 330980-71-00 marking, documented system pairing, supply scheme and target calibration before commissioning.

      330980-71-00 Manuals & Downloads
      330980-71-00 Technical Reference (PDF)330980-71-00 Installation & Commissioning Guide (PDF)

      The first document contains model-specific technical and system data. The second provides installation, connection, commissioning and acceptance checks.

      Compact Compressor MonitoringUse the matched NSv transducer chain where counterbore or viewing clearance constrains standard proximity systems.
      Radial Shaft VibrationCondition probe signals for dynamic shaft-relative monitoring at fluid-film bearings.
      Axial PositionSupport non-contact thrust-position monitoring against an approved conductive target.
      Keyphasor and SpeedSupport an engineered phase-reference or speed-monitoring channel with the matched NSv system.
      Before returning Bently Nevada 330980-71-00 to service, verify the exact DIN-mounted sensor identity and the complete NSv measurement chain.
      1
      Match the full 330980-71-00 order code to the installed DIN-rail sensor.
      2
      Confirm the companion 3300 RAM or NSv probe and extension cable suit the documented system configuration.
      3
      Check that the circuit power matches the applicable barrier or no-barrier supply specification.
      4
      Inspect SpringLoc field terminals and the shielded monitor wiring against the approved drawing.
      5
      Mate the ClickLoc connections securely and protect exposed joints as the manufacturer recommends.
      6
      Confirm AISI 4140 default target calibration or document the approved alternative.
      7
      Keep the Proximitor Sensor within its published operating temperature range.
      8
      Record the static output and controlled channel-response check before release.

      Technical notes

      Technical notes

      Match the 3300 XL NSv Proximitor Sensor to the documented NSv probe and extension-cable configuration. Confirm the DIN-rail installation, power arrangement, SpringLoc wiring, AISI 4140 calibration basis and monitored channel response against Bently Nevada datasheet 147385 Rev. R before release.

      FAQS

      • What is 330980-71-00 in the 3300 XL NSv system?
        It is the Proximitor Sensor that conditions the signal from a matched NSv probe and extension cable for a machinery monitoring channel.
      • What mounting style does 330980-71-00 use?
        The 71 order-code option specifies a DIN-mount sensor configuration.
      • What does the final 00 code on 330980-71-00 mean?
        Option 00 means that agency approvals are not required for this ordered configuration.
      • Which probes can feed 330980-71-00?
        The manufacturer lists one non-contacting 3300 RAM or 3300 NSv proximity probe with its extension cable as the sensor input.
      • What supply is specified for 330980-71-00 without barriers?
        The datasheet specifies -17.5 to -26 V DC with a maximum consumption of 12 mA.
      • What target calibration is standard for 330980-71-00?
        Bently Nevada supplies the NSv Proximitor Sensor factory-calibrated to AISI 4140 steel by default; other targets require a requested calibration.
      • Why is 330980-71-00 suited to compact machinery installations?
        The 3300 XL NSv system is intended for constrained counterbore, side-view or rear-view installations on machinery such as compressors.
