      Siemens A5E00714562 (1)
      Siemens A5E00714562 (2)
      Siemens A5E00714562 (3)
      Siemens A5E00714562 (1)
      Siemens A5E00714562 (2)
      Siemens A5E00714562 (3)
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      A5E00714562

      Inverter Driver Board
      In Stock
      Ships by Monday, October 26
      Fast Shipping Available

      Product Describe：

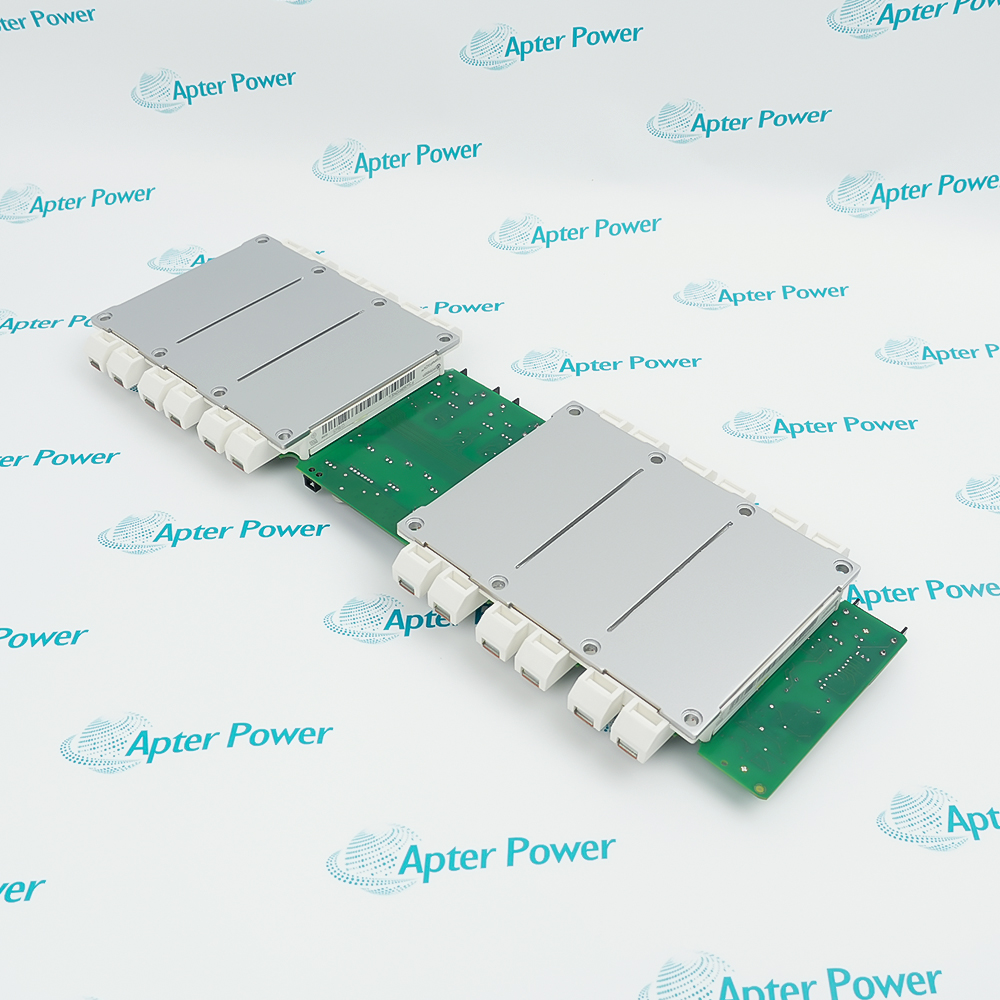

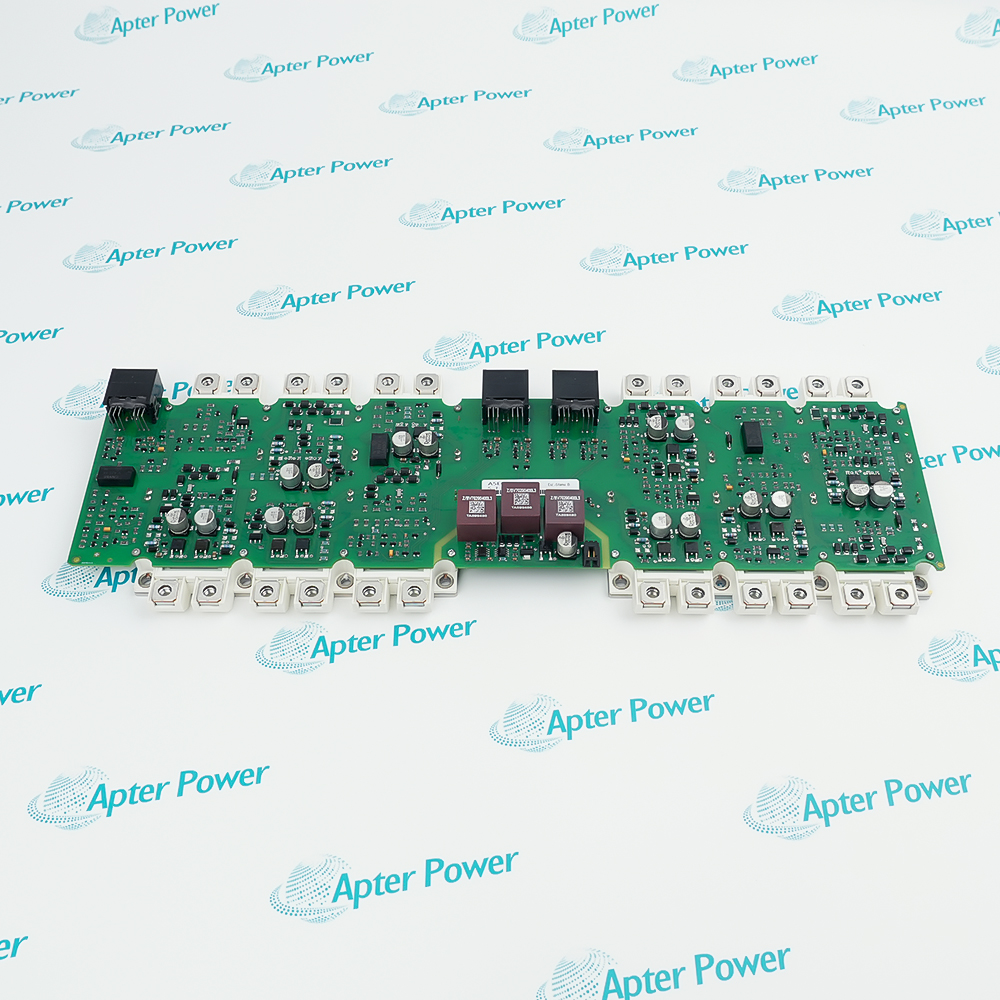

      A5E00714562 is an internal IGD2/R4 inverter driver board and drive firing card used as a repair spare within documented SINAMICS Powerblocks.

      Ask our team:

      Get a quick price for： A5E00714562
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for A5E00714562

      Technical specifications for A5E00714562

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        A5E00714562
      • Estimated shipping dimensions:
        5x15x3.5cm
      • Weight:
        2.08 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Board designation:
        IGD2/R4
      • Component class:
        Internal inverter driver board / drive firing card
      • Service role:
        Spare repair component
      • Parent platform:
        SINAMICS Powerblock
      • Documented families:
        SINAMICS S120 / G120 / G130
      • Example parent drive:
        6SL3310-1TE35-0AA3
      • Associated IGBT module:
        FS450R12KE3_S1
      • Documentation basis:
        Parent-drive hardware and service manuals
      • Troubleshooting context:
        Power-unit fault diagnostics
      • Referenced fault examples:
        F30021 / F07490
      • Standalone operation:
        Not applicable
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens A5E00714562 provides the internal gate-drive function identified as IGD2/R4 inside supported SINAMICS S120, G120 or G130 Powerblock service contexts.
      • IGD2/R4 board identity
      • Internal inverter driver function
      • SINAMICS Powerblock context
      • Associated FS450R12KE3_S1 IGBT

      The board belongs inside a parent drive power section rather than operating as a standalone unit. Service decisions must therefore bind its A5E identity to the exact Powerblock, IGBT assembly, connector record and parent-drive troubleshooting procedure.

      Important Notice: A5E00714562 is an internal service board. Do not apply a generic standalone wiring diagram or replace it solely by appearance; retain the parent drive model, Powerblock identity and IGD2/R4 connection record.

      Siemens A5E00714562 Manuals & Downloads
      Siemens A5E00714562 Technical Reference (PDF)Siemens A5E00714562 Installation & Commissioning Guide (PDF)

      The technical reference organizes exact characteristics and engineering boundaries. The installation guide focuses on controlled preparation, restoration, commissioning and handover.

      Powerblock gate-drive service
      Restores the internal firing-card role in the documented power section.
      SINAMICS repair work
      Supports controlled repair of an S120, G120 or G130 Powerblock context.
      IGBT driver replacement
      Reinstates the recorded interface to the associated FS450R12KE3_S1 module.
      Fault-led maintenance
      Uses parent-drive diagnostics and the retained assembly record to guide service.
      Siemens A5E00714562 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
      1
      Confirm A5E00714562 and IGD2/R4 on the installed board record.
      2
      Record the exact parent drive and Powerblock identification.
      3
      Isolate line power and wait for the DC link to discharge fully.
      4
      Capture every gate, supply and feedback connector position.
      5
      Use grounded ESD handling for the internal driver board.
      6
      Inspect the associated IGBT and gate wiring before restoration.
      7
      Use the parent-drive procedure for F30021 or F07490 diagnostics.
      8
      Prove gate-drive health and parent-drive operation before handover.

      Technical notes

      Technical notes

      For A5E00714562, retain exact installed identity, connection records and witnessed model-specific acceptance.

      FAQS

      • What internal function does Siemens A5E00714562 perform?
        It is identified as an internal inverter driver board and drive firing card.
      • Which board designation is associated with Siemens A5E00714562?
        The supplied reference identifies the board as IGD2/R4.
      • Which drive families are cited for Siemens A5E00714562?
        The supplied data places it in SINAMICS S120, G120 or G130 Powerblock service contexts.
      • Which example parent drive is named for Siemens A5E00714562?
        The reference cites 6SL3310-1TE35-0AA3 as an example Powerblock drive model.
      • Which IGBT module is commonly paired with Siemens A5E00714562?
        The supplied record names FS450R12KE3_S1.
      • Why does Siemens A5E00714562 not use a standalone wiring manual?
        It is an internal service board, so wiring and replacement procedures belong to the parent drive hardware documentation.
      • Which fault examples are relevant when servicing Siemens A5E00714562?
        The supplied reference cites F30021 and F07490 as parent power-unit troubleshooting examples.
      • What completes commissioning of Siemens A5E00714562?
        Confirm the parent Powerblock identity, restored connector record, IGBT interface, healthy diagnostics and controlled drive operation.
