      6EP3334-8SB00-0AY0

      SITOP PSU8200 Regulated Power Supply
      In Stock
      Ships by Saturday, September 12
      Fast Shipping Available

      Product Describe：

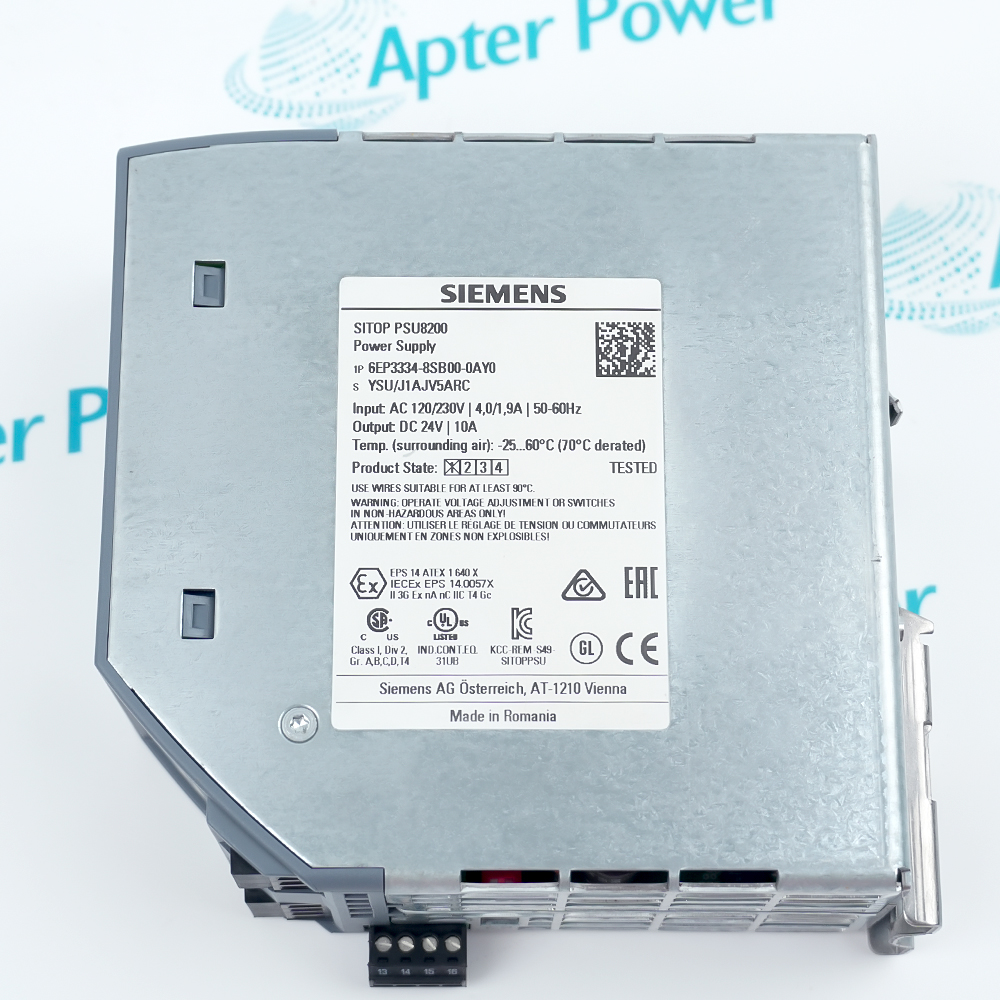

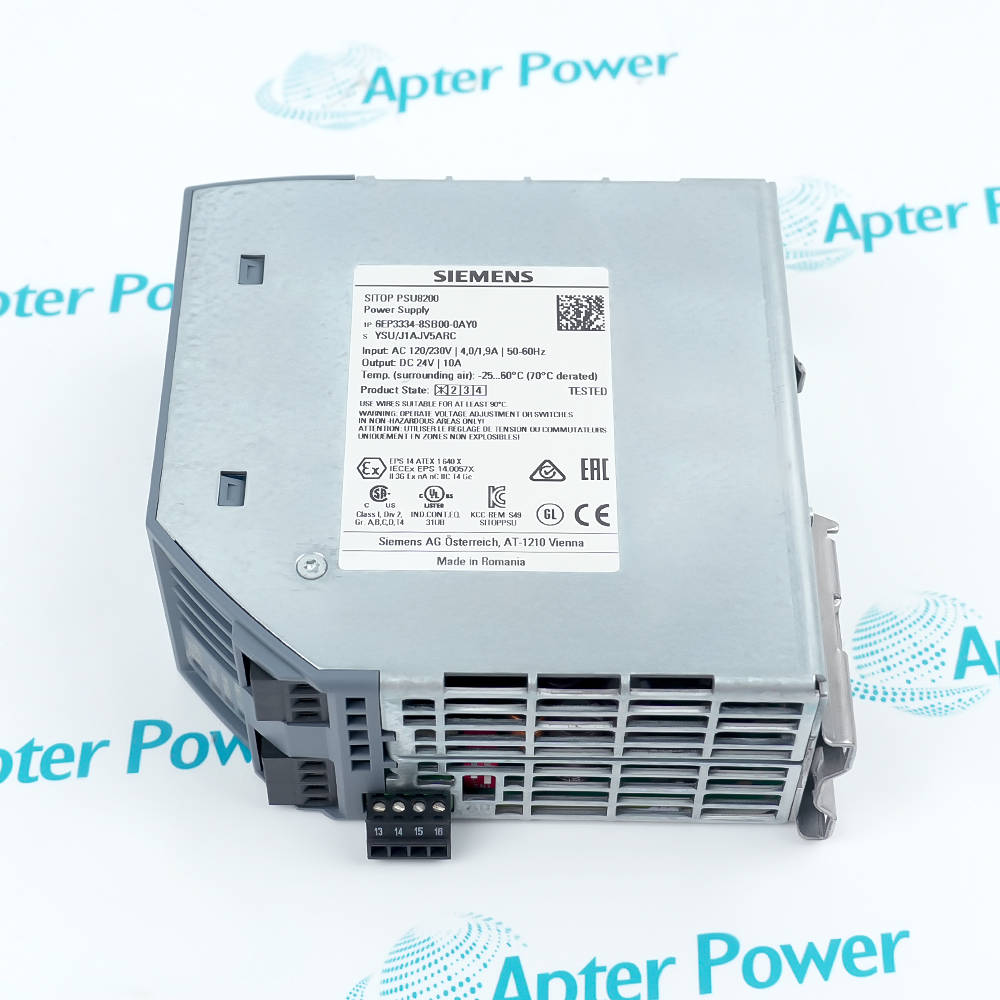

      Siemens 6EP3334-8SB00-0AY0 is a SITOP PSU8200 single-phase regulated power supply. It delivers 24 V DC at 10 A for industrial control and automation loads.

      Ask our team:

      Get a quick price for： 6EP3334-8SB00-0AY0
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6EP3334-8SB00-0AY0

      Technical specifications for 6EP3334-8SB00-0AY0

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        6EP3334-8SB00-0AY0
      • Estimated shipping dimensions:
        13.5x15.6x14.8cm
      • Weight:
        3.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Input voltage:
        120/230 V AC automatic range
      • Input ranges:
        85-132 V AC; 170-264 V AC
      • Input frequency:
        47 to 63 Hz
      • Input current at 120 V:
        4 A
      • Input current at 230 V:
        1.9 A
      • Inrush current:
        10 A maximum
      • I2t:
        0.3 A2s maximum
      • Mains buffering:
        35 ms minimum
      • Output voltage:
        24 V DC
      • Adjustable output:
        24 to 28.8 V DC
      • Rated output current:
        10 A
      • Rated output power:
        240 W
      • Total tolerance:
        3%
      • Line regulation:
        0.1%
      • Load regulation:
        0.3%
      • Residual ripple:
        50 mV maximum
      • Peak voltage:
        200 mV maximum
      • Status indication:
        Green LED: 24 V OK
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6EP3334-8SB00-0AY0 is a SITOP PSU8200 single-phase regulated power supply. It delivers 24 V DC at 10 A for industrial control and automation loads.
      • Converts single-phase AC mains into regulated 24 V DC control power
      • Maintains the configured output across the automatic input-voltage ranges
      • Buffers brief mains interruptions for connected automation loads
      • Provides local output-voltage status through the front green LED

      6EP3334-8SB00-0AY0 installs with single-phase AC feeder, 24 V DC control distribution, SITOP-compatible protection and redundancy accessories, automation cabinet loads in an engineered SITOP PSU8200 industrial power supply configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this sitop psu8200 regulated power supply.

      Important Notice: Confirm the complete 6EP3334-8SB00-0AY0 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 6EP3334-8SB00-0AY0 Manuals and Guides
      Apter Power 6EP3334-8SB00-0AY0 Product Technical Reference PDFSiemens 6EP3334-8SB00-0AY0 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      PLC and distributed-I/O powerConverts single-phase AC mains into regulated 24 V DC control power
      Industrial control-panel 24 V distributionMaintains the configured output across the automatic input-voltage ranges
      Machine sensor and actuator supplyBuffers brief mains interruptions for connected automation loads
      Process automation cabinet powerProvides local output-voltage status through the front green LED
      Read the applicable Siemens installation instructions before work. Verify 6EP3334-8SB00-0AY0 and the installed SITOP PSU8200 industrial power supply configuration.
      1Verify 6EP3334-8SB00-0AY0 and the 10 A rating before installation.
      2Isolate both AC input and downstream 24 V DC distribution.
      3Confirm the automatic input range and upstream protective device.
      4Maintain protective-earth continuity and cabinet clearances.
      5Check conductor size, polarity, and terminal clamping before energization.
      6Set the adjustable output only within 24 to 28.8 V DC.
      7Measure output during representative load startup and mains transfer conditions.
      8Confirm the green 24 V OK indication and downstream controller health before release.

      Technical notes

      Technical notes

      Select the correct upstream protection, earth the supply as specified, set output voltage with loads isolated, and verify 24 V stability under the documented startup and load conditions.

      FAQS

      • Which configuration check is essential when commissioning 6EP3334-8SB00-0AY0?
        Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
      • How can an engineer function-test 6EP3334-8SB00-0AY0 after installation?
        Apply a controlled input, reference, or limited output appropriate to sitop psu8200 regulated power supply, observe the system indication and diagnostics, and confirm the intended process response.
      • What should be checked if 6EP3334-8SB00-0AY0 reports an unstable or incorrect value?
        Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
      • Can 6EP3334-8SB00-0AY0 be replaced by a visually similar model without review?
        No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
      • What commissioning evidence should be retained for 6EP3334-8SB00-0AY0?
        Retain the full 6EP3334-8SB00-0AY0 identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
      • Which installed hardware must be matched before fitting 6EP3334-8SB00-0AY0?
        Match the complete 6EP3334-8SB00-0AY0 marking to single-phase AC feeder and 24 V DC control distribution, then confirm the assigned SITOP PSU8200 industrial power supply position and approved system configuration.
      • How should the field connections for 6EP3334-8SB00-0AY0 be recorded before replacement?
        Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting 6EP3334-8SB00-0AY0.
      • What isolation is required before installing 6EP3334-8SB00-0AY0?
        Place plc and distributed-i/o power in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
