      6AV2124-0QC02-0AX1

      SIMATIC HMI TP1500 Comfort Panel
      In Stock
      Ships by Saturday, September 12
      Fast Shipping Available

      Product Describe：

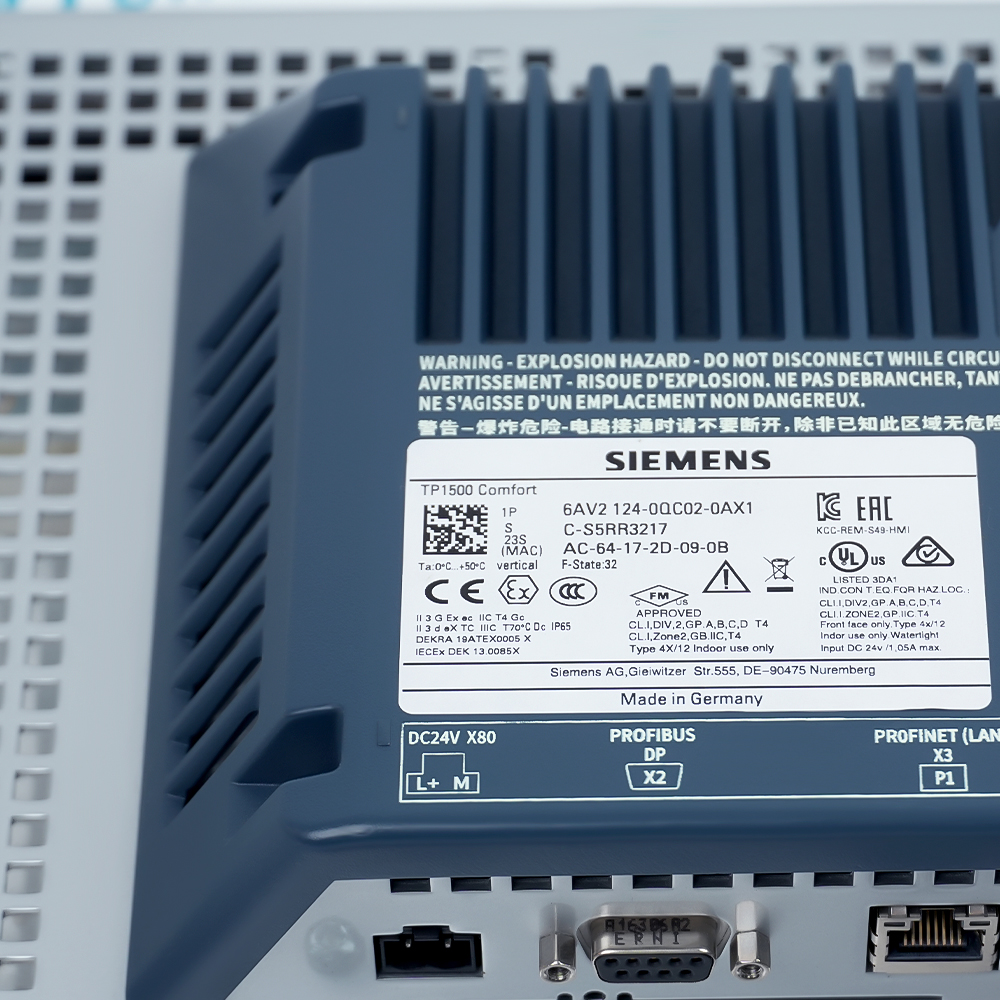

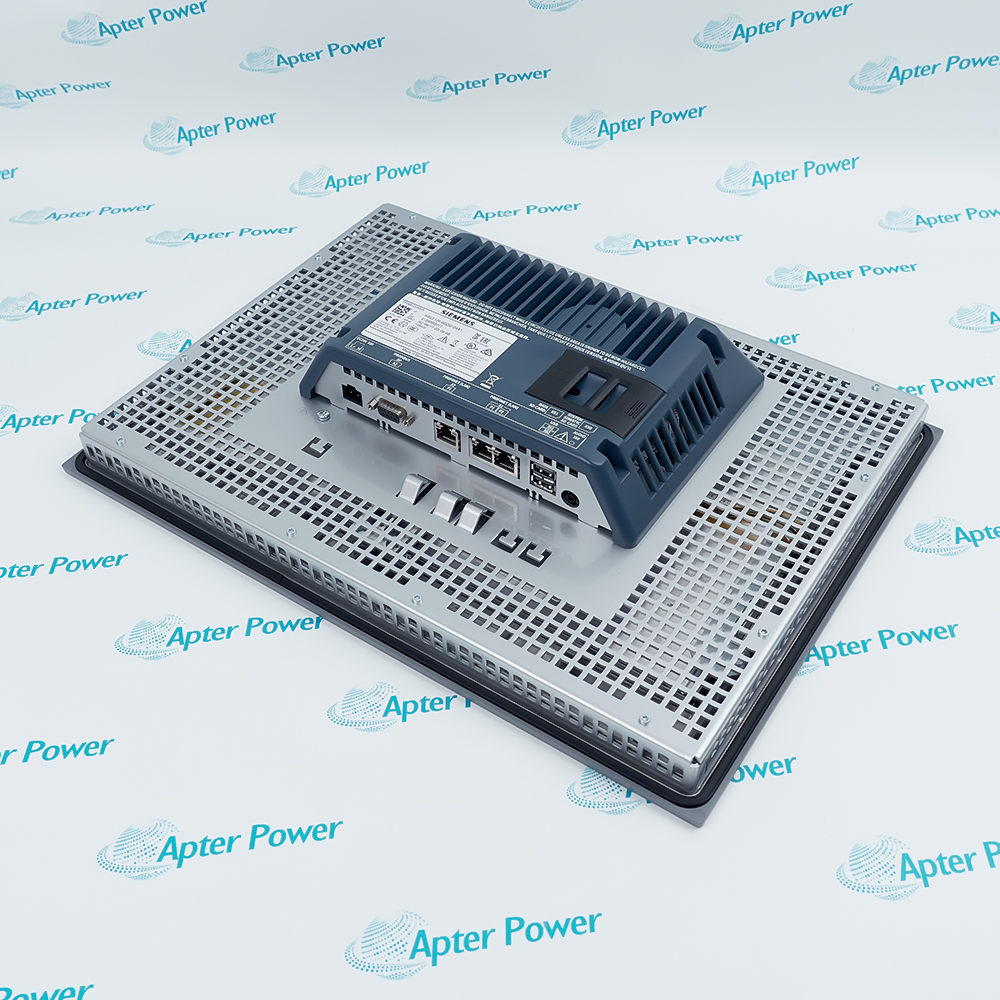

      Siemens 6AV2124-0QC02-0AX1 is a 15.4-inch SIMATIC HMI TP1500 Comfort Panel. It provides visualization, touch operation, and networked operator access for configured automation systems.

      Ask our team:

      Get a quick price for： 6AV2124-0QC02-0AX1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6AV2124-0QC02-0AX1

      Technical specifications for 6AV2124-0QC02-0AX1

      • Manufacturer:
        Siemens
      • Product Category:
        HMI
      • Spare Part Number:
        6AV2124-0QC02-0AX1
      • Estimated shipping dimensions:
        41.5x31x7.8cm
      • Weight:
        4.25 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Display diagonal:
        15.4 in widescreen
      • Display technology:
        TFT
      • Display colors:
        16,777,216
      • Resolution:
        1280 x 800 pixels
      • Active display area:
        331.2 x 207 mm
      • Touch technology:
        Analog resistive
      • Mounting orientation:
        Portrait or landscape
      • Maximum inclination:
        35 degrees
      • Rated supply:
        24 V DC
      • Permitted supply range:
        19.2 to 28.8 V DC
      • Rated current:
        1.7 A
      • Typical power consumption:
        41 W
      • Processor:
        x86
      • User-data memory:
        24 MB
      • Industrial Ethernet interfaces:
        2
      • Serial interface:
        1 x RS422/485
      • USB interfaces:
        2 x USB 2.0
      • Memory-card slots:
        2 x SD
      • Backlight MTBF:
        80000 h
      • Backlight dimming:
        0 to 100%
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6AV2124-0QC02-0AX1 is a 15.4-inch SIMATIC HMI TP1500 Comfort Panel. It provides visualization, touch operation, and networked operator access for configured automation systems.
      • Displays operator graphics and accepts resistive-touch commands
      • Exchanges process values over industrial Ethernet and serial automation networks
      • Stores HMI project data and service archives on internal or SD memory
      • Supports local commissioning, diagnostics, and machine operation

      6AV2124-0QC02-0AX1 installs with TIA Portal HMI project, 24 V DC control supply, PROFINET or PROFIBUS network, compatible SD memory card in an engineered SIMATIC HMI Comfort Panel configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this simatic hmi tp1500 comfort panel.

      Important Notice: Confirm the complete 6AV2124-0QC02-0AX1 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 6AV2124-0QC02-0AX1 Manuals and Guides
      Apter Power 6AV2124-0QC02-0AX1 Product Technical Reference PDFApter Power 6AV2124-0QC02-0AX1 Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Machine operator stationsDisplays operator graphics and accepts resistive-touch commands
      Process-unit visualizationExchanges process values over industrial Ethernet and serial automation networks
      Production-line recipe and alarm handlingStores HMI project data and service archives on internal or SD memory
      Plant diagnostics and maintenance terminalsSupports local commissioning, diagnostics, and machine operation
      Read the applicable Siemens installation instructions before work. Verify 6AV2124-0QC02-0AX1 and the installed SIMATIC HMI Comfort Panel configuration.
      1Verify 6AV2124-0QC02-0AX1 and the installed project before replacement.
      2Isolate 24 V DC power and all connected signal references.
      3Back up the HMI project, recipes, archives, and security settings.
      4Protect the resistive touch surface and front seal during panel mounting.
      5Reconnect Ethernet, RS422/485, USB, and SD media to their recorded positions.
      6Restore device name, IP parameters, time synchronization, and communication drivers.
      7Test touch calibration, backlight, alarm acknowledgement, and data entry.
      8Prove controller communication and representative operator functions before release.

      Technical notes

      Technical notes

      Back up the installed HMI project, verify 24 V DC polarity and interface assignments, and restore device name, addresses, communication drivers, and runtime functions before handing the panel to operators.

      FAQS

      • What should be checked if 6AV2124-0QC02-0AX1 reports an unstable or incorrect value?
        Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
      • Can 6AV2124-0QC02-0AX1 be replaced by a visually similar model without review?
        No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
      • What commissioning evidence should be retained for 6AV2124-0QC02-0AX1?
        Retain the full 6AV2124-0QC02-0AX1 identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
      • Which installed hardware must be matched before fitting 6AV2124-0QC02-0AX1?
        Match the complete 6AV2124-0QC02-0AX1 marking to TIA Portal HMI project and 24 V DC control supply, then confirm the assigned SIMATIC HMI Comfort Panel position and approved system configuration.
      • How should the field connections for 6AV2124-0QC02-0AX1 be recorded before replacement?
        Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting 6AV2124-0QC02-0AX1.
      • What isolation is required before installing 6AV2124-0QC02-0AX1?
        Place machine operator stations in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
      • Which configuration check is essential when commissioning 6AV2124-0QC02-0AX1?
        Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
      • How can an engineer function-test 6AV2124-0QC02-0AX1 after installation?
        Apply a controlled input, reference, or limited output appropriate to simatic hmi tp1500 comfort panel, observe the system indication and diagnostics, and confirm the intended process response.
