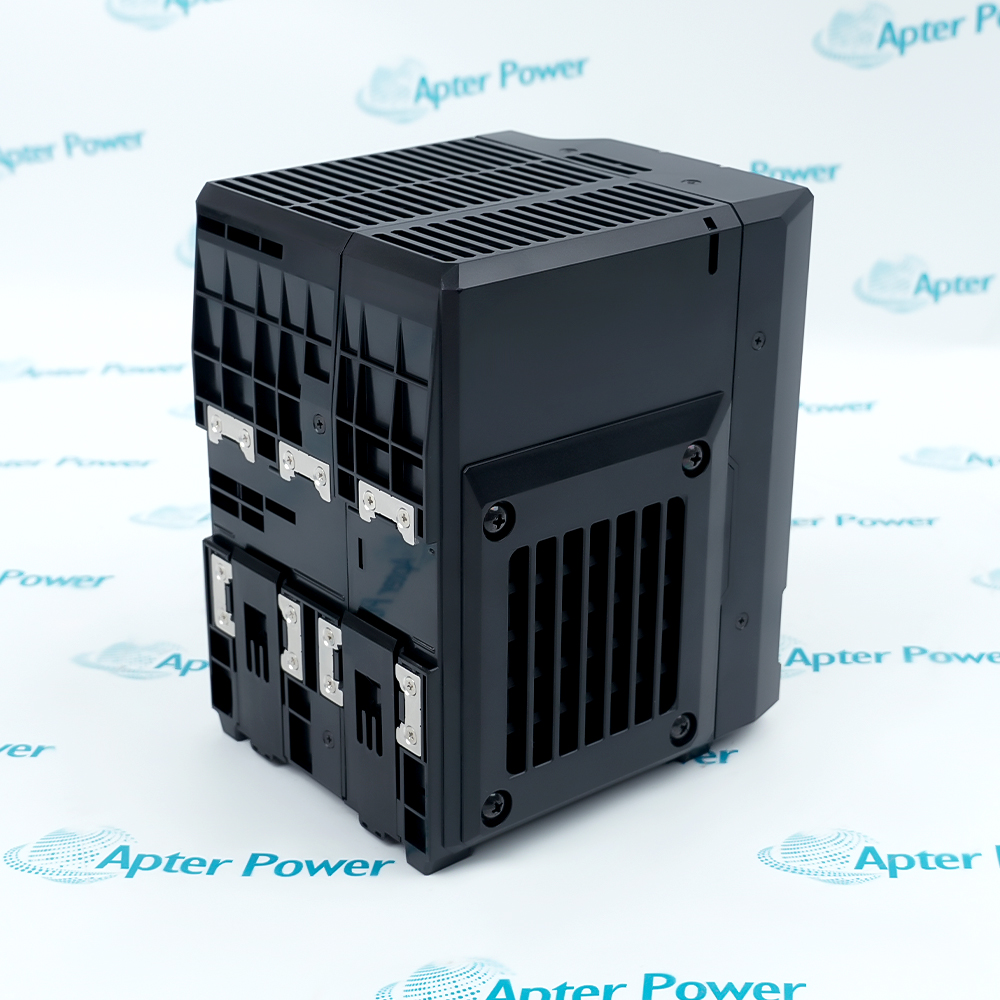

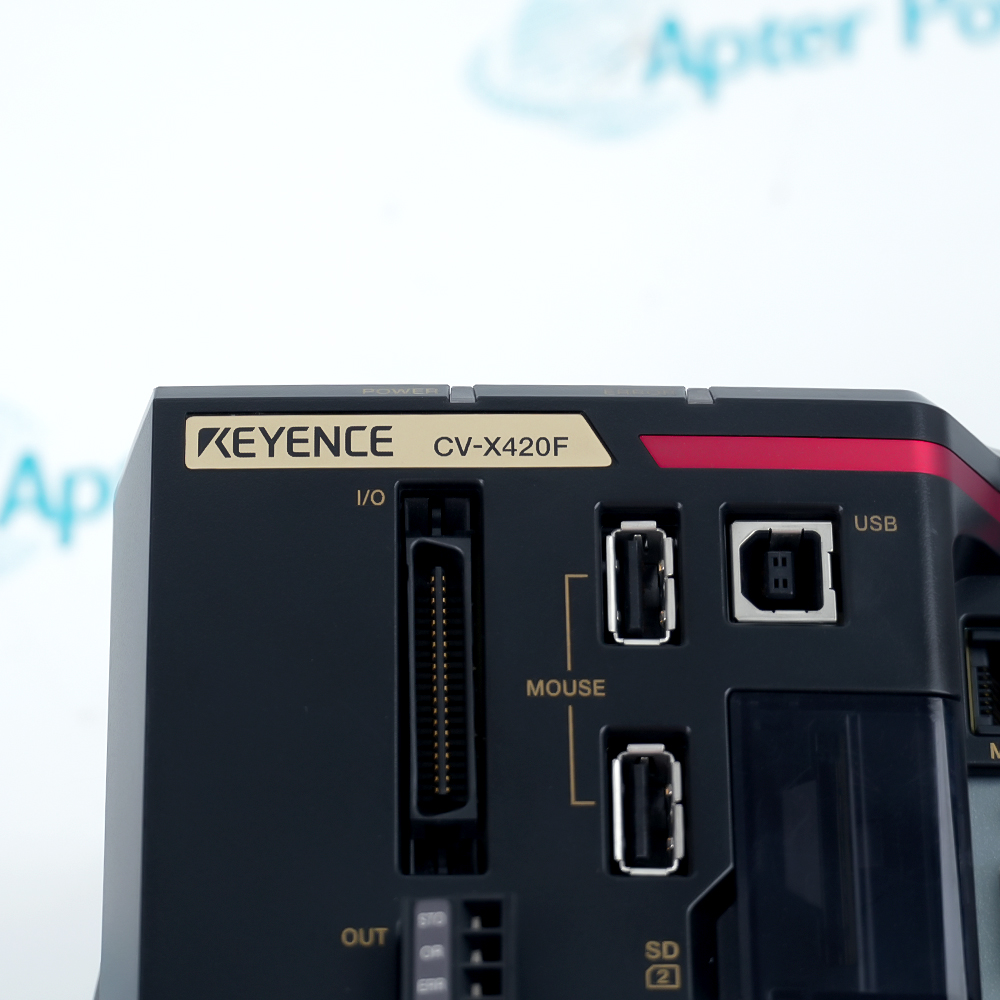

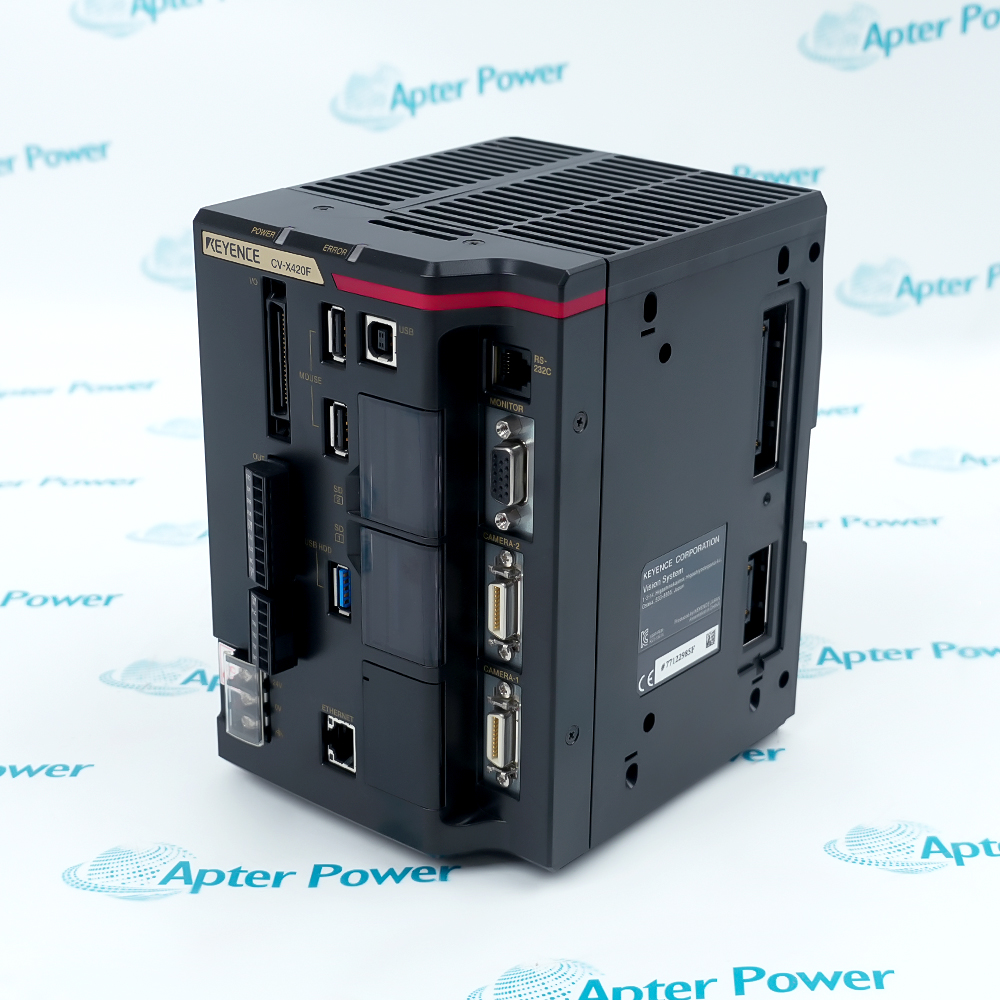

CV-X420F

FAQS

• Which installed hardware must be matched before fitting CV-X420F?
  Match the complete CV-X420F marking to supported KEYENCE camera and camera cable and lens, then confirm the assigned KEYENCE CV-X machine vision system position and approved system configuration.
• How should the field connections for CV-X420F be recorded before replacement?
  Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting CV-X420F.
• What isolation is required before installing CV-X420F?
  Place presence and assembly verification in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
• Which configuration check is essential when commissioning CV-X420F?
  Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
• How can an engineer function-test CV-X420F after installation?
  Apply a controlled input, reference, or limited output appropriate to 2-megapixel camera vision-system controller, observe the system indication and diagnostics, and confirm the intended process response.
• What should be checked if CV-X420F reports an unstable or incorrect value?
  Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
• Can CV-X420F be replaced by a visually similar model without review?
  No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
• What commissioning evidence should be retained for CV-X420F?
  Retain the full CV-X420F identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
