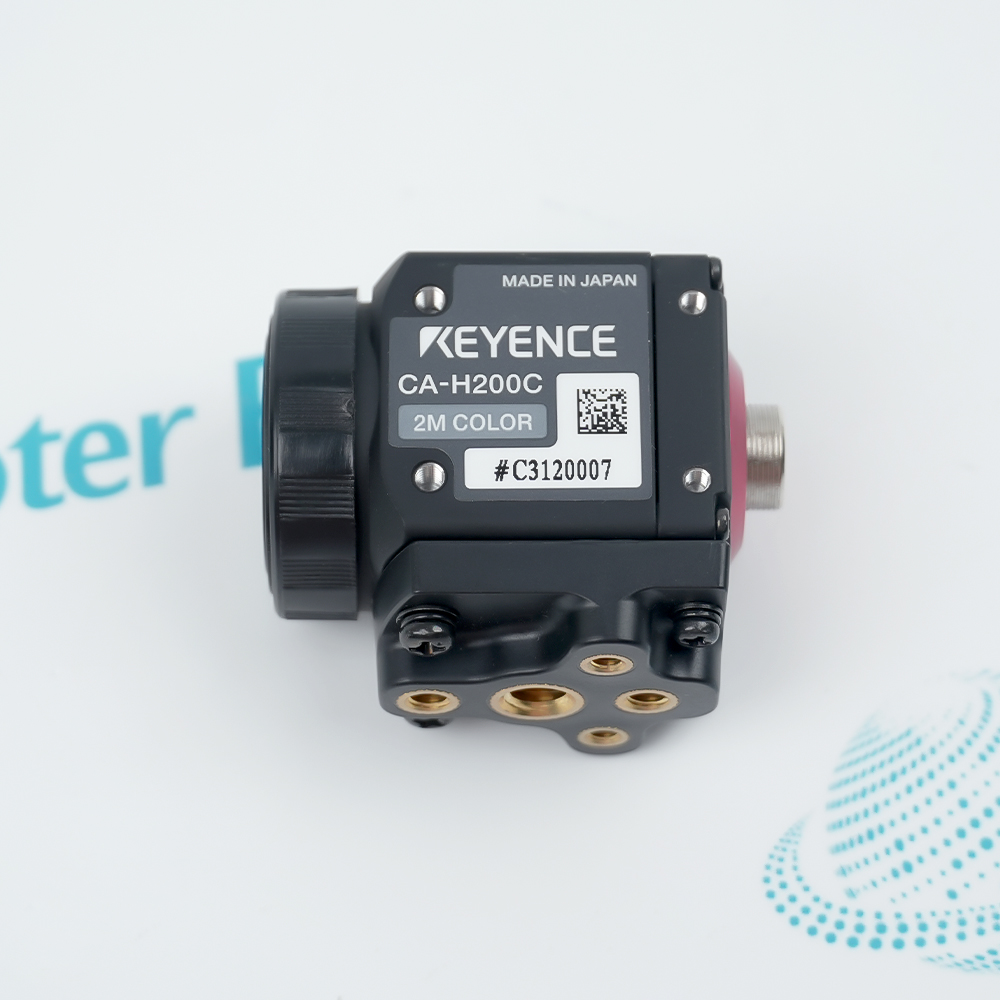

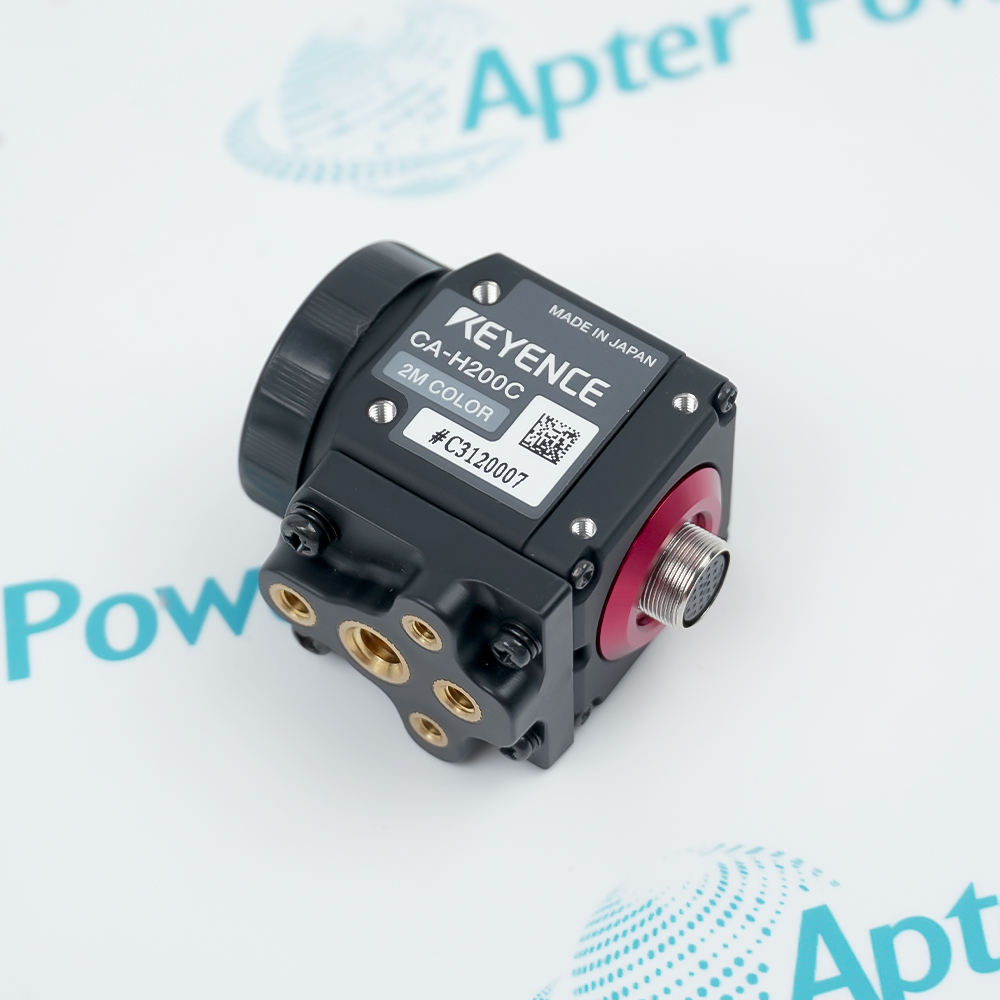

      CA-H200C

      High-Speed 2-Megapixel Color Camera
      In Stock
      Ships by Sunday, September 13
      Fast Shipping Available

      Product Describe：

      KEYENCE CA-H200C is a high-speed two-megapixel color industrial camera. It supplies progressive-scan digital images to a compatible KEYENCE vision controller.

      Ask our team:

      Get a quick price for： CA-H200C
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for CA-H200C

      Technical specifications for CA-H200C

      • Manufacturer:
        KEYENCE
      • Product Category:
        General Automation
      • Spare Part Number:
        CA-H200C
      • Estimated shipping dimensions:
        3.4×3.4×4.85cm
      • Weight:
        0.75 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Japan
      • Image sensor:
        Color CMOS
      • Pixel size:
        4.5 um x 4.5 um
      • Resolution:
        1600 x 1200 pixels
      • Sensor format:
        1/1.8 in
      • Scan method:
        Progressive
      • Transfer time at 7x:
        28.9 ms
      • Transfer time at 16x:
        11.8 ms
      • Pixel clock at 7x:
        86 MHz
      • Pixel clock at 16x:
        198 MHz
      • Data transfer:
        Digital serial
      • Exposure range:
        0.05 to 9000 ms
      • Lens mount:
        C mount
      • Degree of protection:
        IP64 with specified lens and cable
      • Operating temperature:
        0 to 45 degC
      • Relative humidity:
        85% maximum
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      KEYENCE CA-H200C is a high-speed two-megapixel color industrial camera. It supplies progressive-scan digital images to a compatible KEYENCE vision controller.
      • Captures two-megapixel color images for high-speed inspection
      • Transfers pixel data digitally to a compatible vision controller
      • Supports electronic-shutter control for moving workpieces
      • Uses C-mount optics for application-specific field of view

      CA-H200C installs with compatible CV-X or XG controller, high-speed camera cable, C-mount lens, machine-vision illumination in an engineered KEYENCE CV-X / XG vision system configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this high-speed 2-megapixel color camera.

      Important Notice: Confirm the complete CA-H200C marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power CA-H200C Manuals and Guides
      Apter Power CA-H200C Product Technical Reference PDFApter Power CA-H200C Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Color assembly verificationCaptures two-megapixel color images for high-speed inspection
      Printed packaging inspectionTransfers pixel data digitally to a compatible vision controller
      Electronic-component presence checkingSupports electronic-shutter control for moving workpieces
      High-speed surface-defect inspectionUses C-mount optics for application-specific field of view
      Read the applicable KEYENCE installation instructions before work. Verify CA-H200C and the installed KEYENCE CV-X / XG vision system configuration.
      1Verify CA-H200C and the assigned controller-camera port before work.
      2Isolate camera, controller, and illumination power before reconnection.
      3Keep the sensor window and C-mount thread free of dust and fingerprints.
      4Use only the supported high-speed camera cable and secure both ends.
      5Check lens coverage and mechanical clearance for the 1/1.8-inch sensor.
      6Set exposure without saturation at the actual line speed.
      7Validate color balance and focus with representative production samples.
      8Confirm stable triggering, image transfer, and inspection results before release.

      Technical notes

      Technical notes

      Protect the sensor and C-mount interface from contamination, select a supported high-speed cable, and verify exposure, focus, white balance, trigger timing, and image transfer under production illumination.

      FAQS

      • How should the field connections for CA-H200C be recorded before replacement?
        Record terminal or connector identity, polarity, shield, cable tag, channel assignment, and the as-found diagnostic state before disconnecting CA-H200C.
      • What isolation is required before installing CA-H200C?
        Place color assembly verification in the approved maintenance state, isolate every applicable power, signal, and stored-energy source, and prove the work area safe.
      • Which configuration check is essential when commissioning CA-H200C?
        Restore only the approved model-specific channel, range, address, scale, or interface settings and compare them with the physical installation before enabling the process function.
      • How can an engineer function-test CA-H200C after installation?
        Apply a controlled input, reference, or limited output appropriate to high-speed 2-megapixel color camera, observe the system indication and diagnostics, and confirm the intended process response.
      • What should be checked if CA-H200C reports an unstable or incorrect value?
        Check seating, supply, grounding, shielding, matched components, mechanical installation, and the signal path before changing configuration or replacing additional hardware.
      • Can CA-H200C be replaced by a visually similar model without review?
        No. Verify the complete part number, electrical execution, connector arrangement, companion hardware, and approved software or rack configuration.
      • What commissioning evidence should be retained for CA-H200C?
        Retain the full CA-H200C identity, as-left wiring and settings, measured functional-test results, final diagnostics, and authorization to return the affected equipment to service.
      • Which installed hardware must be matched before fitting CA-H200C?
        Match the complete CA-H200C marking to compatible CV-X or XG controller and high-speed camera cable, then confirm the assigned KEYENCE CV-X / XG vision system position and approved system configuration.
