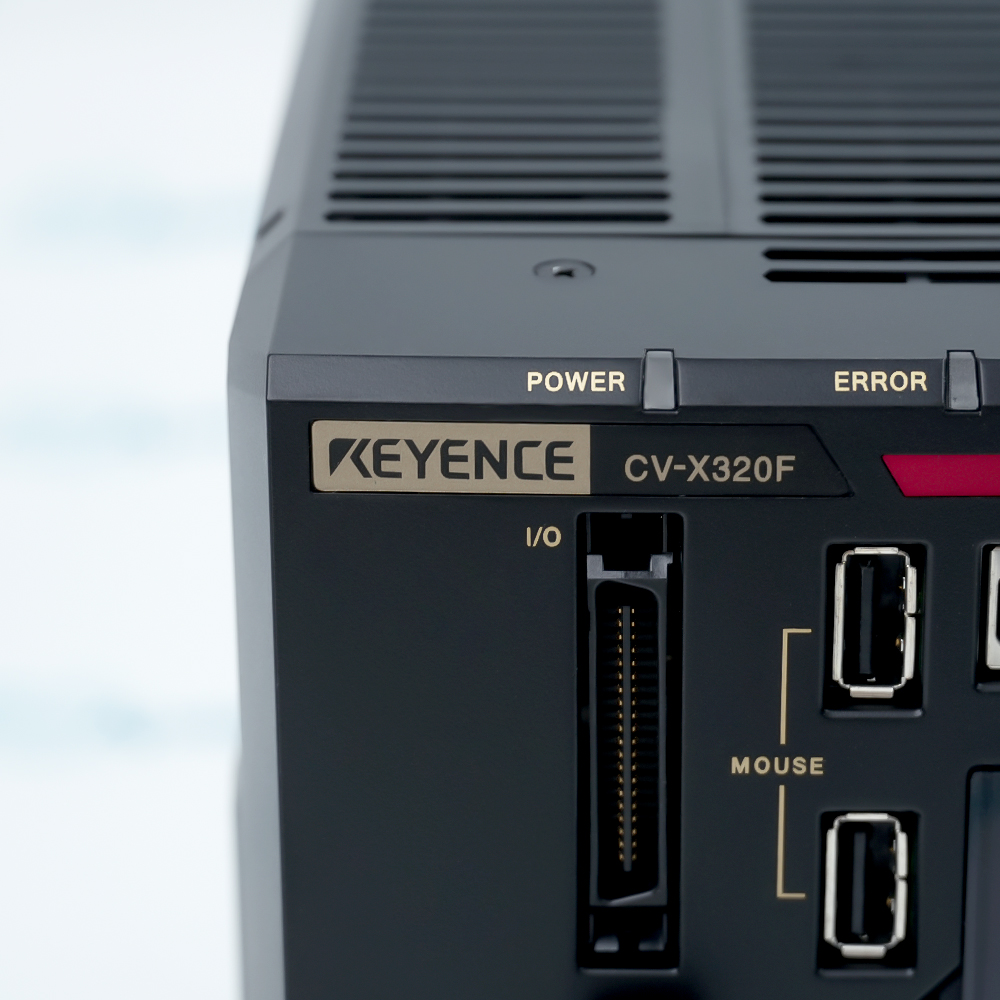

The CV-X320F is a dedicated industrial image processing controller primarily deployed on factory automation production lines for workpiece surface defect identification, physical dimensions measurement, OCR characters inspection, and automatic extraction of 1D and 2D codes. Categorized as an area camera dedicated type, its hardware configuration includes two dedicated physical camera connection ports, allowing simultaneous or independent access for up to two 2-megapixel KEYENCE CA Series high-resolution industrial cameras.
The side of the casing features dual independent SD flash card slots and a high-speed USB 2.0 port
Deeply integrated multi-channel LumiTrax optical control technology
The CV-X320F operates on an industry-standard 24 Vdc (±10%) direct current power supply, with a nominal current consumption of 2.4 A under a full load of connected cameras and illumination units. To comply with the European Union EN61326-1 Class A industrial electromagnetic compatibility and immunity regulations, the ground terminal of the controller must be independently wired to the protective earth of the equipment enclosure, and the physical length of all cables interconnecting the camera and external I/O devices must remain under 30 meters to eliminate high-frequency noise interference.
The physical ambient operating temperature is constrained between 0°C and +50°C, and the operating humidity must be maintained from 35% to 85% RH in a non-condensing state. Furthermore, the controller embeds LumiTrax optical control technology, which utilizes a multi-channel digital dimming unit to control multi-directional segmented light sources for instantaneous successive captures at microsecond intervals, directly extracting 3D shape data and pure texture imagery from the workpiece surface.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
KEYENCE CV-X320F CV-X Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in t330101-00-16-10-01-05n.
Automotive Manufacturing
3D weld seam quality inspection and high-precision dimensional measurement of engine components.
Consumer Electronics
Surface scratch defect detection on smartphone screens and missing/misaligned component inspection on multi-layer PCBs.
Semiconductor
High-precision 3D coplanarity measurement of IC pins and surface defect/scratch analysis on silicon wafers.
Photovoltaic & Solar Energy
Micro-crack defect detection on solar wafers and busbar ribbon welding appearance quality control.
Rubber & Tire Manufacturing
3D embossed DOT code/specification text reading on tire sidewalls and online lamination thickness measurement of tread rubber.
Aerospace Components
Micron-level contour dimension matching for turbine blade profiles and error-proofing for internal assemblies of aerospace structural components.
The KEYENCE CV-X320F is a high-performance 2-megapixel color/monochrome vision controller that supports LumiTrax™ and advanced geometric measurement tools for automated defect inspection and robotic guidance [keyence.com.sg]. For optimal operation, it requires a stable 24 VDC power supply with independent grounding to eliminate EMI, a minimum 5 cm clear clearance on all sides for natural convection cooling, and a strict adherence to a no-hot-plugging policy for all cables and SD cards to prevent hardware damage.
Alternative Names
Alternative Names
CV X320FCV-X32OF
Technical notes
Technical notes
This model utilizes a dual-core parallel computer processor as its core computing unit, handling high-frequency triggered image signals via a stream-splitting mechanism during high-speed feeding processes. The side of the controller case integrates dual SD card physical slots and high-speed USB 2.0 ports, enabling real-time local storage of high-volume inspection images and offline exporting of inspection data logs. Regarding network wiring and protocol adaptation, it natively integrates the hardware modules for three major industrial fieldbus protocols: EtherNet/IP, PROFINET, and EtherCAT. Through the built-in PLC-Link function, field technicians can directly write image judgment results and physical coordinate data into the internal registers of major programmable logic controllers—including KEYENCE KV, Mitsubishi MELSEC, and OMRON SYSMAC—via standard Ethernet (RJ-45 port) or RS-232C serial lines, eliminating secondary bridging via intermediate hardware gateways.
It is an industrial image processing controller belonging to the CV-X300 series, applied to execute automated visual inspections.
What type of industrial cameras does the CV-X320F support?
It is an area camera dedicated type controller that supports up to two 2-megapixel cameras.
What industrial network protocols are natively built into the CV-X320F?
It comes with built-in EtherNet/IP, PROFINET, and EtherCAT network interfaces.
What data storage interfaces are available on the CV-X320F case?
It features dual SD card slots and high-speed USB 2.0 ports for inspection data and image logging.
What is the normal current consumption of the CV-X320F under full load?
The nominal current consumption is approximately 2.4 A, including camera and expansion unit loads.
