The 990-10-XX-01-00 163930-01 is a non-contact vibration transmitter that directly converts mechanical shaft vibration acquired by eddy current proximity probes into an industry-standard 4-20mA analog current signal. It transmits data directly to PLC or DCS systems, completely eliminating the need for an additional proximity sensor (Proximitor) or monitor module.
Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment
Test Input pin for quick verification of loop signal output, using a function generator as the input
Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting
The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peak to-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs.

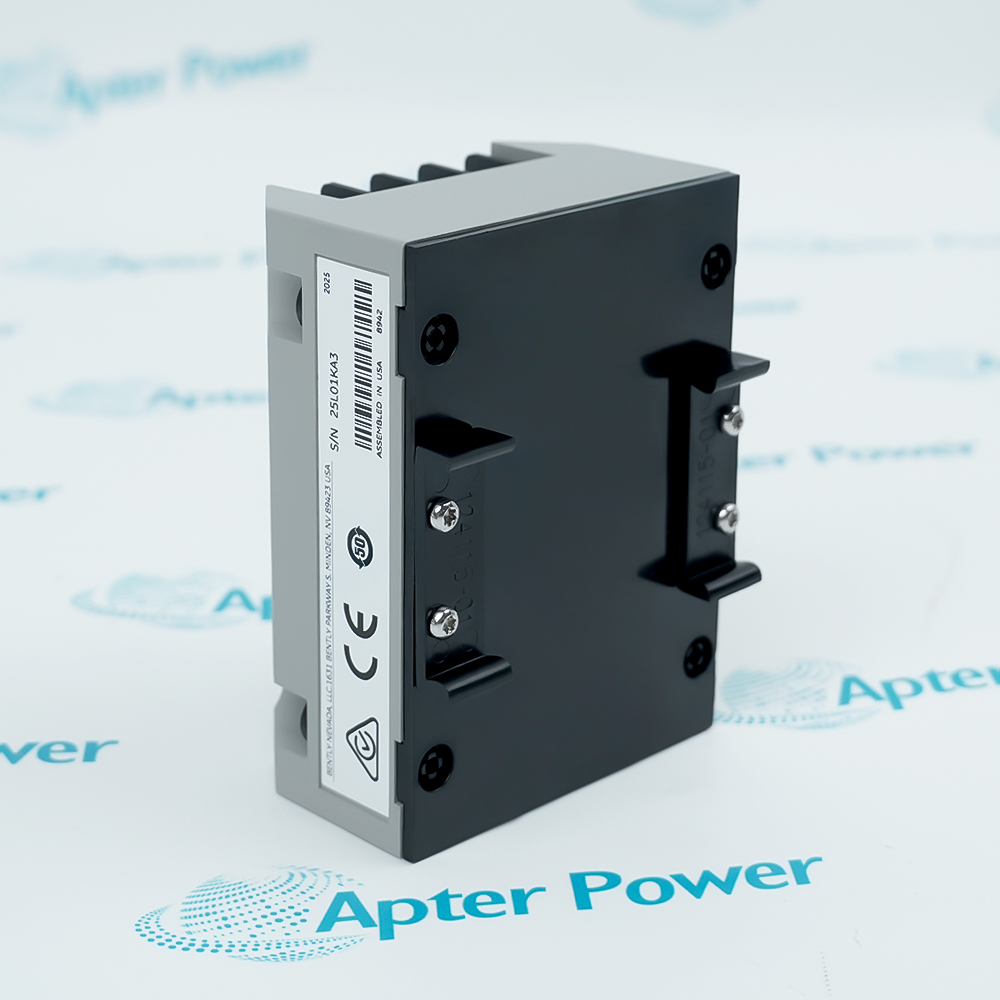

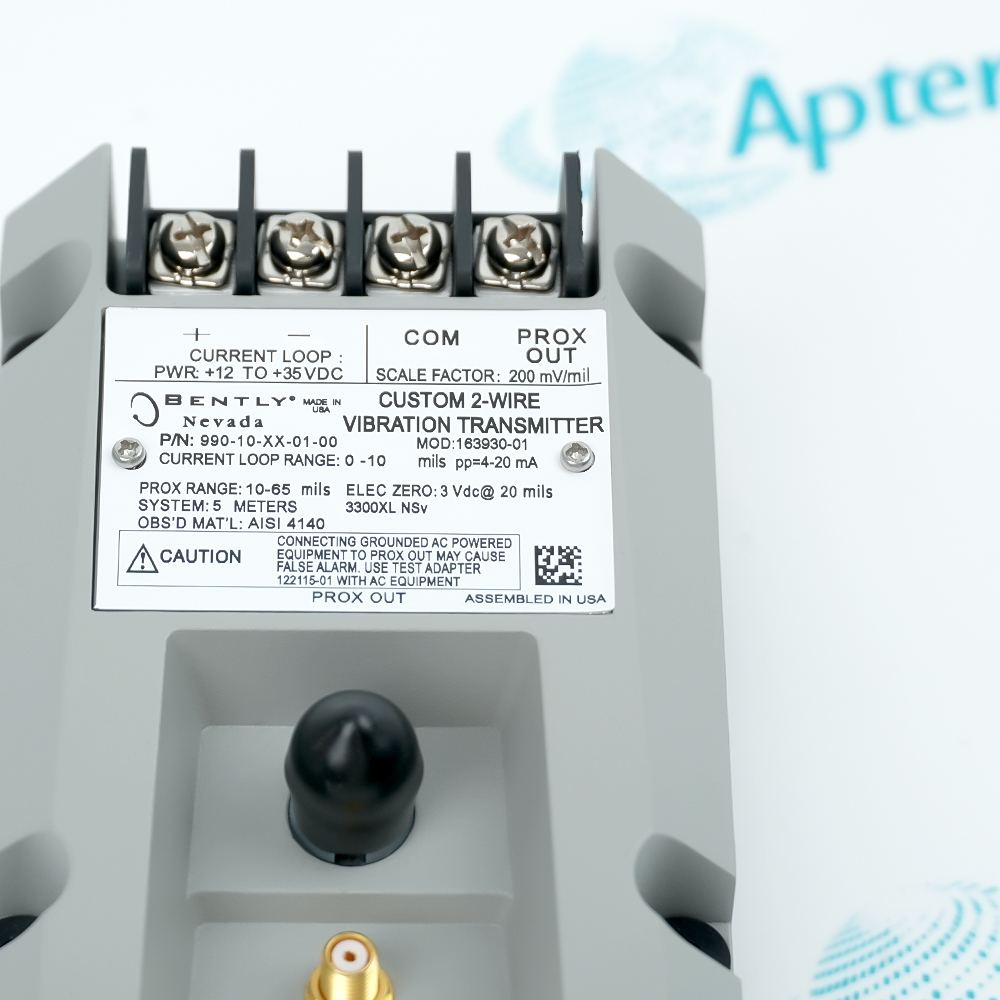

The 990-10-XX-01-00 transmitter housing is enclosed in a durable, compact package suitable for standard 35 mm DIN rail mounting within local field enclosures. It integrates the 163930-01 internal main circuit board, which establishes high electrical isolation barriers to shield the connected control automation loop from environmental field noise. The hardware layout features dedicated coaxial PROX terminals on the front panel, providing unconditioned dynamic voltage outputs for direct link-up with portable machinery diagnostic analyzers.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 990-10-XX-01-00 163930-01 Vibration Transmitter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petrochemical Processing
Monitors radial shaft vibration on high-speed ethylene charge gas compressors and polymer extruders to track bearing wear.
Oil & Gas Refining
Tracks fluid film bearing oil-film whirl or whip on catalytic cracking wet gas compressors and hydrocracking feed pumps.
Thermal Power Generation
Measures shaft relative vibration on critical boiler feed pumps, induced draft (ID) fans, and condensate pumps.
Water & Wastewater Treatment
Monitors shaft dynamic stability on large-scale axial flow water lift pumps and high-pressure reverse osmosis (RO) booster pumps.
Iron & Steel Metallurgy
Measures shaft vibration on blast furnace blowers, coke oven gas exhausters, and heavy-duty water recycling pumps.
Mining & Ore Mineral Processing
Monitors input shaft and pinion bearing vibrations on massive ball mills, SAG mills, and heavy-duty slurry pumps.
When operating the 990-10-XX-01-00 (including the 163930-01 main board), strictly match it with 3300 NSv probes and appropriate cables, and ensure the static gap voltage is verified via front terminals within the -9 Vdc to -10 Vdc linear range. As a loop-powered device, it requires a positive +12 Vdc to +36 Vdc supply, not a negative voltage. Always ensure reliable enclosure grounding through the DIN rail clip, and strictly follow "-01" Intrinsic Safety compliance regulations in hazardous areas.
990-10-XX-01-00 supports standard 35 mm DIN rail mounting and features a dedicated coaxial PROX terminal on the front panel to provide unconditioned dynamic voltage signals for external failure analysis. The "-01" suffix indicates official intrinsic safety hazardous area certifications from ATEX, IECEx, and CSA. Operating as a factory line-replaceable unit (LRU), this hardware allows for calibration-free, rapid swap-outs in heavy industrial field environments with high electromagnetic noise, serving as a highly isolated machinery protection solution for OEM equipment manufacturers.
It is a 990 Vibration Transmitter manufactured by Bently Nevada, with 163930-01 serving as its internal main circuit board module, used for machinery condition monitoring.
What is the primary function of Bently Nevada 990-10-XX-01-00 163930-01?
Its primary function is to process raw eddy current sensor signals and convert them into a standard 4-20 mA analog output representing radial vibration or axial position.
How do you use the Bently Nevada 990-10-XX-01-00 163930-01 transmitter?
It is used by mounting the unit onto a standard 35 mm DIN rail, wiring it to a compatible 3300 XL 5mm/8mm proximity probe, and connecting the 4-20 mA current loop directly to a PLC or DCS system.
In which industries is Bently Nevada 990-10-XX-01-00 163930-01 typically applied?
It is widely applied in power generation, oil and gas, petrochemicals, water treatment, and heavy manufacturing to monitor critical rotating machinery.
What type of machines are monitored by Bently Nevada 990-10-XX-01-00 163930-01?
It is utilized to monitor small-to-medium rotating equipment such as centrifugal air compressors, industrial fans, blowers, cooling tower pumps, and small turbines.
