      330909-00-80-10-02-05

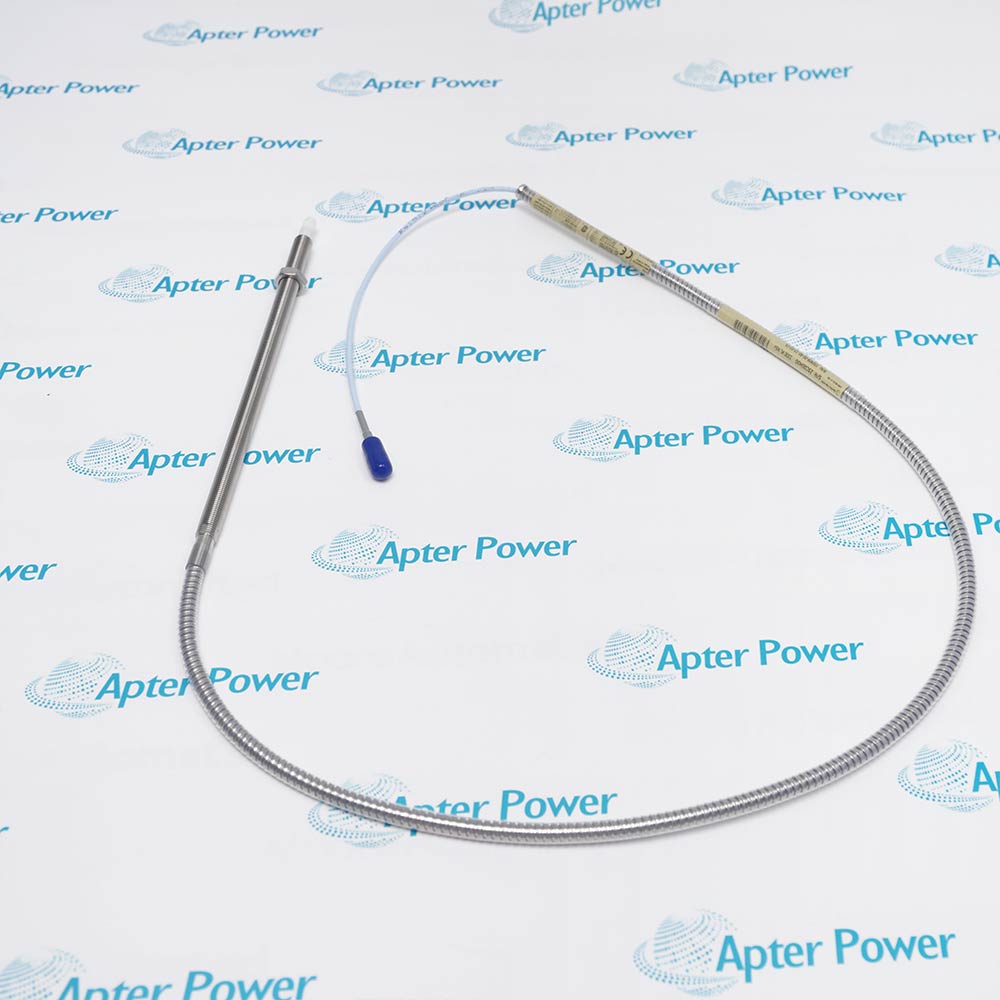

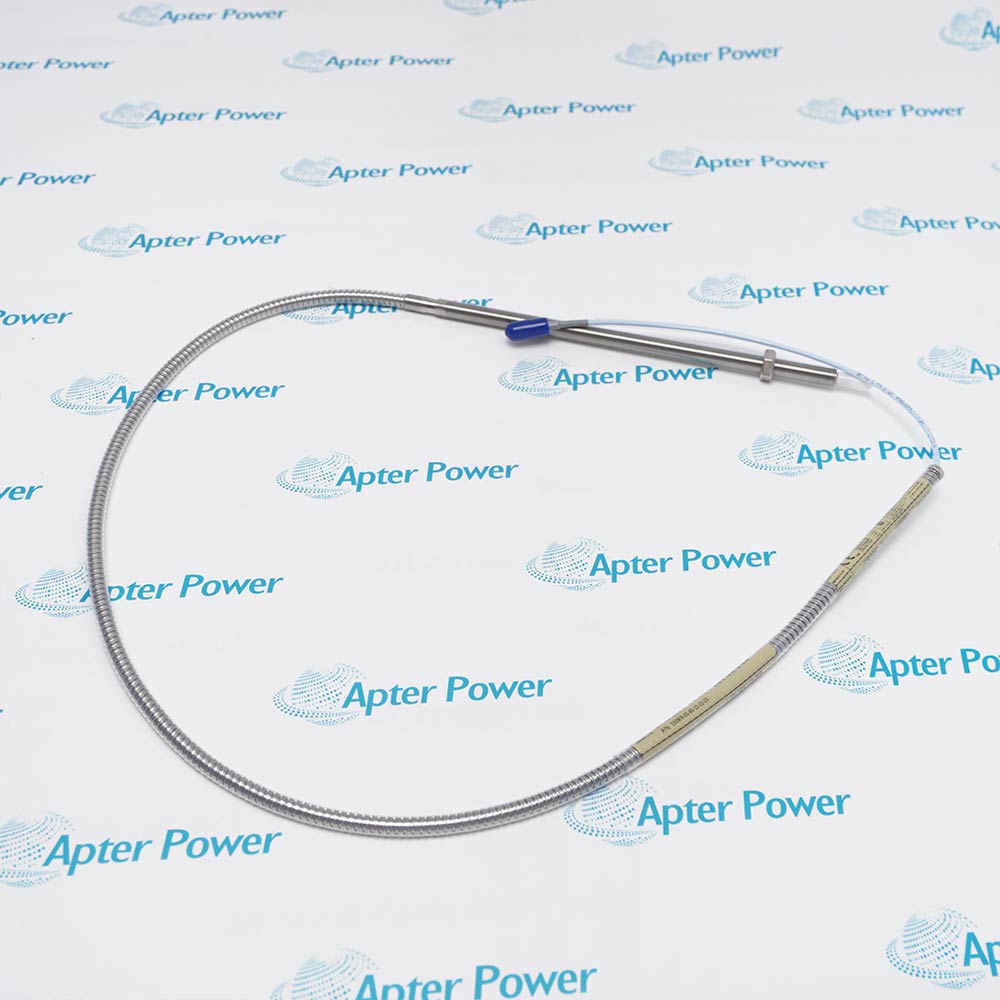

      NSv Proximity Probe
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330909-00-80-10-02-05 is a stainless-steel armored 3/8-24 UNF 3300 XL NSv proximity probe with 8.0 in case identity, 1.0 m probe lead and miniature clickloc coaxial connector with standard cable.

      Ask our team:

      Get a quick price for： 330909-00-80-10-02-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330909-00-80-10-02-05

      Technical specifications for 330909-00-80-10-02-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330909-00-80-10-02-05
      • Estimated shipping dimensions:
        116x1.6x1.6cm
      • Weight:
        0.16 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • probe family:
        3300 XL NSv
      • mounting thread:
        3/8-24 UNF
      • cable protection:
        Stainless-steel armored
      • unthreaded length code:
        0.0 in
      • overall case-length code:
        8.0 in
      • total probe-lead length:
        1.0 m
      • connector and cable option:
        miniature ClickLoc coaxial connector with standard cable
      • agency-approval option:
        CSA, ATEX and IECEx
      • linear measurement range:
        1.5 mm (60 mils)
      • incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • frequency response:
        0 to 10 kHz, +0/-3 dB typical
      • recommended gap:
        1.0 mm (40 mils)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330909-00-80-10-02-05 is a stainless-steel armored 3/8-24 UNF 3300 XL NSv proximity probe with 8.0 in case identity, 1.0 m probe lead and miniature clickloc coaxial connector with standard cable.
      • Uses the compact 3300 XL NSv transducer architecture
      • Provides the documented 3/8-24 UNF mounting identity
      • Retains the 1.0 m probe-lead option
      • Uses the miniature clickloc coaxial connector with standard cable connection option

      330909-00-80-10-02-05 operates with matched 3300 XL NSv extension cable, compatible 3300 XL NSv Proximitor Sensor, approved target surface, configured monitor channel.

      Engineered applications include Small-target shaft vibration, Axial position monitoring, Tight-clearance installation, Exact NSv probe replacement.

      Important Notice: Match 330909-00-80-10-02-05 to the documented 3300 XL NSv system length, probe geometry, connector, target, gap and host-channel configuration.

      330909-00-80-10-02-05 Manuals & Downloads
      330909-00-80-10-02-05 Technical Reference (PDF)330909-00-80-10-02-05 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Small-target shaft vibration
      Measures non-contacting motion where the approved target and clearance suit the NSv system.
      Axial position monitoring
      Tracks documented axial displacement with a matched NSv transducer loop.
      Tight-clearance installation
      Supports compact machinery locations with the specified thread and case geometry.
      Exact NSv probe replacement
      Restores the exact lead, connector and approval identity without altering calibration.
      Read the applicable Bently Nevada instructions before work. Verify 330909-00-80-10-02-05, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete 330909-00-80-10-02-05 marking and its assigned 3300 XL NSv Proximity Transducer System position before work.
      2
      Place the connected small-target shaft vibration process in the approved maintenance state.
      3
      Isolate the documented power, signal and stored-energy sources before disconnecting the transducer or module.
      4
      Record every connector, cable route, shield, polarity, channel assignment and host configuration before removal.
      5
      Use ESD-safe handling and protect coaxial, terminal and keyed interfaces from contamination or mechanical damage.
      6
      Confirm the installed matched 3300 XL NSv extension cable and compatible 3300 XL NSv Proximitor Sensor against the approved project record.
      7
      Restore power in a controlled sequence and review transducer, monitor and host diagnostics.
      8
      Prove the intended axial position monitoring function and retain the final controlled acceptance result.

      Technical notes

      Technical notes

      Match 330909-00-80-10-02-05 to the documented 3300 XL NSv system length, probe geometry, connector, target, gap and host-channel configuration.

      FAQS

      • Which probe family identifies Bently Nevada 330909-00-80-10-02-05?
        330909-00-80-10-02-05 belongs to the 3300 XL NSv product family. Use that family identity when selecting its matched cable, sensor or host module.
      • What mounting thread is published for Bently Nevada 330909-00-80-10-02-05?
        330909-00-80-10-02-05 uses 3/8-24 UNF for its mounting thread. Confirm the installed mounting interface before removing or fitting the article.
      • How must the cable protection of Bently Nevada 330909-00-80-10-02-05 be matched?
        The documented cable protection for 330909-00-80-10-02-05 is Stainless-steel armored. Preserve that construction so the replacement does not change routing or mechanical protection.
      • Which unthreaded length code must technicians retain for Bently Nevada 330909-00-80-10-02-05?
        330909-00-80-10-02-05 specifies 0.0 in for the unthreaded length code. Retain this exact order-code position rather than substituting a nearby geometry.
      • What does the official record state for the overall case-length code of Bently Nevada 330909-00-80-10-02-05?
        The confirmed overall case-length code for 330909-00-80-10-02-05 is 8.0 in. Compare the physical article and available clearance with this value before installation.
      • How should the total probe-lead length be verified on Bently Nevada 330909-00-80-10-02-05?
        For 330909-00-80-10-02-05, the total probe-lead length is 1.0 m. Keep this value consistent with the matched transducer or system-length record during commissioning.
      • Which exact connector and cable option distinguishes Bently Nevada 330909-00-80-10-02-05?
        330909-00-80-10-02-05 uses miniature ClickLoc coaxial connector with standard cable as its connector and cable option. Record this connection identity before disconnection and restore the same interface afterward.
      • What agency-approval option is used when commissioning Bently Nevada 330909-00-80-10-02-05?
        The agency-approval option assigned to 330909-00-80-10-02-05 is CSA, ATEX and IECEx. Apply only the published option and confirm the complete nameplate before service release.
