      330905-08-13-10-12-05

      NSv Proximity Probe
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

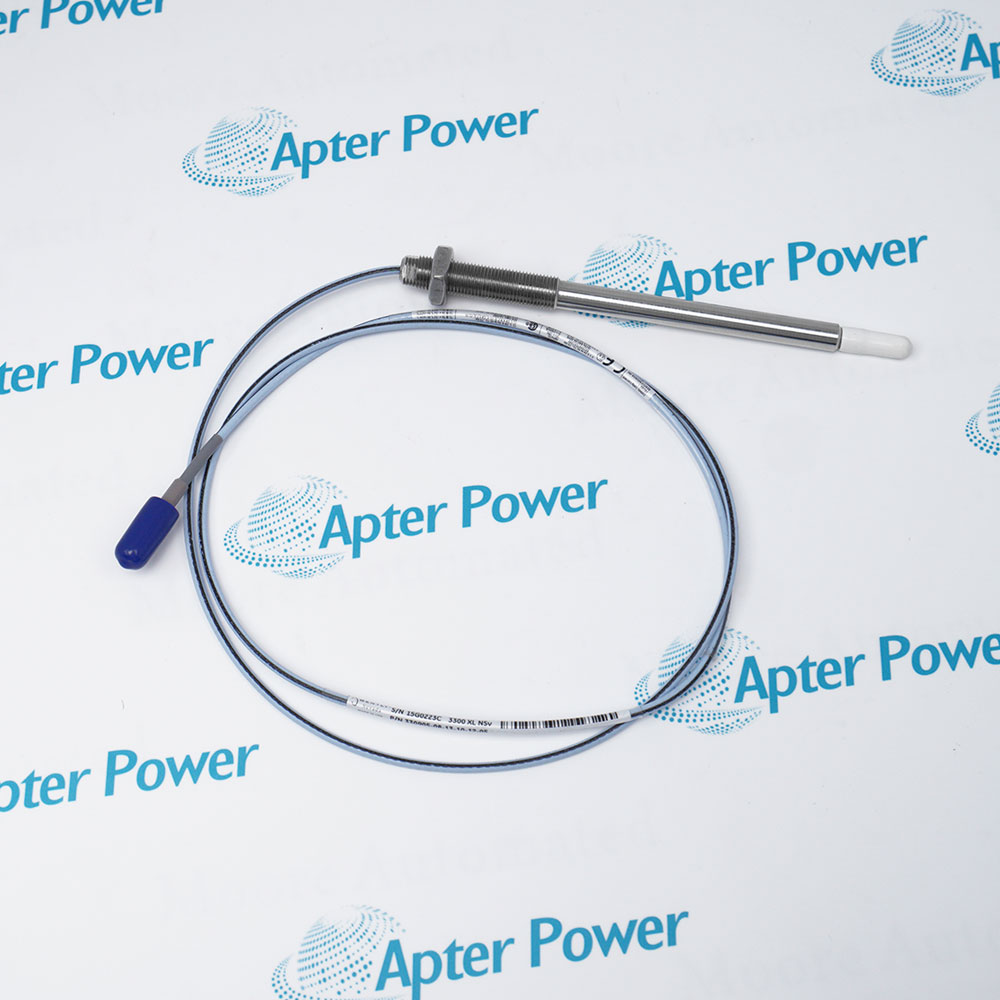

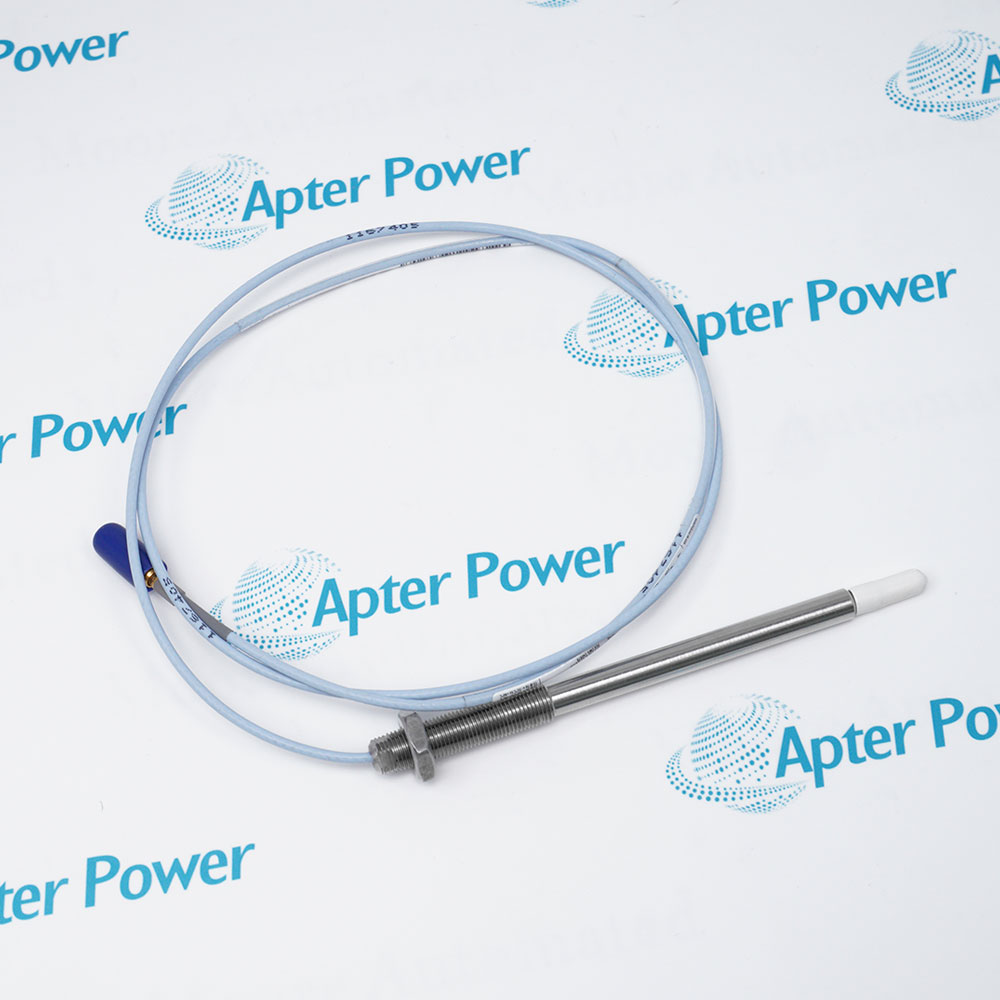

      Bently Nevada 330905-08-13-10-12-05 is a metric 3300 XL NSv proximity probe for confined shaft-vibration and position measurements. It uses FluidLoc ClickLoc connection without protector in a matched NSv probe, extension-cable and Proximitor Sensor chain.

      Ask our team:

      Get a quick price for： 330905-08-13-10-12-05
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330905-08-13-10-12-05

      Technical specifications for 330905-08-13-10-12-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330905-08-13-10-12-05
      • Estimated shipping dimensions:
        ​1.8x1.6x114cm
      • Weight:
        0.08 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        330905 metric NSv probe
      • Mounting thread:
        M10 x 1
      • Connector option:
        FluidLoc ClickLoc connection without protector
      • Approval control:
        05 is the published multiple-approval option; verify the installed marking.
      • Compatible sensor:
        330980 NSv Proximitor Sensor
      • Calibration target:
        AISI 4140 steel under published conditions
      • Nominal scale factor:
        7.87 V/mm for the matched system
      • Frequency response:
        0 to 10 kHz under published conditions
      • Probe temperature rating:
        -52 to +177 deg C
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330905-08-13-10-12-05 is a metric 3300 XL NSv proximity probe for confined shaft-vibration and position measurements. It uses FluidLoc ClickLoc connection without protector in a matched NSv probe, extension-cable and Proximitor Sensor chain.
      • 3300 XL NSv probe family
      • M10 x 1 mounting
      • FluidLoc ClickLoc connection without protector
      • Matched NSv transducer chain

      Use 330905-08-13-10-12-05 only in an approved 3300 XL NSv loop with the documented target and companion hardware.

      Important Notice: Confirm 330905-08-13-10-12-05, its connector, suffix marking and matched NSv channel before commissioning.

      330905-08-13-10-12-05 Manuals & Downloads
      330905-08-13-10-12-05 Technical Reference (PDF)330905-08-13-10-12-05 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Confined shaft vibration
      Supports non-contacting measurement where compact NSv geometry is required.
      Axial position
      Measures static shaft position through the approved NSv system.
      Machine protection
      Feeds a compatible monitor with the conditioned proximity signal.
      Legacy NSv maintenance
      Preserves the documented NSv probe and sensor arrangement during replacement.
      Read the applicable Bently Nevada instructions before work. Verify Bently Nevada 330905-08-13-10-12-05 and the installed system configuration before commissioning.
      1
      Verify the complete 330905-08-13-10-12-05 marking.
      2
      Confirm the metric mounting and installed bracket.
      3
      Protect the FluidLoc ClickLoc connection without protector from contamination.
      4
      Do not mix NSv and standard 8 mm system components.
      5
      Preserve the documented shield and cable route.
      6
      Use the specified target material or approved correction.
      7
      Set the static gap with the current manufacturer procedure.
      8
      Prove polarity, gap voltage and dynamic response before release.

      Technical notes

      Technical notes

      Retain the complete 330905-08-13-10-12-05 identity. Verify the metric mounting, FluidLoc ClickLoc connection without protector, suffix marking, target, cable route, static gap and compatible 330980 sensor before substitution.

      FAQS

      • What is Bently Nevada 330905-08-13-10-12-05?
        It is a 330905 metric 3300 XL NSv proximity probe for a matched NSv transducer system.
      • Which thread family applies to Bently Nevada 330905-08-13-10-12-05?
        The 330905 ordering family uses the metric M10 x 1 probe thread.
      • Which connector applies to Bently Nevada 330905-08-13-10-12-05?
        The ordering code identifies FluidLoc ClickLoc connection without protector.
      • How should the approval suffix on Bently Nevada 330905-08-13-10-12-05 be handled?
        05 is the published multiple-approval option; verify the installed marking.
      • Which sensor family is compatible with Bently Nevada 330905-08-13-10-12-05?
        Use the probe only with the documented NSv extension cable and 330980 Proximitor Sensor.
      • What nominal scale factor applies to Bently Nevada 330905-08-13-10-12-05?
        The matched NSv system publishes a nominal 7.87 V/mm scale factor under the stated test conditions.
      • What target reference applies to Bently Nevada 330905-08-13-10-12-05?
        Published performance is referenced to the manufacturer-specified AISI 4140 steel target.
      • What confirms commissioning of Bently Nevada 330905-08-13-10-12-05?
        Verify the complete marking, connector, matched NSv chain, static gap, polarity, diagnostics and channel response.
