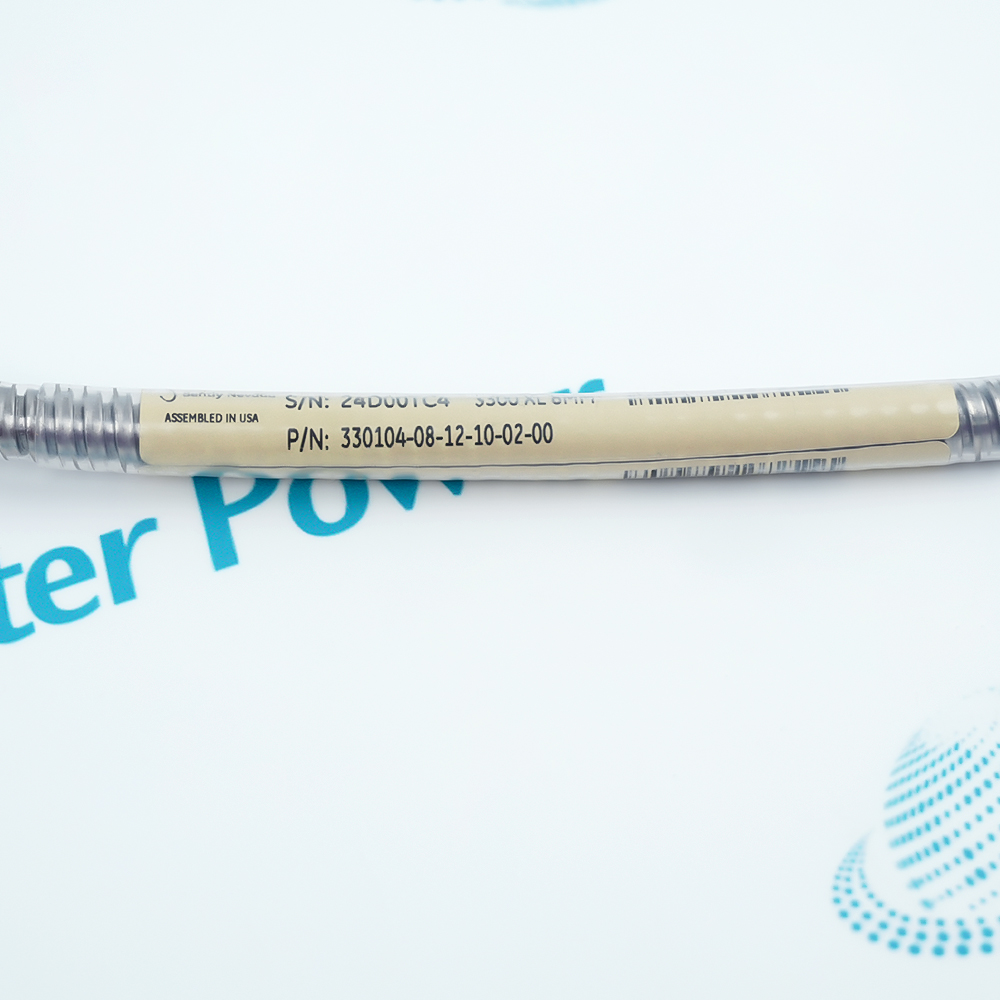

      330104-08-12-10-02-00

      3300 XL 8 mm Proximity Probes
      In Stock

      Product Describe：

      3300 XL 8 mm
      Proximity Probes
      M10 x 1 thread,with armor
      Minimum unthreaded length: 80 mm
      Minimum case length: 120 mm
      10 1.0 meter (3.3 feet)
      02 Miniature coaxial ClickLocconnector
      standard cable
      00 Not required

      Ask our team:

      Get a quick price for： 330104-08-12-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for 330104-08-12-10-02-00

      Technical specifications for 330104-08-12-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-08-12-10-02-00
      • Estimated shipping dimensions:
        1.8x1.6x114cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Unthreaded Length Option:
        80mm
      • Overall Case Length Option:
        120 mm
      • Total Length Option:
        1.0 meter (3.3 feet)
      • Agency Approval Option:
        Not required
      • Linear range:
        2.0 mm (80 mils)
      • Incremental scaling factor (ISF):
        7.87 V/mm (200 mV/mil)
      • Probe tip:
        Polyphenylene sulfide (PPS).
      • Probe housing:
        AISI 303 or 304 stainless steel (SST).
      • Armor material:
        Stainless steel (AISI 302 SST) with FEP outer sheath
      Ask for Quote

      Information

      Information

      Overview Manuals Main purpose of the product
      The Bently Nevada 330104-08-12-10-02-00 is a 3300 XL 8 mm Proximity Probe, a key component in Eddy Current Proximity Transducer Systems for measuring shaft position and vibration in critical machinery.
        • Stable Signal Output
        • Compact 8 mm Probe Design
        • 3300 XL 8 mm Proximity Probes
      The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system’sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements3.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Bently Nevada 330104-08-12-10-02-00 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      This probe is typically used in conjunction with the Bently Nevada 3300 XL transmitter system for non-contact measurements using eddy current technology. Its main application scenarios include: Vibration measurement: Monitor the dynamic shaft vibration of fluid thin film bearing machines. Position monitoring: Measure static displacement, such as axial displacement. Speed/Keyphasor measurement: used for Keyphasor signal reference and speed measurement.

      FAQS

      • What is 330104-01-14-10-01-05？
        330104-01-14-10-01-05 is a 3300 XL 8 mm Proximity Probes
      • What are 330104-01-14-10-01-05 proximity probes used for?
        Proximity probes are sensors that measure relative proximity. Proximity probes use changes in voltage to measure rotating or reciprotcating shaft surfaces. Because proximity probes are non-contacting transducers, mount proximity probes on a reasonably stationary mechanical structure, such as a bearing housing.
      • What is the function of the 330104-08-12-10-02-00 3300 XL 8 mm Proximity Probe?
        The 330104-08-12-10-02-00 proximity probe is designed to provide precise non-contact measurement of shaft displacement and vibration in rotating machinery.
      • What type of measurement does the 3300 XL 8 mm Proximity Probe provide?
        The probe measures radial vibration and axial displacement by detecting changes in the electromagnetic field between the probe tip and a conductive target surface.
      • What is the operating temperature range of the 330104-08-12-10-02-00 probe?
        The probe is designed to operate reliably in industrial environments with a typical temperature range of approximately -35 to 177°C.
      • What probe diameter does the 330104-08-12-10-02-00 model use?
        This model features an 8 mm probe tip diameter, which allows accurate measurement in applications with limited installation space.
