      330104-03-06-05-02-00

      Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

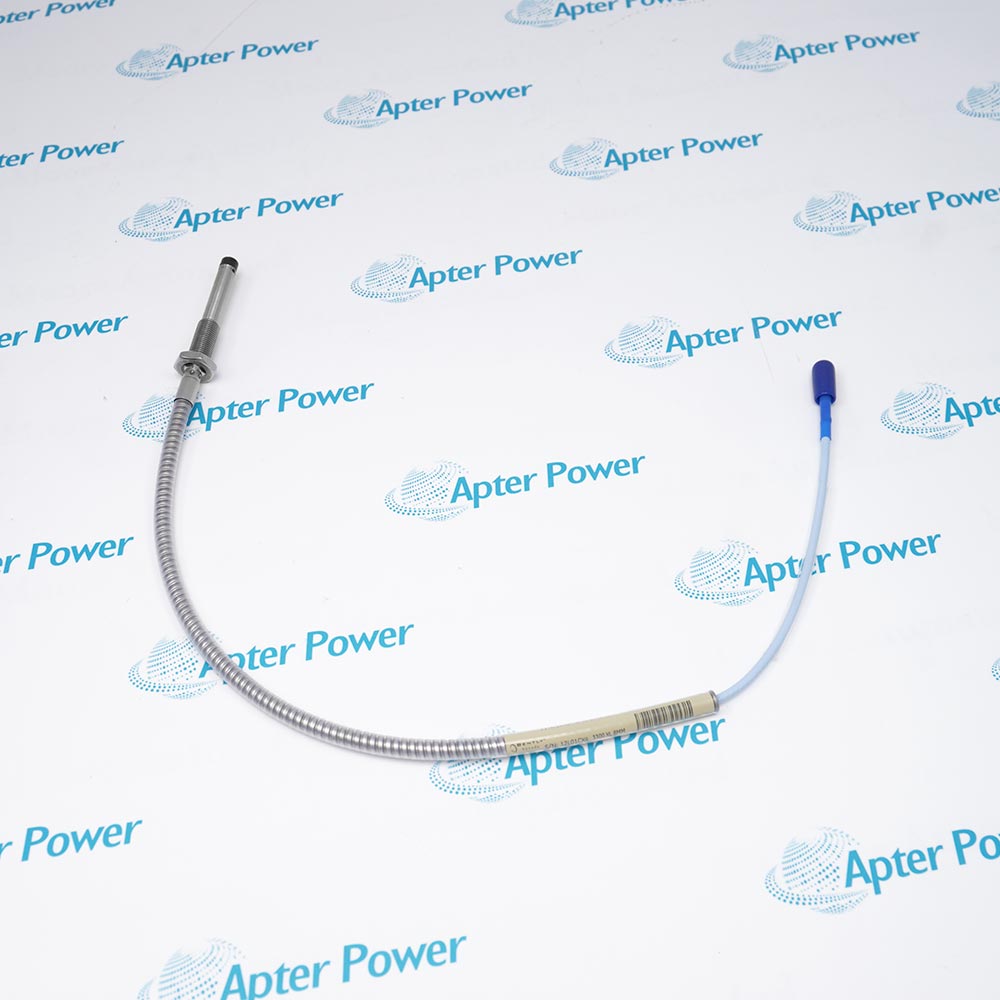

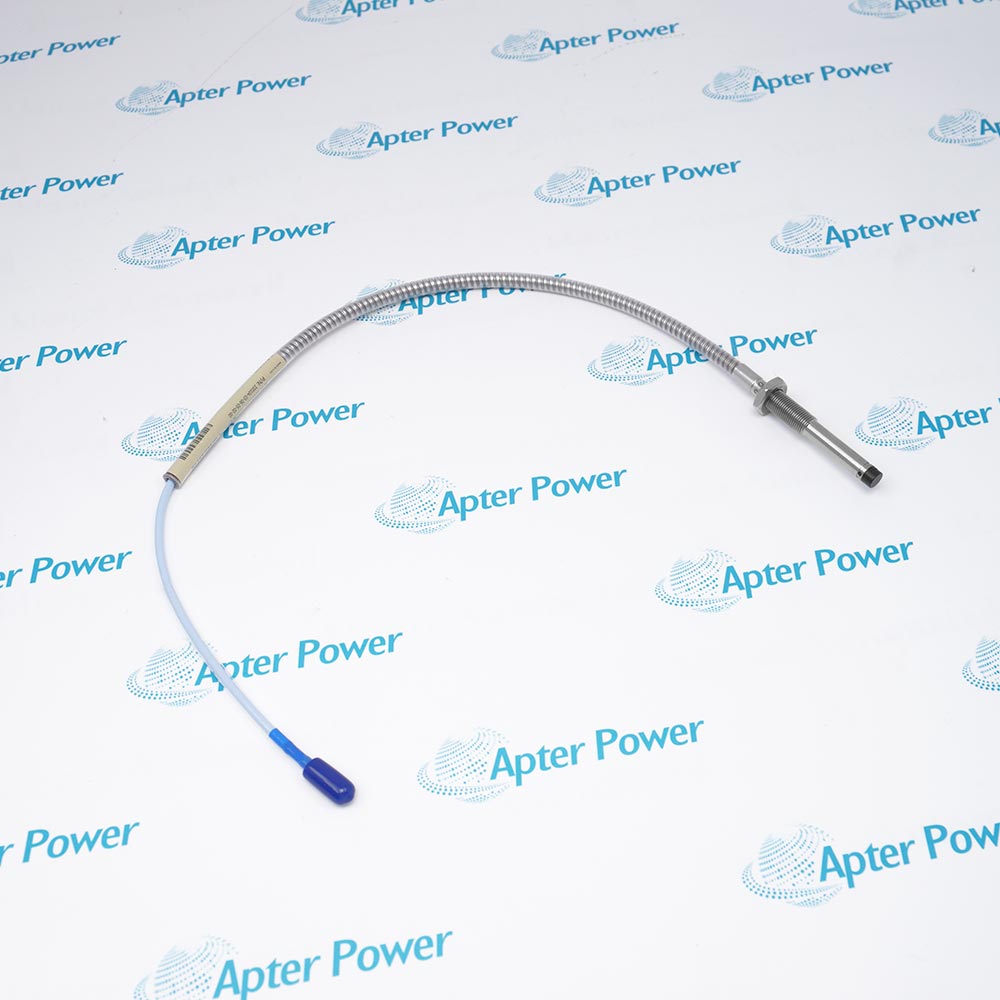

      Bently Nevada 330104-03-06-05-02-00 is an armored, forward-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread, 30 mm unthreaded section, 60 mm case and 0.5 m lead. The standard-cable -02 option uses a miniature coaxial ClickLoc connector without an installed connector protector.

      Ask our team:

      Get a quick price for： 330104-03-06-05-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-03-06-05-02-00

      Technical specifications for 330104-03-06-05-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-03-06-05-02-00
      • Estimated shipping dimensions:
        1.8x1.5x113cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe family:
        3300 XL 8 mm
      • Mounting thread:
        M10 x 1
      • Cable protection:
        Armored
      • Unthreaded length:
        30 mm
      • Overall case length:
        60 mm
      • Total probe length:
        0.5 m
      • Connector:
        Miniature coaxial ClickLoc
      • Cable construction:
        Standard cable
      • Connector protector:
        Not included in -02
      • Approval option:
        00 - Not required
      • Probe DC resistance:
        7.45 ± 0.50 ohm, center conductor to outer conductor
      • Standard probe temperature:
        -52°C to +177°C
      • Probe case material:
        AISI 303 or 304 stainless steel
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330104-03-06-05-02-00 is an armored, forward-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread, 30 mm unthreaded section, 60 mm case and 0.5 m lead. The standard-cable -02 option uses a miniature coaxial ClickLoc connector without an installed connector protector.
      • Senses the conductive target without mechanical contact
      • Protects the cable route with an armored build
      • Retains the CableLoc lead attachment system
      • Supports separately fitted connector protection

      A matched extension cable and Proximitor Sensor convert probe response into static gap and dynamic displacement information. The monitoring application depends on the assembled transducer system, not the probe alone.

      Important Notice: Armor is not a substitute for connector sealing or FluidLoc containment. Keep the installed target calibration, cable routing and total electrical length unchanged during replacement.

      Bently Nevada 330104-03-06-05-02-00 Manuals & Downloads
      330104-03-06-05-02-00 Technical Reference (PDF)330104-03-06-05-02-00 Manufacturer Datasheet Excerpt (PDF)

      The first document provides this probe's technical reference. The second preserves unchanged original pages 1–6, 9–14, 18–19, 23–25 and 28 of 141194 Rev. AN and is labelled as an excerpt.

      Fluid-film bearing monitoring
      Supplies the sensing element for radial shaft-displacement measurement in an engineered 3300 XL system.
      Armored cable routing
      Supports a documented cable route where the armored probe construction is required.
      Axial gap measurement
      Measures separation from the conductive target through the matched Proximitor signal chain.
      Metric forward-mount renewal
      Preserves the specified exposed section and case identity in the existing mounting position.
      Read the Bently Nevada transducer instructions before work. Verify 330104-03-06-05-02-00, its armored metric mounting position and matched sensing chain before replacement.
      1
      Keep the exact metric mounting geometry and armored construction.
      2
      Put the machine in its approved maintenance state before adjustment.
      3
      Inspect the cable route without treating armor as an internal fluid barrier.
      4
      Match combined electrical length to the selected Proximitor Sensor.
      5
      Keep the conductive target and its calibration basis unchanged.
      6
      Finger-tighten two XL ClickLoc interfaces until the connection locks.
      7
      Fit suitable connector environmental protection separately.
      8
      Verify final static gap and the configured monitoring response.

      Technical notes

      Technical notes

      Retain the 03-06 metric mounting geometry and protect the exposed connection separately from the armored cable. Match the combined probe and extension electrical length to the installed Proximitor Sensor and target calibration.

      FAQS

      • Why must the 03-06 mounting combination be retained?
        The 30 mm unthreaded section and 60 mm overall case define this forward-mount geometry. An M10 x 1 thread alone does not establish that a replacement preserves the installed exposed section.
      • What distinguishes this short lead in a continuity check?
        Center-to-outer-conductor resistance is 7.45 ± 0.50 ohm. This probe-lead reference must not be replaced by the value for a longer lead or an extension cable.
      • Does the armored build also provide FluidLoc containment?
        No. Armor protects the cable externally; the -02 selection specifies standard cable. Internal fluid-migration containment is a separate FluidLoc cable construction.
      • Can the all-XL calibration be reused unchanged with a different target material?
        The normal factory calibration is based on AISI 4140 steel. Another conductive material needs the corresponding calibration basis rather than an unchanged all-XL accuracy assumption.
      • How is the exposed ClickLoc joint protected on this configuration?
        The -02 connector has no factory-installed protector. Separate environmental protection can be fitted; armor does not seal the connector joint.
