      330101-00-76-05-01-00

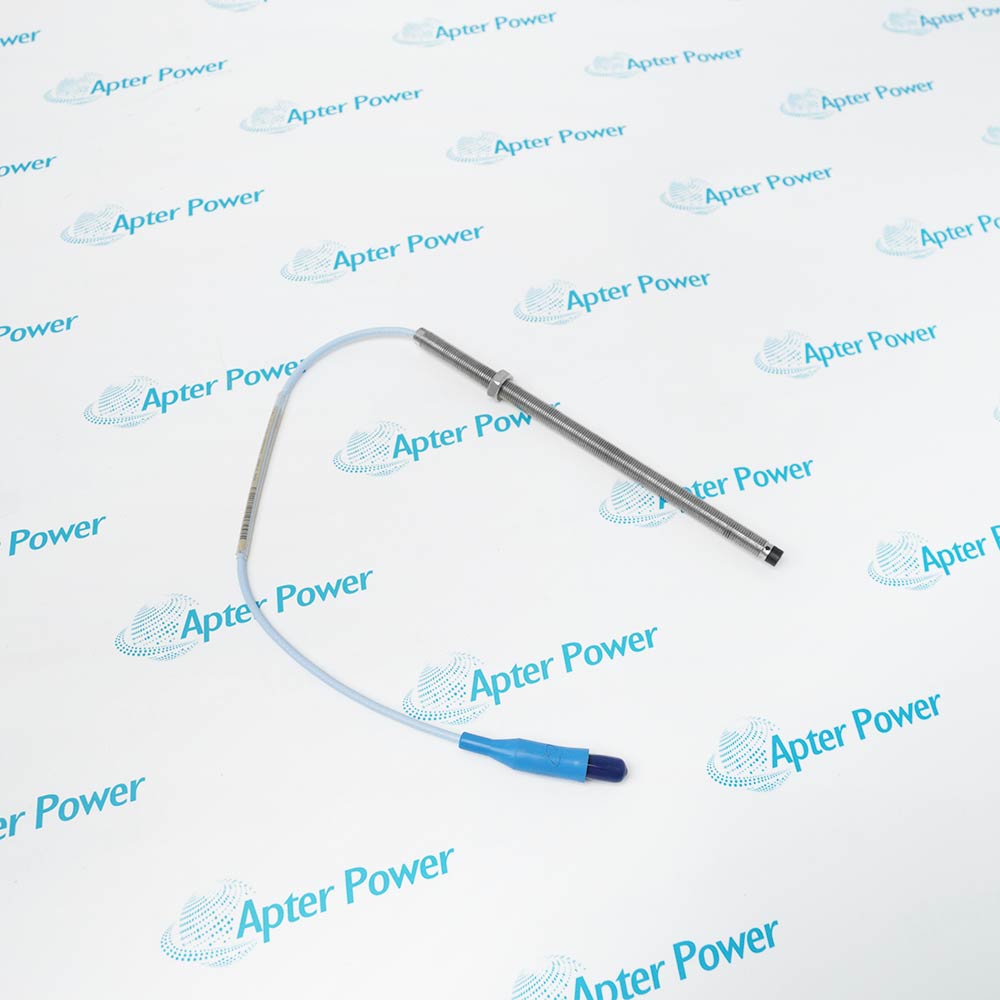

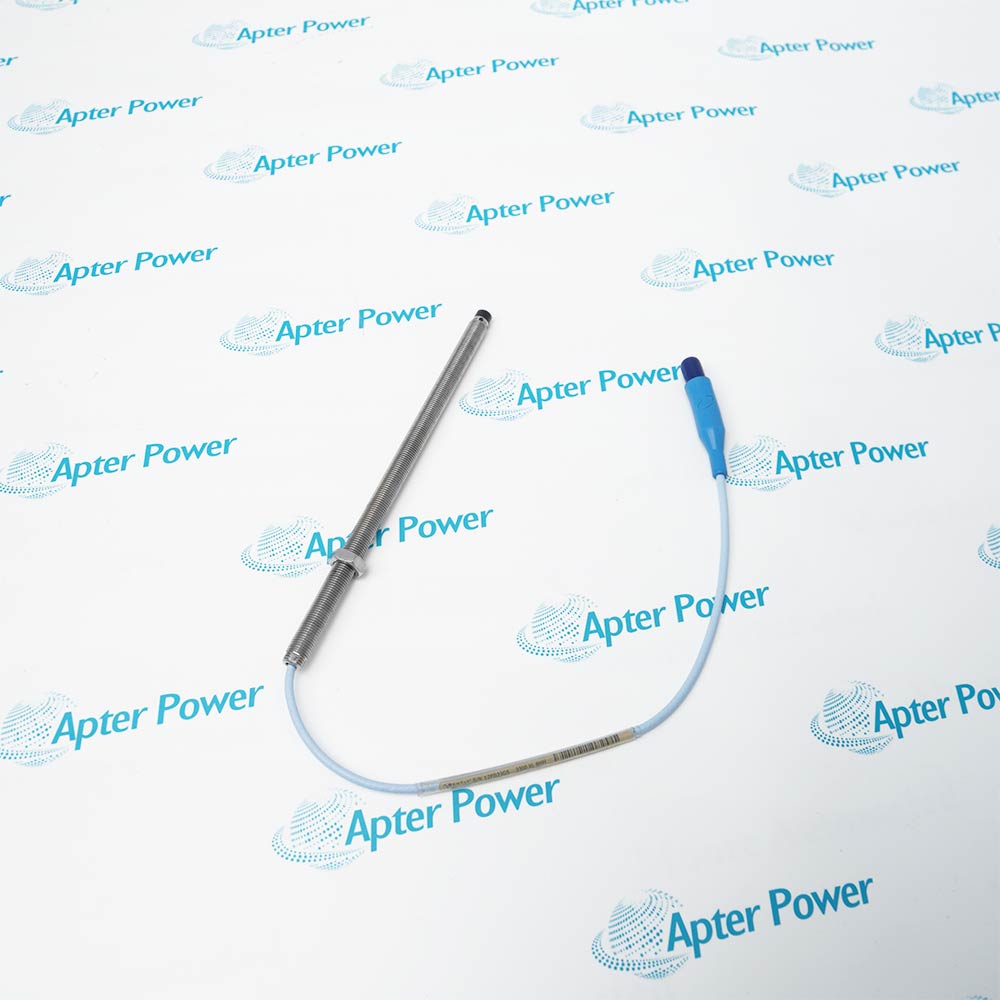

      8mm Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330101-00-76-05-01-00 is an unarmored 3300 XL 8 mm proximity probe with a 3/8-24 UNF case and a protected ClickLoc connector. It functions in a matched non-contact shaft displacement or vibration measurement chain.

      Ask our team:

      Get a quick price for： 330101-00-76-05-01-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330101-00-76-05-01-00

      Technical specifications for 330101-00-76-05-01-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330101-00-76-05-01-00
      • Estimated shipping dimensions:
        ​23x23x2cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        3300 XL 8 mm
      • Probe type:
        Unarmored standard-mount proximity probe
      • Case thread:
        3/8-24 UNF
      • Unthreaded case length:
        0.0 in
      • Overall case length:
        7.6 in
      • Integral lead length:
        0.5 m
      • Cable type:
        Standard 75 ohm triaxial
      • Connector:
        Miniature coaxial ClickLoc with protector
      • Agency approval option:
        Not required
      • Probe cable insulation:
        FEP
      • Matched-system nominal scale:
        7.87 V/mm (200 mV/mil)
      • Matched-system linear range:
        2 mm (80 mil)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330101-00-76-05-01-00 is an unarmored 3300 XL 8 mm proximity probe for a matched non-contact shaft displacement and vibration measurement chain.
      • Exact article identity 330101-00-76-05-01-00
      • 3/8-24 UNF standard-mount case without cable armor
      • 0.5 m standard lead and protected ClickLoc termination
      • Probe, cable and Proximitor matched to the installed 8 mm system

      The probe senses target displacement without physical contact when installed in a correctly configured 3300 XL 8 mm chain. Retain the installed monitoring channel and prove its response under controlled conditions.

      Important Notice: Confirm the complete six-part order code, the receiving thread, installed system length and approved probe gap before replacing 330101-00-76-05-01-00.

      330101-00-76-05-01-00 Manuals & Downloads
      330101-00-76-05-01-00 Technical Reference (PDF)330101-00-76-05-01-00 Installation & Commissioning Guide (PDF)

      These documents serve different purposes: the first records verified probe and matched-system data; the second covers installation checks, commissioning and acceptance.

      Radial shaft vibrationUse 330101-00-76-05-01-00 in the matched 3300 XL 8 mm chain to monitor dynamic shaft displacement.
      Axial shaft positionMeasure non-contact shaft position in the approved machine-monitoring configuration.
      Keyphasor referenceApply the probe on a documented speed or phase reference channel with a suitable target.
      Matched sensor loopPair this short-lead probe with the specified extension cable and Proximitor sensor for the installed loop.
      Before work, confirm 330101-00-76-05-01-00, the protected ClickLoc connection and the installed 3300 XL 8 mm monitoring chain.
      1
      Confirm the full 330101-00-76-05-01-00 nameplate, matching 3300 XL 8 mm channel and maintenance record before work.
      2
      Place the monitored machine and channel in the approved maintenance state before removing the probe.
      3
      Verify the receiving 3/8-24 UNF thread and the required clearance for the 7.6 in case.
      4
      Inspect the unarmored 0.5 m standard lead, probe tip and protected ClickLoc connector for damage.
      5
      Record the installed extension cable and Proximitor pairing; retain the configured 3300 XL 8 mm system length.
      6
      Install the probe using the approved thread engagement and routing procedure without straining the lead.
      7
      Check the target surface and set the probe gap against the approved channel configuration.
      8
      Verify monitor diagnostics and a controlled shaft-position or vibration response before release.

      Technical notes

      Technical notes

      330101-00-76-05-01-00 uses the unarmored 3/8-24 UNF probe case with a protected ClickLoc connector and standard cable. Match the 3300 XL 8 mm probe, extension cable if used, and Proximitor sensor to the installed transducer system before commissioning.

      FAQS

      • What does the 76 case-length code specify on 330101-00-76-05-01-00?
        It specifies a 7.6 in overall case length in the 330101 inch-series ordering scheme.
      • Which mounting thread does 330101-00-76-05-01-00 use?
        The unarmored 330101 probe has a 3/8-24 UNF threaded case.
      • Is the cable on 330101-00-76-05-01-00 armored?
        No. The 330101 base probe is the unarmored 3300 XL 8 mm execution.
      • What is the integral lead length for 330101-00-76-05-01-00?
        Code 05 specifies a 0.5 m integral probe lead.
      • Does 330101-00-76-05-01-00 include a connector protector?
        Yes. Connector option 01 provides a miniature coaxial ClickLoc connector with its protector on standard cable.
      • What does approval code 00 mean for 330101-00-76-05-01-00?
        Code 00 selects the no-agency-approval-required option; it is not the hazardous-area approval option.
      • Can 330101-00-76-05-01-00 be evaluated without a matched Proximitor system?
        The probe is one component of the measurement chain; output performance depends on the selected 3300 XL 8 mm system components.
      • Which measurements can use 330101-00-76-05-01-00 in a matched chain?
        A correctly installed 3300 XL 8 mm system can monitor non-contact shaft vibration and position, subject to the machine configuration.
