      330101-00-30-50-02-00

      Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

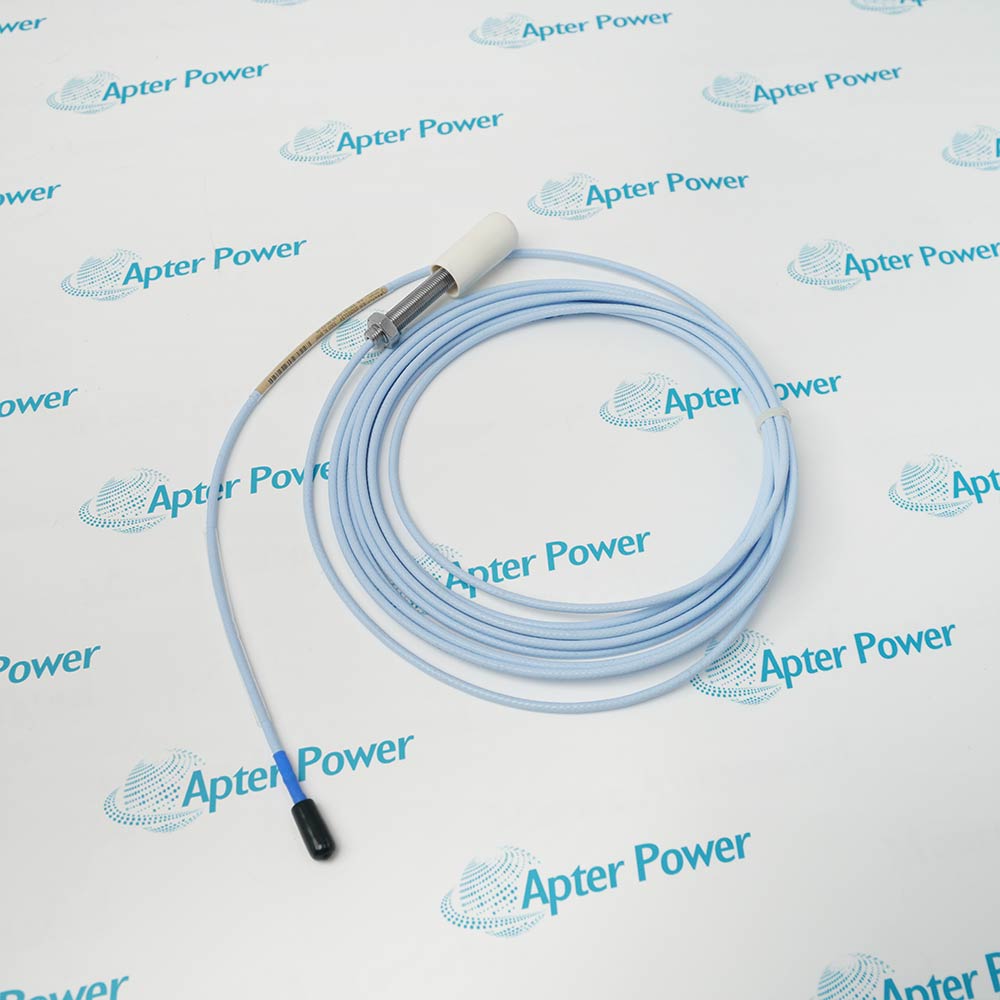

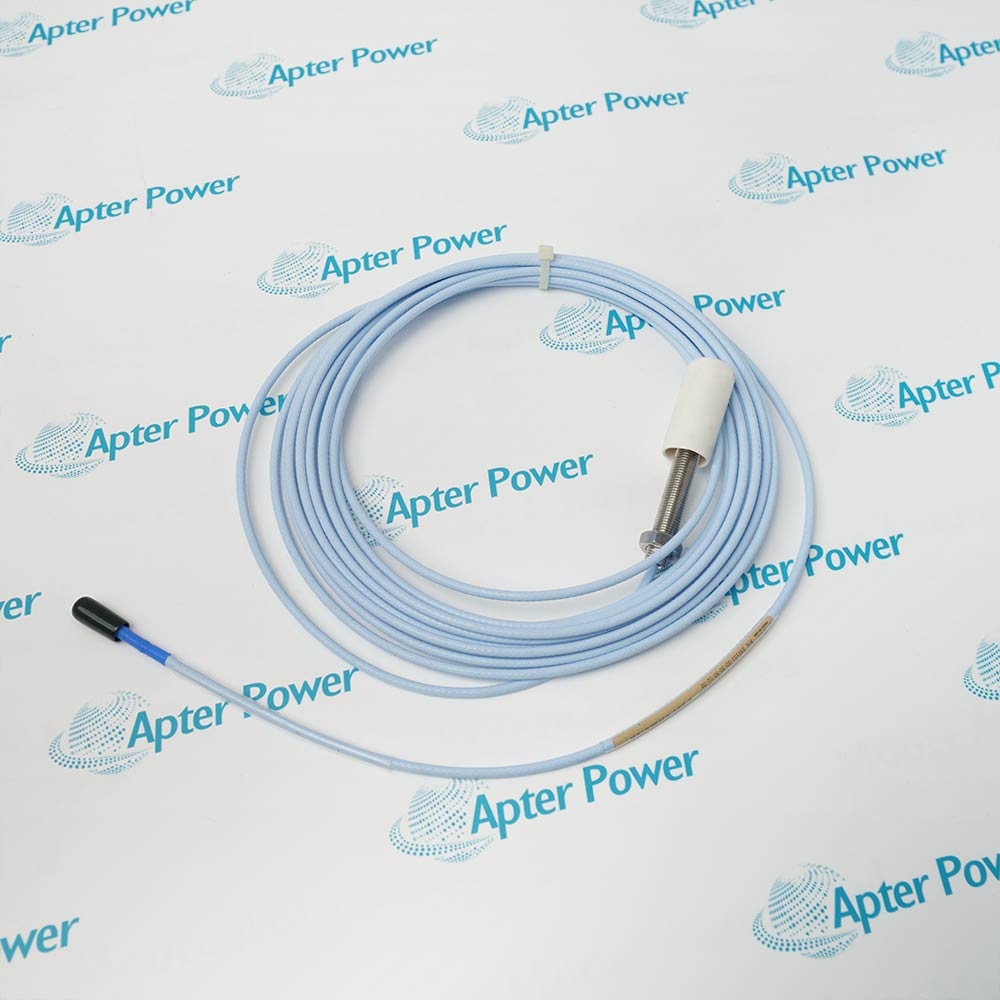

      Bently Nevada 330101-00-30-50-02-00 is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a unarmored 3/8-24 UNF 3300 XL 8 mm probe with a 3.0 in case and 5.0 m integral lead.

      Ask our team:

      Get a quick price for： 330101-00-30-50-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330101-00-30-50-02-00

      Technical specifications for 330101-00-30-50-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330101-00-30-50-02-00
      • Estimated shipping dimensions:
        23x23x2cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        3300 XL 8 mm proximity transducer system
      • Probe part family:
        330101
      • Mounting thread:
        3/8-24 UNF
      • Cable armor:
        Unarmored
      • Unthreaded length:
        0.0 in
      • Overall case length:
        3.0 in
      • Probe lead length:
        5.0 m
      • Connector and cable option:
        ClickLoc standard cable
      • Approval option:
        No approvals
      • System linear range:
        2.0 mm (80 mils)
      • Scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz
      • Nominal gap:
        1.27 mm (50 mils)
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330101-00-30-50-02-00 is a proximity probe for the 3300 XL 8 mm proximity transducer system. It is a unarmored 3/8-24 UNF 3300 XL 8 mm probe with a 3.0 in case and 5.0 m integral lead.
      • Probe part family: 330101
      • Mounting thread: 3/8-24 UNF
      • Cable armor: Unarmored
      • Unthreaded length: 0.0 in

      330101-00-30-50-02-00 is documented as a Proximity Probe within the 3300 XL 8 mm proximity transducer system.

      Use the complete model identity and published parameter set for integration, replacement and commissioning.

      Important Notice: Verify 330101-00-30-50-02-00, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement.

      Bently Nevada 330101-00-30-50-02-00 Manuals & Downloads
      Bently Nevada 330101-00-30-50-02-00 Technical Reference (PDF)Bently Nevada 330101-00-30-50-02-00 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Exact Proximity Probe replacement
      Preserves the complete 330101-00-30-50-02-00 identity and published configuration.
      Documented system integration
      Uses the official product-family and interface values for the installed system.
      Commissioning verification
      Checks the exact electrical, mechanical and signal parameters before release.
      Maintenance diagnostics
      Supports controlled troubleshooting while retaining the as-found installation record.
      Read the applicable Bently Nevada instructions before work. Verify 330101-00-30-50-02-00 and every installed interface before isolation, wiring or commissioning.
      1
      Confirm the complete 330101-00-30-50-02-00 marking before work.
      2
      Isolate the installed system and document the maintenance state.
      3
      Verify probe part family: 330101.
      4
      Verify mounting thread: 3/8-24 UNF.
      5
      Verify cable armor: Unarmored.
      6
      Verify unthreaded length: 0.0 in.
      7
      Protect connectors, wiring and exposed interfaces from damage or contamination.
      8
      Complete a controlled functional test and retain the final acceptance record.

      Technical notes

      Technical notes

      Verify 330101-00-30-50-02-00, the installed extension cable and Proximitor Sensor, target material, system length and gap before replacement.

      FAQS

      • Which inch-threaded mounting fits Bently Nevada 330101-00-30-50-02-00?
        Use the 3/8-24 UNF mounting specified for the 330101 probe family and preserve the installed axial reference.
      • What case profile distinguishes Bently Nevada 330101-00-30-50-02-00?
        Its ordering identity combines a 0.0 inch unthreaded section with a 3.0 inch overall case; both must match the available bracket depth.
      • How much integral lead must be accommodated for Bently Nevada 330101-00-30-50-02-00?
        Plan the route for the full 5.0 m unarmored lead without coils, sharp bends, or tensile load at the ClickLoc connector.
      • Which certification boundary applies to Bently Nevada 330101-00-30-50-02-00?
        The final 00 option carries no approval selection, so the application must not depend on an approval that is absent from this catalog identity.
      • What linear excursion can the 330101-00-30-50-02-00 transducer system measure?
        The matched 3300 XL 8 mm system covers 2.0 mm (80 mils) of linear travel when target material and component lengths are correct.
      • How should a 200 mV/mil channel be checked with Bently Nevada 330101-00-30-50-02-00?
        Apply a known displacement and compare it with the 7.87 V/mm response before accepting the monitor scaling.
      • What does the 0 to 10 kHz characteristic mean for Bently Nevada 330101-00-30-50-02-00?
        It defines the transducer-system response band, not the final monitor bandwidth; channel filters remain an engineered project setting.
      • Which checks prevent a false pass after 330101-00-30-50-02-00 replacement?
        Verify total system length, target condition, nominal gap, cable routing, waveform stability, and the configured alarm direction together.
