      Bently Nevada 3300/01-01-00
      Bently Nevada 3300/01-01-00
      Bently Nevada 3300/01-01-00
      Bently Nevada 3300/01-01-00
      Bently Nevada 3300/01-01-00
      Bently Nevada 3300/01-01-00

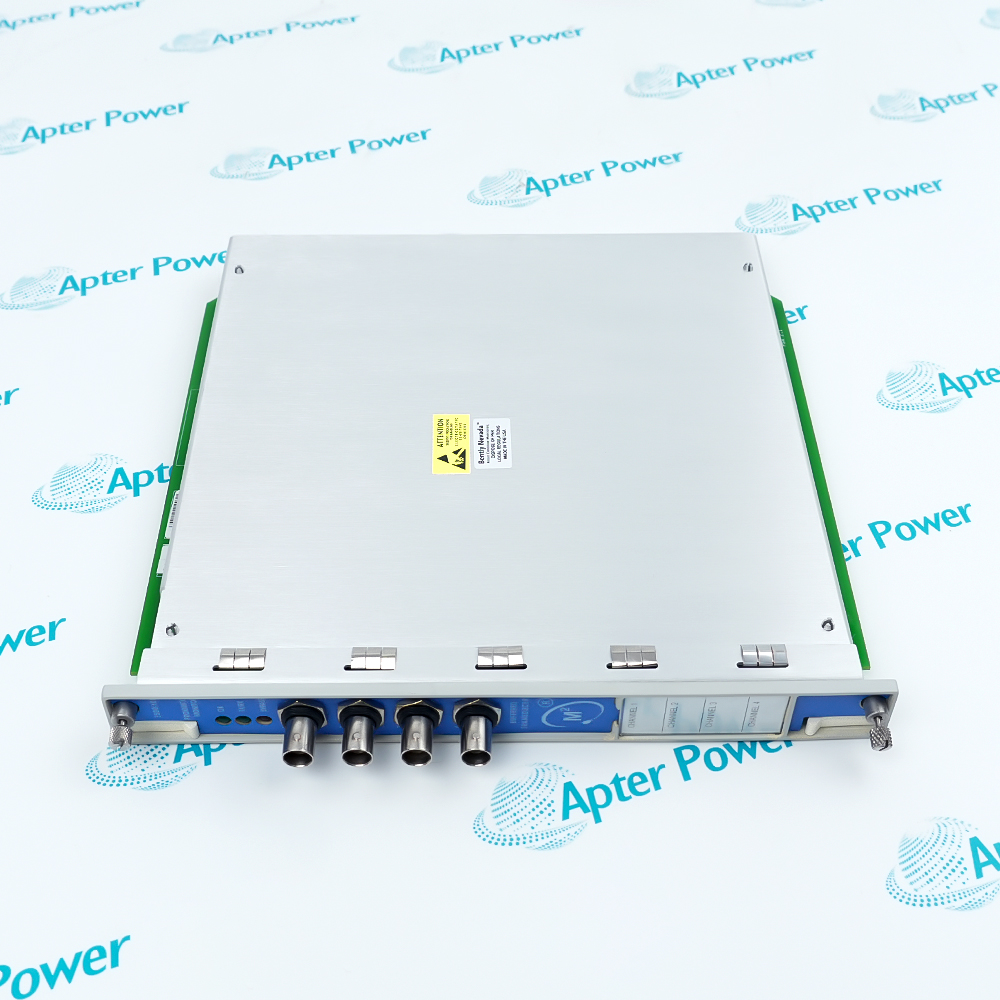

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      3300/01-01-00

      3300/01 Basic System Monitor
      In Stock
      Ships by Sunday, September 13
      Fast Shipping Available

      Product Describe：

      Bently Nevada 3300/01-01-00 is the basic System Monitor for an original 3300 machinery-protection rack. It supervises rack supplies and common control functions while distributing Keyphasor references to the installed monitors.

      Ask our team:

      Get a quick price for： 3300/01-01-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 3300/01-01-00

      Technical specifications for 3300/01-01-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        3300/01
      • Estimated shipping dimensions:
        5.1x20.3x33.0cm
      • Weight:
        0.9 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • System monitor execution:
        3300/01-01
      • Serial interface:
        Not fitted
      • Keyphasor inputs:
        2
      • Power-up inhibit delay:
        2 +/- 1 s
      • +VRH rail:
        22.55 +/- 6.05 V DC
      • +VRL rail:
        11.22 +/- 3.09 V DC
      • +7.5 V rail:
        7.5 +/- 0.1 V DC
      • +5 V rail:
        5.00 +/- 0.05 V DC
      • +5 V reference:
        5.00 +/- 0.009 V DC
      • -7.5 V rail:
        -7.5 +/- 0.1 V DC
      • -VT, 24 V option:
        -23.75 +/- 0.45 V DC
      • -VT, 18 V option:
        -17.9 +/- 0.4 V DC
      • Keyphasor output, 24 V option:
        -23.2 to -24.2 V DC
      • Keyphasor output, 18 V option:
        -17.4 to -18.3 V DC
      • Keyphasor output protection:
        Short-circuit protected
      • Operating temperature:
        0 to +65 degC
      • Storage temperature:
        -40 to +85 degC
      • Relative humidity:
        95% non-condensing
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 3300/01-01-00 is the basic System Monitor for an original 3300 machinery-protection rack. It supervises rack supplies and common control functions while distributing Keyphasor references to the installed monitors.
      • Supervises power and common status functions for the original 3300 rack
      • Provides front-panel reset, trip-multiply and alarm-setpoint interaction
      • Buffers two Keyphasor references for distribution to installed monitor channels
      • Drives the rack OK relay from the combined condition of monitored system supplies

      3300/01-01-00 installs with original 3300 rack backplane, 3300/10, 3300/11 or compatible power supply, standard Power Input Module, installed 3300 monitor modules in an engineered 3300 Machinery Protection System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300/01 basic system monitor.

      Important Notice: Confirm the complete 3300/01-01-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 3300/01-01-00 Manuals and Guides
      Apter Power 3300/01-01-00 Product Technical Reference PDFApter Power 3300/01-01-00 Installation and Verification PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Original 3300 rack supervisionSupervises power and common status functions for the original 3300 rack
      Keyphasor reference distributionProvides front-panel reset, trip-multiply and alarm-setpoint interaction
      Rack-wide alarm inhibit and resetBuffers two Keyphasor references for distribution to installed monitor channels
      Machine protection panel maintenanceDrives the rack OK relay from the combined condition of monitored system supplies
      Read the applicable Bently Nevada installation instructions before work. Verify 3300/01-01-00 and the installed 3300 Machinery Protection System configuration.
      1Verify the complete 3300/01-01-00 marking and original 3300 rack configuration before work.
      2Place connected shutdown and alarm circuits in the approved maintenance state.
      3Isolate rack power before disengaging the System Monitor from the backplane.
      4Record the -VT selection and match it to the installed rack power-supply execution.
      5Use ESD controls and protect the backplane, front-panel and Keyphasor connectors.
      6Do not substitute the serial-interface 3300/01-02 execution without a compatibility review.
      7Verify the two Keyphasor paths and combined Supplies OK indication after installation.
      8Prove Reset, Trip Multiply, alarm-setpoint adjustment and OK relay action before release.

      Alternative Names

      Alternative Names

      3300/01 01 00 33OO/O1-O1-OO 3300/0I-0I-00 33OO/OI-OI-OO

      Technical notes

      Technical notes

      Match the -VT jumper to the installed 18 V or 24 V transducer supply before engaging 3300/01-01-00 in the rack. After replacement, verify Supplies OK, OK relay, Keyphasor buffering, Reset and Trip Multiply with the machine protection outputs controlled.

      FAQS

      • What rack configuration is compatible with 3300/01-01-00?
        Use it in an original 3300 system with the corresponding original backplane, power supply and Power Input Module arrangement documented for the rack.
      • Does 3300/01-01-00 include the serial communications interface?
        No. The 3300/01-01 execution is the basic System Monitor; the 3300/01-02 execution is the variant with the serial-interface assembly.
      • How should the -VT jumper be set on 3300/01-01-00?
        Set the jumper to the 18 V or 24 V transducer-supply selection used by the installed rack power supply before engaging the module.
      • What happens during power-up of 3300/01-01-00?
        The System Monitor applies a rack-wide alarm inhibit for approximately two seconds while the system supplies stabilize.
      • How many Keyphasor paths does 3300/01-01-00 handle?
        It receives two Keyphasor inputs at the Power Input Module and buffers them for the installed monitor channels and front-panel outputs.
      • What should be recorded before replacing 3300/01-01-00?
        Record the rack generation, power-supply type, Power Input Module, -VT selection, OK-relay wiring and the use of Reset and Trip Multiply contacts.
      • How is a replacement 3300/01-01-00 commissioned?
        Check the supply rails, Supplies OK indication, OK relay, both Keyphasor outputs, Reset and Trip Multiply before restoring the protection circuits.
      • Can 3300/01-01-00 be replaced directly by 3300/03?
        Only after an engineered compatibility review of the backplane, power supply, Power Input Module, communications hardware and monitor firmware.
