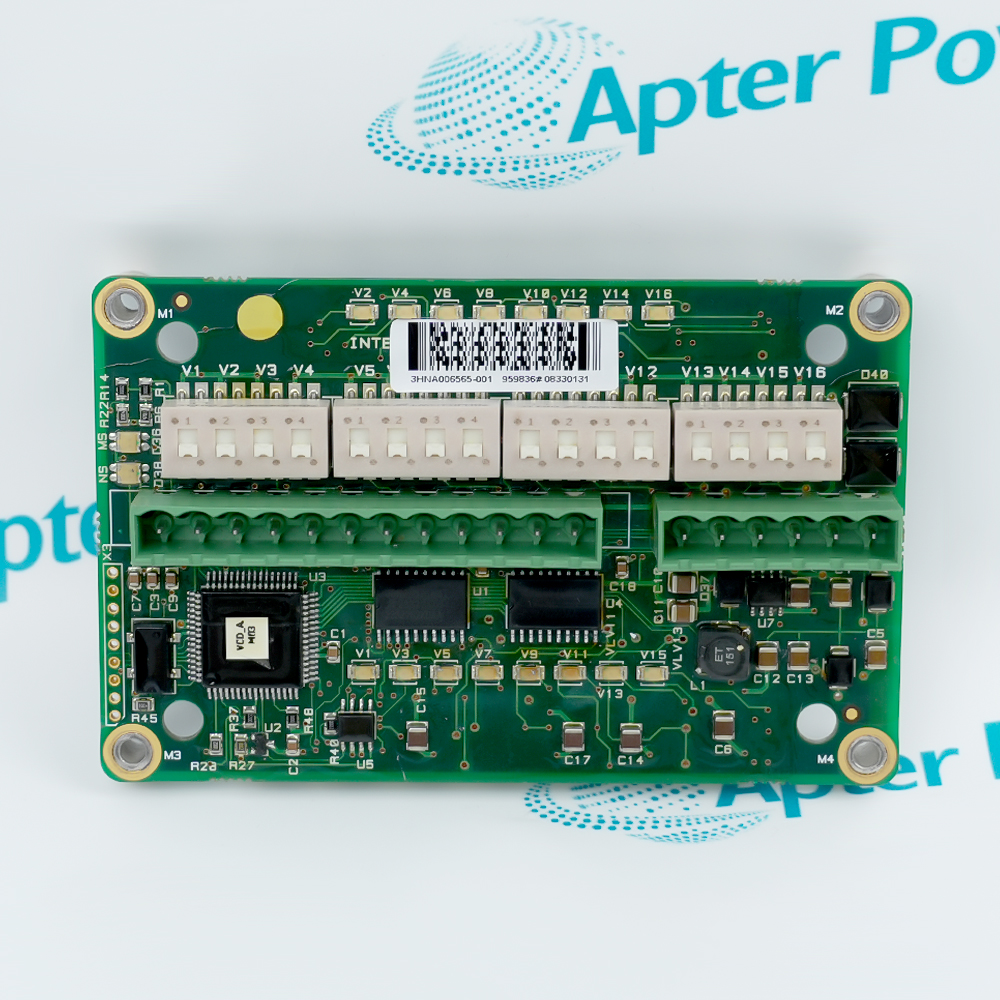

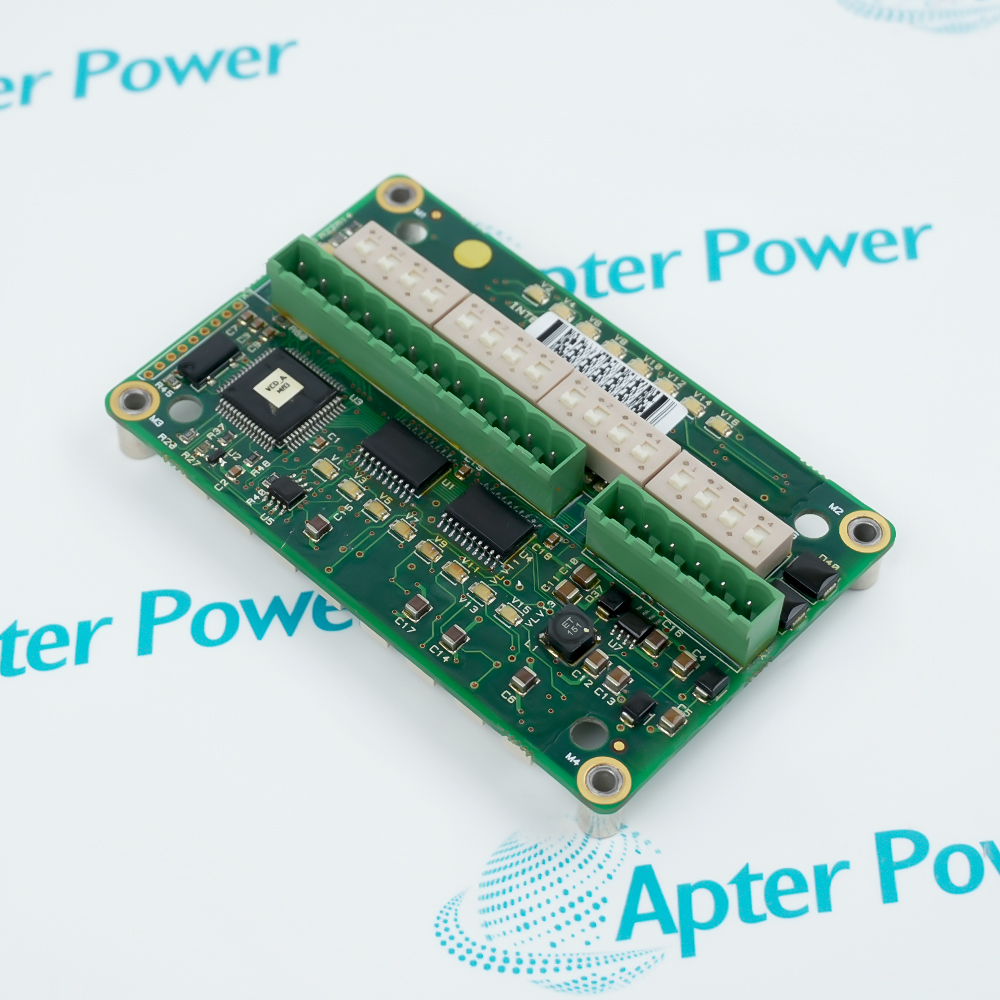

The 3HNA006565-001 is a dedicated VCD Valve Control Board manufactured by ABB Robotics for IRC5P paint controllers. It acts as the primary interface to drive and precisely regulate pneumatic color-change valves, solvent flush systems, and atomizer bells on the robot's front arm, ensuring high-speed, explosive-safe, and reliable fluid switching in automotive and industrial paint shops.
Synchronized driving reduces color-change time and waste
Built for IRC5P to meet strict paint-shop safety standards
Direct plug-and-play replacement for older 3HNA003882-001
3HNA006565-001 features multiple integrated electrical output interfaces used to directly drive and switch pneumatic valve assemblies on site. In automated coating production lines such as automotive body painting and industrial workpiece surface treatment, this board directly controls the electromagnetic valve coils of 16-way, 24-way, or 32-way pneumatic valve banks. By regulating the open and closed states of each channel valve, it directly dictates the quantitative supply of paint raw materials, rapid switching of multiple colors, and the flushing process of pipeline solvents during robot operation, thereby translating control cabinet commands into physical mechanical movements on the painting floor.
3HNA006565-001 integrates multiple sets of standardized pluggable wiring terminals on its surface to connect internal control cabinet wire harnesses with valve control cables routed to the base of the painting robotic arm. The board utilizes discrete solid-state switching components, and each output channel is equipped with an independent LED status indicator. Under powered control cabinet conditions, the energized or de-energized state of the current output channel can be determined directly through the on or off status of the indicator light.
Because this control board is deployed directly inside the control cabinet of the painting shop, removal and installation must be carried out strictly after disconnecting the main power supply of the control cabinet, and must be performed with an anti-static wrist strap to prevent electrostatic breakdown of the onboard integrated circuit chips.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 3HNA006565-001 VCD Valve Control Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive OEM
Applied in the main painting lines of automotive body shops. It controls the color-change valves on the robot's front arm to achieve high-speed automatic paint switching when different car bodies pass through.
Aerospace Manufacturing
Deployed in applying specialized protective coatings to aircraft fuselage panels, wings, and components. It operates pneumatic valves via the robot for high-specification specialty paint processes.
3C Electronics & Smart Hardware
Integrated into high-precision UV cosmetic coating for laptop shells, smartphone middle frames, and gaming console bodies. It provides microsecond control over micro-spray valves to prevent paint accumulation or missing spots.
Wind Power Equipment
Utilized in weather-resistant composite coating for massive wind turbine blades and tower exteriors. It manages multi-channel anti-corrosion paint valves to meet strict marine anti-corrosion standards.
Shipbuilding & Marine Engineering
Applied in anti-fouling and anti-rust coating for precision marine components, valves, and cabin equipment. It is responsible for controlling pneumatic distribution valves for complex high-viscosity coatings.
Agricultural Machinery Manufacturing
Used in the coating of outdoor high-strength machinery such as tractor chassis and combine harvester shells. It ensures the stable operation of valve groups in harsh spray booths for monocoat paint application.
When installing and maintaining the 3HNA006565-001, removal, installation, and wiring must be performed strictly after disconnecting the main power supply of the control cabinet. An anti-static wrist strap must be worn during operation to prevent electrostatic breakdown of the onboard integrated circuits.
During external wiring, ensure that the pluggable terminals are securely fastened, and that cables routed to the pneumatic valve banks are shielded and grounded to prevent high-frequency interference in the painting shop. After powering on, the actual energized state of the output circuits should be determined via the status of the onboard LED indicators for each channel.
3HNA006565-001 serves as a core control component within ABB paint robot systems, specifically driving and managing pneumatic valve banks to precisely regulate paint supply, color change, and purge processes.
3HNA006565-001 is an official spare part for ABB painting robot systems, officially designated as the VCDI-02 Valve Control Board. It is primarily used to control pneumatic color-change valves, flush valves, and atomizer air circuits on the robot's front arm.
Which industrial automation system does 3HNA006565-001 belong to?
It strictly belongs to the Robot System, specifically ABB's industrial painting robot product line.
Which ABB robot controllers are compatible with 3HNA006565-001?
It is specifically designed for the ABB IRC5P paint robot controller and is also compatible with certain earlier or specific versions of paint control cabinets.
How do you use a product like 3HNA006565-001?
It is used as an integrated circuit board. You need to install it into the designated slot inside the robot cabinet or the arm's purge enclosure, then connect the 24V DC power lines, system communication bus (such as CAN bus), and the control cables leading to the pneumatic solenoid valves.
What is the specific purpose of 3HNA006565-001 during painting operations?
Its core purpose is to execute precise fluid control switching. When the robot needs to change paint colors or flush pipelines, this board receives master commands and drives solenoid valves to open or close the corresponding pneumatic color and solvent valves.
