      ABB SDCS-PIN-4B-3ADT316300R1510 (1)

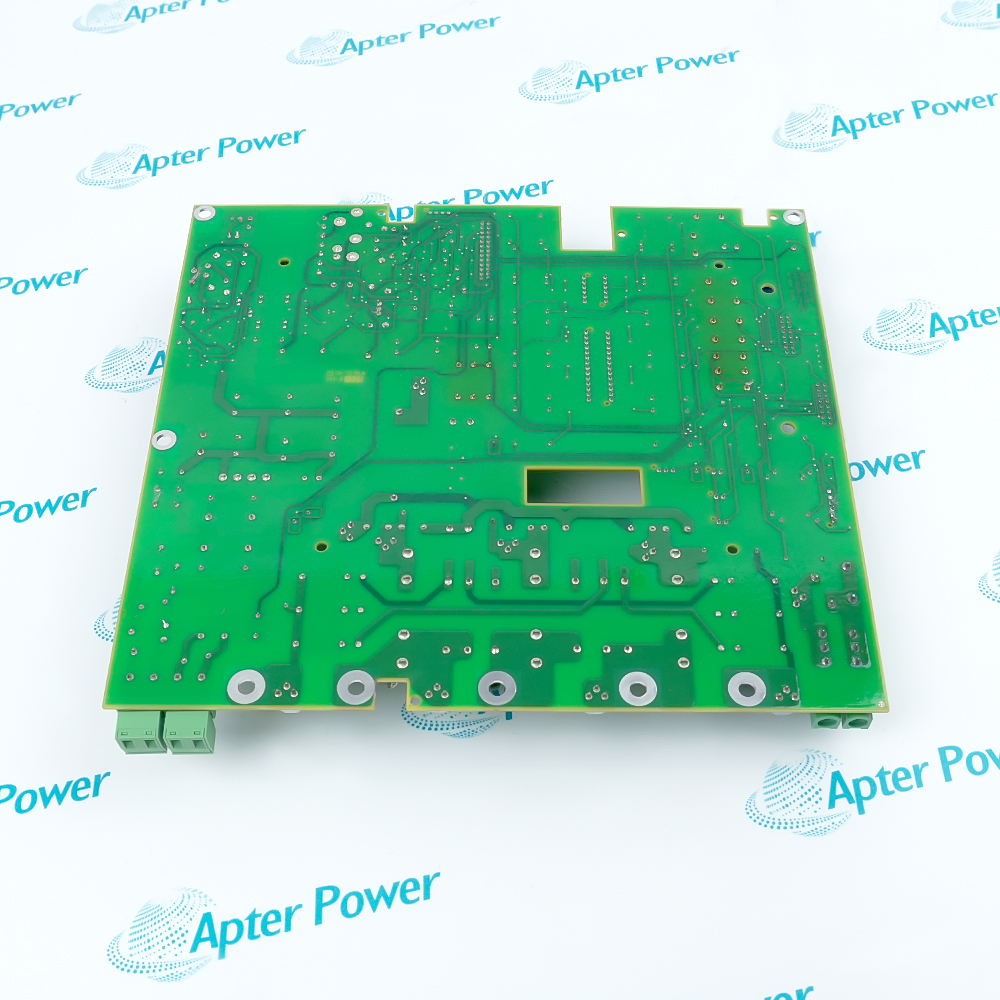

      ABB SDCS-PIN-4B-3ADT316300R1510 (2)

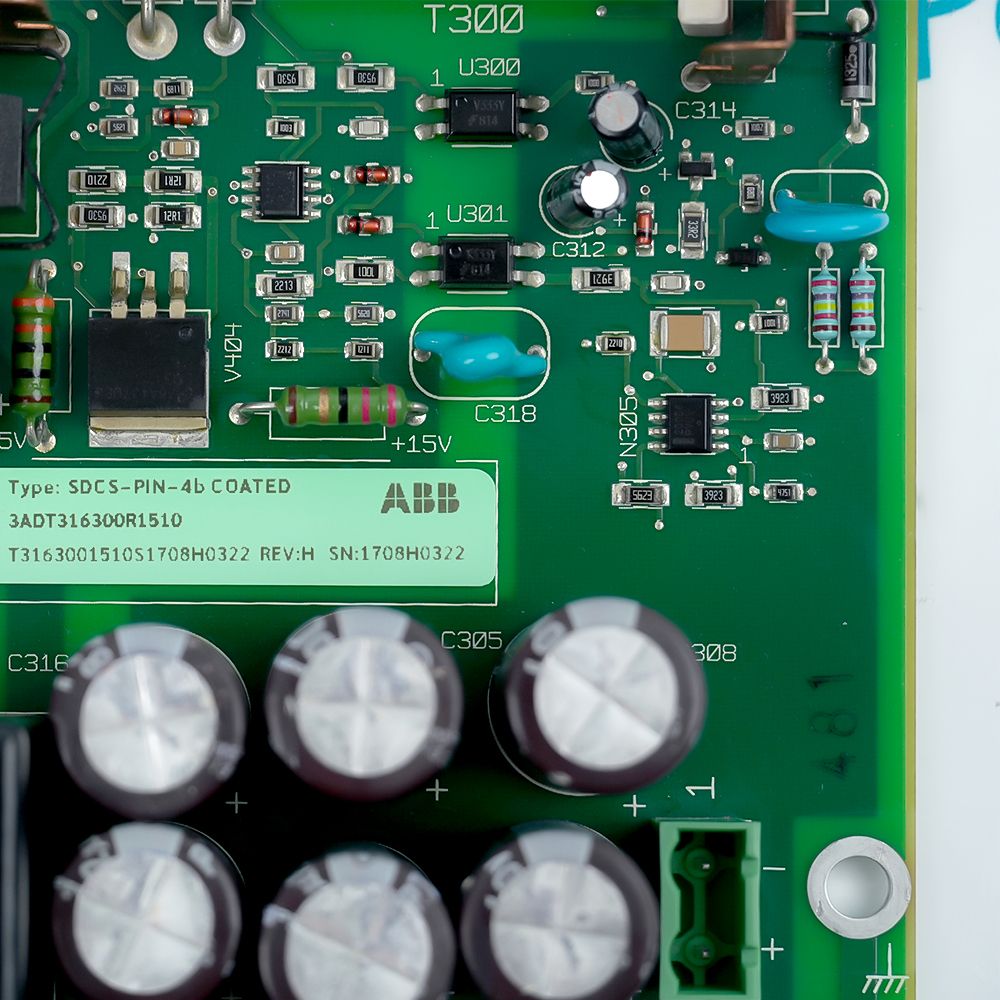

      ABB SDCS-PIN-4B-3ADT316300R1510 (3)
      ABB SDCS-PIN-4B-3ADT316300R1510 (1)
      ABB SDCS-PIN-4B-3ADT316300R1510 (2)
      ABB SDCS-PIN-4B-3ADT316300R1510 (3)
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      SDCS-PIN-4B 3ADT316300R1510

      Interface Board
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

      Product Describe：

      ABB SDCS-PIN-4B 3ADT316300R1510 is a DCS800 interface and field-supply board for converter modules in frame sizes D1 to D4. In the documented D4+ 1190 A configuration, it serves as the interface board without the onboard field-supply function.

      Ask our team:

      Get a quick price for： SDCS-PIN-4B 3ADT316300R1510
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for SDCS-PIN-4B 3ADT316300R1510

      Technical specifications for SDCS-PIN-4B 3ADT316300R1510

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        SDCS-PIN-4B 3ADT316300R1510
      • Estimated shipping dimensions:
        25x23.3x4.2cm
      • Weight:
        0.7 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Type:
        SDCS-PIN-4B
      • ABB part number:
        3ADT316300R1510
      • Drive platform:
        DCS800 industrial DC drives
      • Converter sizes:
        D1 to D4+
      • D1-D4 current range:
        20 A to 1000 A for documented common-board use
      • D4+ documented variant:
        1190 A interface board, no field supply
      • Mains applications:
        230 V to 525 V and documented 600 V use
      • Onboard field supply:
        Available on D1-D4; up to 525 VAC
      • Auxiliary function:
        Low-voltage power for drive and options
      • Bridge interface:
        Armature-bridge control interface
      • Voltage measurement:
        High-ohmic DC and AC voltage measurement
      • Current interface:
        Current-transformer connection
      • Board fuse:
        KTK 25, 25 A / 600 V
      • Grounding:
        Conductive mounting points inside converter module
      • Configuration:
        Firmware-adjusted measurement, burden and 2-Q / 4-Q settings
      • Replacement relation:
        Documented replacement for SDCS-PIN-4
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Inside an ABB DCS800 converter, the SDCS-PIN-4B coordinates auxiliary low-voltage supplies, armature-bridge control interfaces, measurement connections and, on D1-D4 frames, the onboard field exciter.
      • DCS800 frame-size D1 to D4+ board architecture
      • 230-525 VAC and documented 600 V applications
      • Onboard field-exciter control and measurement on D1-D4
      • Firmware-adjusted measurement and 2-Q / 4-Q settings

      The board supplies low-voltage power for the drive and its options while connecting armature-bridge control, high-ohmic DC/AC voltage measurement and the current-transformer interface. In D1-D4 modules it also controls the onboard field exciter and measures field current.

      Application depends on the exact converter frame and rating. ABB identifies common D1-D4 use from 20 A to 1000 A with onboard field supply up to 525 VAC, while the documented D4+ 1190 A variant uses the board as an interface without field supply.

      Important Notice: Confirm the complete SDCS-PIN-4B and 3ADT316300R1510 markings, DCS800 frame size, current rating, supply voltage and field-supply arrangement before work.

      ABB SDCS-PIN-4B 3ADT316300R1510 Manuals & Downloads
      ABB DCS800 Service Manual - SDCS-PIN-4B Official Excerpt (PDF)ABB SDCS-PIN-4B 3ADT316300R1510 Installation & Commissioning Guide (PDF)

      Important Notice: The first document is an unchanged three-page excerpt from ABB DCS800 Service Manual 3ADW000195R0701; the second provides a distinct controlled installation, commissioning and acceptance workflow. Confirm the complete installed marking before work.

      DCS800 D1-D4 converter serviceRestore the documented interface and onboard field-supply board in a matched 20 A-1000 A DCS800 assembly.
      Onboard field excitationControl the documented D1-D4 field exciter and measure field current within the approved converter configuration.
      Bridge measurement interfaceConnect armature control, high-ohmic voltage measurement and current-transformer signals inside the converter.
      D4+ interface-only serviceMaintain the documented 1190 A D4+ interface arrangement without assuming an onboard field-supply function.
      Confirm the complete SDCS-PIN-4B and 3ADT316300R1510 markings, DCS800 frame size, current rating, supply voltage and field-supply arrangement before work.
      1Record the complete SDCS-PIN-4B and 3ADT316300R1510 markings.
      2Apply the approved safe-work procedure and isolate mains, DC link and field energy.
      3Confirm the DCS800 frame size and exact converter current rating.
      4Match the installed mains voltage to the documented board application.
      5Do not assume onboard field supply in the D4+ 1190 A configuration.
      6Inspect conductive mounting points and restore the documented board grounding.
      7Verify KTK 25, 25 A / 600 V fusing against the approved service record.
      8Complete controlled power-up checks for measurement, field and 2-Q / 4-Q configuration.

      Technical notes

      Technical notes

      The SDCS-PIN-4B is grounded through conductive mounting points inside the converter module. ABB documentation lists KTK 25, 25 A / 600 V fuses for the board and states that DCS800 firmware adjusts current and voltage measurement, burden-resistor settings and 2-Q / 4-Q operation for the installed converter.

      FAQS

      • What is ABB SDCS-PIN-4B 3ADT316300R1510?
        It is the DCS800 interface board that also provides onboard field-supply functions in documented D1-D4 converter modules.
      • Which converter sizes use ABB SDCS-PIN-4B?
        ABB documents the board for DCS800 frame sizes D1 through D4+, with the installed rating controlling the exact function.
      • What changes in the D4+ 1190 A application?
        The documented D4+ 1190 A version uses SDCS-PIN-4B as an interface board without the onboard field supply.
      • Which supply voltages are documented for SDCS-PIN-4B?
        The hardware manual identifies 230 V through 525 V mains applications and documented 600 V use.
      • What control and measurement functions are on the board?
        It supports armature-bridge control, high-ohmic DC/AC voltage measurement and the current-transformer interface.
      • What field function applies to D1-D4 modules?
        For D1-D4, the board controls the onboard field exciter and measures field current, with field supply documented up to 525 VAC.
      • Which fuse is listed for SDCS-PIN-4B?
        ABB lists fuse part 3ADC770032P0025, type KTK 25, rated 25 A / 600 V.
      • What must be verified during replacement?
        Confirm the exact board part number, converter frame and rating, mains voltage, field arrangement, conductive grounding points and firmware-controlled converter configuration.
