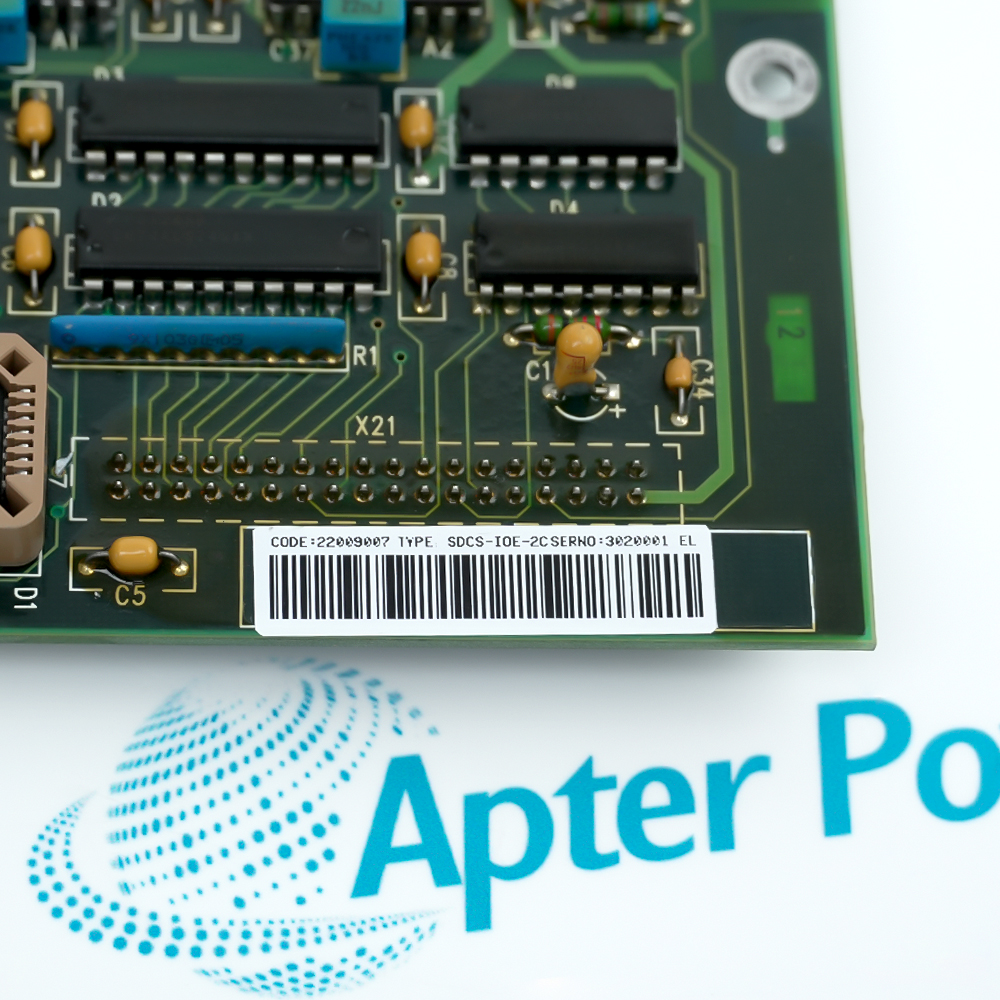

The SDCS-IOE-2C is a measurement and interface expansion card specifically designed for industrial automation, particularly ABB DC drive systems. It is primarily used for expanding analog and digital channels, ensuring effective sensor signal acquisition and device control.
2500 Vrms Galvanic Isolation for robust noise immunity
High-precision Pulse Interface & Auto Synchronization Module
Featuring 2500 Vrms advanced galvanic isolation, this board effectively eliminates ground loops and shields against industrial electromagnetic interference. It supports high-density digital and analog I/O expansion, while integrating a high-precision pulse interface and auto-synchronization functions, providing accurate speed measurement, robust logic control, and highly efficient cross-platform integration for multi-motor linked drive systems in harsh industrial environments. As a pivotal infrastructural component within ABB's DC drive ecosystem, the SDCS-IOE-2C interfaces directly with the primary drive control unit via a high-speed internal communication bus, ensuring real-time, deterministic data throughput for demanding processing loops. The board transforms peripheral sensor telemetry and discrete logic states into fully digitized parameters, seamlessly mapped into the firmware registers of legacy DCS500/DCS600 or modernized DCS800 controllers (such as the SDCS-CON-4 board).
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB SDCS-IOE-2C MEASUREMENT BOARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Pulp & Paper
Implements speed-chain synchronization and sheet-break interlock control across multiple DC motors in multi-sectional drive systems of large paper machines.
Rubber & Plastics Extrusion
Expands high-precision head pressure and temperature safety interlock interfaces inside the DC drives of heavy-duty tire extruders and rubber internal mixers.
Oil & Gas
Expands interlock wiring at the pre-stage of intrinsically safe barriers inside mud pump, drawworks, and top drive DC control systems on land or offshore drilling rigs.
Chemical Agitation
Expands sealing gas pressure and explosion-proof valve linkage nodes inside speed control systems of high-power DC agitation motors for high-viscosity chemical reactors.
Metallurgy & Steel Rolling
Expands interlock protection and status monitoring interfaces for high-speed DC rolling mill main drive systems in hot or cold rolling steel production lines.
When utilizing the SDCS-IOE-2C board, strict power-down protocols must be followed before insertion or removal, alongside proper anti-static (ESD) protection. During wiring, ensure correct 24V DC power polarity, and use shielded twisted-pair cables with single-ended grounding for pulse and analog signals to prevent EMI. For retrofits in systems like the DCS800, parameters for I/O and encoders must be correctly mapped in the firmware (e.g., Parameter Group 90), and regular dust cleaning is required to ensure optimal heat dissipation.
It is an industrial-grade drive system input/output extension board manufactured by ABB.
Which equipment is this extension board mainly compatible with?
It is mainly installed as a spare or extension part inside the control cabinets of ABB DCS500 and DCS600 DC drive systems.
How do you use a control board product like SDCS-IOE-2C?
It must be inserted into the slot of the main drive control board or a specific motherboard, communicating via dedicated ribbon cables while its external terminals connect to field switches or sensors.
What is the core technical function of this extension board?
It achieves multi-channel digital and analog signal acquisition and logic control using photoelectric isolation technology, protecting the main processing unit from high-voltage electrical surges.
Why does a drive system need to install the SDCS-IOE-2C module?
When the base interfaces on the DC drive mainboard are insufficient to connect external safety interlock switches or linked valves, this card must be added to expand the physical wiring terminals.
