      ABB DSAO120A-3BSE018293R1 (1)
      ABB DSAO120A-3BSE018293R1 (2)
      ABB DSAO120A-3BSE018293R1 (3)
      ABB DSAO120A-3BSE018293R1 (1)
      ABB DSAO120A-3BSE018293R1 (2)
      ABB DSAO120A-3BSE018293R1 (3)
      Product image is representative; revision or series may vary. Contact us to request a specific version.

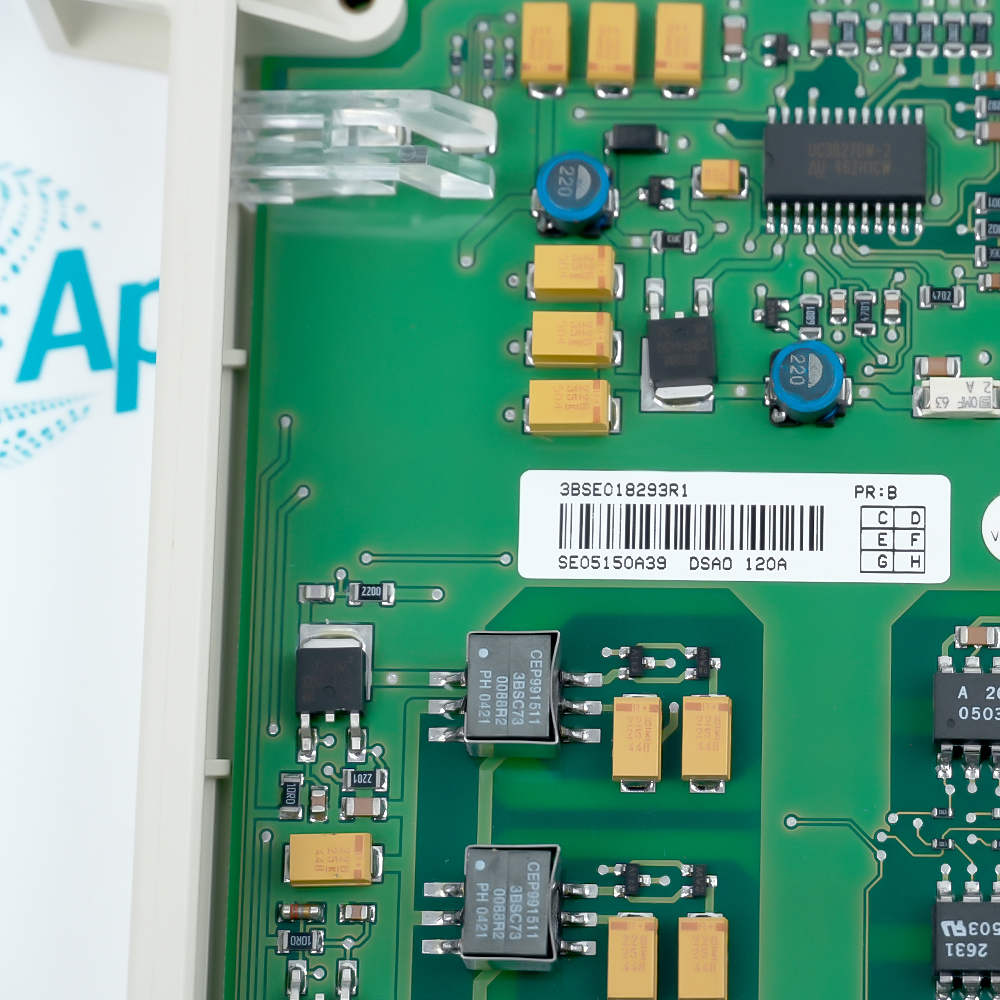

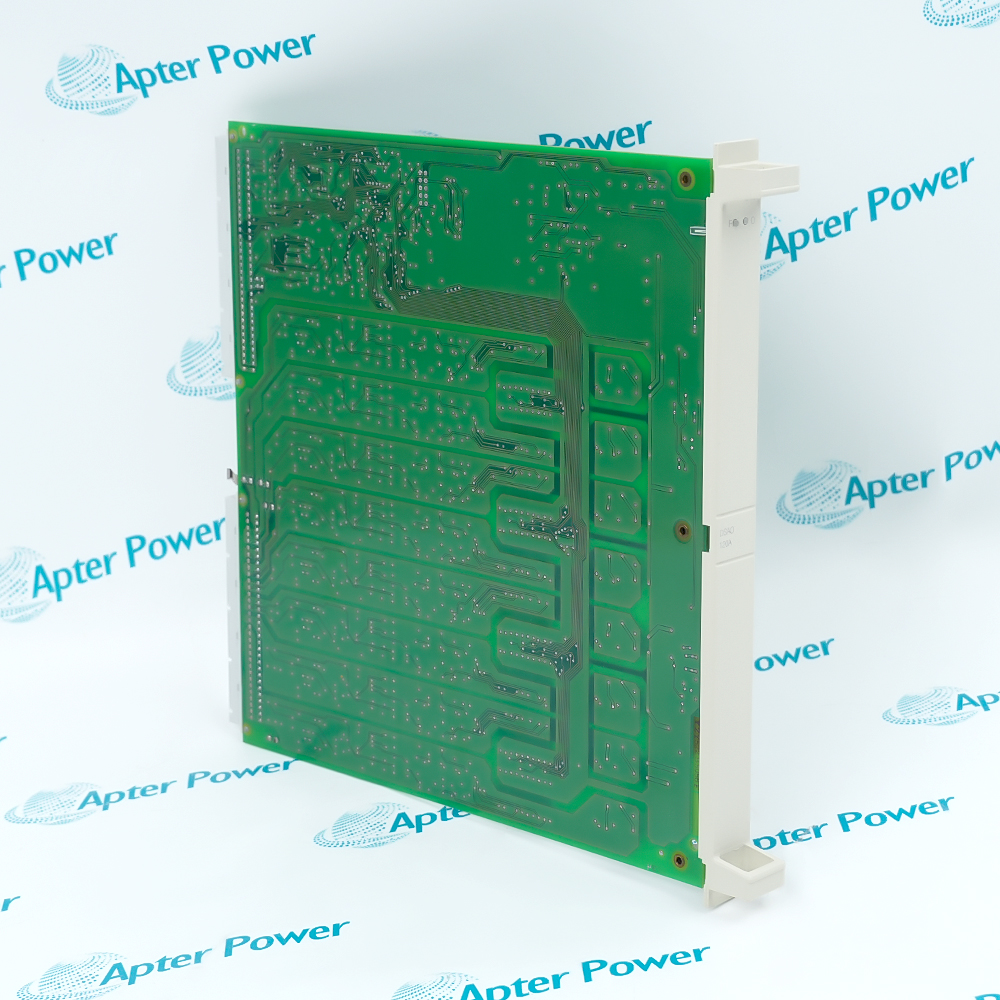

      DSAO120A 3BSE018293R1

      Analog Output Board
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

      Product Describe：

      The S100 I/O analog output board provides eight configured controller-to-field output channels for documented Advant and MasterPiece control environments.

      Ask our team:

      Get a quick price for： DSAO120A 3BSE018293R1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for DSAO120A 3BSE018293R1

      Technical specifications for DSAO120A 3BSE018293R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Spare Part Number:
        DSAO120A 3BSE018293R1
      • Estimated shipping dimensions:
        2x24.9x24.4cm
      • Weight:
        0.34 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • I/O family:
        S100 I/O
      • Channels:
        8 analog outputs
      • Supported installed-base families:
        Advant Controller 450; AC460; MasterPiece 200/200-1; 800xA/Compact Product Suite
      • Module function:
        Analog output
      • Signal direction:
        Controller to field output
      • Board format:
        S100 I/O plug-in board
      • Channel architecture:
        Eight analog output channels
      • Controller dependency:
        Requires an explicitly supported ABB host configuration
      • Commissioning focus:
        Channel assignment, diagnostics and controlled loop response
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB DSAO120A 3BSE018293R1 provides a documented analog output board function within its intended control or monitoring system.
      • Provides eight analog output channels in the S100 I/O family.
      • Carries ABB product ID 3BSE018293R1 and type designation DSAO 120A.
      • Supports documented ABB Advant and MasterPiece installed-base platforms.
      • Uses the board form factor documented by ABB for this exact product ID.

      The board must match the host controller, rack position, project hardware definition and field-output wiring. Replacement work preserves channel assignments and verifies each affected loop under the site's controlled procedure.

      Important Notice: Verify the complete DSAO120A 3BSE018293R1 identity, mating hardware and controlled system procedure before installation.

      ABB DSAO120A 3BSE018293R1 Manuals & Downloads
      ABB DSAO120A 3BSE018293R1 Technical Reference (PDF)ABB DSAO120A 3BSE018293R1 Installation & Commissioning Guide (PDF)

      The Technical Reference organizes the exact ordering identity, applicable characteristics and system boundary for this analog output board. The Installation & Commissioning Guide covers identification, pre-installation checks, connections, functional verification and the acceptance record.

      Legacy process control
      Restore analog-output capacity in an ABB system that explicitly lists 3BSE018293R1.
      Actuator command outputs
      Deliver configured analog commands to field loops through the host S100 I/O arrangement.
      Advant installed base
      Support documented Advant Controller 450 or AC460 hardware configurations.
      MasterPiece service
      Maintain a MasterPiece 200/200-1 configuration whose bill of materials calls for DSAO 120A.
      Use the complete ABB DSAO120A 3BSE018293R1 identity and the applicable controlled procedure before work.
      1
      Verify DSAO 120A and 3BSE018293R1 on the physical ABB label.
      2
      Confirm the host controller and exact rack position before removal.
      3
      Isolate affected field circuits and apply the site's lockout procedure.
      4
      Record terminal, polarity, channel and range assignments before disconnecting wiring.
      5
      Inspect the board connector and rack mating contacts without touching conductive surfaces.
      6
      Do not infer channel range or load limits from a different ABB analog-output board.
      7
      Restore project configuration and test each affected output through an approved loop-test method.
      8
      Record channel results, diagnostics and controller status before handover.

      Technical notes

      Technical notes

      Verify the complete DSAO120A 3BSE018293R1 identity, mating hardware and controlled system procedure before installation.

      FAQS

      • What is ABB DSAO120A 3BSE018293R1?
        It is an eight-channel S100 I/O analog output board.
      • How many output channels does ABB DSAO120A 3BSE018293R1 provide?
        ABB lists eight analog output channels.
      • Which control families list ABB DSAO120A 3BSE018293R1?
        ABB lists established Advant Controller 450, AC460 and MasterPiece 200/200-1 environments, including 800xA or Compact Product Suite integration.
      • How does ABB DSAO120A 3BSE018293R1 function in the S100 I/O architecture?
        It converts controller output commands into eight configured analog output channels for the documented host system.
      • What should be checked in each output channel of ABB DSAO120A 3BSE018293R1?
        Confirm channel assignment, configured signal behavior, diagnostics and the controlled field-loop response.
      • What signal direction applies to ABB DSAO120A 3BSE018293R1?
        The board carries configured analog output commands from the controller toward the connected field loops.
      • What host-system check is required for ABB DSAO120A 3BSE018293R1?
        Confirm the controller family, project configuration and S100 I/O assignment before energizing the output loops.
      • What should be verified after installing ABB DSAO120A 3BSE018293R1?
        Verify project recognition, channel configuration, diagnostics and each affected analog loop.
