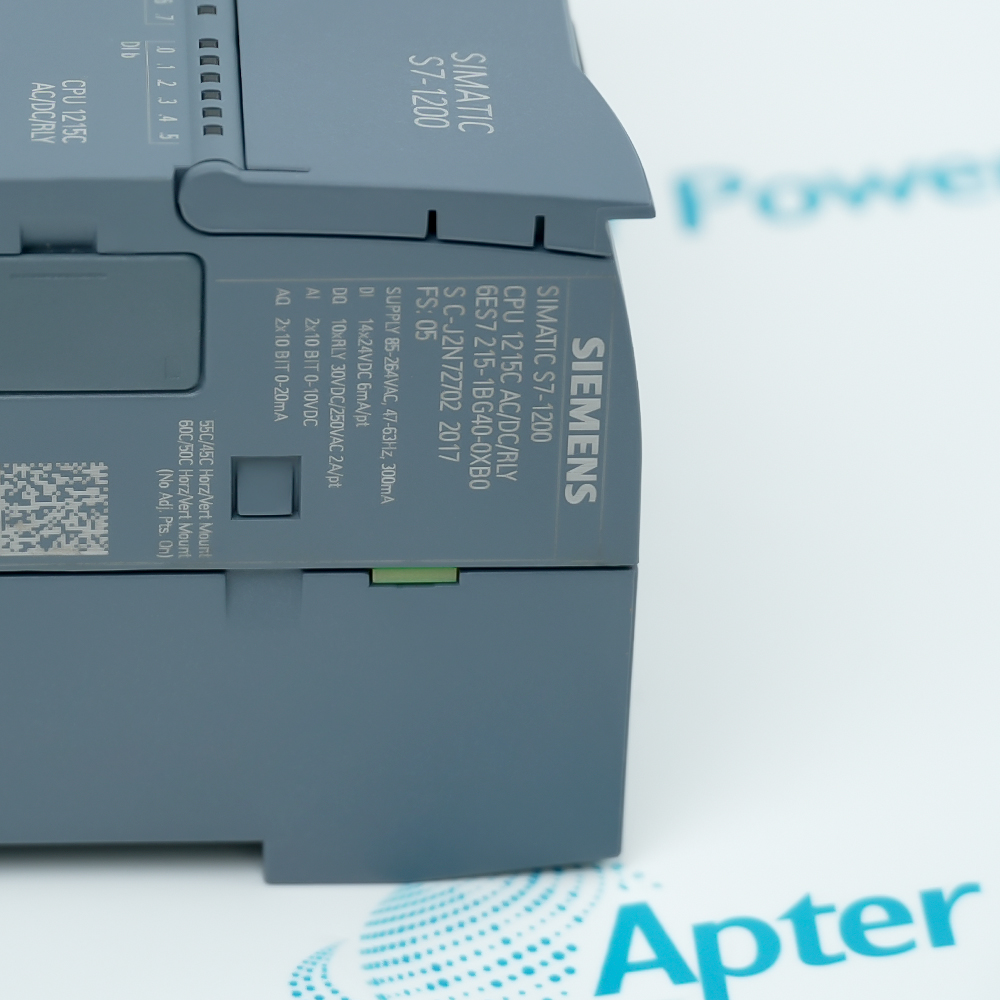

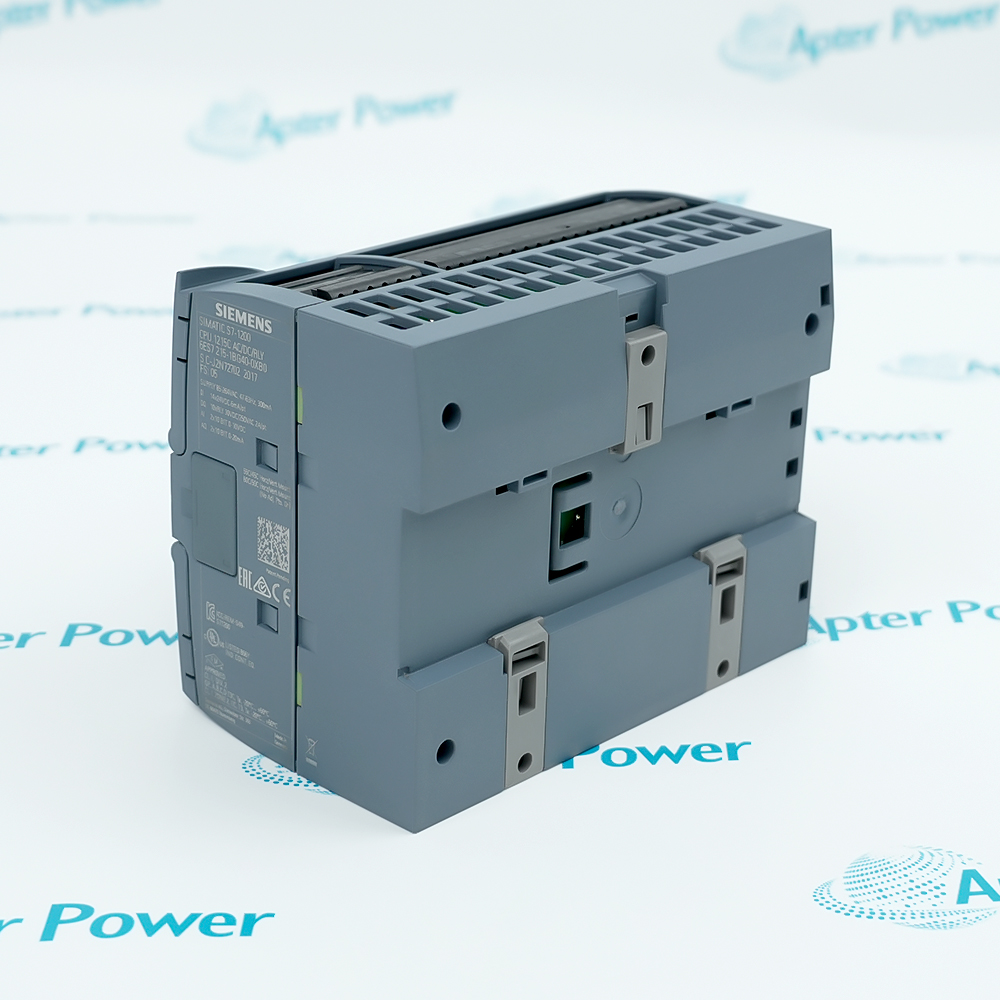

The 6ES7215-1BG40-0XB0 is a high-performance, compact controller in the Siemens SIMATIC S7-1200 series, specifically model CPU 1215C. It is the flagship model in the series, boasting powerful processing capabilities and a wealth of integrated interfaces, making it particularly suitable for medium-scale automation tasks.
Powerful integrated interfaces and "all-around" hardware configuration
Flexible networking capabilities provided by dual PROFINET ports
Excellent processing performance and large storage space
The SIMATIC S7-1200 is a highly integrated, compact, modular controller from Siemens, hailed as an "all-rounder" in the field of industrial automation. It primarily acts as the core brain of the system, providing high-performance solutions for low- to mid-range automation tasks through flexible scalability and powerful integration capabilities.The S7-1200 is equipped with a powerful processor, achieving Boolean instruction processing speeds in the microsecond range (e.g.,0.08 μs for the CPU 1215C), easily handling complex logic operations and real-time control requirements. The module natively integrates high-speed counting (HSC), pulse output (PTO/PWM), and PID control. This allows it to achieve precise speed measurement, stepper/servo motor positioning control, and closed-loop regulation of temperature and pressure without additional hardware.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7215-1BG40-0XB0 COMPACT CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water Treatment
Monitors pump groups and filter pressure differentials; dual ports facilitate networking units to a central control room.
Plastics Processing
Provides closed-loop temperature and pressure control for blow molding or small extruders using integrated PID functions.
Textile Industry
Controls stepping logic for looms or dyeing equipment; built-in HSCs precisely measure fabric length.
Food & Beverage
Controls mixing and filling lines; its 4MB load memory stores multiple production recipes.
Environmental Monitoring
Collects sensor data from emission monitoring stations and uploads it to the cloud via Industrial Ethernet.
Since this model uses AC 85-264V power supply, the power supply terminals and the onboard 24V DC input must be strictly distinguished before wiring to prevent high-voltage input from causing burnout. Secondly, the digital output is a relay type; during use, the current at a single point should be strictly controlled to not exceed 2A, and surge protection should be installed for inductive loads. Attention should also be paid to the mechanical operating frequency and current limits of the relays. Regarding the surrounding environment, ensure installation in a well-ventilated electrical control cabinet free of conductive relays, and verify the firmware version and programming software compatibility (STEP 7 V13 or higher recommended) according to Siemens' official datasheet to ensure stable operation of communication and control tasks.
It is a high-performance compact controller in the Siemens SIMATIC S7-1200 series, specifically model CPU 1215C (AC/DC/Relay type).
How does the 6ES7215-1BG40-0XB0 communicate?
It integrates two PROFINET ports (supporting dual-port switch functionality). This allows it to easily connect to industrial Ethernet for data exchange with HMIs, drives, remote I/O, or other PLCs.
Which software is used to program the 6ES7215-1BG40-0XB0?
This product must be configured and programmed using Siemens' TIA Portal software, and version V13 or higher is generally recommended.
What is the memory capacity of the 6ES7215-1BG40-0XB0?
It has 125 KB of working memory, 4 MB of integrated load memory, and 10 KB of retention memory.
What are the typical applications of the 6ES7215-1BG40-0XB0?
With its dual network ports and abundant analog I/O, it is well-suited for medium-sized automation systems, such as automated production lines, water treatment control cabinets, material handling systems, and temperature control systems.
