      6EP1434-2BA20

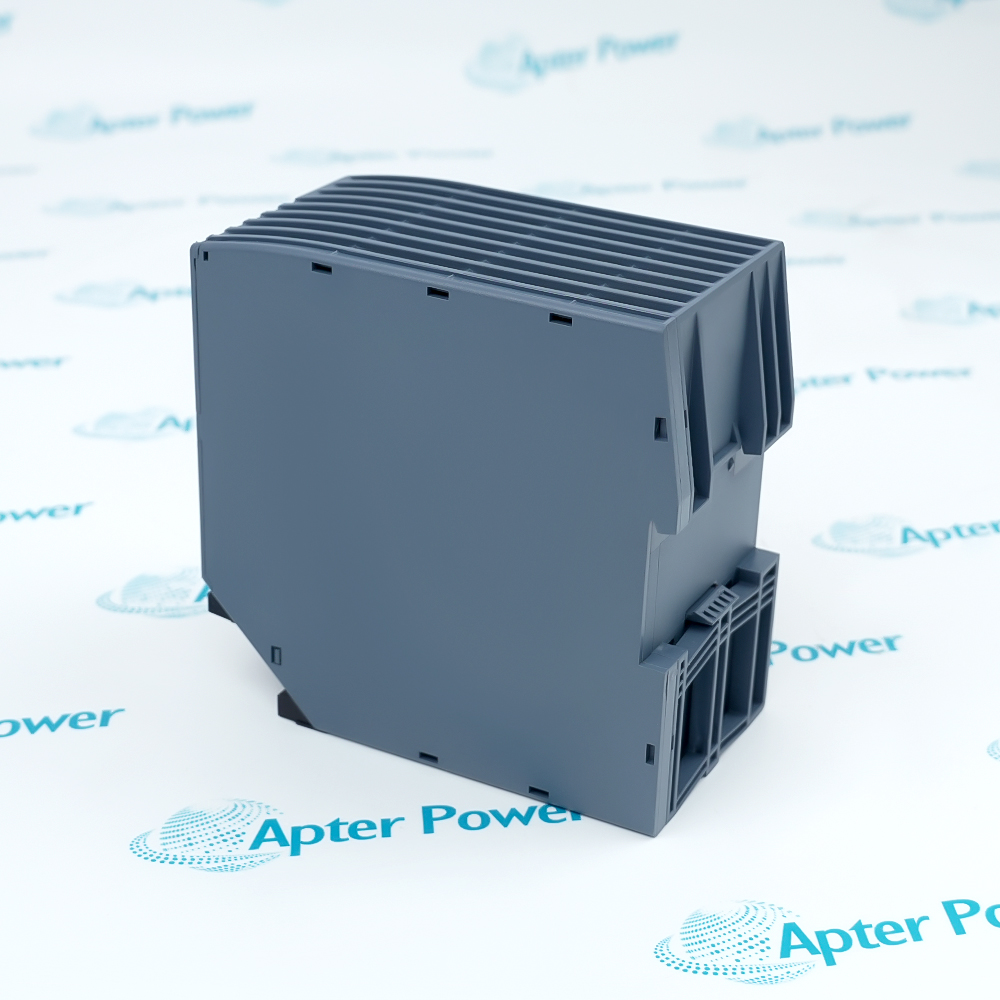

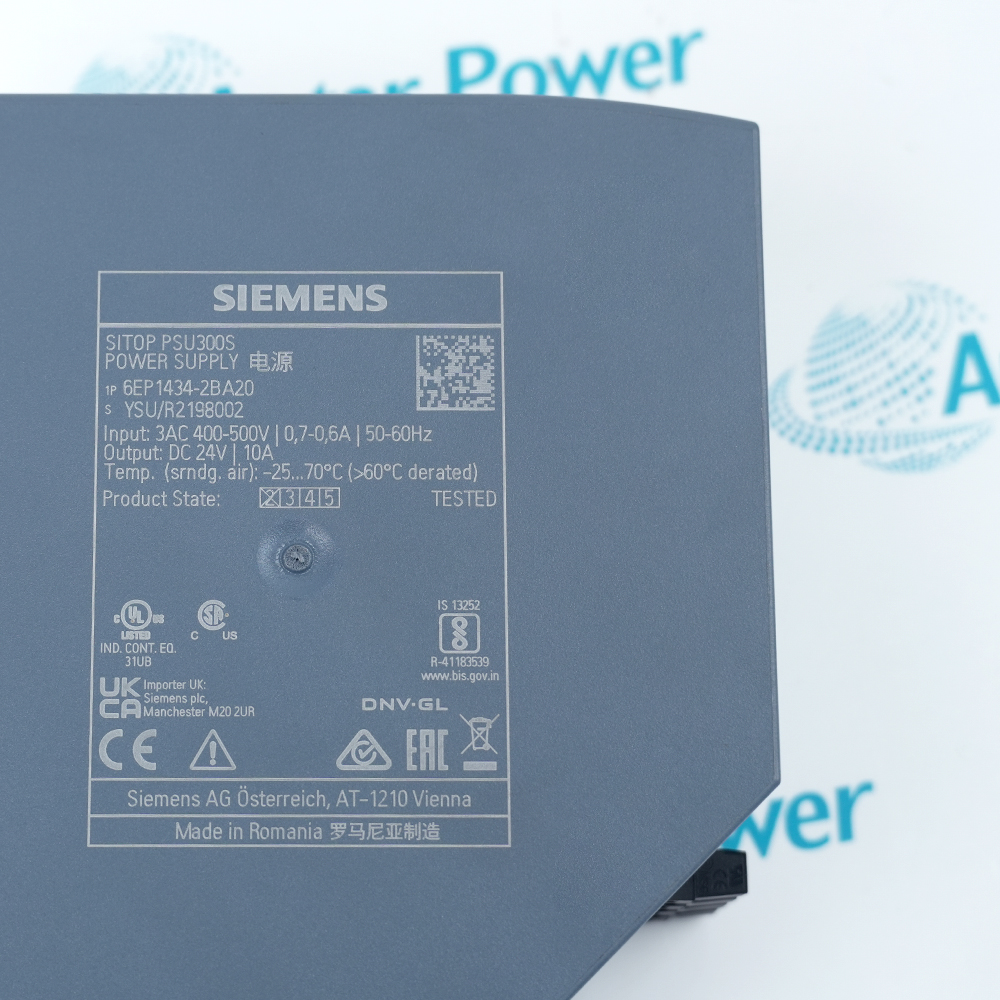

      SITOP PSU300S Stabilized Power Supply
      In Stock
      Ships by Wednesday, September 9
      Fast Shipping Available

      Product Describe：

      Siemens 6EP1434-2BA20 is a SITOP PSU300S stabilized three-phase power supply. It converts an industrial 400–500 V AC supply into regulated 24 V DC at 10 A for automation loads.

      Ask our team:

      Get a quick price for： 6EP1434-2BA20
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6EP1434-2BA20

      Technical specifications for 6EP1434-2BA20

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6EP1434-2BA20
      • Estimated shipping dimensions:
        16.2x12.8x12.8cm
      • Weight:
        2.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Supply network:
        3-phase AC
      • Rated input voltage:
        400-500 V AC
      • Input operating range:
        340-550 V AC
      • Line frequency:
        47-63 Hz
      • Input current at 400 V:
        0.7 A
      • Input current at 500 V:
        0.6 A
      • Maximum inrush current at 25 C:
        20 A
      • Minimum mains buffering at 400 V:
        7 ms
      • Rated output voltage:
        24 V DC
      • Adjustable output voltage:
        24-28 V DC
      • Rated output current:
        10 A
      • Maximum output power:
        240 W
      • Overall voltage tolerance:
        3%
      • Maximum residual ripple:
        200 mV
      • Maximum voltage peak:
        240 mV
      • Status indication:
        Green LED, 24 V OK
      • Signal contact:
        NO relay, 60 V DC / 0.3 A
      • Protection degree:
        IP20
      • Electrical connection:
        Screw terminals
      • Mounting rail:
        EN 60715 35 x 7.5/15 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6EP1434-2BA20 is a SITOP PSU300S stabilized three-phase power supply. It converts an industrial 400鈥?00 V AC supply into regulated 24 V DC at 10 A for automation loads.
      • Provides galvanically isolated DC power for control equipment
      • Signals output availability through the 24 V OK contact
      • Allows final output trimming for distribution voltage drop
      • Maintains control power through brief input interruptions

      6EP1434-2BA20 operates with three-pole input protection, 35 mm DIN rail, 24 V DC distribution circuit, 24 V OK monitoring input.
      Typical engineered duties include PLC and distributed-I/O power distribution, 24 V DC sensor and actuator circuits, Machine-control cabinet supply, Industrial network-device power.

      Important Notice: Confirm the complete 6EP1434-2BA20 MLFB, three-phase feeder rating, protective device, conductor size and 24 V DC load calculation before energization.

      Apter Power 6EP1434-2BA20 Manuals and Guides

      Important Notice: The first document is an Apter Power 6EP1434-2BA20 model-specific technical reference. The second is a distinct document for installation, configuration or system engineering.

      6EP1434-2BA20 PLC and distributed-I/O power distribution
      Provides galvanically isolated DC power for control equipment
      6EP1434-2BA20 24 V DC sensor and actuator circuits
      Signals output availability through the 24 V OK contact
      6EP1434-2BA20 Machine-control cabinet supply
      Allows final output trimming for distribution voltage drop
      6EP1434-2BA20 Industrial network-device power
      Maintains control power through brief input interruptions
      Read the applicable Siemens installation instructions before work. Verify 6EP1434-2BA20 and the installed-system configuration.
      1
      Isolate all three input phases before wiring.
      2
      Provide the Siemens-specified upstream protective device.
      3
      Maintain the documented free-air clearances above and below the unit.
      4
      Measure output voltage and verify the signaling contact before connecting process loads.
      5
      Commission 6EP1434-2BA20 under controlled conditions and retain the completed functional-test record before release.

      Technical notes

      Technical notes

      Mount 6EP1434-2BA20 on the specified EN 60715 rail with unobstructed ventilation. Commission the DC bus unloaded first, then verify regulation and the 24 V OK relay under the intended load.

      FAQS

      • Which AC network is required by 6EP1434-2BA20?
        Use a three-phase feeder within the published input range and apply the upstream protection specified in the Siemens datasheet.
      • Can 6EP1434-2BA20 be adjusted above 24 V DC?
        Yes. The front potentiometer permits adjustment within the published 24–28 V DC range; confirm downstream device limits first.
      • How should the 24 V OK relay of 6EP1434-2BA20 be used?
        Wire the normally open signaling contact to a suitable control input while observing its published 60 V DC, 0.3 A rating.
      • What ventilation is required for 6EP1434-2BA20?
        Maintain the cabinet clearances and ambient conditions stated in the Siemens datasheet and keep the airflow path unobstructed.
      • How is 6EP1434-2BA20 protected on the AC side?
        Use a three-pole protective device selected from the Siemens feeder-protection guidance and sized to the installation.
      • What should be checked before loading 6EP1434-2BA20?
        Verify phase-to-phase voltage, protective earth, unloaded output voltage, polarity and 24 V OK operation.
      • Can two 6EP1434-2BA20 outputs be paralleled without review?
        Only use a topology explicitly engineered for the SITOP units and the required redundancy or load-sharing function.
      • What maintenance checks apply to 6EP1434-2BA20?
        Inspect terminal torque, ventilation, discoloration, output ripple, operating indication and the signaling contact during scheduled shutdowns.
