What power rating identifies LXM15MD28N4?

The datasheet specifies 5.7 kW.

Which current values must be distinguished?

Continuous current is 10 A, transient current is 20 A for 5 seconds and peak current is 28 A.

Which feedback interfaces are supported?

The product entry identifies encoder and resolver feedback interfaces.

Which communication ports are documented?

CANopen and RS232 are provided for the approved integration workflow.

What must be copied before replacement?

Archive motor data, tuning, feedback selection, I/O, safety configuration and network settings.

Does PWR remove the need for machine safety validation?

No. The safety function must be applied and validated within the complete machine safety design.

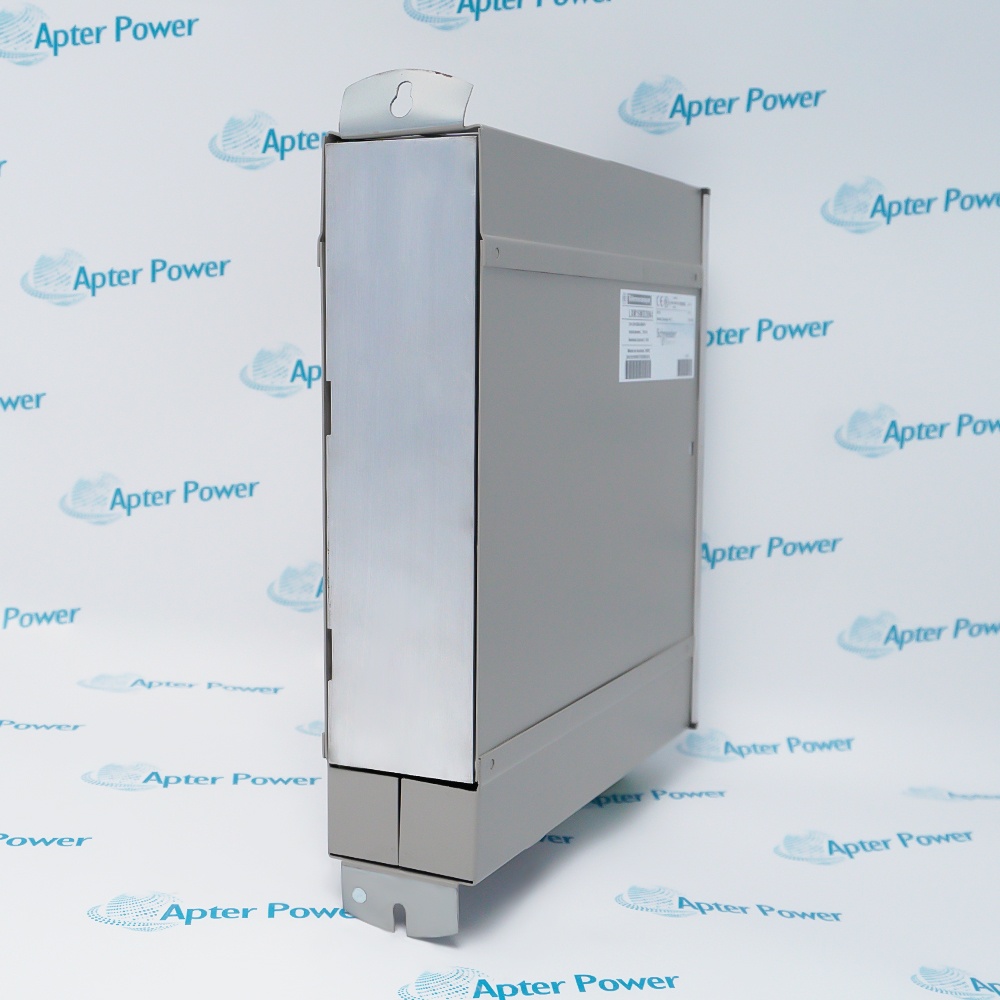

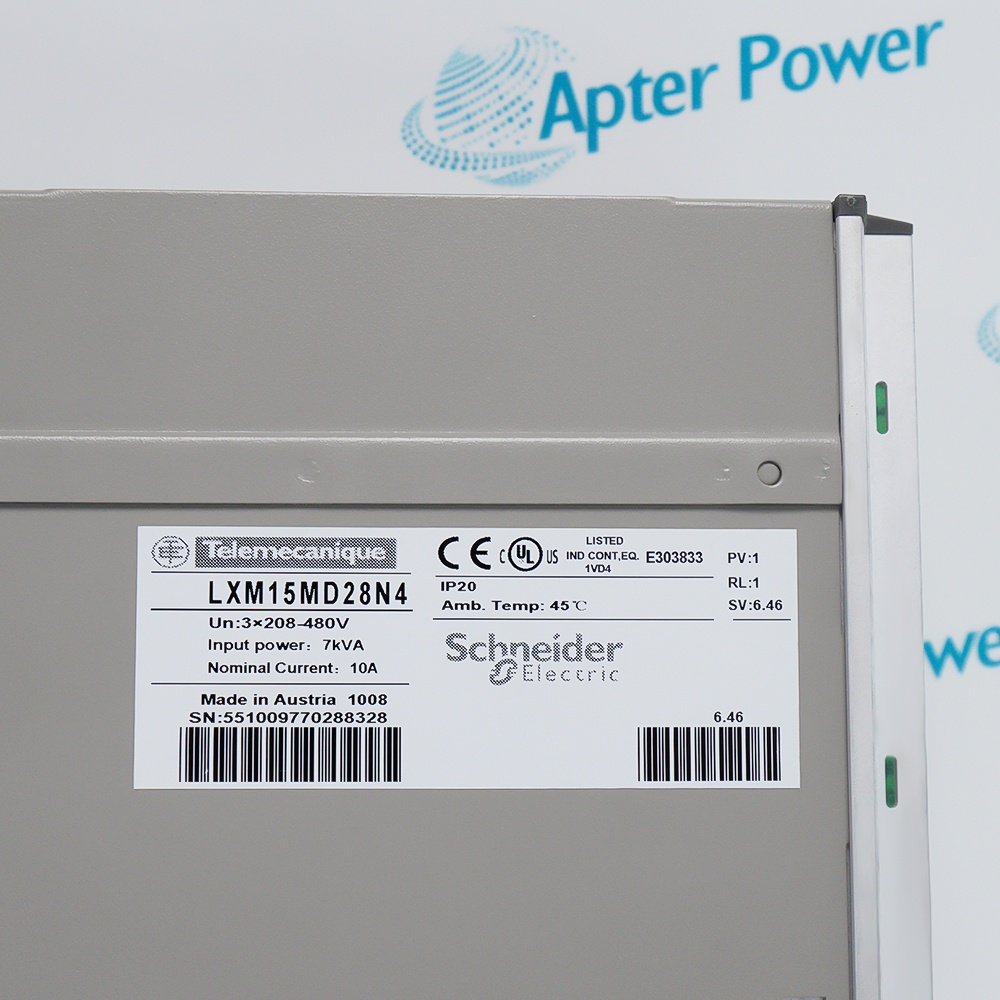

Product image is representative; revision or series may vary. Contact us to request a specific version.

LXM15MD28N4

Name: LXM15MD28N4
Brand: Schneider Electric
SKU: LXM15MD28N4

Motion Servo Drive

In Stock

Product Describe：

Schneider Electric LXM15MD28N4 is a Lexium 15 motion servo drive rated 5.7 kW for 208 to 480 V three-phase systems with integrated feedback and communication interfaces.

Ask our team:

Phone:
+86 180 3023 5313
E-Mail:
sales13@apterpower.com

Get a quick price for： LXM15MD28N4

Quantity*

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications Information Technical notes FAQ

Technical specifications for LXM15MD28N4

Manufacturer:

Schneider Electric
Product Category:

General Automation
Spare Part Number:

LXM15MD28N4
Estimated shipping dimensions:

2.5cm x 12.7cm x 14cm
Weight:

0.2 kg
Tariff Code:

8537101190
Counliy of origin:

France
Power:

5.7 kW
Supply:

208 to 480 V three-phase
Continuous current:

10 A
Transient current:

20 A for 5 s
Peak current:

28 A
Apparent power:

7 kVA
Supply limits:

187.2 to 528 V
Frequency:

50 / 60 Hz
Switching frequency:

8 kHz
Inputs:

2 safety + 5 logic
Feedback:

Encoder / resolver
Communication:

CANopen / RS232
Safety function:

PWR
Protection:

IP20

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

Schneider Electric LXM15MD28N4 is a Lexium 15 motion servo drive rated 5.7 kW for 208 to 480 V three-phase systems with integrated feedback and communication interfaces.

Power: 5.7 kW
Supply: 208 to 480 V three-phase
Continuous current: 10 A
Transient current: 20 A for 5 s

LXM15MD28N4 operates only with the documented system configuration and connected hardware.

Important Notice: Discharge the DC bus, secure the axis and retain tuning and feedback records before service.

Schneider Electric LXM15MD28N4 Manuals & Downloads

LXM15MD28N4 Technical Reference (PDF)LXM15MD28N4 Manufacturer Datasheet (PDF)

The first document presents model-specific technical and service content. The second preserves the unchanged manufacturer product data.

Servo-axis control

Controls a documented motion axis using the selected motor and feedback interface.

Encoder or resolver feedback

Retains the commissioned feedback type and polarity.

CANopen machine network

Exchanges commands and status through the configured CANopen interface.

Exact Lexium renewal

Restores the same LXM15MD28N4 power and current identity.

Read the applicable Schneider Electric instructions before work. Verify LXM15MD28N4, the installed system and every configured interface before isolation, wiring or commissioning.

Confirm the complete Schneider Electric LXM15MD28N4 identity and installed position before work.

Place the connected machine or process in the approved maintenance state.

Isolate every documented supply and field circuit before disconnection.

Record terminal, cable, shield, network and companion-hardware identities.

Retain power and supply requirements from the installed design.

Protect connectors, electronics and keyed interfaces from contamination or damage.

Restore power in the approved sequence and review diagnostics.

Prove the intended 5.7 kw motion servo drive with canopen and rs232 response and retain the acceptance record.

Technical notes

Discharge the DC bus, secure the axis and retain tuning and feedback records before service.

FAQS

What power rating identifies LXM15MD28N4?

The datasheet specifies 5.7 kW.
Which current values must be distinguished?

Continuous current is 10 A, transient current is 20 A for 5 seconds and peak current is 28 A.
Which feedback interfaces are supported?

The product entry identifies encoder and resolver feedback interfaces.
Which communication ports are documented?

CANopen and RS232 are provided for the approved integration workflow.
What must be copied before replacement?

Archive motor data, tuning, feedback selection, I/O, safety configuration and network settings.
Does PWR remove the need for machine safety validation?

No. The safety function must be applied and validated within the complete machine safety design.
