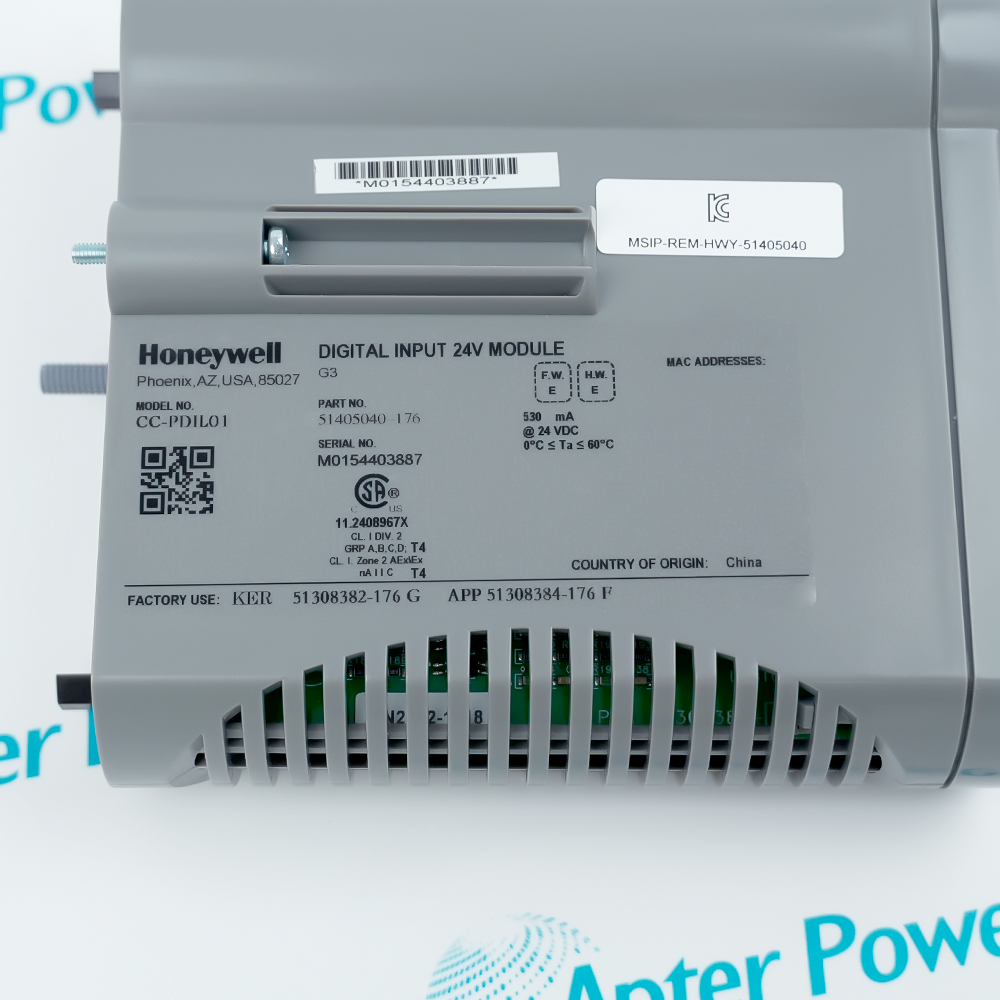

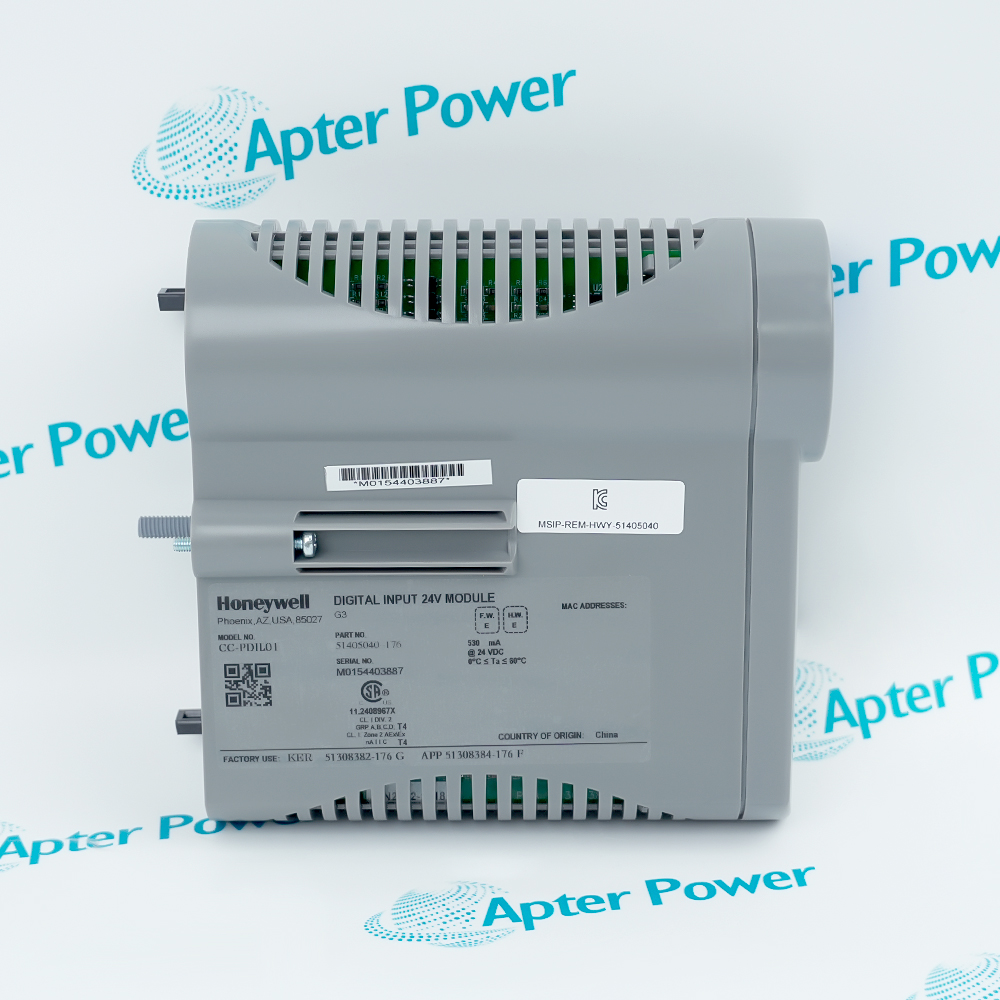

CC-PDIL01 51405040-176

Technical specifications for CC-PDIL01 51405040-176

• Manufacturer:
  Honeywell
• Product Category:
  DCS System
• Spare Part Number:
  51405040-176
• Estimated shipping dimensions:
  5.5x16x14.5cm
• Weight:
  0.36 kg
• Tariff Code:
  8537101190
• Counliy of origin:
  USA
• Product type:
  24 VDC discrete input module
• Module model:
  CC-PDIL01
• Manufacturer item number:
  51405040-176
• I/O family:
  Experion PKS Series C I/O
• Channels:
  32 discrete inputs
• Field voltage:
  18-30 V DC
• ON state:
  At least 13 V or 3 mA
• OFF state:
  No more than 5 V or 1.2 mA
• Input impedance:
  4.2 kohm
• Input delay:
  5 ms +/-20%
• Field resistance ON:
  No more than 300 ohm at 15 V
• Field resistance OFF:
  At least 30 kohm at 30 V
• Isolation:
  1500 V AC RMS or +/-1500 V DC, optical
• Redundancy:
  Optional
• Field excitation:
  Internal or external
• Indication:
  Direct or reverse
• Diagnostics:
  Open-wire and module/channel diagnostics
• Non-redundant IOTA:
  CC-TDIL01
• Redundant IOTA:
  CC-TDIL11
• Galvanically isolated IOTA options:
  CC-GDIL01, CC-GDIL11 and CC-GDIL21
• Safety IOTA option:
  CC-SDXX01 where documented
