      9200-06-01-10-00

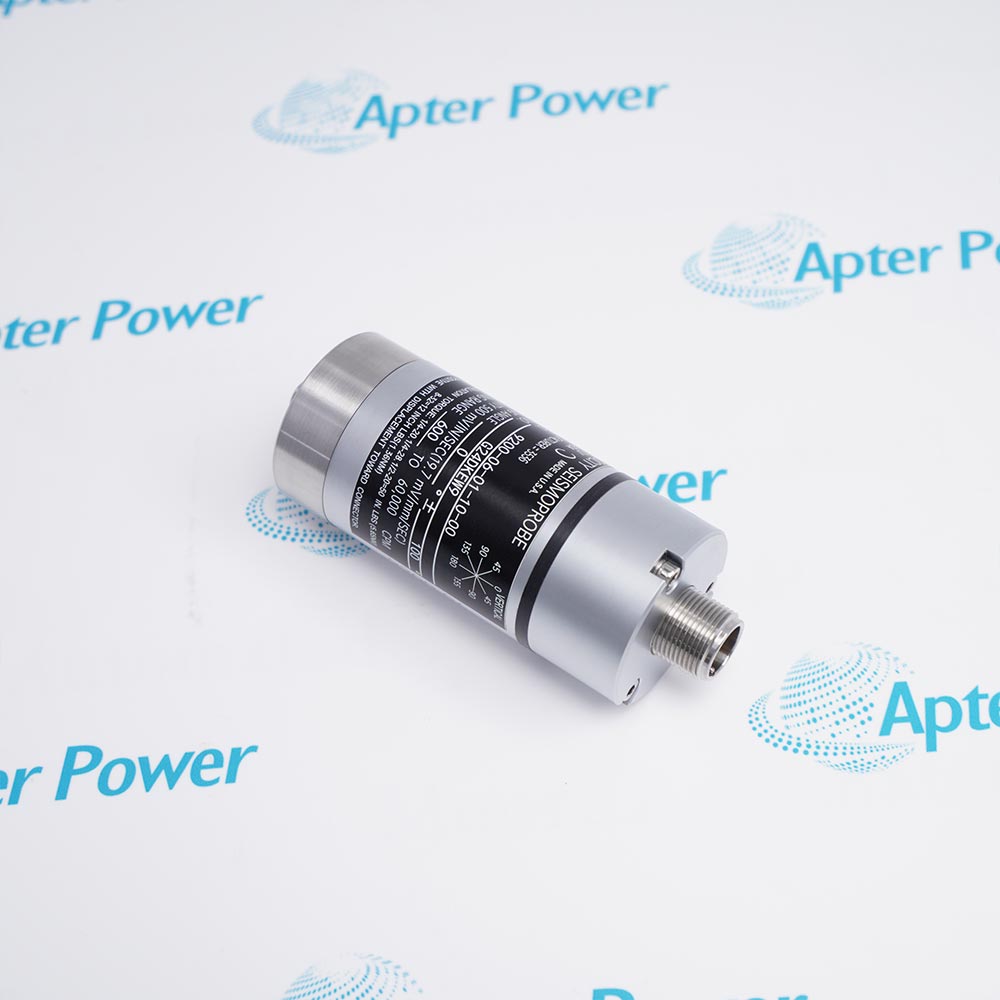

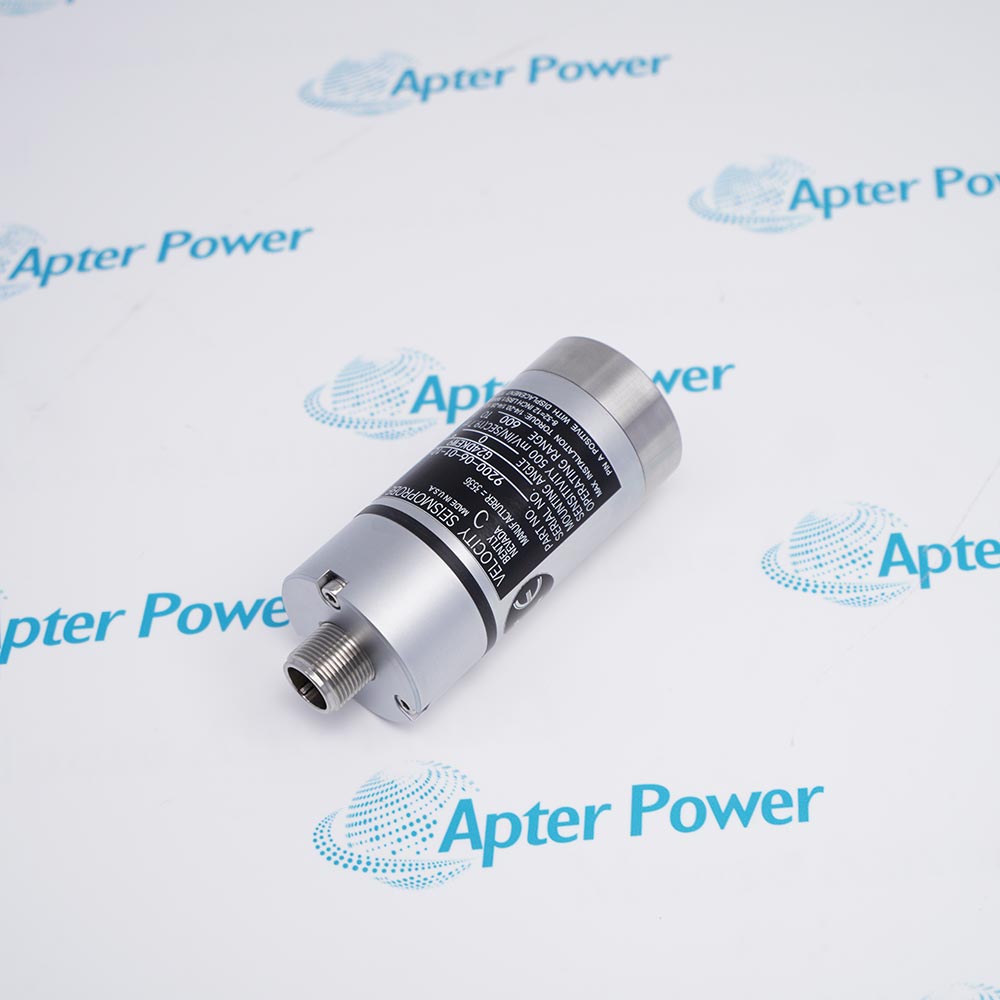

      Two-wire Seismoprobe velocity transducer
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 9200-06-01-10-00 is the documented two-wire seismoprobe velocity transducer for the 9200 product family. The Bently Nevada 9200 Seismoprobe is a two-wire moving-coil transducer that produces an output proportional to absolute casing velocity without an external power supply.

      Ask our team:

      Get a quick price for： 9200-06-01-10-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 9200-06-01-10-00

      Technical specifications for 9200-06-01-10-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        9200-06-01-10-00
      • Estimated shipping dimensions:
        4x4x10.5cm
      • Weight:
        0.44 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Orientation / minimum frequency:
        A06: 0 +/-100 degrees; 10 Hz minimum
      • Cable option:
        B01: top mount; no integral cable
      • Mounting stud:
        C10: circular M10 x 1 stud
      • Approval option:
        D00: no ordered approval
      • Transducer principle:
        Two-wire moving coil; no external power
      • Sensitivity:
        20 mV per mm/s (500 mV per in/s), +/-5%
      • Recommended load:
        10 kOhm
      • Temperature coefficient:
        0.2% per degree C
      • Coil resistance:
        1.25 kOhm nominal
      • Coil inductance:
        125 mH nominal
      • Dynamic range:
        2.54 mm peak-to-peak
      • Velocity range:
        25 mm/s
      • Amplitude linearity:
        +/-5% from 0.254 to 127 mm/s at 100 Hz
      • Maximum cable length:
        1,000 ft
      • Operating temperature:
        -29 to +121 degrees C
      • Humidity:
        95%; 100% with the documented cable option
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 9200-06-01-10-00 is the documented two-wire seismoprobe velocity transducer for the 9200 product family.
      • Measures absolute casing vibration velocity with a self-generating moving-coil element.
      • Provides 20 mV per mm/s sensitivity into a 10 kOhm load.
      • Supports long field cable runs up to the documented 1,000 ft limit.
      • Uses model-code options to define orientation, cable, mounting stud and approval.

      Install 9200-06-01-10-00 with its ordered orientation, cable option, mounting stud and compatible monitoring input. Commissioning covers rigid mounting, polarity, cable routing, velocity response and baseline acceptance.

      Important Notice: Confirm the complete 9200-06-01-10-00 identity, installed interfaces, approved configuration and final functional acceptance record before service release.

      Bently Nevada 9200-06-01-10-00 Manuals & Downloads
      Bently Nevada 9200-06-01-10-00 Technical Reference (PDF)Bently Nevada 9200-06-01-10-00 Installation & Commissioning Guide (PDF)

      Important Notice: The first document presents exact-model technical data and engineering questions. The second provides a separate model-specific installation, configuration and acceptance workflow.

      Bearing-housing velocity
      Measure absolute casing vibration at a rigid machine-housing location.
      Fan casing monitoring
      Apply the selected low-frequency response and mounting orientation to fan structures.
      Pump and compressor casing
      Trend velocity through a compatible monitoring input and approved field wiring.
      Long-run sensor wiring
      Use the two-wire interface within the documented cable-length and load envelope.
      Read the applicable Bently Nevada installation instructions before work. Verify 9200-06-01-10-00, its installed system arrangement and configured interfaces before commissioning.
      1
      Confirm all four ordering-code groups because orientation, cable, stud and approval change the installation.
      2
      Mount on a rigid, clean surface and preserve the selected orientation range.
      3
      Use the specified stud and do not force a mismatched thread into the transducer base.
      4
      Maintain the two-wire polarity and a compatible 10 kOhm monitoring load.
      5
      Route field cable within the 1,000 ft limit and protect it from strain and noise pickup.
      6
      Verify the installed low-frequency cutoff is suitable for the machine speed.
      7
      Compare bias-free self-generated output and broadband vibration with a controlled baseline.
      8
      Retain mounting, orientation, wiring, measured velocity and acceptance evidence.

      Technical notes

      Technical notes

      Confirm all four ordering-code groups because orientation, cable, stud and approval change the installation. Retain mounting, orientation, wiring, measured velocity and acceptance evidence.

      FAQS

      • What mounting orientation is encoded by 9200-06-01-10-00?
        The A06 option permits 0 +/-100 degrees and specifies a 10 Hz minimum-frequency configuration.
      • Which stud interface belongs to 9200-06-01-10-00?
        The C10 code identifies a circular M10 x 1 mounting stud; verify the prepared machine surface uses that exact thread.
      • Does 9200-06-01-10-00 include an integral cable?
        No. B01 is a top-mount connector configuration without an integral cable, so the field cable assembly is installed separately.
      • Why does 9200-06-01-10-00 need no external sensor power?
        The moving-coil Seismoprobe generates a two-wire voltage proportional to absolute casing velocity.
      • What load should the monitoring input present to 9200-06-01-10-00?
        Use the published 10 kOhm load so the 20 mV per mm/s sensitivity remains applicable.
      • How should low-frequency response be tested for 9200-06-01-10-00?
        Evaluate the installed response at and above the 10 Hz option boundary while preserving the permitted orientation.
      • What cable-run limit applies to 9200-06-01-10-00?
        The documented maximum field cable length is 1,000 ft; verify continuity, shielding and signal quality across the actual route.
      • Which acceptance data should be stored for 9200-06-01-10-00?
        Retain stud torque, orientation, cable identity, input load, measured velocity sensitivity and baseline waveform.
