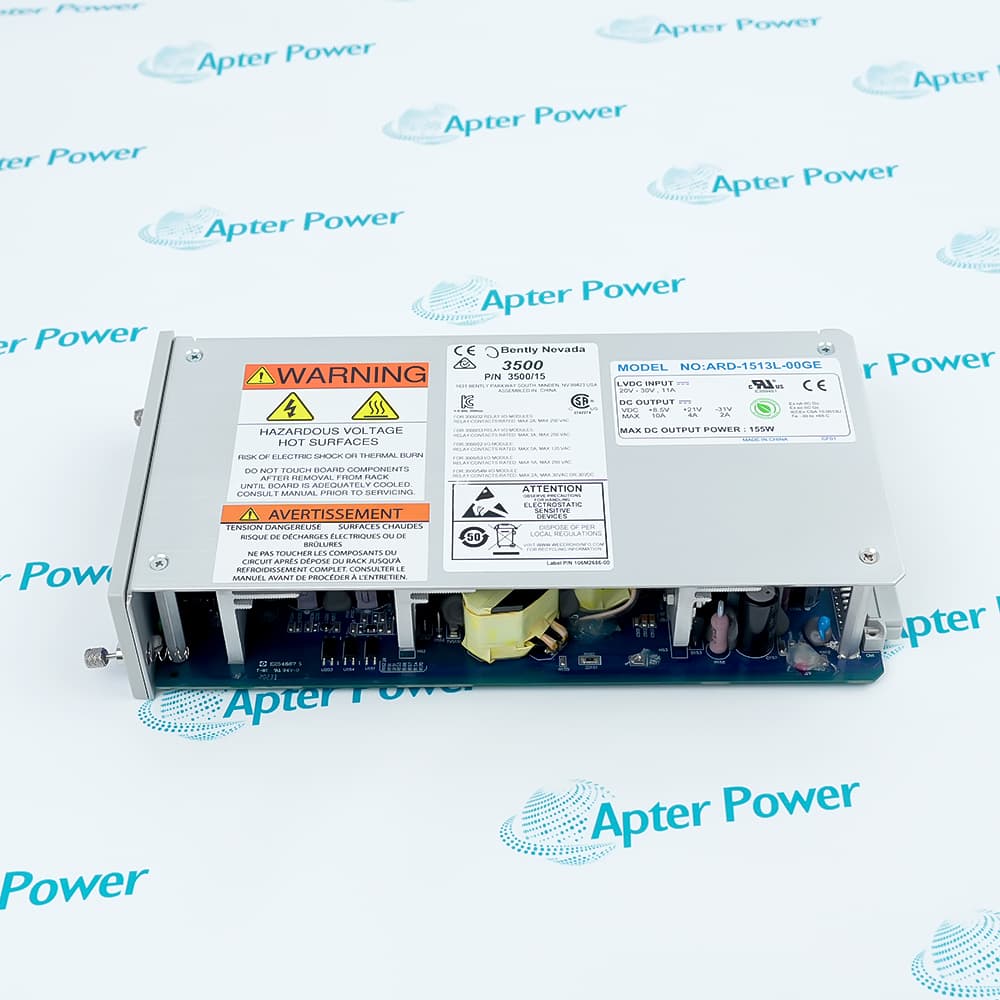

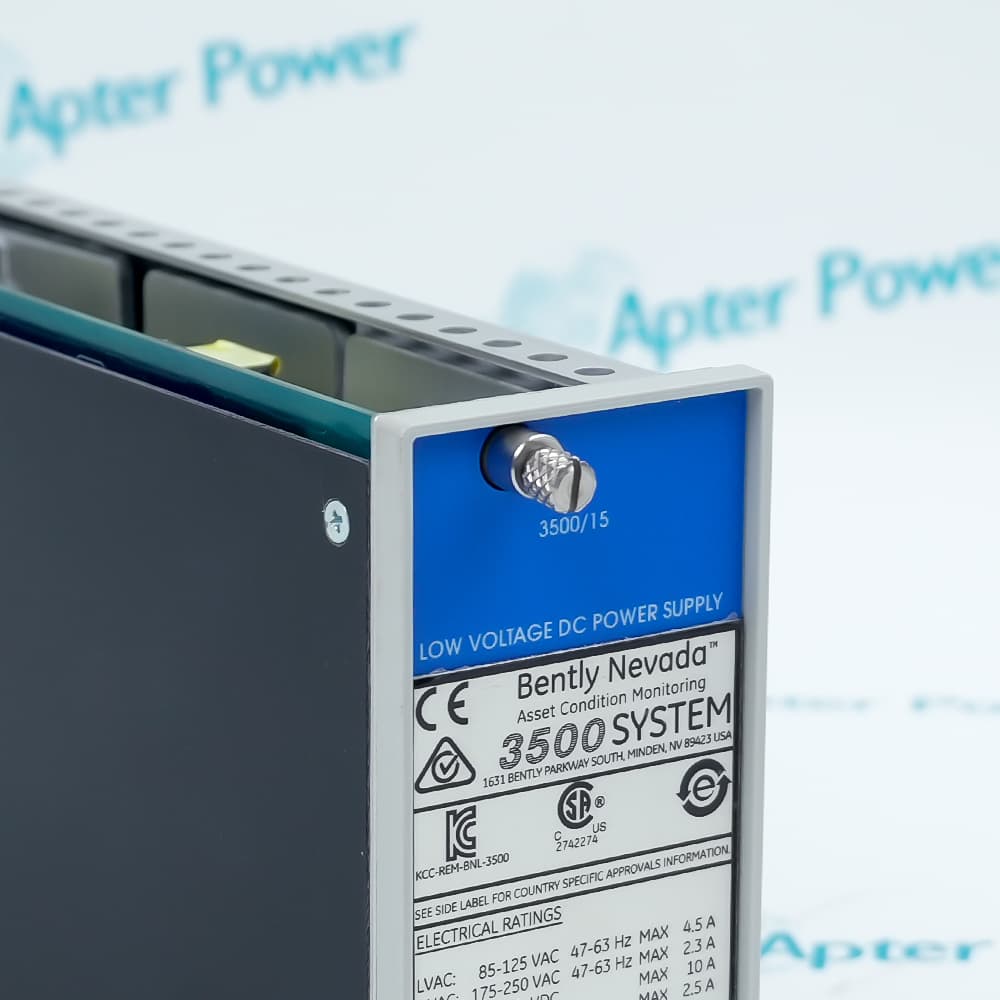

The 3500/15 114M5330-01 is a general-purpose AC/DC power supply module primarily used in the 3500 series machine condition monitoring systems. It powers other modules within the system by converting the input power to the stable voltage required by the system, and is widely used in industrial automation vibration monitoring of critical rotating machinery such as steam turbines and compressors.
Redundancy Support
Universal AC Power
High Voltage DC Power Supply
The Bently Nevada 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack. When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one. Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed. The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 3500/15 114M5330-01 Low Voltage DC Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Powering offshore compressor protection systems on platforms equipped with 24V battery banks.
Nuclear Power
Providing independent DC supply loops for critical pump monitoring as part of redundant configurations.
Steel & Metallurgy
Supporting high-reliability vibration protection for rolling mills amidst industrial grid fluctuations.
Thermal Power
Providing DC power for machinery protection of gen-set bypass systems and backup oil pumps.
Chemical Industry
Providing safe LVDC (Low Voltage DC) power for monitoring systems in hazardous areas within chemical lines.
Air Separation Units
Providing power meeting DC instrument standards for cryogenic turbines in air liquefaction.
When using the 3500/15 114M5330-01, it is crucial to ensure the input DC voltage remains strictly within the 20-30 Vdc range and to adopt a dual-module redundant configuration to eliminate the risk of a single point of failure. Before hot-swapping, verify that the "Supply OK" LED on the backup module is solid green. Additionally, regularly inspect the terminal tightness of the rear PIM (Power Input Module) to prevent power drops or system resets caused by poor contact at high-current connections.
It is the Low Voltage DC (LVDC) Power Supply Module for the Bently Nevada 3500 Series Machinery Protection System.
What is the main purpose of 3500/15 114M5330-01?
Its purpose is to accept external low-voltage DC power and convert it into stable voltages required for the operation of other modules (such as vibration and displacement monitors) within the 3500 rack.
How does 3500/15 114M5330-01 achieve redundancy?
When two power modules are installed in the rack, the lower slot acts as the primary supply and the upper slot as the backup. If one fails, the other automatically assumes the full load.
How to start the 3500/15 114M5330-01?
Simply insert it into the rack and ensure the rear PIM (Power Input Module) is connected to the correct DC voltage. The module will start automatically once it detects a valid voltage.
Does 3500/15 114M5330-01 support hot-swapping?
Yes. As long as a second working power supply is installed, this module can be replaced without shutting down the system.
