      330907-05-30-10-02-00

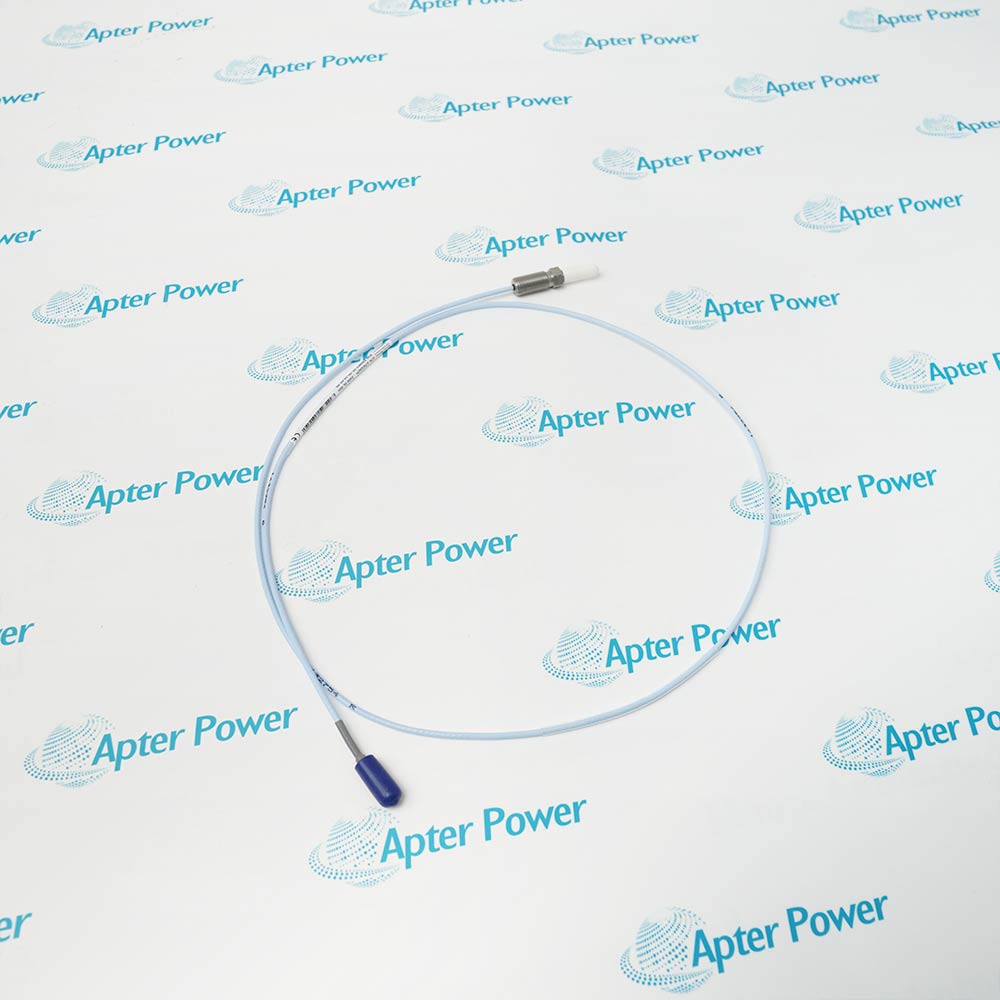

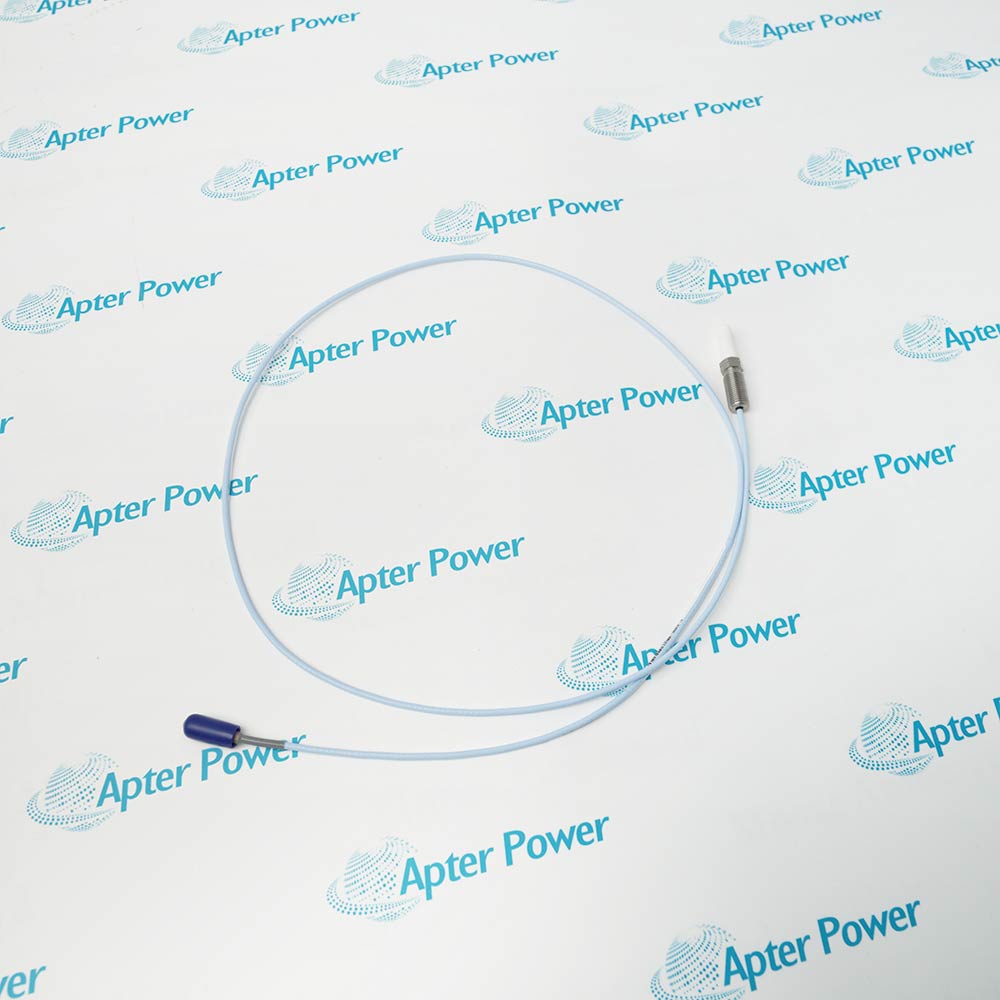

      Reverse Mount Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330907-05-30-10-02-00 is an M10 x 1 reverse-mount NSv probe with a 1 m standard ClickLoc lead. Its matched 3300 XL NSv system measures shaft-relative vibration and position in restricted installations.

      Ask our team:

      Get a quick price for： 330907-05-30-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330907-05-30-10-02-00

      Technical specifications for 330907-05-30-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330907-05-30-10-02-00
      • Estimated shipping dimensions:
        1x0.9x65.5cm
      • Weight:
        0.03 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe Family:
        3300 XL NSv
      • Mounting Thread:
        M10 x 1
      • Mounting Construction:
        Reverse mount; no armor option
      • Reverse-Mount Case Code:
        05-30
      • Total Probe Length:
        10 = 1.0 m
      • Connector / Cable Option:
        02 = miniature coaxial ClickLoc; standard cable
      • Agency Approval Option:
        00 = not required
      • Probe DC Resistance:
        4.2 +/- 0.5 ohm
      • Probe Cable:
        75 ohm coaxial; FEP insulated
      • Probe Tip Material:
        Polyphenylene sulfide (PPS)
      • Probe Case Material:
        AISI 304 stainless steel
      • Connector Material:
        Gold-plated brass
      • NSv System Lengths:
        5 m or 7 m, including extension
      • NSv Linear Range:
        1.5 mm; approximately 0.25 to 1.75 mm
      • NSv Output Range:
        Approximately -1 to -13 VDC
      • Recommended Gap:
        1.0 mm
      • Nominal Scale Factor:
        7.87 V/mm (200 mV/mil)
      • Frequency Response:
        DC to 10 kHz; +0 / -3 dB typical
      • Reverse-Mount Recommended Case Torque:
        7.5 N m
      • Reverse-Mount Maximum Case Torque:
        22.6 N m
      • Maximum Connector Torque:
        0.56 N m; finger tight recommended
      • Minimum Cable Bend Radius:
        25.4 mm
      • Probe Operating / Storage Temperature:
        -52 to +177 deg C
      • Proximitor Supply Without Barriers:
        -17.5 to -26 VDC
      • Proximitor Supply With Barriers:
        -23 to -26 VDC
      • Proximitor Maximum Consumption:
        12 mA
      • Proximitor Output Resistance:
        50 ohm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330907-05-30-10-02-00 is an M10 x 1 reverse-mount NSv probe with a 1 m standard ClickLoc lead. Its matched 3300 XL NSv system measures shaft-relative vibration and position in restricted installations.
      • Uses the M10 x 1 reverse-mount NSv construction.
      • Connects through a 1 m standard ClickLoc probe lead.
      • Works in the matched 5 m or 7 m NSv sensing chain.
      • Supports confined compressor locations and small-target measurements.

      The NSv family addresses counterbore, side-view and rear-view constraints that can limit larger proximity systems. Commission the complete probe, extension and conditioner against the actual target geometry; the nominal NSv span is 1.5 mm.

      Important Notice: The final -00 selection does not request agency approval. Reverse-mount probes are unavailable with armor or connector-protector options; assess the actual junction protection and independent process containment.

      Bently Nevada 330907-05-30-10-02-00 Manuals & Downloads
      330907-05-30-10-02-00 Technical Reference (PDF)330907-05-30-10-02-00 Installation & Commissioning Guide (PDF)

      The technical reference covers configuration, signal characteristics and performance conditions. The installation guide organizes system pairing, connection checks and channel commissioning.

      Confined compressor bearings
      Measure radial shaft vibration and position on fluid-film bearing machines with restricted probe access.
      Thrust position monitoring
      Use the conditioned DC signal for axial target position after checking the target surface and usable linear span.
      Speed and zero-speed channels
      Sense suitable rotating target features through an NSv channel configured for tachometer or zero-speed monitoring.
      Phase-reference signals
      Provide the non-contact probe element for a Keyphasor reference channel with the correct target and monitor configuration.
      Bently Nevada 330907-05-30-10-02-00 installation checks: use the reverse-mount case torque, match the 1 m lead to a 5 m or 7 m NSv system and verify the target geometry.
      1
      Use the M10 x 1 reverse-mount instruction: 7.5 N m recommended case torque and 22.6 N m maximum.
      2
      Match the 1 m probe with a 4 m or 6 m NSv extension for the selected 5 m or 7 m system.
      3
      Keep ClickLoc contacts clean and electrically protected; this reverse-mount execution has no protector option.
      4
      Observe the 25.4 mm minimum cable bend radius and support the unarmored lead without tension.
      5
      Check target geometry and probe separation; small shafts and closely placed probes can change calibration or create cross-talk.
      6
      Set the recommended 1.0 mm gap and keep intended target movement inside the applicable 1.5 mm linear region.
      7
      Check the negative DC conditioner supply, monitor triad wiring and the actual field-cable response.
      8
      Assess the pressure seal independently; prolonged exposure below -34 deg C can cause premature seal failure.

      Technical notes

      Technical notes

      Pair the 1 m probe with the selected NSv extension and 5 m or 7 m Proximitor system. The reverse-mount construction has separate torque instructions and does not offer armor or connector-protector options.

      FAQS

      • Does 330907-05-30-10-02-00 use the standard forward-mount M10 case torque?
        Use the reverse-mount row: 7.5 N m recommended and 22.6 N m maximum. The 11.3 N m recommendation for standard M10 cases is a different support condition.
      • Why is the usable span of 330907-05-30-10-02-00 shorter than an XL 8 mm system?
        The NSv design improves side-view and small-target behavior. Its matched system has a 1.5 mm linear span, approximately 0.25 to 1.75 mm from the target, rather than the XL 8 mm system span.
      • Can armor or a connector-protector option be selected on 330907-05-30-10-02-00?
        Reverse-mount NSv probes are not available with either option. The -02 connection is a miniature coaxial ClickLoc on standard cable; provide application-appropriate protection without implying an included factory protector.
      • What probe resistance identifies the 1 m lead on 330907-05-30-10-02-00?
        The center-to-outer-conductor nominal resistance is 4.2 +/- 0.5 ohm. Measure the isolated probe; this value does not describe the extension or the complete connected monitor circuit.
      • How does a small shaft affect a measurement using 330907-05-30-10-02-00?
        Radial measurements on shafts below 20 mm diameter generally change the average scale factor by more than 10%. Target geometry and probe separation need review against the NSv curves before using the nominal scale.
      • Can silicone tape protect the junction of 330907-05-30-10-02-00 when turbine oil is present?
        Silicone tape is not recommended where the probe-to-extension connection is exposed to turbine oil. Select a suitable environmental-protection arrangement for the installed connection.
      • Which historical-system upgrades can retain probes alongside 330907-05-30-10-02-00 in an NSv project?
        A 3300 RAM-to-NSv upgrade may retain the existing RAM probe, extension and monitor with an NSv Proximitor. Upgrades from a 3000-series or 7000-series 190 system require replacement of probe, extension and conditioner with NSv components.
      • How much conditioner-to-monitor field wiring is documented for 330907-05-30-10-02-00?
        The NSv datasheet specifies up to 305 m and recommends a three-conductor shielded triad. Review the magnitude and phase response curves for the actual length before accepting high-frequency performance.
