      330850-51-CN

      25 mm Proximitor
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

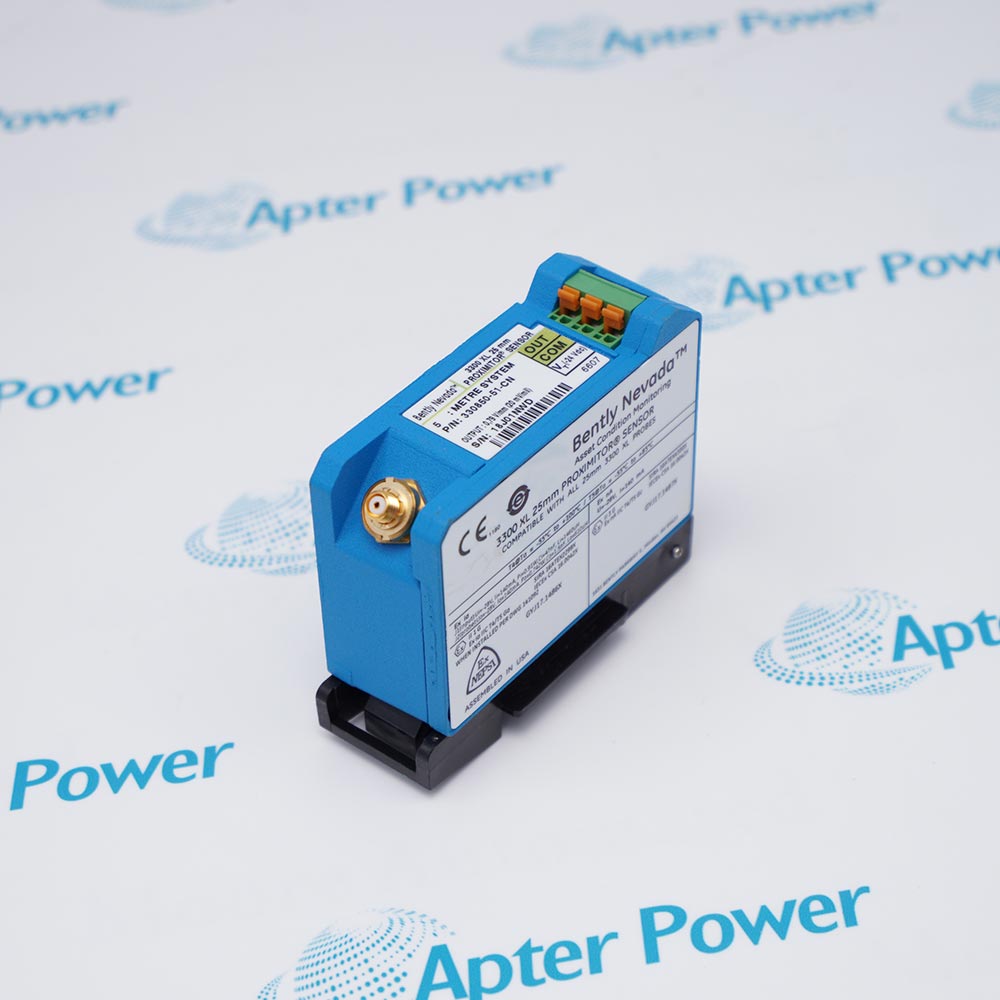

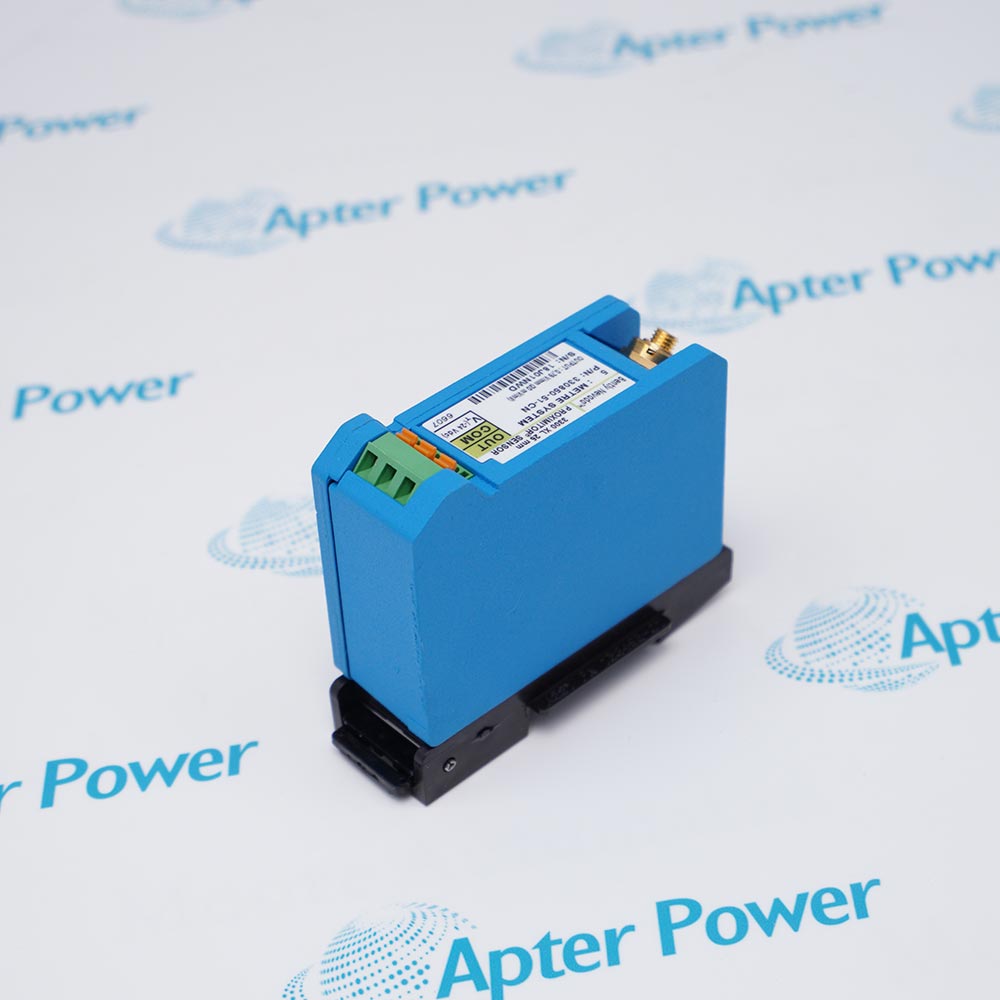

      Bently Nevada 330850-51-CN is a DIN-mounted 3300 XL 25 mm Proximitor Sensor for differential-expansion and large-range position monitoring. The CN suffix is retained as a controlled marking and must be verified from the supplied unit.

      Ask our team:

      Get a quick price for： 330850-51-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330850-51-CN

      Technical specifications for 330850-51-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330850-51-CN
      • Estimated shipping dimensions:
        ​8.8x3.5x7cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Sensor family:
        330850 3300 XL 25 mm Proximitor Sensor
      • Mounting option:
        51 = DIN-rail mounting
      • CN control:
        Retain supplied suffix; verify physical marking
      • Compatible probes:
        330851 or 330852 with matching extension cable
      • Measurement role:
        Differential expansion and large-range shaft position
      • Nominal incremental scale factor:
        0.394 V/mm
      • Frequency response:
        0 to 1.47 kHz under published conditions
      • Output resistance:
        50 ohm
      • Power:
        Negative DC supply within manufacturer-published limits
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330850-51-CN is a DIN-mounted 3300 XL 25 mm Proximitor Sensor for differential-expansion and large-range position monitoring. The CN suffix is retained as a controlled marking and must be verified from the supplied unit.
      • 3300 XL 25 mm signal conditioning
      • DIN-rail mounting option
      • Differential-expansion measurement
      • Controlled CN suffix identity

      Apply 330850-51-CN only to a documented 3300 XL 25 mm transducer chain and compatible differential-expansion channel.

      Important Notice: Confirm 330850-51-CN, DIN mounting, CN marking, probe chain, target and monitor scaling before release.

      Bently Nevada 330850-51-CN Manuals & Downloads
      Bently Nevada 330850-51-CN Technical Reference (PDF)Bently Nevada 330850-51-CN Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Differential expansion
      Measures rotor-to-casing axial movement through the matched 25 mm system.
      Large-range position
      Provides conditioned shaft-position output for compatible monitoring channels.
      Turbine protection
      Supports documented differential-expansion alarm and trip logic.
      Channel restoration
      Restores a controlled 330850 DIN-mounted signal-conditioning position.
      Read the applicable Bently Nevada instructions before work. Verify Bently Nevada 330850-51-CN and the installed system configuration before commissioning.
      1
      Verify the complete 330850-51-CN marking.
      2
      Retain and verify the CN suffix.
      3
      Use only a compatible 25 mm probe and extension cable.
      4
      Confirm DIN-rail mounting and electrical isolation.
      5
      Preserve the documented target geometry and material.
      6
      Provide the correct negative DC supply.
      7
      Set the static gap with the current manufacturer procedure.
      8
      Verify polarity, scale factor, travel and alarm action before release.

      Technical notes

      Technical notes

      Publication 163236 defines the 330850 family and DIN mounting option but does not decode CN. Match the sensor only with the approved 25 mm probe and extension cable, then verify supply, target, gap and channel scaling.

      FAQS

      • What is Bently Nevada 330850-51-CN?
        It is a 330850 3300 XL 25 mm Proximitor Sensor configuration for differential-expansion service.
      • Which mounting option applies to Bently Nevada 330850-51-CN?
        Order option 51 identifies the DIN-rail mounting configuration in the current 330850 table.
      • How should the CN suffix be handled for Bently Nevada 330850-51-CN?
        Retain CN exactly and verify the supplied approval marking; the current public table does not decode CN.
      • Which probe family is compatible with Bently Nevada 330850-51-CN?

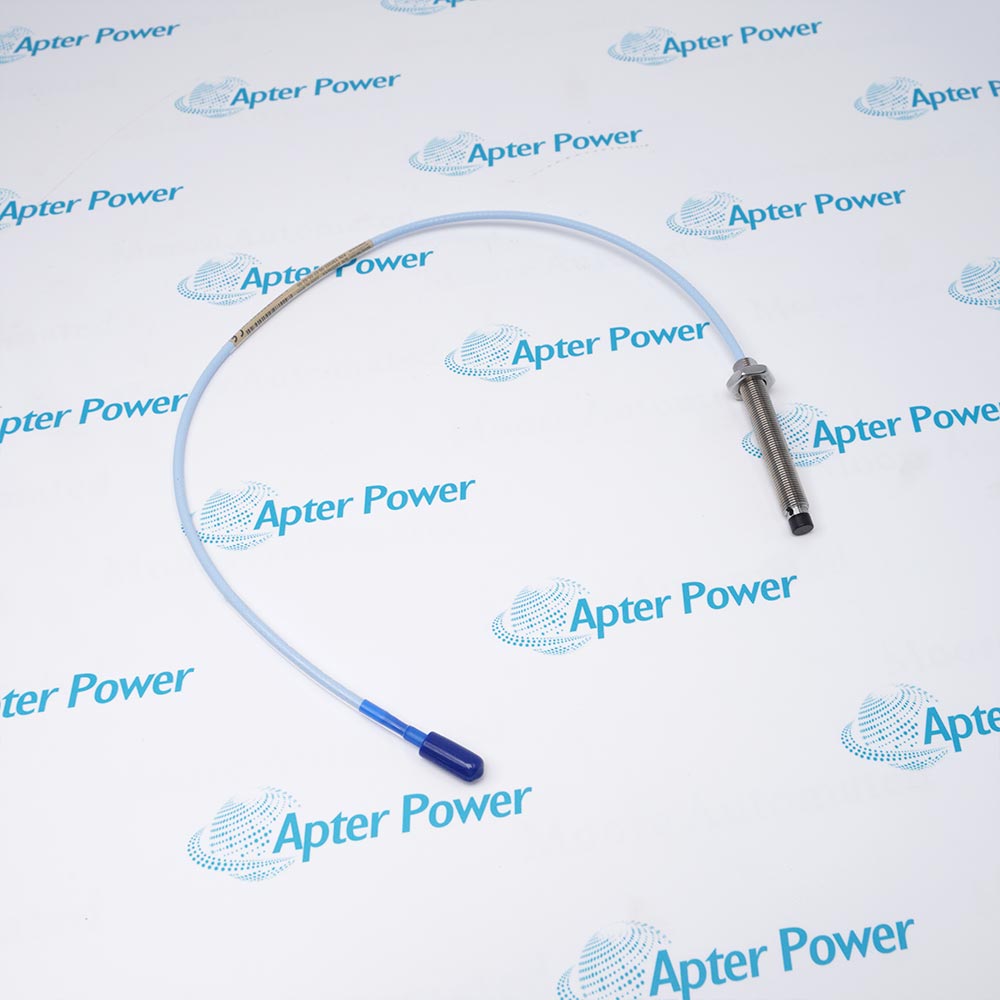

        Use it only with the documented 330851 or 330852 probe and matching extension cable.
      • What power applies to Bently Nevada 330850-51-CN?
        The 25 mm Proximitor family uses the manufacturer-published negative DC supply limits.
      • What nominal scale factor applies to Bently Nevada 330850-51-CN?
        The matched 25 mm system publishes a nominal incremental scale factor of 0.394 V/mm.
      • Which application is typical for Bently Nevada 330850-51-CN?
        The system is designed for differential-expansion and other large-range shaft-position measurements.
      • What confirms commissioning of Bently Nevada 330850-51-CN?
        Verify the full marking, DIN mounting, compatible probe chain, target, gap, polarity, scale factor and channel response.
