      330780-90-00

      Proximitor Sensor
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

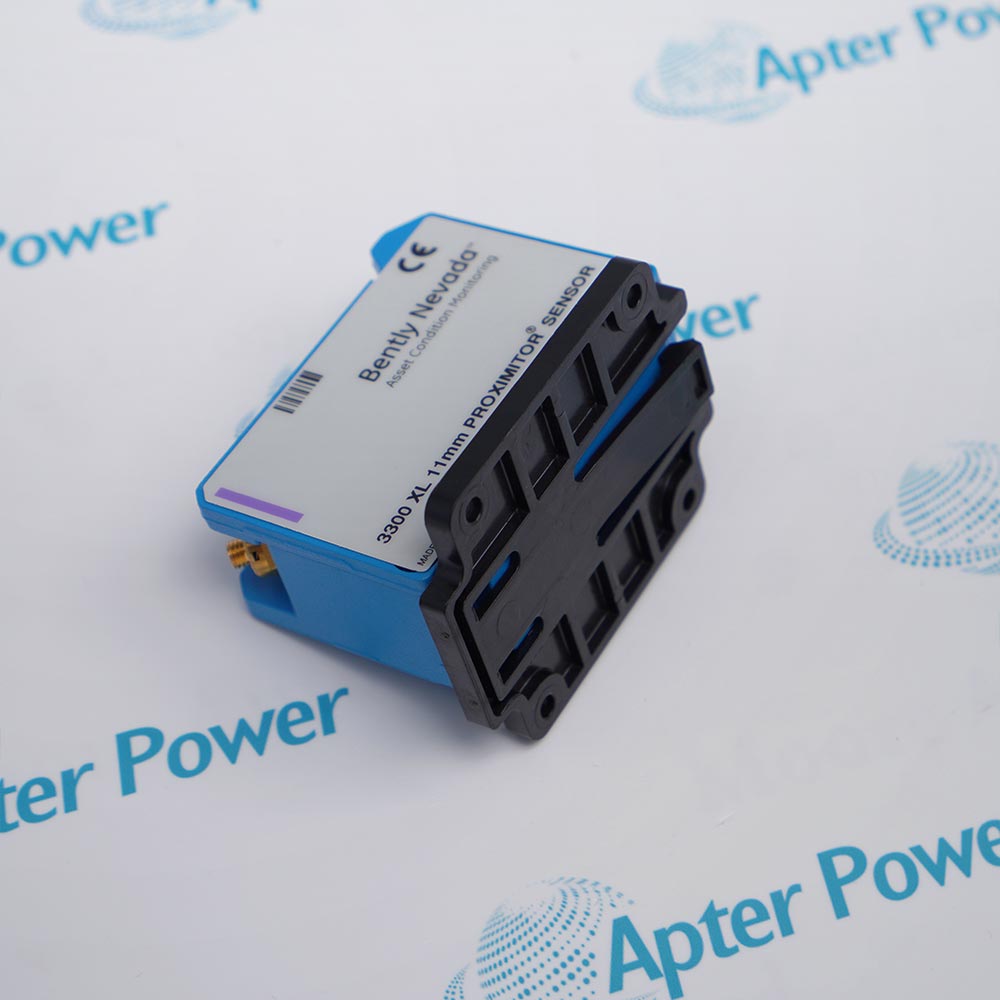

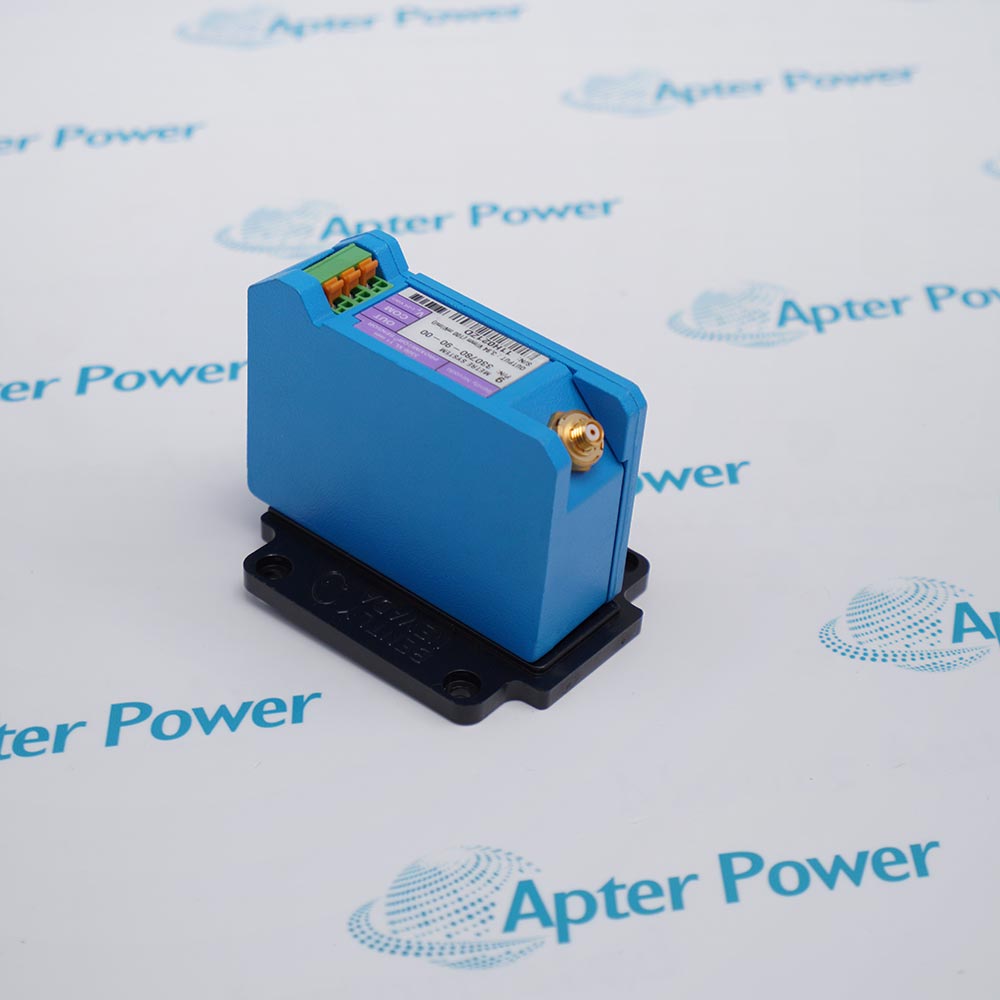

      Bently Nevada 330780-90-00 is a panel-mount 3300 XL 11 mm Proximitor Sensor calibrated for a 9.0 m transducer system.

      Ask our team:

      Get a quick price for： 330780-90-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330780-90-00

      Technical specifications for 330780-90-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330780-90-00
      • Estimated shipping dimensions:
        7.8x6x6.2cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • sensor family:
        3300 XL 11 mm
      • sensor model:
        330780
      • system length:
        9.0 m
      • mounting:
        panel mount
      • agency approval option:
        not required
      • nominal system sensitivity:
        3.94 V/mm (100 mV/mil)
      • linear range:
        4.0 mm from approximately 0.5 to 4.5 mm
      • field wiring limit:
        305 m between sensor and monitor
      • terminal style:
        SpringLoc terminal strips
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330780-90-00 is a panel-mount 3300 XL 11 mm Proximitor Sensor calibrated for a 9.0 m transducer system.
      • Conditions an 11 mm proximity system
      • Matches a 9 m system length
      • Uses panel mounting
      • Provides SpringLoc field terminals

      Install 330780-90-00 only with the documented Bently Nevada 3300 System components. Preserve exact interfaces, wiring and configuration during commissioning.

      Important Notice: Only pair 330780-90-00 with documented 9 m 3300 XL 11 mm probe-plus-extension assemblies and preserve calibration identity.

      Bently Nevada 330780-90-00 Manuals & Downloads
      Bently Nevada 330780-90-00 Technical Reference (PDF)Bently Nevada 330780-90-00 Installation & Commissioning Guide (PDF)

      These documents are different: the first consolidates verified product and system data; the second provides installation checks, commissioning steps and acceptance records.

      Long-range thrust position
      Conditions the long-range axial-position signal.
      Ramp differential expansion
      Supports documented turbine ramp differential expansion.
      Rod position monitoring
      Measures reciprocating-compressor rod position or drop.
      Panel-mounted signal conditioning
      Interfaces the 11 mm transducer loop to the monitor.
      Read the applicable Bently Nevada instructions before work. Verify 330780-90-00, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete 330780-90-00 marking and its assigned Bently Nevada 3300 System position before work.
      2
      Place the connected long-range thrust position process in the approved maintenance state.
      3
      Isolate every documented power, signal and stored-energy source before disconnecting conductors or cables.
      4
      Record the installed slot, connectors, conductors, addressing, firmware and software configuration before removal.
      5
      Use ESD-safe handling and protect keyed electrical, fiber or sensor interfaces as applicable.
      6
      Confirm the installed Bently Nevada 3300 System and the documented companion module against the approved project.
      7
      Restore power in a controlled sequence and review device, network and host diagnostics.
      8
      Prove the intended ramp differential expansion function and retain the final acceptance result.

      Technical notes

      Technical notes

      Only pair 330780-90-00 with documented 9 m 3300 XL 11 mm probe-plus-extension assemblies and preserve calibration identity.

      FAQS

      • Which official sensor family applies to Bently Nevada 330780-90-00?
        Baker Hughes documents the sensor family as 3300 XL 11 mm. Verify this exact identity and its installed configuration before service.
      • How is the sensor model identified for Bently Nevada 330780-90-00?
        Baker Hughes documents the sensor model as 330780. Verify this exact identity and its installed configuration before service.
      • What system length is documented for Bently Nevada 330780-90-00?
        Baker Hughes documents the system length as 9.0 m. Verify this exact identity and its installed configuration before service.
      • Which mounting must be retained for Bently Nevada 330780-90-00?
        Baker Hughes documents the mounting as panel mount. Verify this exact identity and its installed configuration before service.
      • What does Baker Hughes specify as the agency approval option for Bently Nevada 330780-90-00?
        Baker Hughes documents the agency approval option as not required. Verify this exact identity and its installed configuration before service.
      • How should technicians verify the nominal system sensitivity of Bently Nevada 330780-90-00?
        Baker Hughes documents the nominal system sensitivity as 3.94 V/mm (100 mV/mil). Verify this exact identity and its installed configuration before service.
      • Which published linear range distinguishes Bently Nevada 330780-90-00?
        Baker Hughes documents the linear range as 4.0 mm from approximately 0.5 to 4.5 mm. Verify this exact identity and its installed configuration before service.
      • What is the documented field wiring limit used by Bently Nevada 330780-90-00?
        Baker Hughes documents the field wiring limit as 305 m between sensor and monitor. Verify this exact identity and its installed configuration before service.
